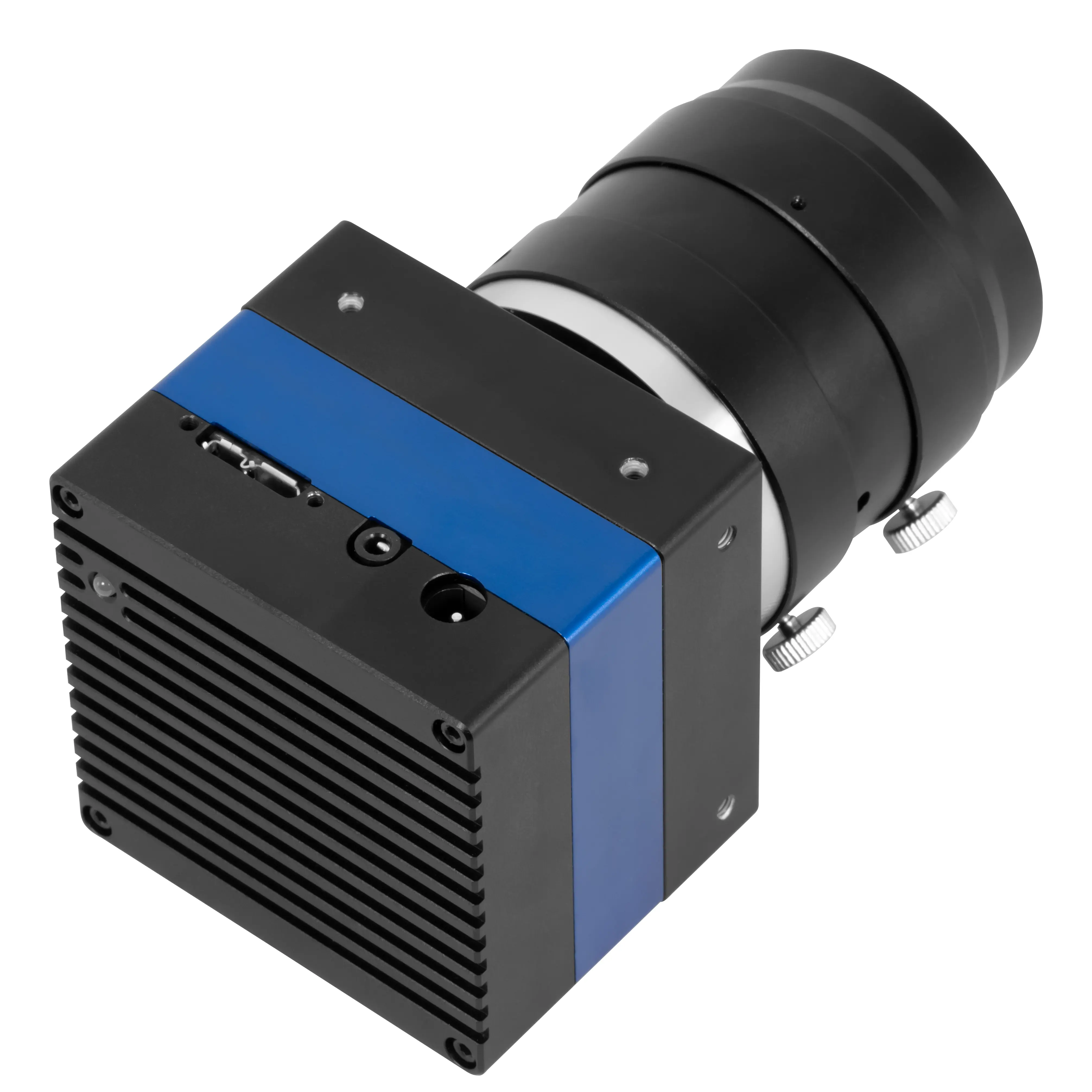

Condition Monitoring High Speed Camera PCE-HSC 8960

Order no.: PCE-HSC 8960
GTIN (EAN): 4250348736079
₹1,022,985.00
₹1,207,122.30
price ex. (VAT / delivery)
:
4250348736079
PCE-HSC 8960
Delivery time: 1-2 working days

Description

High Speed Camera / portable or permanently installed / compatible with C-mount lenses / LED status display

The High Speed Camera sets standards in the world of high-resolution slow-motion recordings. Equipped with a modern 5 megapixel CMOS sensor, this model provides razor-sharp images with a high level of detail. The ability to record events at extremely high frame rates makes it possible to capture details and phenomena that cannot be seen with the naked eye or normal cameras.

With an impressive recording speed of up to 8960 frames per second (FPS), the High Speed Camera enables the investigation of processes that remain invisible to the naked eye. The integrated USB 3.0 interface ensures quick and reliable data transfer so that recordings can be processed and analysed in real time on a PC. In addition, the trigger input with remote release enables precise control of the recording times, which is particularly important for experiments or precise time-lapse recordings. The robust metal housing protects the High Speed Camera from the challenges of daily use and guarantees a long service life even under the most demanding conditions. The professional PC software included in the delivery scope offers a comprehensive range of tools for image processing as well as for analysing and organising your recordings.

Whether conducting scientific experiments, monitoring industrial processes or creating stunning slow-motion footage for film projects, this High Speed Camera offers the performance and flexibility required to realise visions with precision.


Highlights

- 5 MP CMOS sensor
- up to 8960 FPS
- USB 3.0 interface
- trigger input
- robust metal housing
- PC software

Specification

General technical data
Interface  Micro USB 3.0
Sensor  CMOS
Resolution  2560 x 1024 @ 140 FPS
1920 x 768 @ 245 FPS
1280 x 512 @ 560 FPS
800 x 320 @ 1432 FPS
640 x 256 @ 2240 FPS
320 x 128 @ 8960 FPS
Housing  Aluminium
Tripod thread  1/4 inch
Luminous intensity  33 W dimmable
35800 lx @ 0.5 m
9600 lx @ 1 m
2500 lx @ 2 m
Fastening  Fine thread M2.5

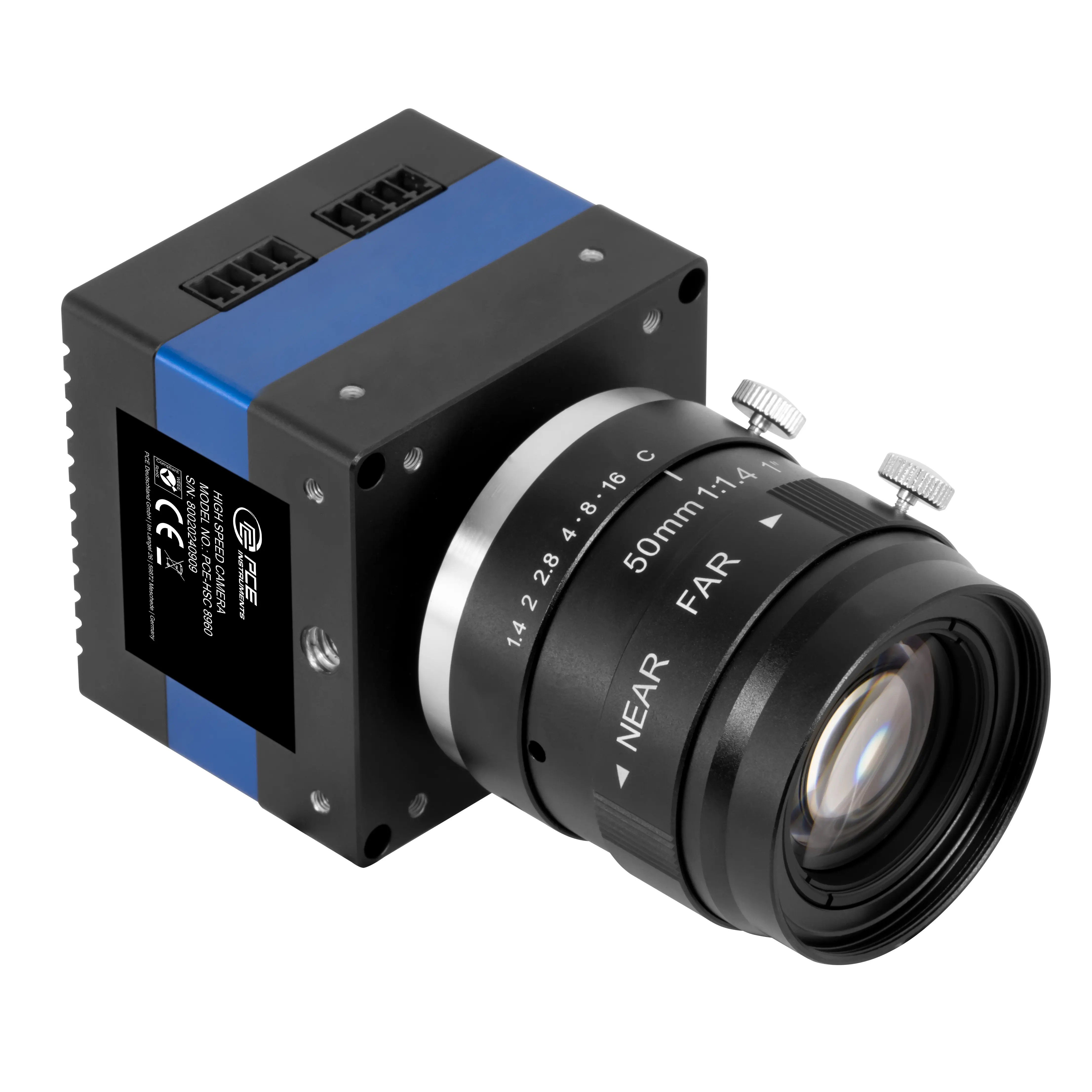

Lens  F1.4 / f=50mm
C mount / CS mount
Image / video format  bmp, JPG, PNG, mp4, mpg
Trigger input  TTL/RS-422 from the extension I/O connection
Sensitivity  ISO 100 ... 6400 (monochrome)
Pixel size  5 µm
Digital amplification  0.01 ... 16 x
Shutter speed  0.001 ... 100 mS
Protection class (device)  IP20
Power supply  100 ... 240 V AC | 50/60 Hz
Mains adaptors included
Connector type  Euro plug
Weight  509 g
Operating conditions  0 ... 40 °C , 20 ... 80 % RH
Storage conditions  -20 ... 60 °C , 20 ... 95 % RH
Dimensions ( L x W x H )  110 x 60 x 60 mm

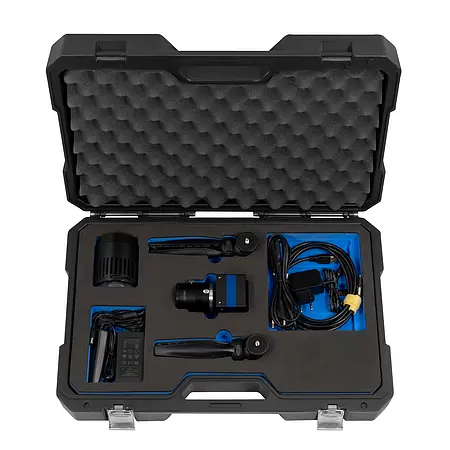

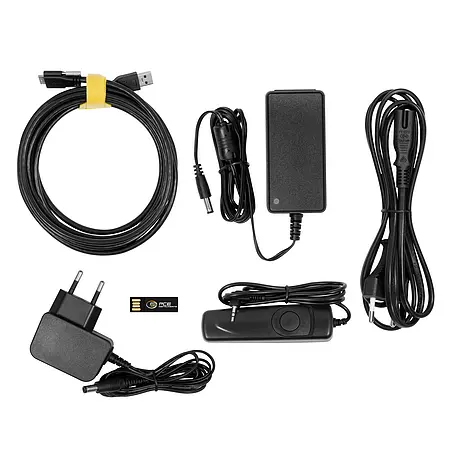

Delivery Scope

1 x High Speed Camera PCE-HSC 8960

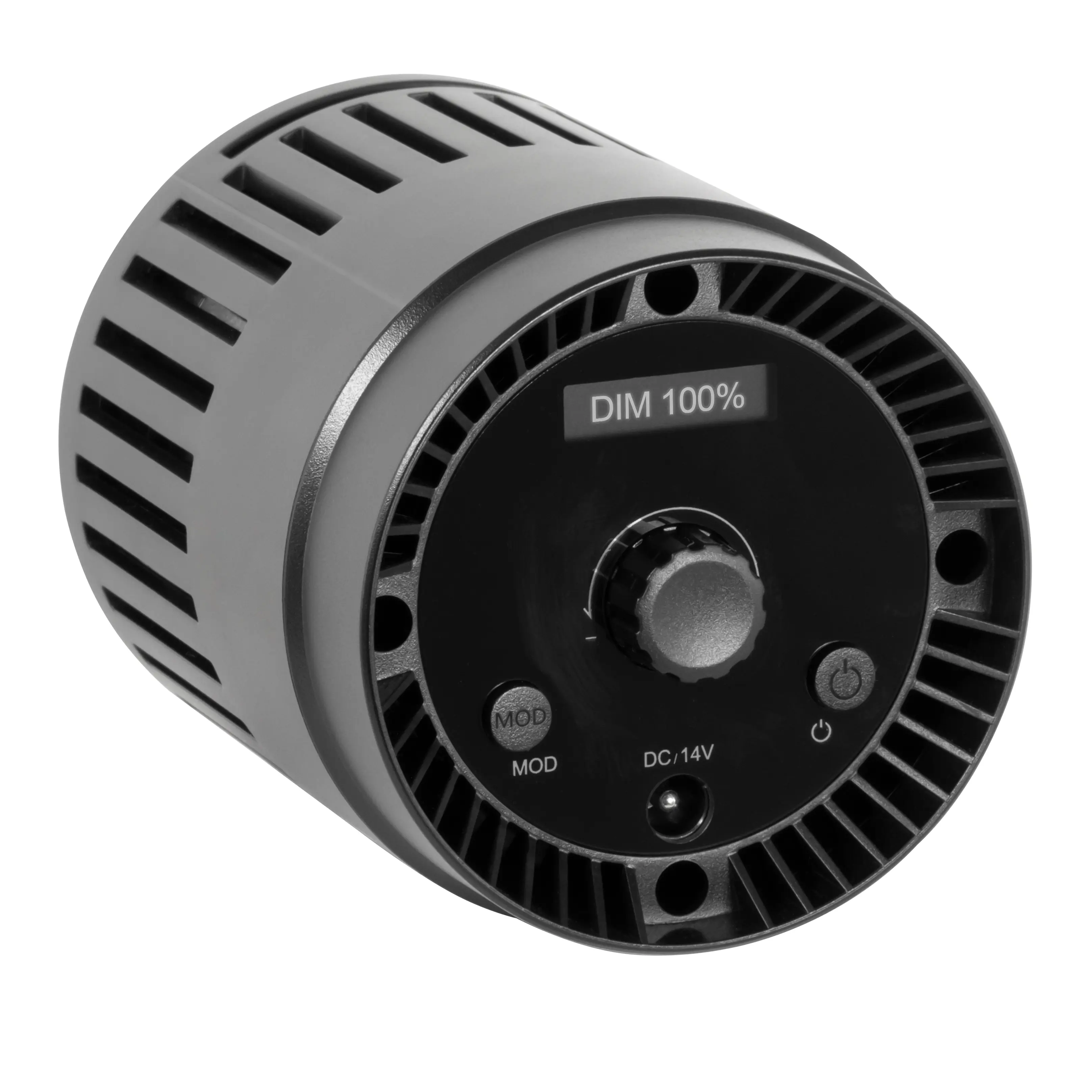

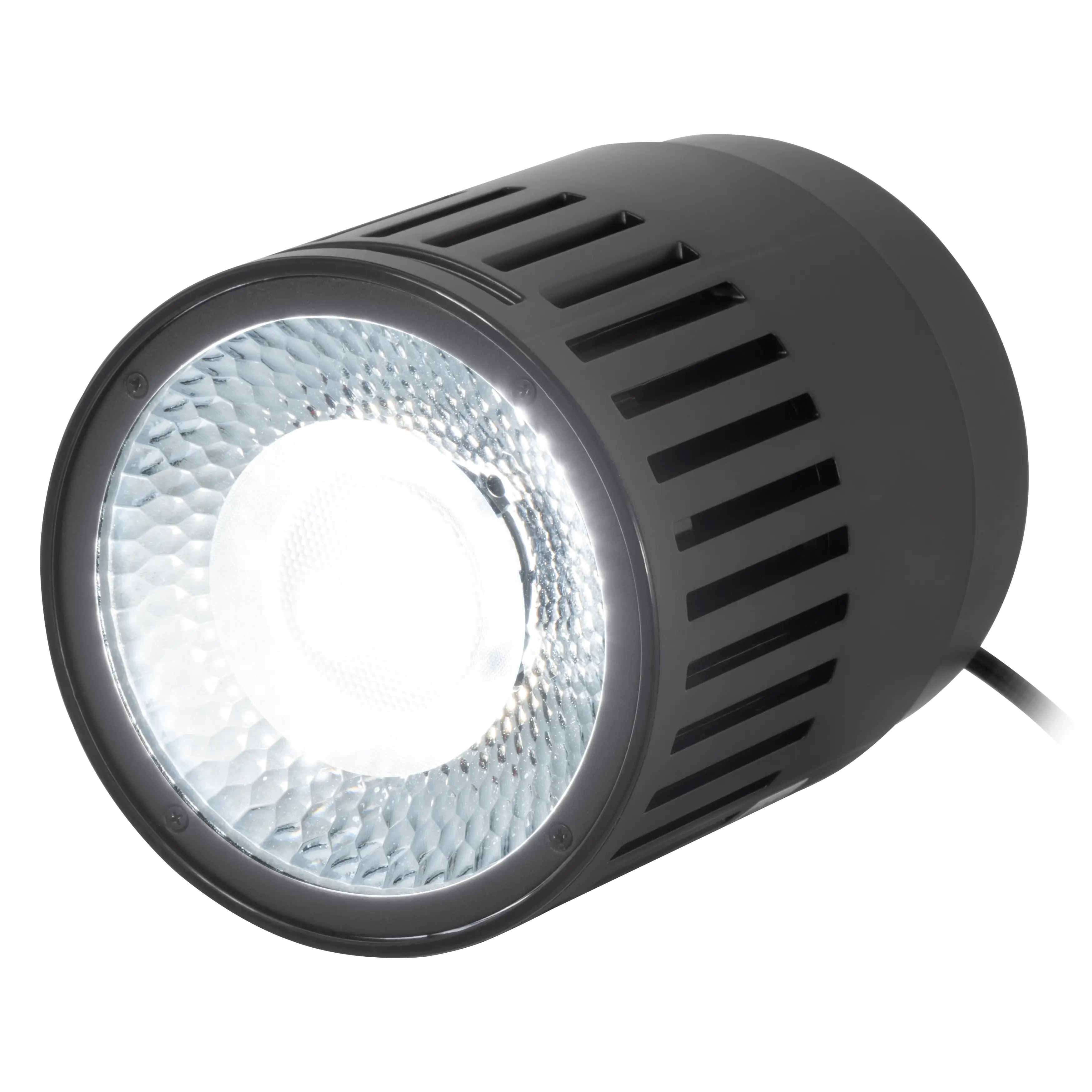

1 x LED light

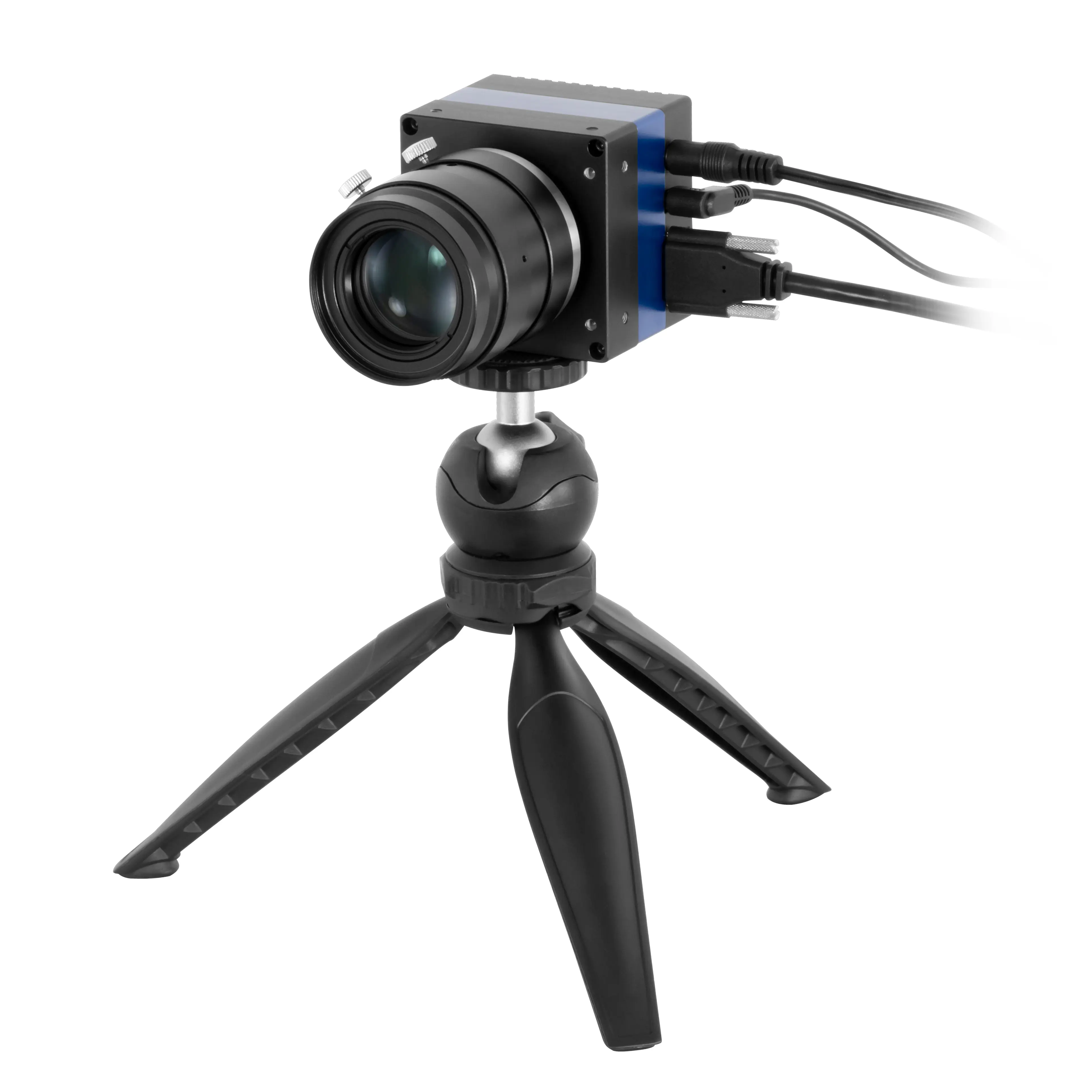

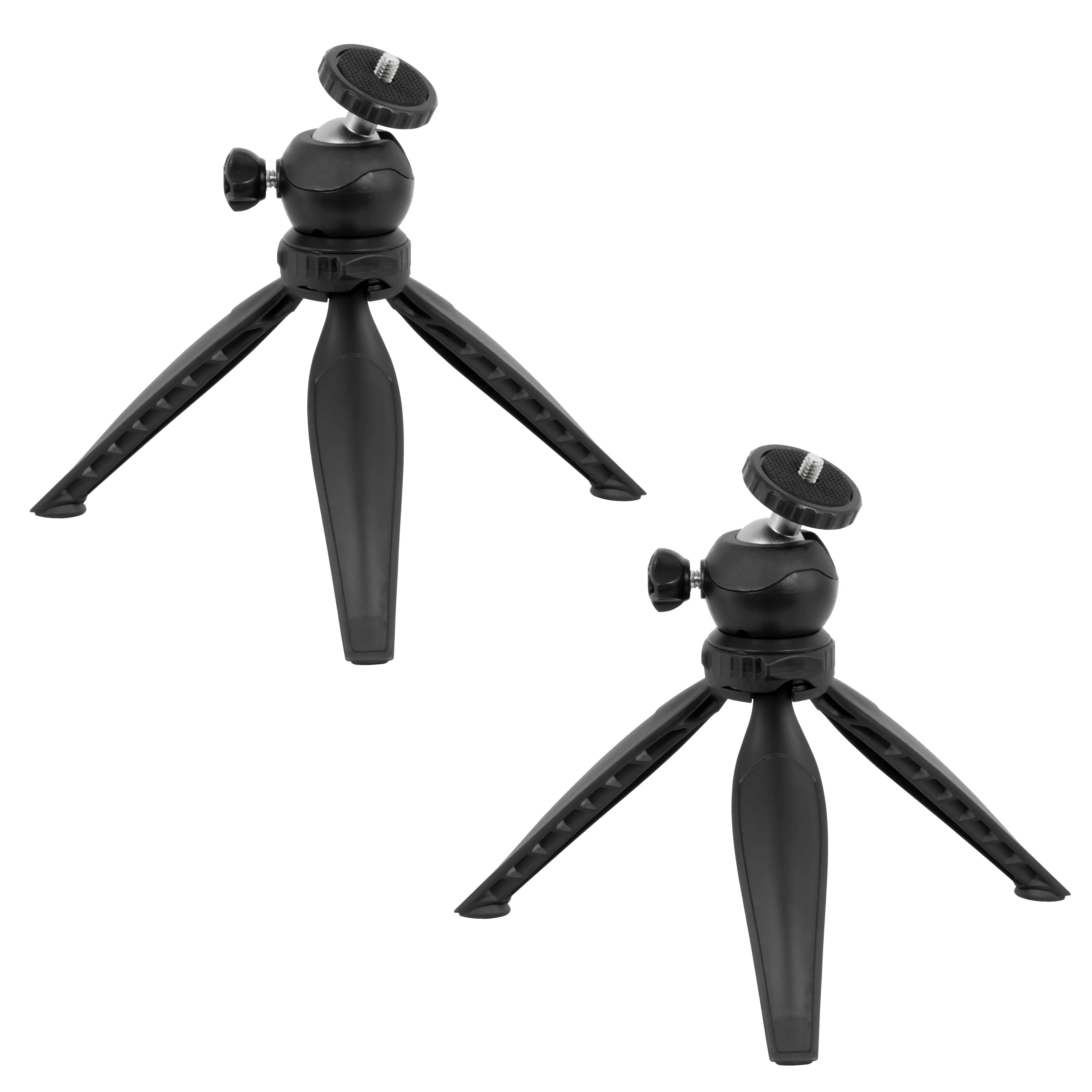

2 x small tripod

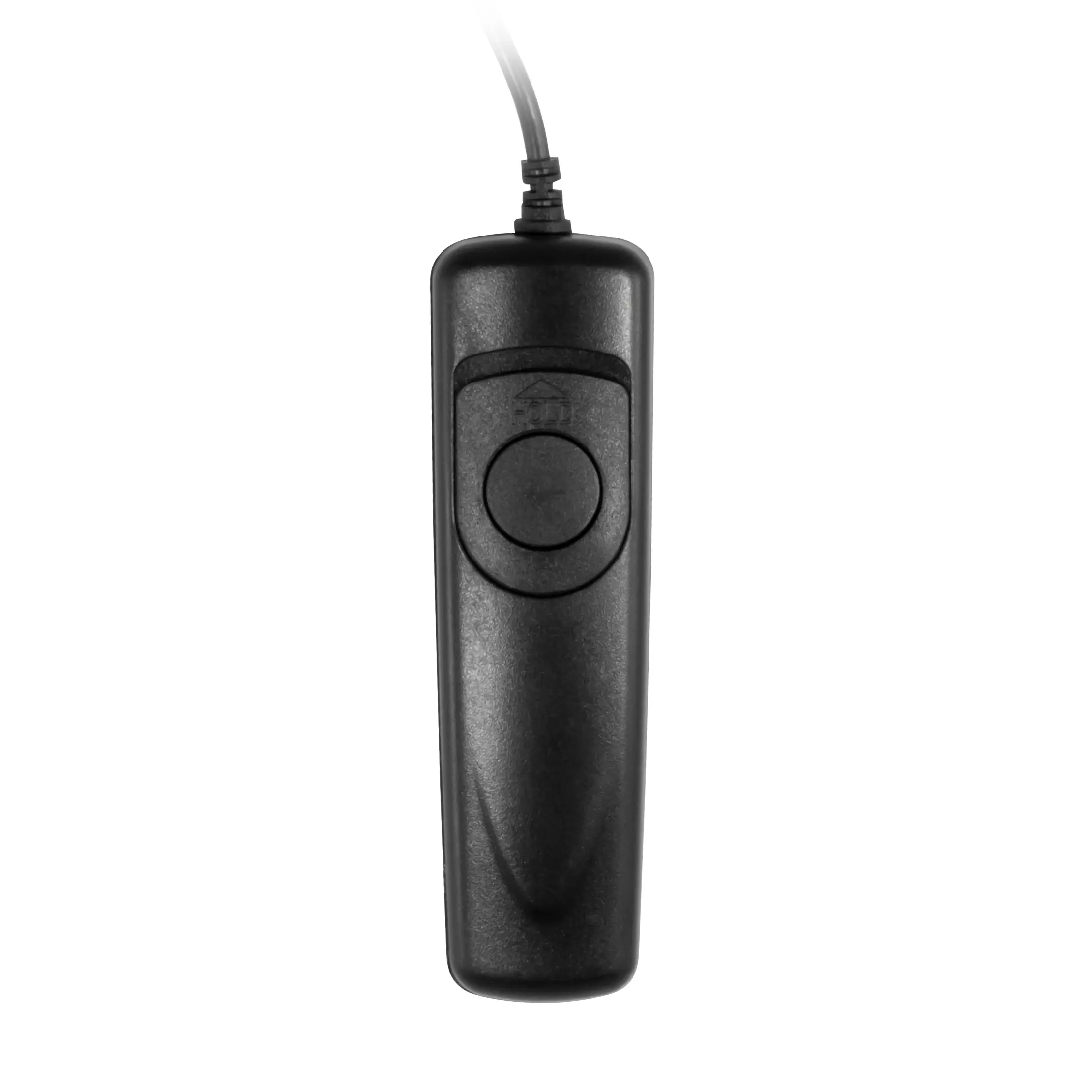

1 x remote trigger release
1 x mains adaptor 14 V / 2.8 A
1 x mains adaptor 12 V / 1 A

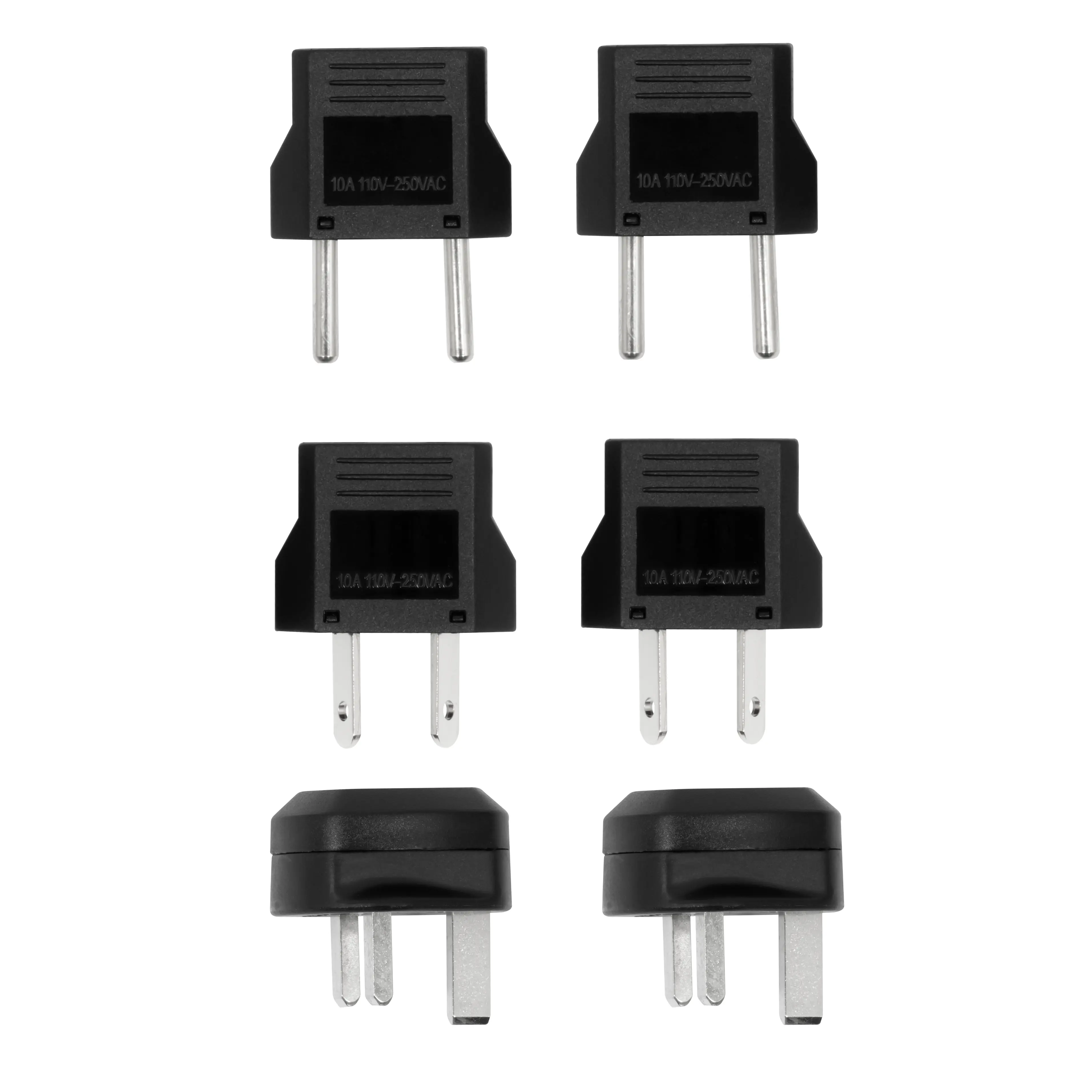

2 x I-type plug adaptor
2 x G-type plug adaptor
2 x F-type plug adaptor
1 x USB 3.0 cable
1 x PC software on USB pen drive

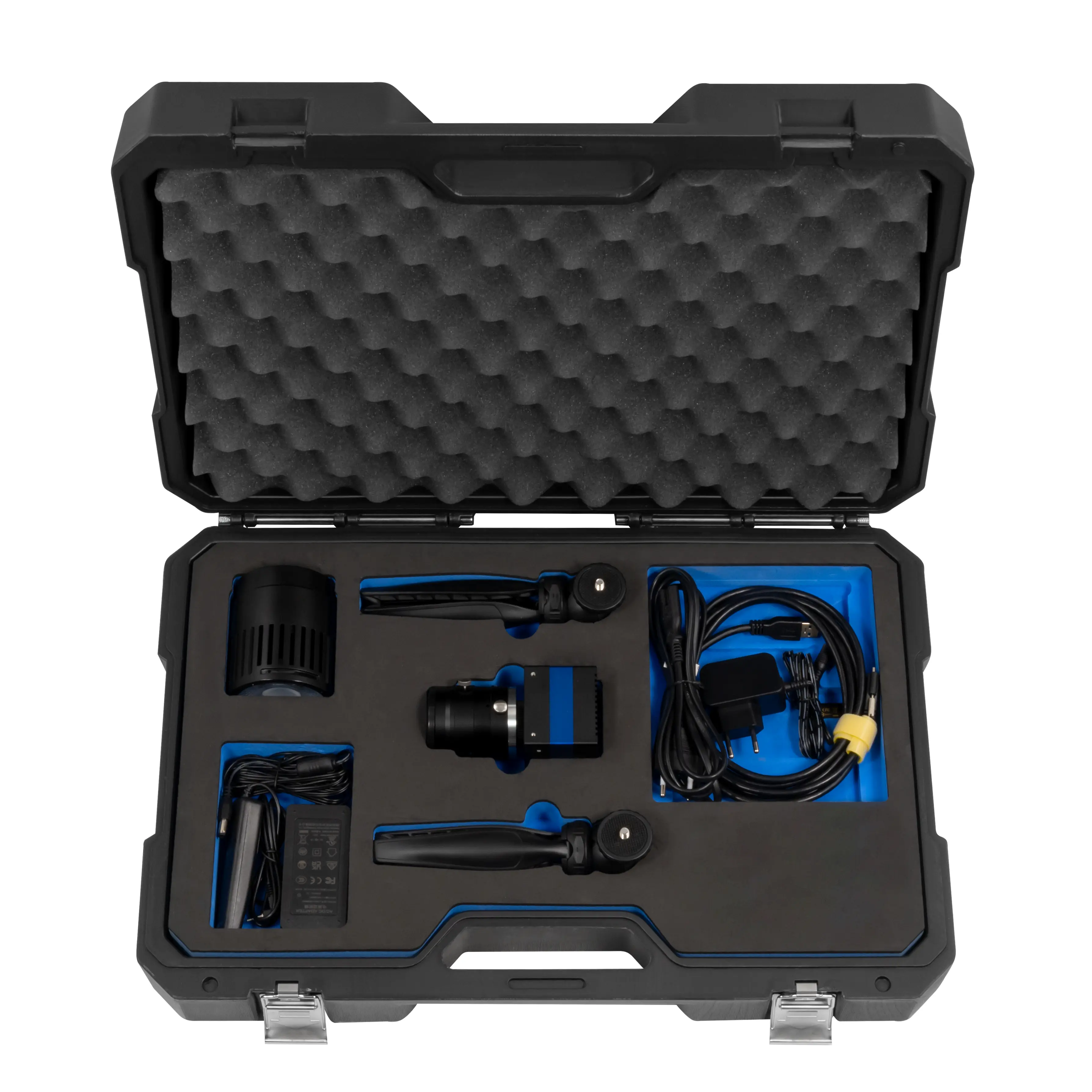

1 x carrying case
1 x user manual
