Multifunction Conductivity Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate

Order no.: PCE-PHD 1-ICA

GTIN (EAN): 4250348726537

Accessory

USB Data Cable Incl. Software SOFT-LUT-USB

₹12,782.00

Power Supply 9 V / 1 A (European)

₹3,705.00

Power Supply 9 V / 0.8 A (US / North American)

₹2,366.00

Potassium Chloride Conductivity Solution 1413μS / cm 250 ml

₹3,408.00

Replacement Electrode CPC-OSH-12-00SP

₹17,246.00

Replacement conductivity electrode CDPB-03

Replacement electrode CDPB-03

₹8,169.00

Temperature sensor TP-07

₹5,193.00

Oxygen probe OXPB-11

₹14,716.00

Electrolytic solution OXEL-03

₹3,705.00

Replacement membrane OXHD-04

₹2,217.00

Carrying Case with hard foam insert

₹3,854.00

Food pH-electrode CPC-OSH-12-01

₹31,084.00

REDOX-Electrode ORP-14

₹12,633.00

Potassium Chloride Conductivity Solution 1413μS / cm 500 ml

₹4,152.00

ISO certificate CAL-PCE-PH for pH meters

₹10,699.00

pH-Electrode PE-03

₹7,574.00

Standard pH electrode CPC-EPS-1

₹14,270.00

Calibration Solution pH10

₹2,068.00

Calibration Solution pH7

₹888.65

Calibration Solution pH4

₹888.65

Calibration Solution pH4 and pH7 and pH10

₹2,132.75

Buffer solution PCE-PH2-500 500 ml

₹2,961.00

pH Electrode for Wine PCE-PH-WINE

₹56,678.00

Electrode Storage Solution 3mol / l

₹1,244.10

Conductance Solution Potassium Chloride PCE-CDS-12,88

₹3,408.00

Calibration Solution PCE-CDS-111,8

₹3,705.00

Diaphragm Cleaner with Thiourea PCE-DCS-250

₹4,300.00

Buffer solution PCE-PH12-500

₹2,961.00

Cleaning solution pepsin / hydrochloric acid PCE-GCS-500

₹3,259.00

Redox Solution +468 mV PCE-RTS-468

₹4,598.00

Redox Solution +240 mV PCE-RTS-220

₹4,598.00

pH Electrode PCE-PH-SLUR

₹22,454.00

pH Electrode PCE-PH-LIQ

₹22,454.00

Calibration Solution pH4 and pH7

₹1,688.43

pH Electrode IJ-44A

₹22,156.00

Description

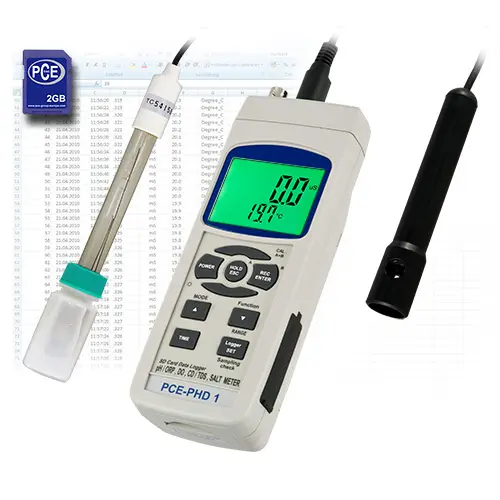

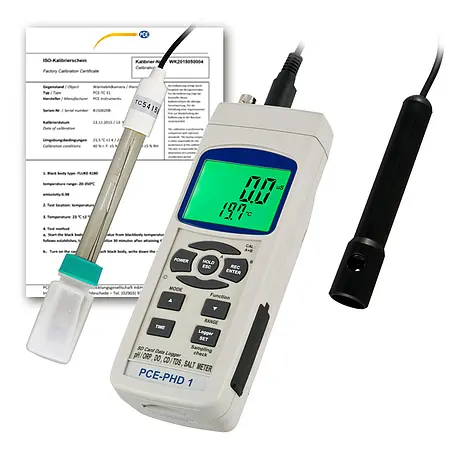

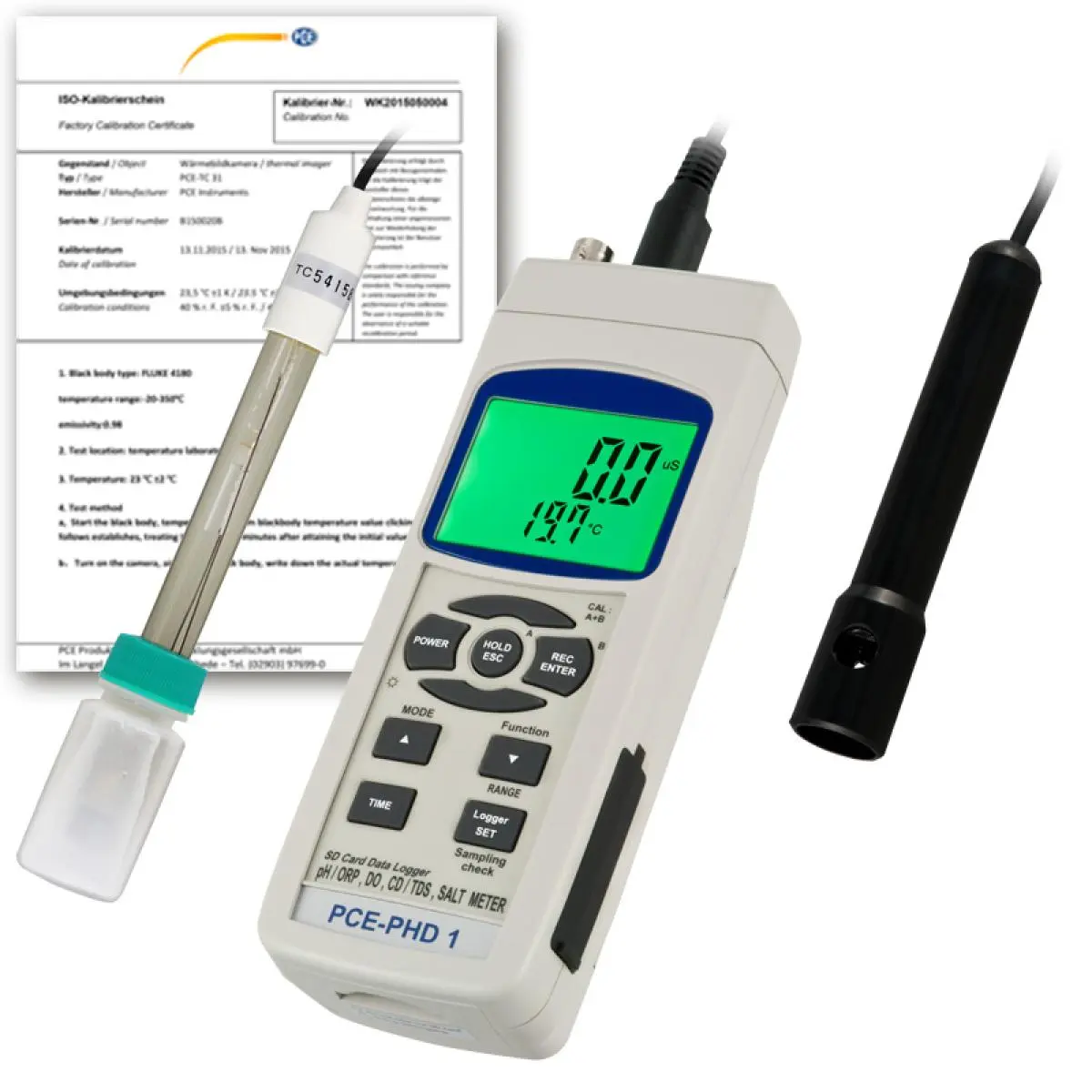

Multifunction Conductivity Meter PCE-PHD 1-ICA incl. ISO Calibration Certificate
pH value, redox, conductivity, salt, oxygen and temperature measuring device /
SD card memory (1 ... 16 GB), data is saved as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC

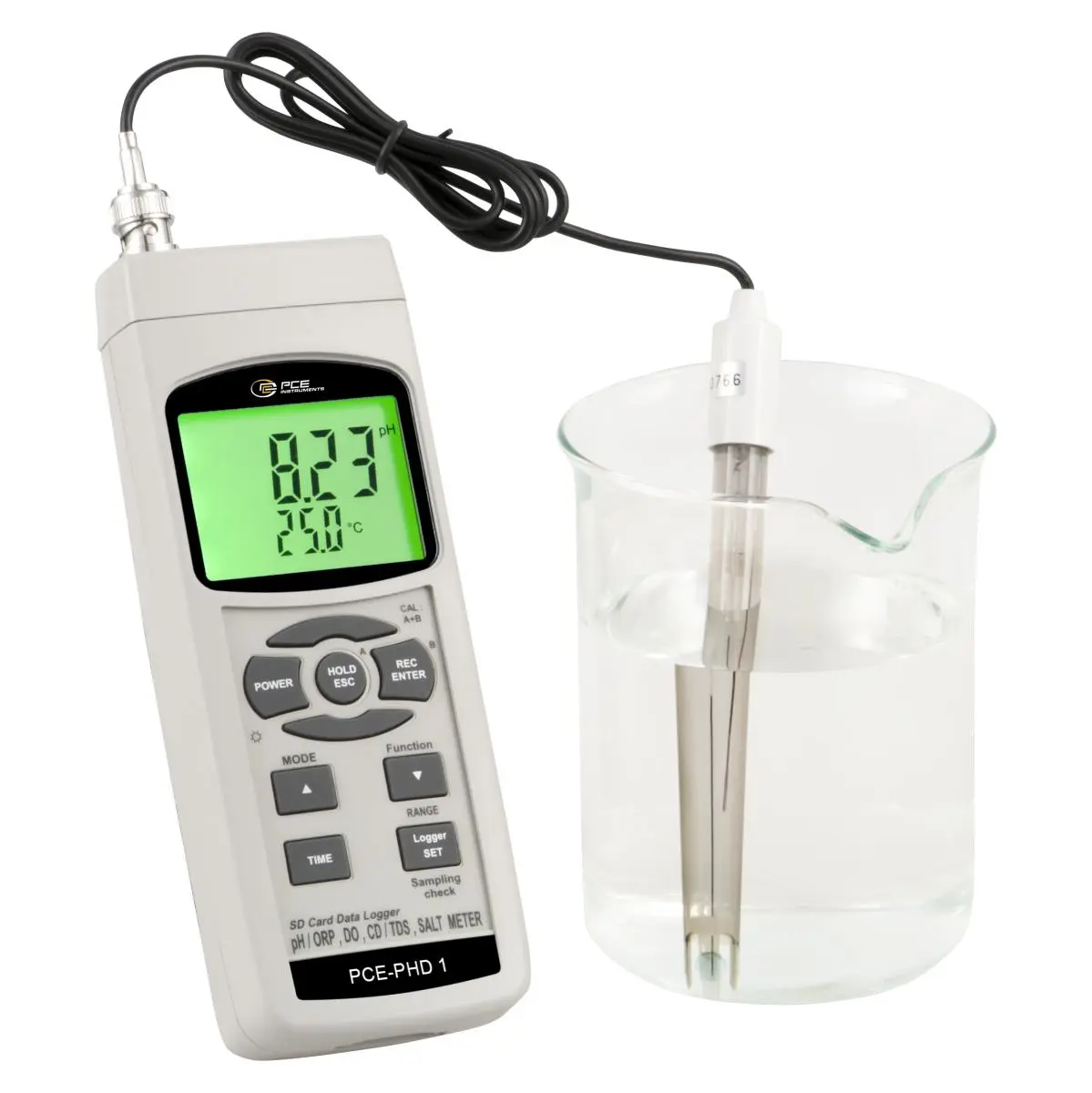

The Multifunction Conductivity Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water. Three-point calibration and automatic temperature compensation guarantee a high level of accuracy even with variable temperature measurements.

This meter is supplied with both a pH electrode and a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. This meter acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.

Highlights

- Optimal price / performance ratio
- Real-time data logger
- SD card memory (1 ... 16 GB)
- The saved data is saved directly as an Excel file on the SD card (for evaluation, no software is required)
- RS-232 interface for online data transfer
- Measures pH value, redox, conductivity, salt content, oxygen, and temperature
- High precision
- Low battery display
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing

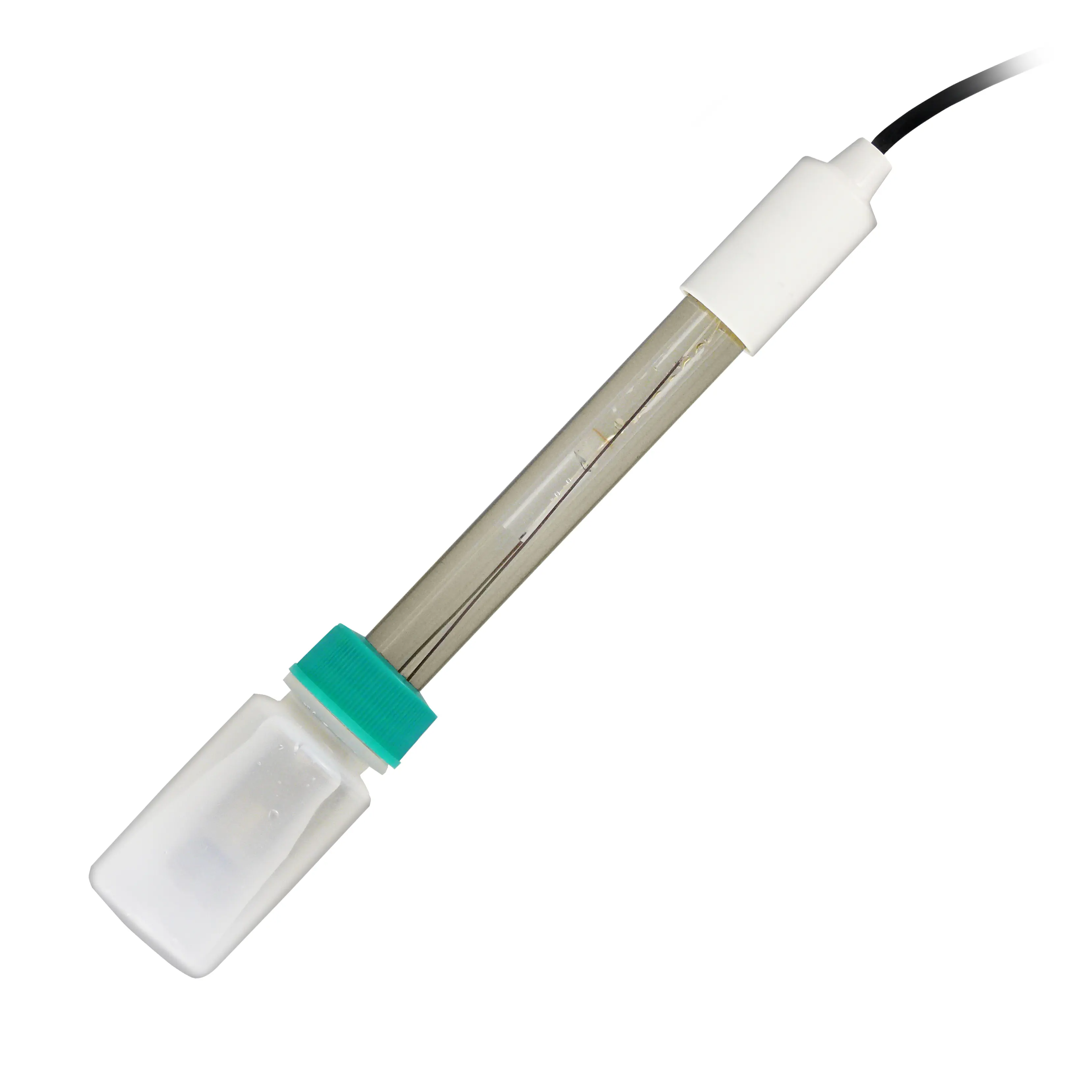

- Includes pH and conductivity electrode
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurements
- REDOX and oxygen electrode optionally available
- incl. ISO Calibration Certificate

Specification

pH measurement
Measurement range	0 ... 14.0 pH
Resolution	0.01 pH
Accuracy	±0.02 pH + 2 digits
Calibration	3 points (pH 4, pH 7, and pH 10)
Temperature compensation	Automatic with additional temperature sensor (0 ... 60 ºC / 32 ºF ... 140 ºF) or manual (0 ... 100 ºC / 32 ºF ... 212 ºF)

Redox measurement (optional)
Measurement range	1999 ... 0 ... 1999 mV
Resolution	1 mV
Accuracy	± 0.5 % + 2 digits

Conductivity measurement
Measurement range	0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
Resolution	0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy	±2 % of the measurement range + 1 digit
Calibration	1413 mS/cm
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Total dissolved solids (TDS) measurement
Measurement range	0 ... 132 ppm, 132 ... 1320 ppm, 1320 ... 13200 ppm, 13200 ... 132000 ppm
Resolution	0.1 ppm, 1 ppm, 10 ppm, 100 ppm
Accuracy	±2 % of the measurement range + 1 digit
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Salt content measurement
Measurement range	0 ... 12 % (of weight)
Resolution	0.1 %
Accuracy	±0.5 % of the measurement range
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

Oxygen measurement (optional)
Measurement range	0 ... 20 mg/l (in water), 0 ... 100 % (in air), 0 ... 50 ºC / 32 ºF ... 122 ºF
Resolution	0.1 mg/l, 0.1 %, 0.1 ºC
Accuracy	±0.4 mg/l, ±0.7 %, ±0.8 ºC
Calibration	In the air
Temperature compensation	Automatic (0 ... 50 ºC / 32 ºF ... 122 ºF)

Temperature measurement
Measurement range	0 ... 60 ºC / 32 ºF ... 140 ºF
Resolution	0.1 ºC
Accuracy	±0.8 ºC
Temperature compensation	Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

General specifications
Measurement rate	1 second up to 8 hrs 59 mins 59 secs
Display	LCD 52 x 38 mm / 2 x 1.5"
Memory	SD card up to 16 GB (2 GB card included)
Interface	RS-232
Software	Optional
Power supply	6 x 1.5 V AA batteries (optional power adapter)
Operating conditions	0 ... +50 ºC / < 85 % RH
Dimensions	177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight	490 g / 1.1 lbs

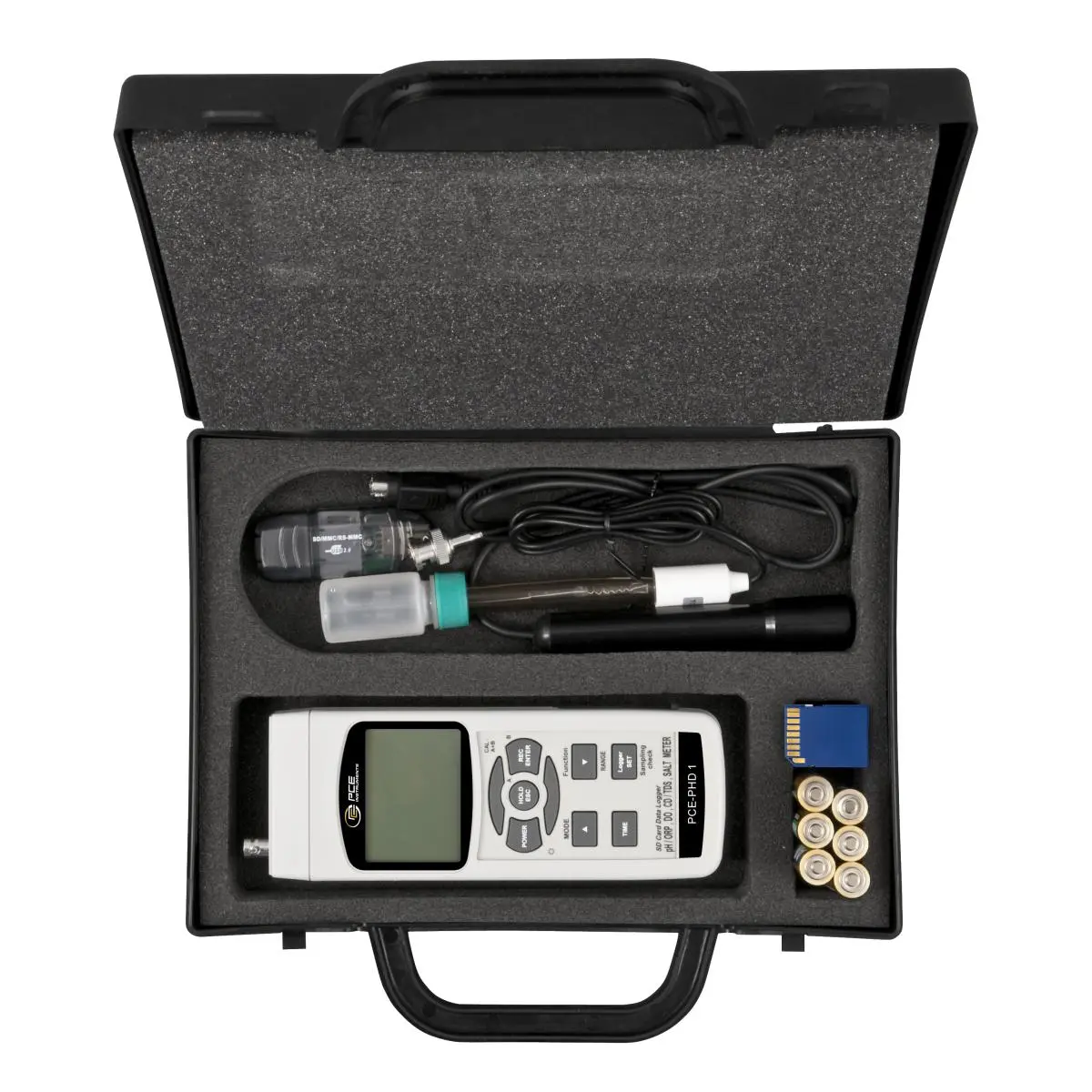

Delivery Scope

1 x PCE-PHD 1-ICA multifunction conductivity meter
1 x pH electrode
1 x conductivity electrode
1 x SD memory card
6 x 1.5 V AA batteries
1 x user manual
1 x ISO Calibration Certificate
