₹3,854.00

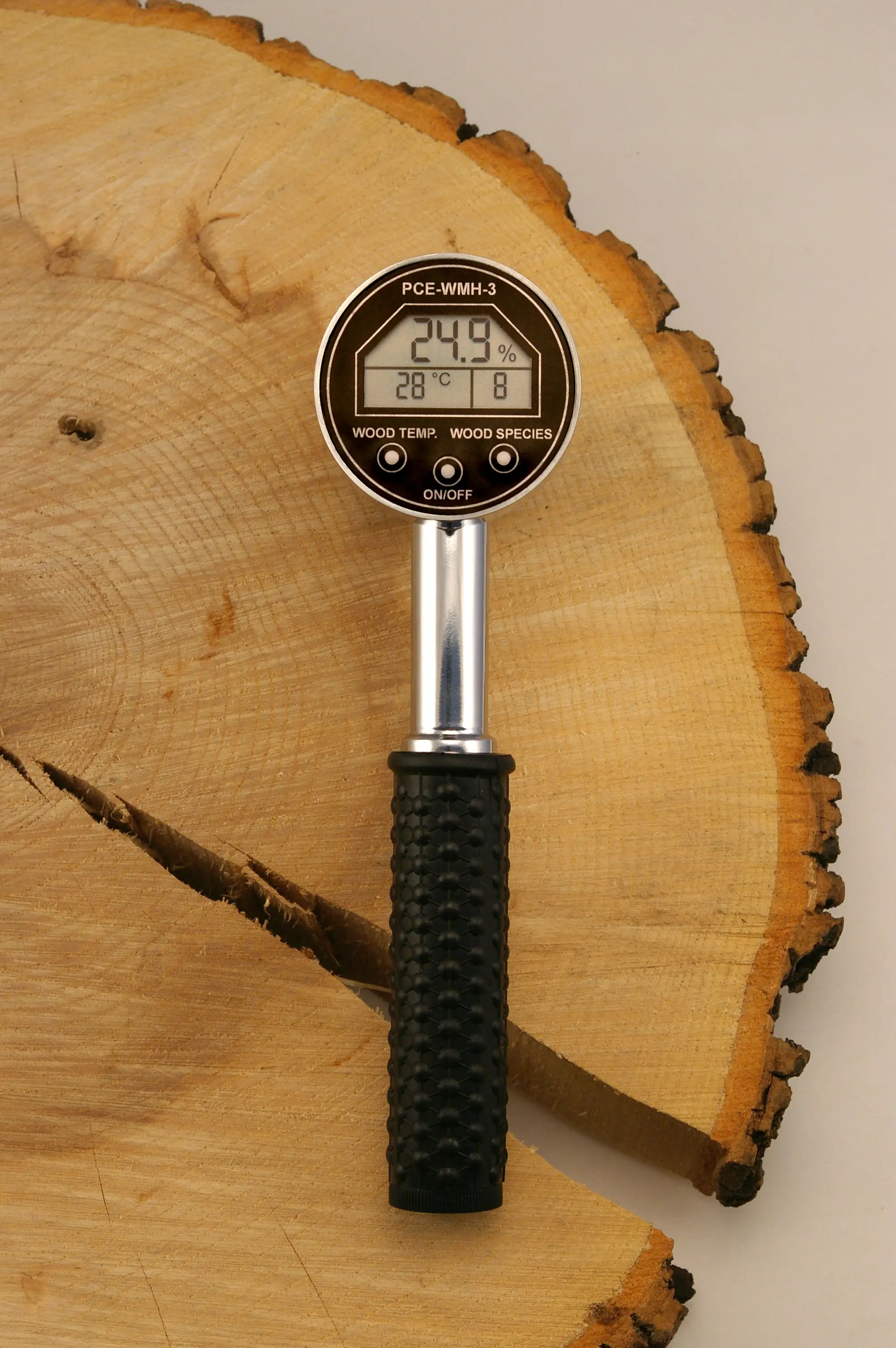

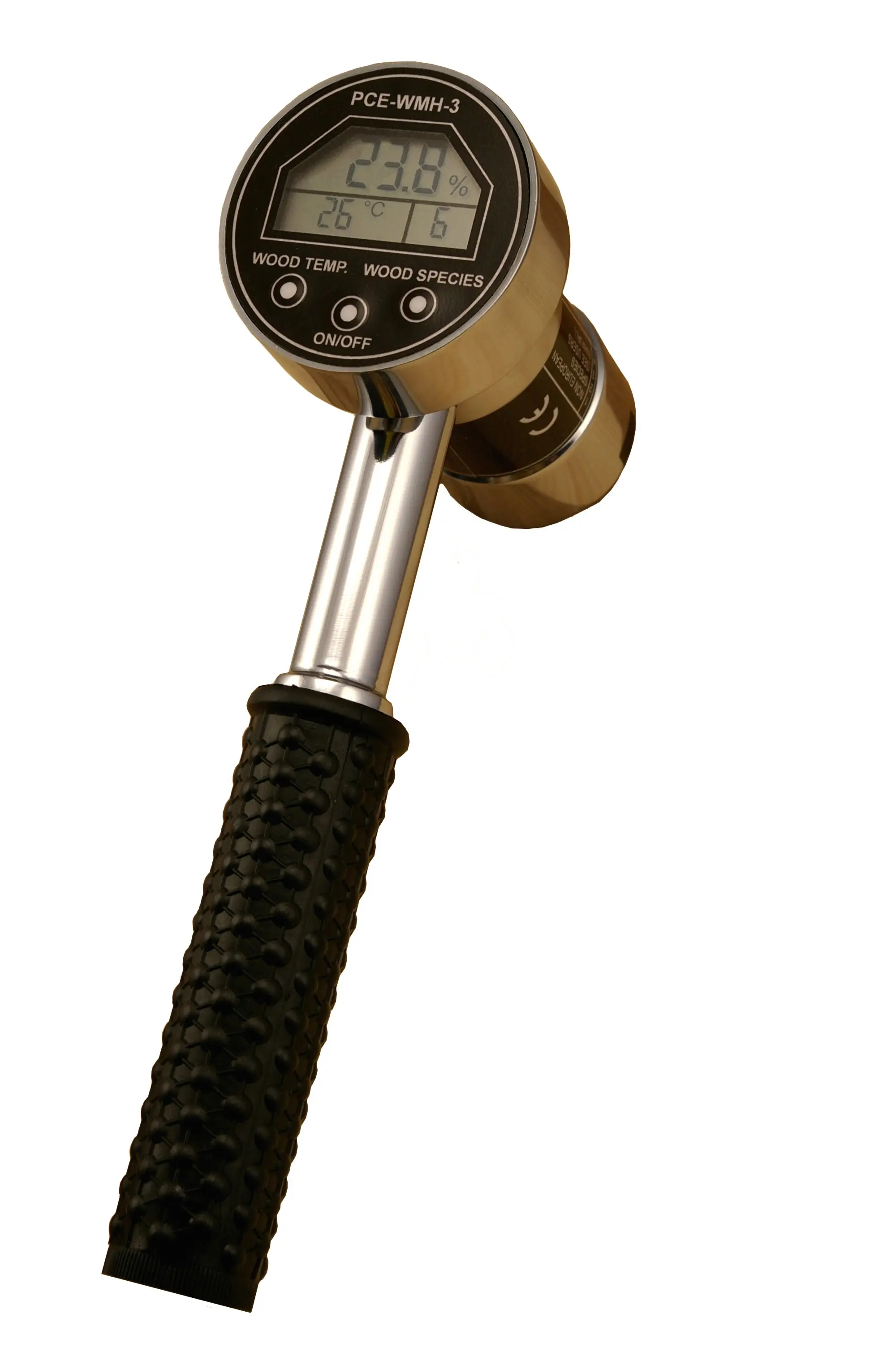

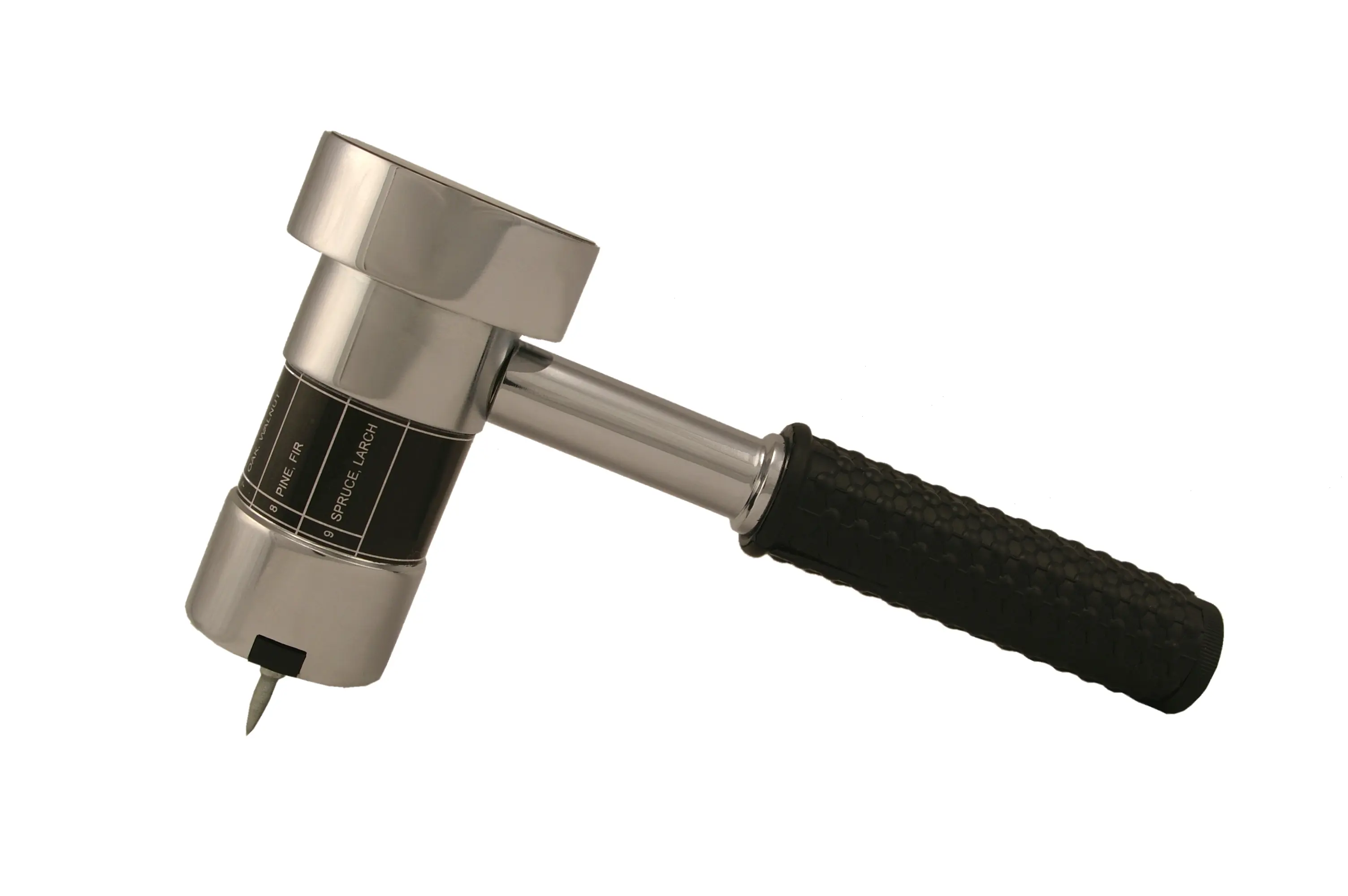

PCE-WMH-3 Damp Meter for Wood
Features preset characteristic curves for measuring 270 different wood types
PCE-WMH-3 is a portable handheld digital damp meter or analyzer used to measure the moisture content of wood. This hammer-style wood moisture analyzer features preset characteristic curves for measuring moisture in 270 different wood types.
A table of exotic wood type coefficient values is provided in the user manual to allow for proper calculation. The table lists coefficient values for exotic wood types including but not limited to Gonzales Alves, Pine, Brazilian-Rosewood, Chipboard, Cedar, Dogwood, European Aspen, Elm, Oak, Juniper, Maple, Ash, Quebracho Blanco and Colorado, Sandalwood, Mahagony, Olive, Umbrella, Pear, Persimmon, African Walnut, Teak, Willow and more.
| Measurement range | 6 ... 60 % moisture content |
| Accuracy | ±1 % (within 6 ... 12 % range), ±2 % (13 ... 28 %), ±2 %(29 ... 60 %) |
| Resolution | 0.1 % |
| Number of different wood types | 270 |
| Wood temperature range | -10 ... +60 ºC / 14 ... 140 °F |
| Display | LCD |
| Electrode dimensions | Approx. 3.5 x 12 mm / 0.1 x 0.4", 2.5 x 8 mm / 0.09 x 0.3", 2 x 6 mm / 0.07 x 0.2" diameter |
| Power supply | 1 x 12V 23A battery |
| Battery life | Approx. 10000 measurements |
| Unit dimensions | Approx. 180 x 80 x 42 mm / 7 x 3.1 x 1.6" |
| Unit weight | Approx. 0.8 kg / 1.77 lbs |
