Multi Channel Temperature Data Logger PCE-T 1200-ICA incl. ISO Calibration Certificate

Order no.: PCE-T 1200-ICA
GTIN (EAN): 4250348731968
₹273,331.00
₹322,530.58
ISO Calibration
price ex. (VAT / delivery)
:
4250348731968
PCE-T 1200-ICA
Delivery time: up to 10 working days
Temperature

Accessory

Penetration / Immersion Sensor TF-106
Penetration / Immersion Sensor TF-106
₹7,425.00
Insulated Surface Temperature Sensor TF-102A
Insulated Surface Temperature Sensor TF-102A
₹8,318.00
HT Surface Sensor TF-110A
HT Surface Sensor TF-110A
₹11,889.00
High Temperature Wire Sensor TF-121
High Temperature Wire Sensor TF-121
₹10,401.00
High Temperature Sensor TF-104B (extra long)
High Temperature Sensor TF-104B (extra long)
₹14,716.00
High Temperature Probe TF-104A
High Temperature Sensor TF-104A
₹7,425.00
Flexible Sensor TF-120
Flexible Sensor TF-120
₹4,896.00
Crocodile Clip Sensor TF-109
Crocodile Clip Sensor TF-109
₹5,937.00
Air Sensor TF-108
Air Sensor TF-108
₹7,128.00
USB Data Cable Incl. Software SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
₹12,782.00
Screw-in Sensor TF-119
Screw-in Sensor TF-119
₹21,561.00
Temperature Sensor TF-101
Temperature Sensor TF-101
₹10,104.00
Power supply North America
Power Supply 9 V / 0.8 A (US / North American)
₹2,366.00
AGL-400 Compensation / Thermocouple Extension Cable 400 °C (lfm)
AGL-400 Compensation / Thermocouple Extension Cable 400 °C (linear meter)
₹543.00
AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)
AGL-260 Compensation / Thermocouple Extension Cable 260 °C (linear meter)
₹498.00
Surface Sensor TF-509 (self-adhesive)
Surface Sensor TF-509 (self-adhesive)
₹6,979.00
Screw-on Sensor
Screw-on Sensor TF-524
₹6,681.00
Miniature Connector TF-551
Miniature Connector TF-551
₹1,027.00
Miniature Connector TF-550
Miniature Connector TF-550
₹1,027.00
Magnetic Surface Sensor TF-513
Magnetic Surface Sensor TF-513
₹12,633.00
Flexible Temperature Sensor TF-500 (Type K)
Flexible Temperature Sensor TF-500
₹1,548.00
Extension Cable TF-520
Extension Cable TF-520
₹8,764.00
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
₹3,705.00
ISO Calibration Certificate CAL-T SIM12 for thermocouple thermometers
ISO Calibration Certificate CAL-T SIM12 for thermocouple thermometers
₹112,924.00

Description

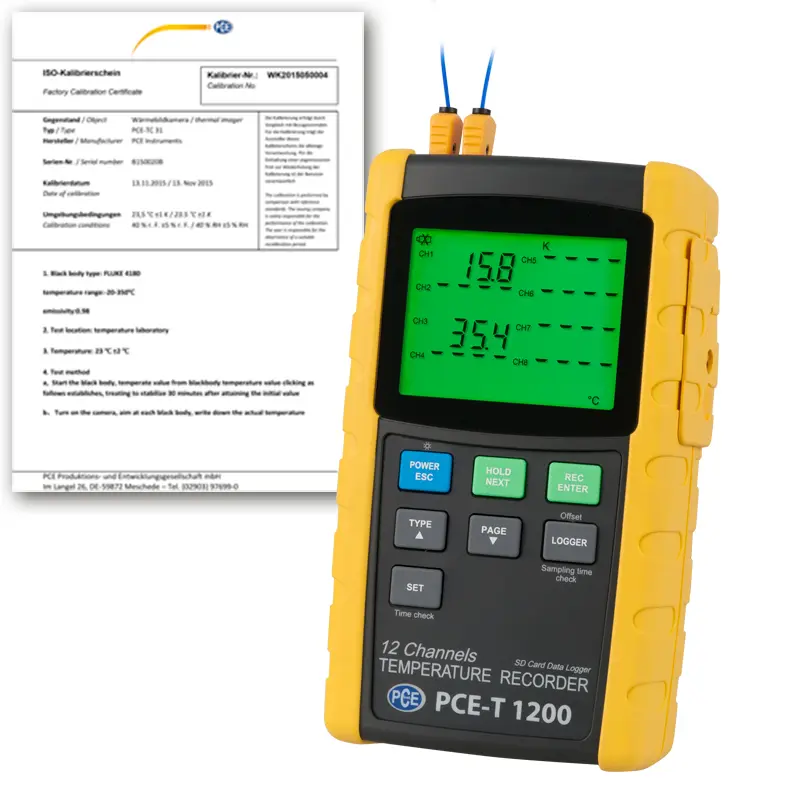

PCE-T 1200 Multi Channel Temperature Data Logger
Multichannel datalogging temperature meter with a backlit display, SD card memory and automatic temperature compensation (ATC)

PCE-T 1200 is a 12-channel temperature data logger that accommodates SD cards up to 16 GB in size. The optional software allows the temperature data logger to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5" LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 ... CH 8). With just the press of a button, the remaining channels (CH 9 ... CH 12) can be viewed. The temperature data logger works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.


Highlights

- 12-channel datalogger for temperature (°C / F)
- Includes 2 Type K sensors 1-meter in length
- 4.5" graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
- Adjustable data recording timer interval
- Compatible with 6 different types of thermocouples
- High and low alarm for each inputbr/> - Indication of maximum and minimum values
- Accommodates up to 16 GB SD memory card to save measured data
- Integrated calendar
- Automatic temperature compensation (ATC)
- Hold function to freeze the values indicated
- Integrated stand


Specification

Sensor type

Resolution

Measurement range

Accuracy

Type K

0.1°C / 0.18°F

-50.1 ... -100°C / -58.2 ... 212°F

± (0.4% + 1°C / 0.8°F)

-50 ... 999.9°C / -58 ... 1831.8°F

± (0.4% + 0.5°C / 0.9°F)

1°C / 0.8°F

1000 ... 1300°C / 1832 ... 2372°F

± (0.4% + 1°C / 0.8°F)

Type J

0.1°C / 0.18°F

-50.1 ... -100°C / -58.2 ... 212°F

± (0.4% + 1°C / 0.8°F)

-50 ... 999.9°C / -58 ... 1831.8°F

± (0.4% + 0.5°C / 0.9°F)

± (0.4% + 1°C / 0.8°F)

1°C / 0.8°F

1000 ... 1150°C / 1832 ... 2102°F

Type T

0.1°C / 0.18°F

-50.1 ... -100°C / -58.2 ... 212°F

± (0.4% + 1°C / 0.8°F)

-50 ... 400°C / -58 ... 752°F

± (0.4% + 0.5°C / 0.9°F)

Type E

0.1°C / 0.18°F

-50.1 ... -100°C / -58.2 ... 212°F

± (0.4% + 1°C / 0.8°F)

-50 ... 900°C / -58 ... 1652°F

± (0.4% + 0.5°C / 0.9°F)

Type R

1°C / 0.8°F

0 ... 1700°C / 32 ... 3092°F

± (0.5% + 3°C / 7.4°F)

Type S

1°C / 0.8°F

0 ... 1500°C / 32 ... 2732

± (0.5% + 3°C / 7.4°F)

Power consumption (lights off / logging off)7.5-mA
Power consumption (lights off / logging on)25-mA
Dimensions225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in
Weight827 g / 1.8 lbs (excl. battery)
Operation conditions0°C ... 50°C / 32 ... 122°F, 85% rH

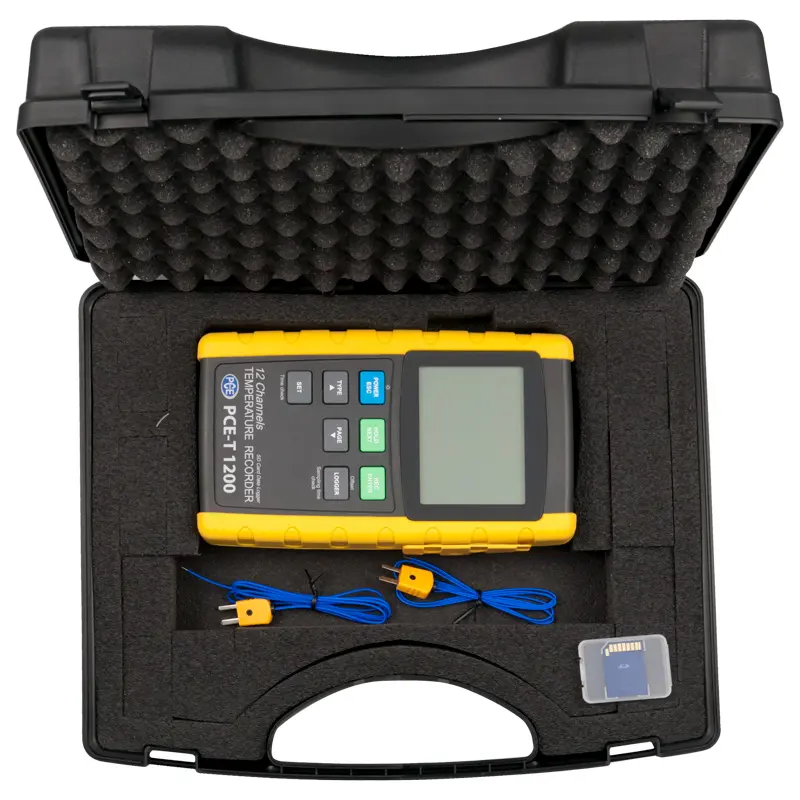

Delivery Scope

1 x Multi Channel Temperature Data Logger PCE-T 1200-ICA
2 x Type K sensor 1-meter
8 x 1.5V AA batteries
1 x SD memory card
1 x Carrying case
1 x User manual
1 x ISO Calibration Certificate
