Radioactivity Data Logger PCE-RDM 5

Order no.: PCE-RDM 5
GTIN (EAN): 4250348732187
₹14,121.00
₹16,662.78
price ex. (VAT / delivery)
:
4250348732187
PCE-RDM 5
Delivery time: 1-2 working days

Description


Radioactivity Data Logger for dose measurement of X-ray, gamma and beta radiation / easy to use / alarm function / battery operation.

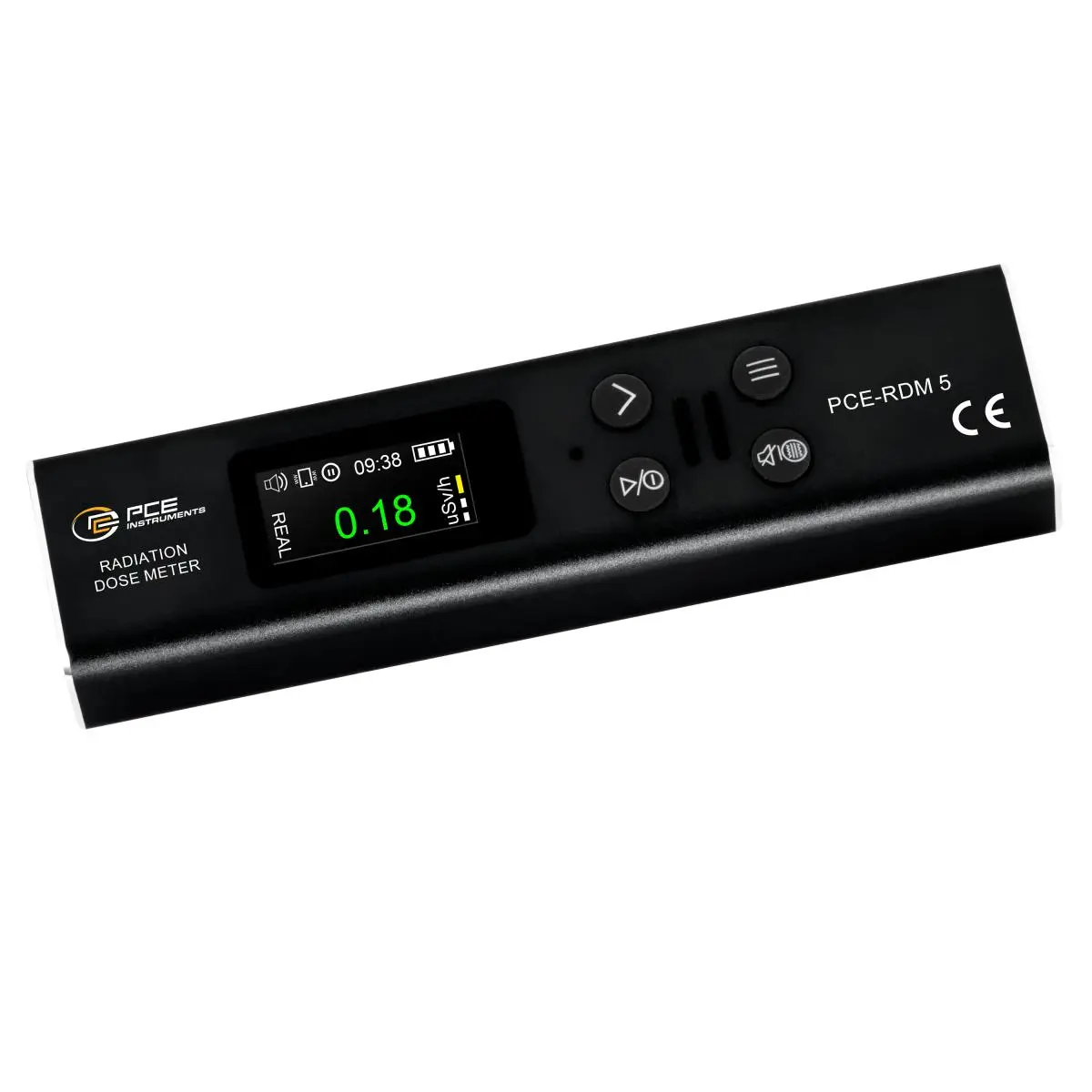

The Radioactivity Data Logger is a small sensitive radiation meter used for monitoring X-rays, gamma and beta radiation. The Radioactivity Data Logger uses an energy compensated Geiger-Müller counting tube as detector for accurate measurement. According to the Radiation Protection Ordinance (StrSchV), it is mandatory in some areas to perform personal dosimetry using a Radioactivity Data Logger. The Radioactivity Data Logger is equipped with a powerful microprocessor and a TFT screen, which makes it easy to operate.

The Radioactivity Data Logger itself has three alarm modes: sound, LED light and vibration. The alarm limit can be set as you like. When the alarm limit is reached, an alarm is issued, for protection. The main technical indicators of the device comply with the international standard.

Highlights

- β- and X-ray radiation
- Dose measurement 0.08 ... 9999µSv/h
- alarm function
- battery operation
- vibration alarm
- real time value
- Navigation bar

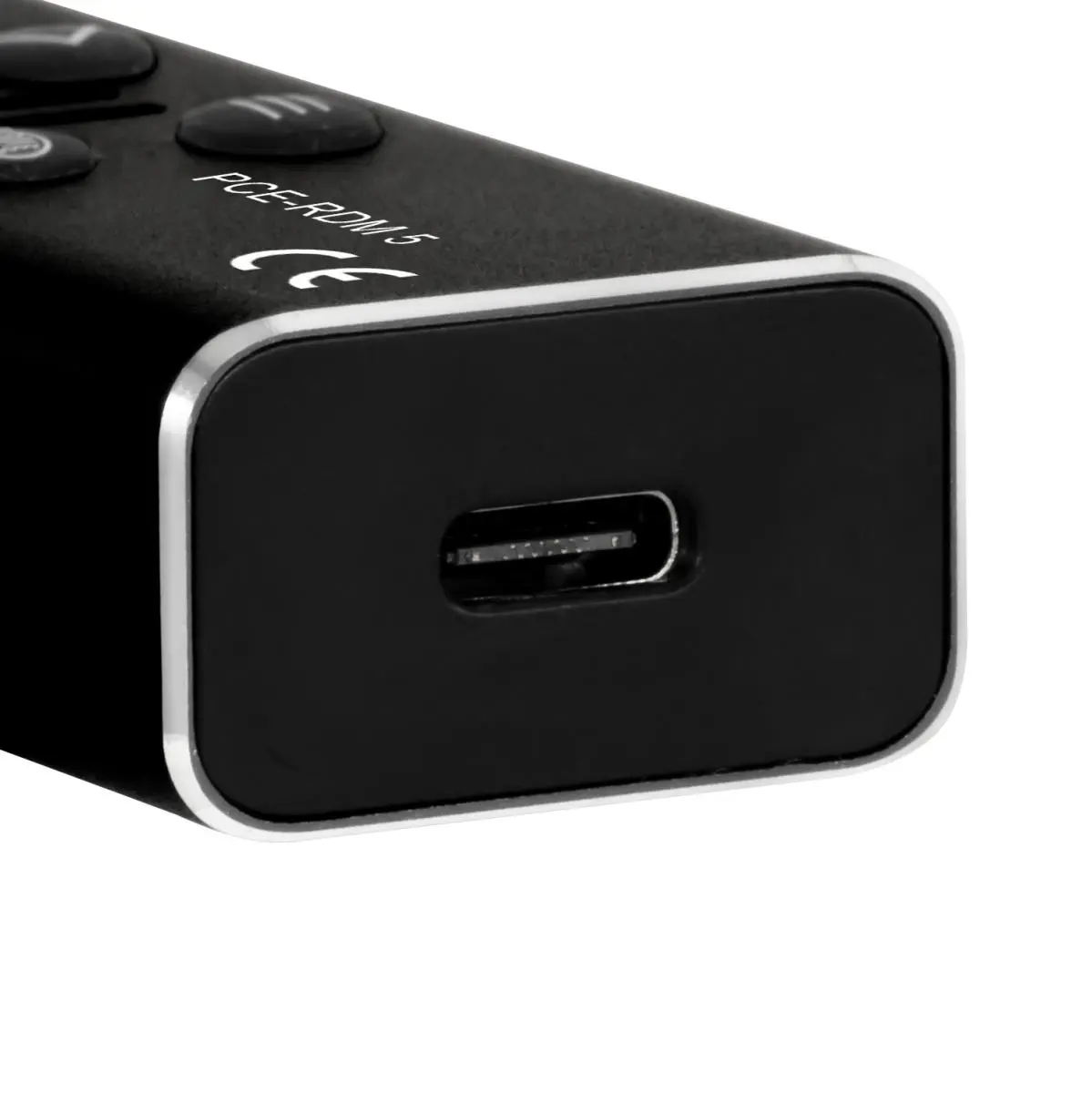

- Type USB C charging port

Specification

Radiation min/max
Measuring range min. 0,08 µSv/h
Measuring range max. 9.999 µSv/h
Resolution 0,01 µSv/h

General technical data - Specific
Data interface USB-C
Battery capacity 400 mAh
Response time 10 s

General technical data
Menu language English
Protection class IP20
Weight 45 g
Net weight 57 g
Weight gross 141 g
Length 105 mm
Width 27 mm
Height 17 mm
Operating conditions -10 – 50 °C, 10 – 95 %
Storage conditions -10 – 50 °C, 10 – 95 %

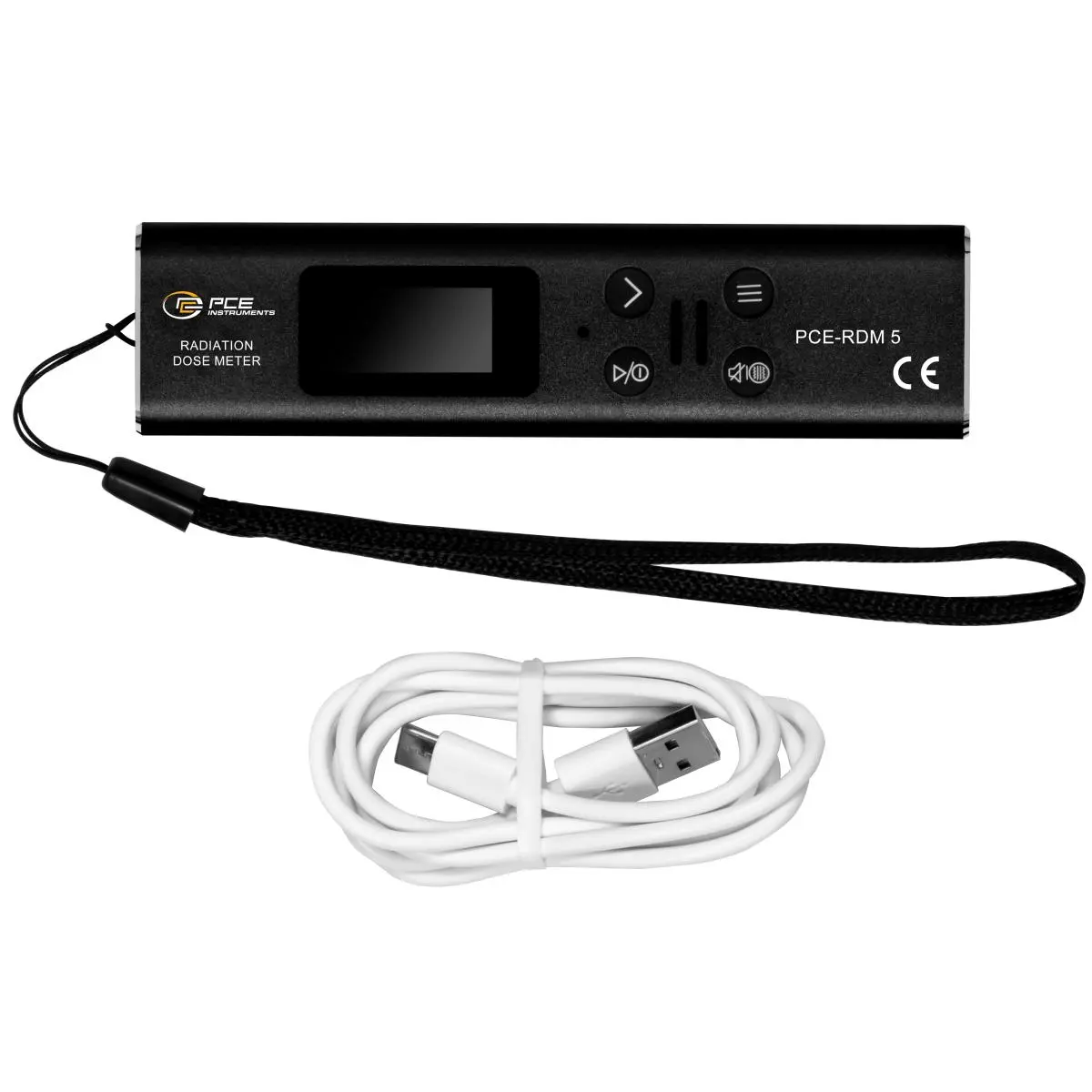

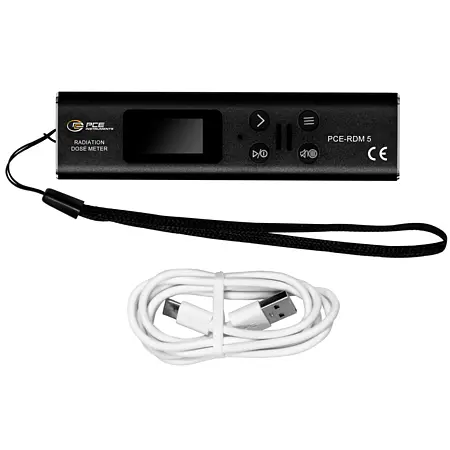

Delivery Scope

1 x Radioactivity Data Logger PCE-RDM 5
1 x Micro-USB cable
1 x manual

Downloads
