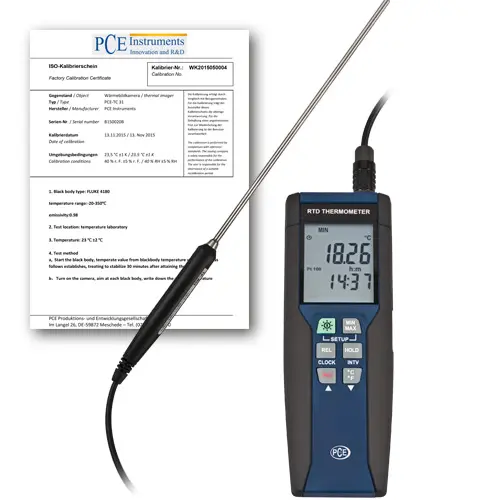

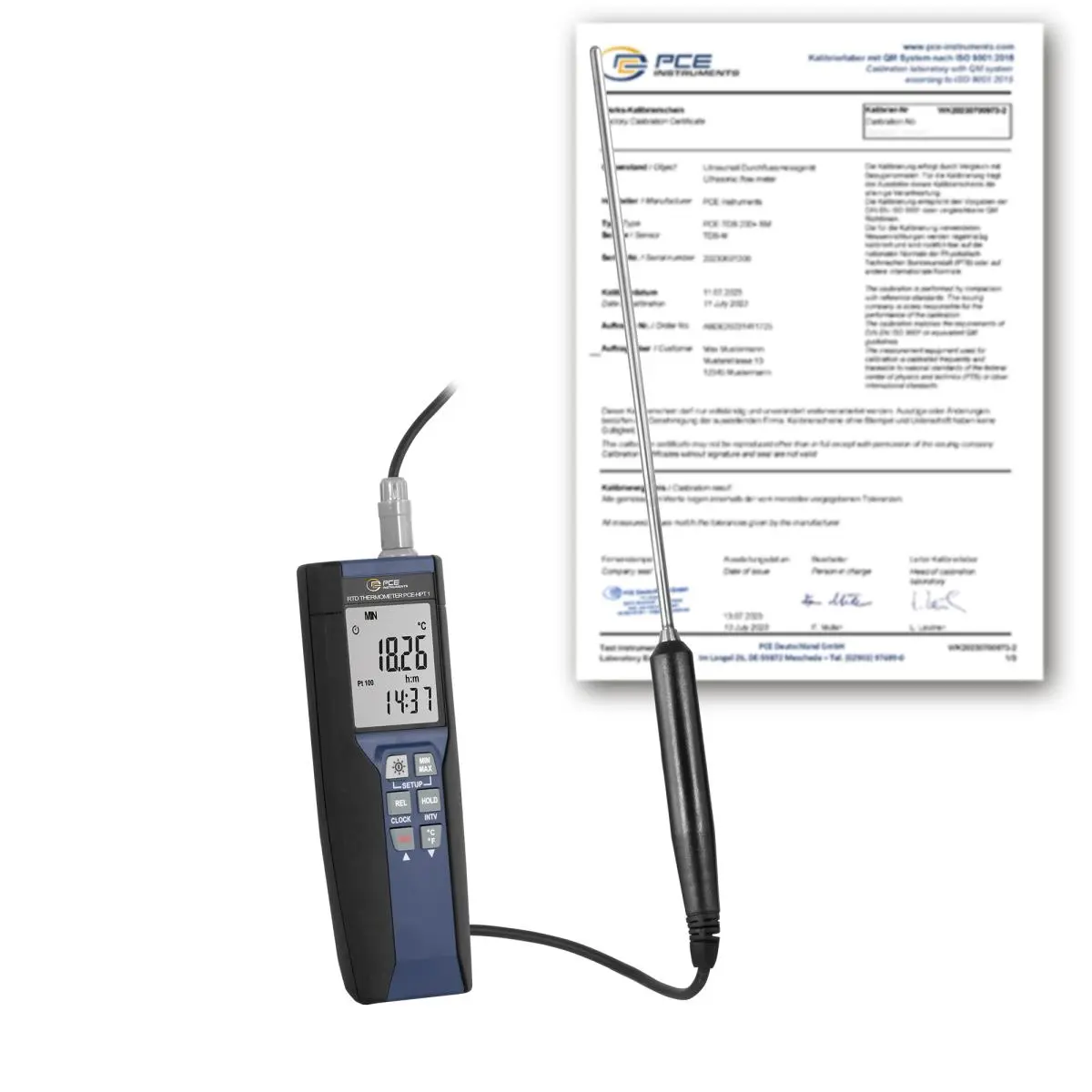

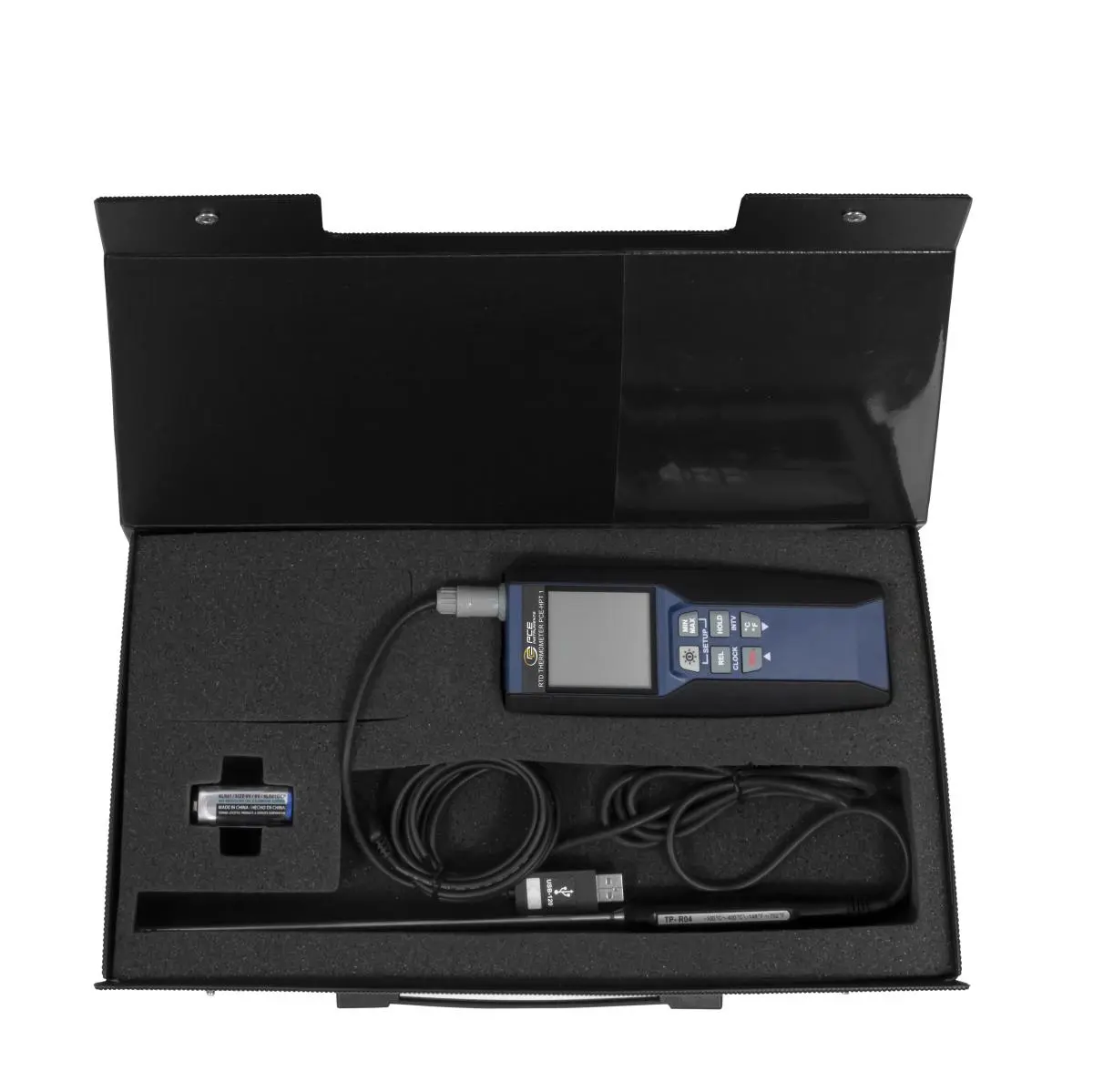

Temperature Data Logger incl. ISO Calibration Certificate PCE-HPT 1-ICA

Order no.: PCE-HPT 1-ICA

GTIN (EAN):

Description

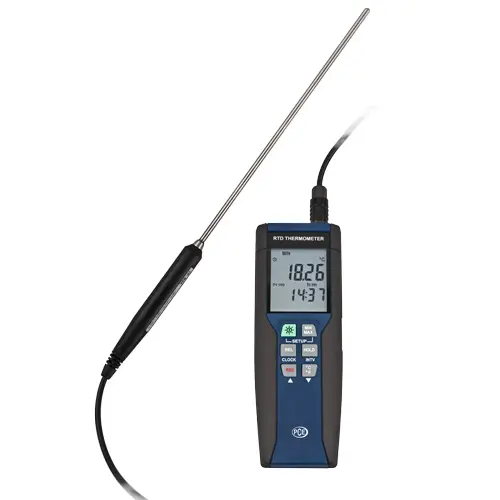

Temperature Data- Logger with Microprocessor PCE-HPT 1

1-channel Data- Logger with 4-wire class A Pt100 sensor / Software for transmission and data value / Internal Data- Logger

The Temperature Data- Logger with microprocessor is a high precision 1-channel temperature gauge. The Data- Logger with microprocessor is ideal for use with various Pt100 sensors. Due to the fact that it uses 4-wire technology it has a very fast response time and precision. Therefore, the sensors of the Data- Logger with microprocessor are ideal for all processes that require precision and quick response. The temperature range of the Data- Logger with microprocessor reaches of -100 to 400ºC / -148 ... 752ºF. The comprehensive software and easy to use Data- Logger with the microprocessor allows a simple assessment to see the values of a real-time measurement. The internal clock with date and time allows the user to accurately assign the results. The Data- Logger has an internal Data- Logger with adjustable measuring range.

Highlights

- 1-channel temperature recorder
- Automatic shutdown
- High accuracy
- Backlight
- Software included
- Internal data logger
- Internal Clock
- Class A, 4-wire. Pt100 sensor
- Data-Hold Function
- Selectable units (°C / °F)

***ATTENTION*** Our temperature sensors are designed for industrial and laboratory surface temperature measurement ONLY. They are not designed or certified for body temperature measurement or for medical use.

Specification

Technical Data
Measurement range	-100 ... 400 °C / -148 ... 752 °F
Accuracy	±0.05% + 0.1 °C / 0.18 °F (between 18 ... 28 °C / 64.4 ... 82.4 °F) only the device
Resolution	0.01 °C / 0.018 °F
Sensor	Class A, 4-wire Pt100 sensor
Display	5 digits, LCD
Data transmision	USB
Data memory	up to 5000 measuring points
Reproducibility	a measurement value every 0.5 s

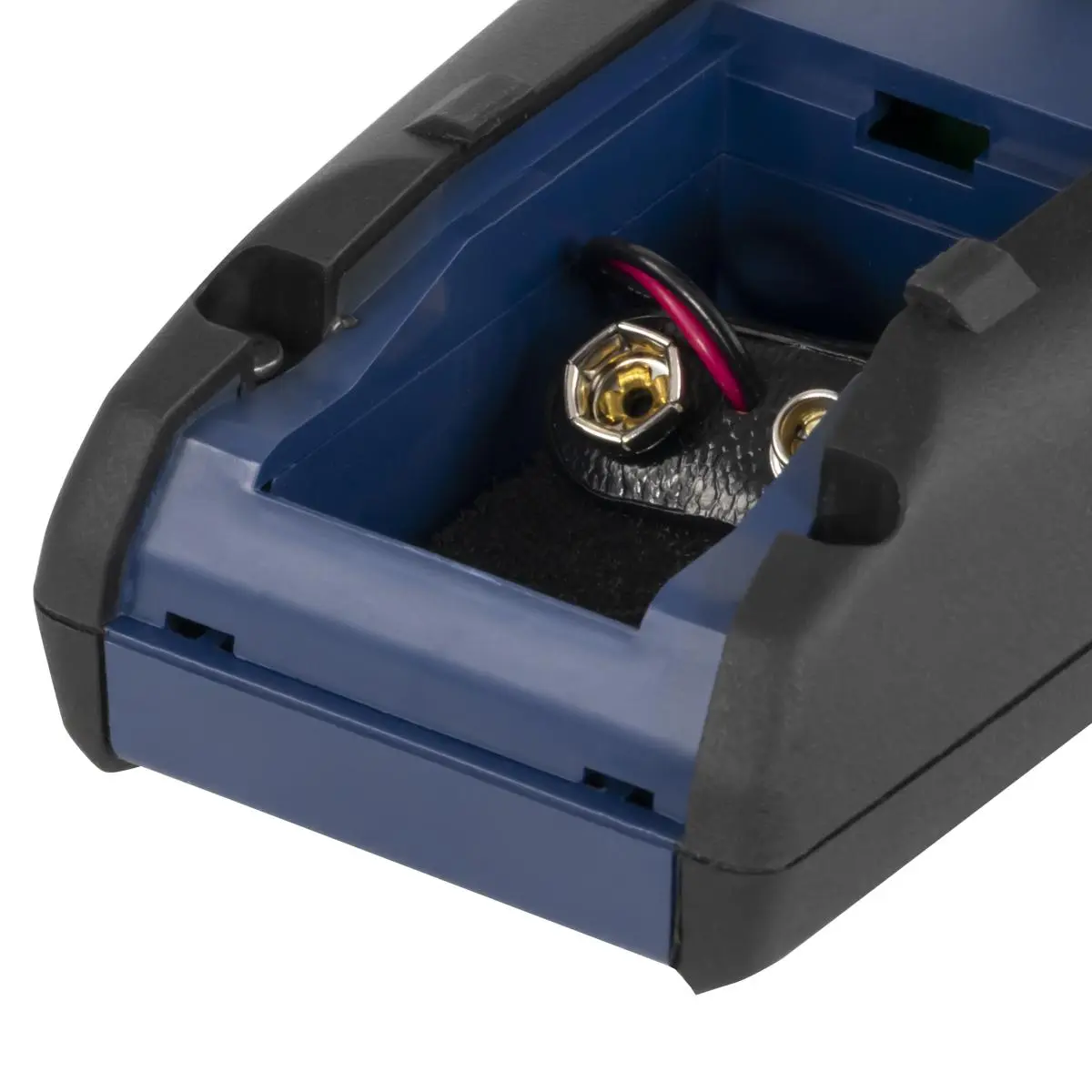

Power supply	1 x 9V battery or network adapter (optional)
Dimensions device	185 x 65 x 36 mm / 7.3 x 2.6 x 1.4"
Dimensions sensor	235 x 5 mm / 9.25 x 0.19"
	123 mm / 4.84" handle
	1.5 m / 4.9 ft connection cable
Weight	360 g / < 1 lb
Operating conditions	0 ... 50 °C / 32 ... 122 °F, 80% R.H.
Storage conditions	-10 ... 60 °C / 14 ... 140 °F, 80% R.H.
