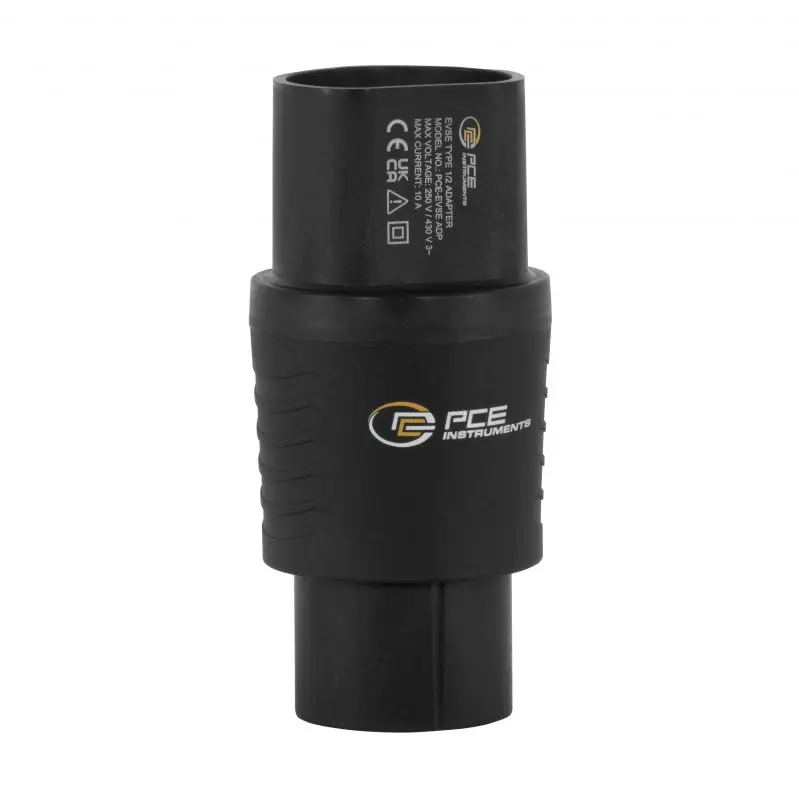

Measuring connection adapter for wallboxes PCE-EVSE ADP

Order no.: PCE-EVSE ADP

GTIN (EAN):

Description

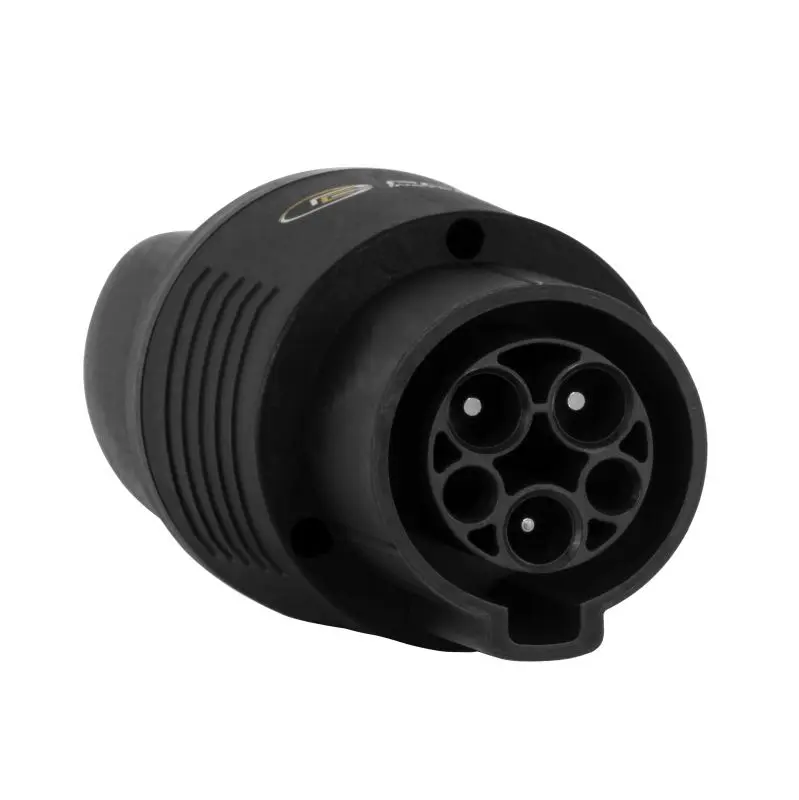

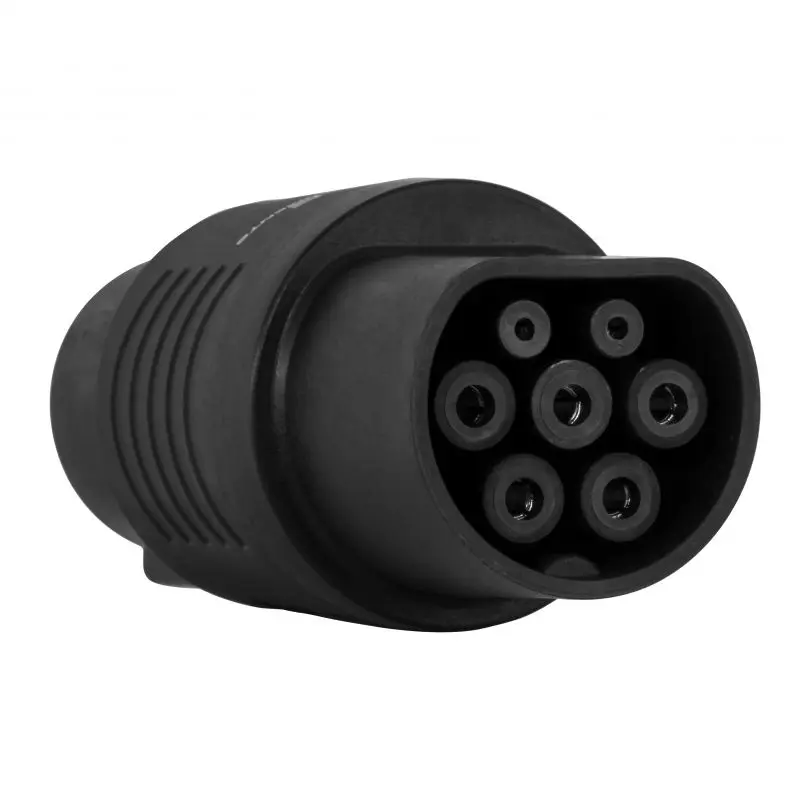

Type 2 to type 1 test connection adapter for wallboxes

The type 2 to type 1 test connection adapter for wallboxes is an accessory for our PCE-EVSE 310 which is suitable for testing charging stations. With this adapter, it is possible to test charging stations with a type 1 connection.

Highlights

- Voltage range: 102 ... 250V AC

- Frequency: 50/60 Hz

- Max. current: 10 A

- CAT II / 300 V

- EN 61010-031

Specification

General technical data
Frequency	50 ... 60 Hz
Standard(s)	EN 61010-031
Safety standard	CAT II / 300V
Voltage range	102 ... 250 V AC
maximum current	10 A

Weight	308 g
Device weight with scope of delivery	312 g
Device weight with scope of delivery and outer packaging	350 g
Dimensions (L x W x H)	150 x 70 x 70 mm
Operating conditions	0 ... 40 °C , 80 % r.h.
Storage conditions	-20 ... 70 °C , 80 % r.h.
Languages of the instructions	German, English

Delivery Scope

1 x type 2 to type 1 measuring connection adapter for wallboxes PCE-EVSE ADP

1 x operating instructions
