Order no.: PCE-324

Environmental Meter PCE-324

₹11,145.00
₹13,151.10
:
4250348735201
PCE-324
price ex. (VAT / delivery)
Delivery time: 1-2 working days

Description

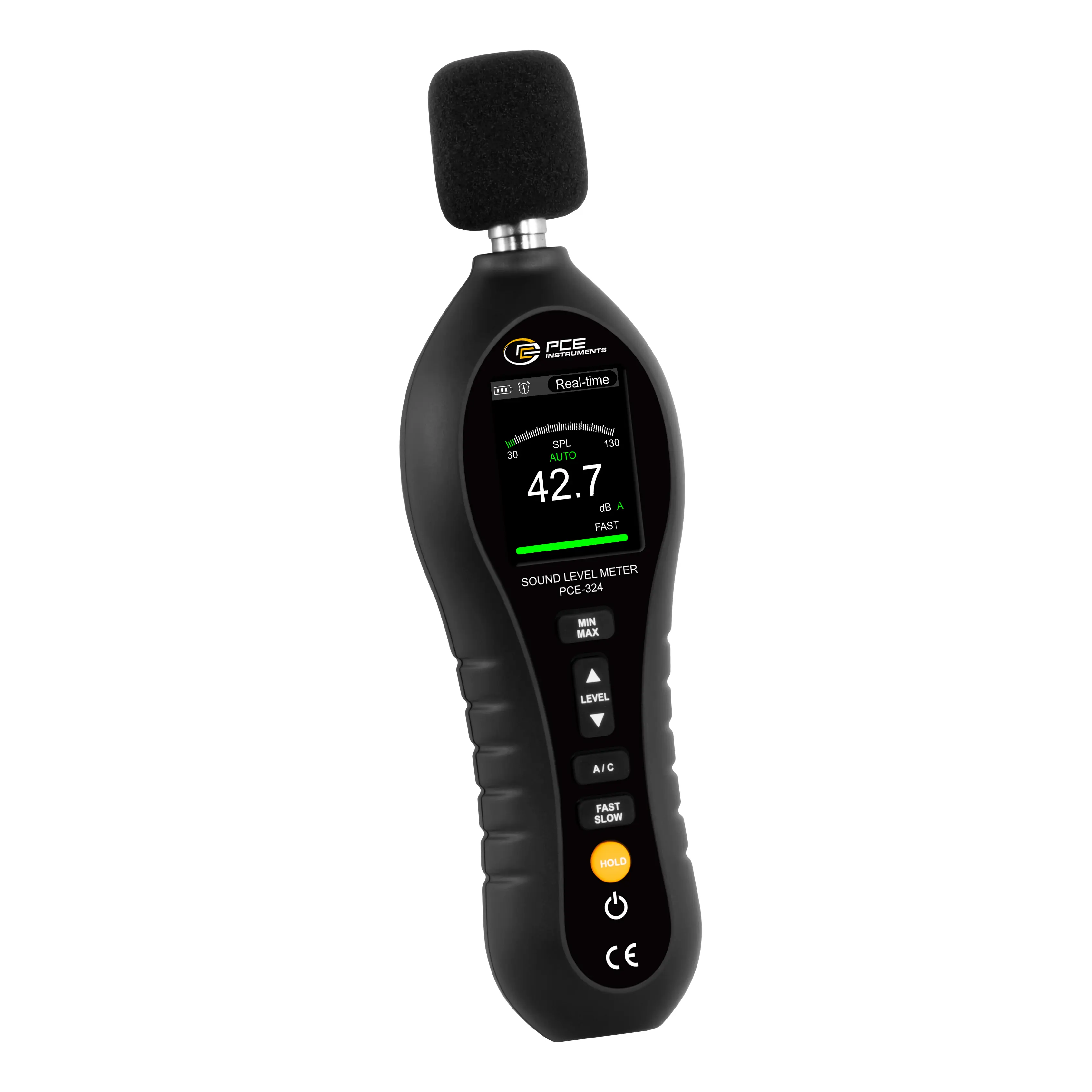

Environmental Meter / LC colour display with backlight / numerical values and traffic light display / ergonomic shape / accuracy class 2 / battery operation

The Environmental Meter offers a wide measurement range of 30 to 130 dB (dBA) and 35 to 130 dB (dBC), making it suitable for accurate measurements in various acoustic environments. The accuracy of the device is ±1.5 dB at 94 dB @ 1 kHz. Equipped with functions for A and C frequency weighting and both fast and slow time weighting, our Environmental Meter is versatile and adaptable to different requirements.

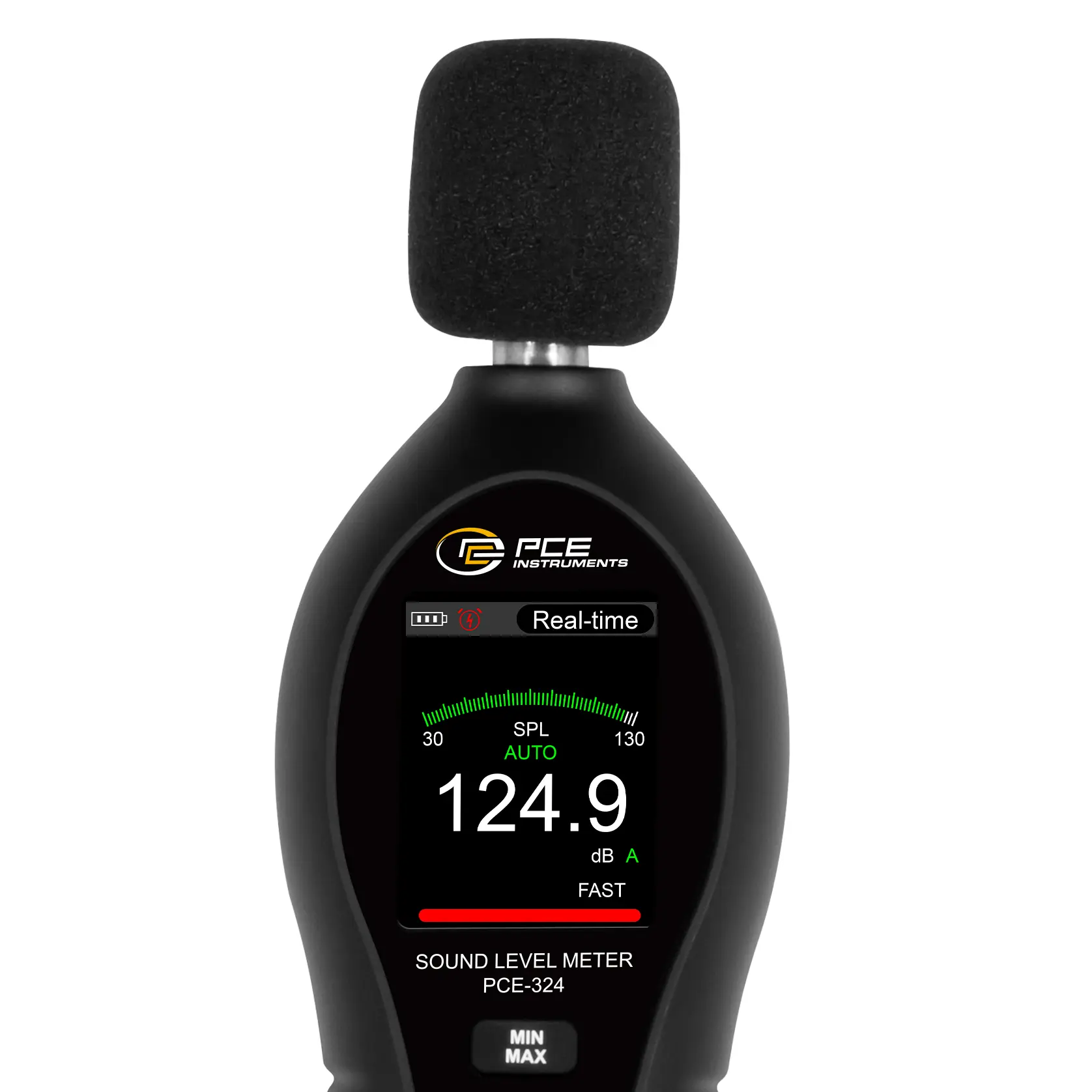

The 2-inch LC colour display provides a clear and easy-to-read display of the measured values in numerical form. In addition, the device has a scale that enables a quick visual assessment of the sound level. With a sampling rate of 2 x per second, the Environmental Meter records acoustic changes almost in real time and is therefore particularly suitable for monitoring sound levels in dynamic environments.

The Environmental Meter is equipped with functions such as MIN, MAX and HOLD. Thanks to the automatic power off function, the device is energy-efficient and saves battery power, which extends the operating time. The Environmental Meter complies with IEC 61672-1 (class II). It is powered by 4 AAA batteries and is therefore mobile and flexible in use. Whether in residential areas, offices, production facilities or other environments - this Environmental Meter is versatile and delivers precise results in a wide variety of acoustic scenarios.


Highlights

- automatic / manual measurement range selection
- fast and slow time weighting
- frequency weighting A and C
- numerical values and traffic light display
- measuring functions: MIN, MAX, HOLD
- automatic power off
- accuracy class 2

Specification

Sound level
Measurement range up to  30 ... 130 dBA
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  35 ... 130 dBC
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  30 ... 80 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  60 ... 110 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

Sound level
Measurement range up to  80 ... 130 dB
Resolution  0,1 dB
Accuracy  ±1.5 dB (94 dB @ 1 kHz) and ±5 dB (94 dB @ 8 kHz)

General technical data
Measuring functions  MIN, MAX, HOLD
Time weighting  fast (125 ms), slow (1 s)
Frequency weighting  A, C
Display type  LC colour display with backlight
Display size  2 Inch
Measuring rate  2 x per second
Microphone type  Condenser microphone
Standard(s)  IEC 61672-1 (Class II)
Automatic power-off  20 min
Automatic power-off can be deactivated  Yes

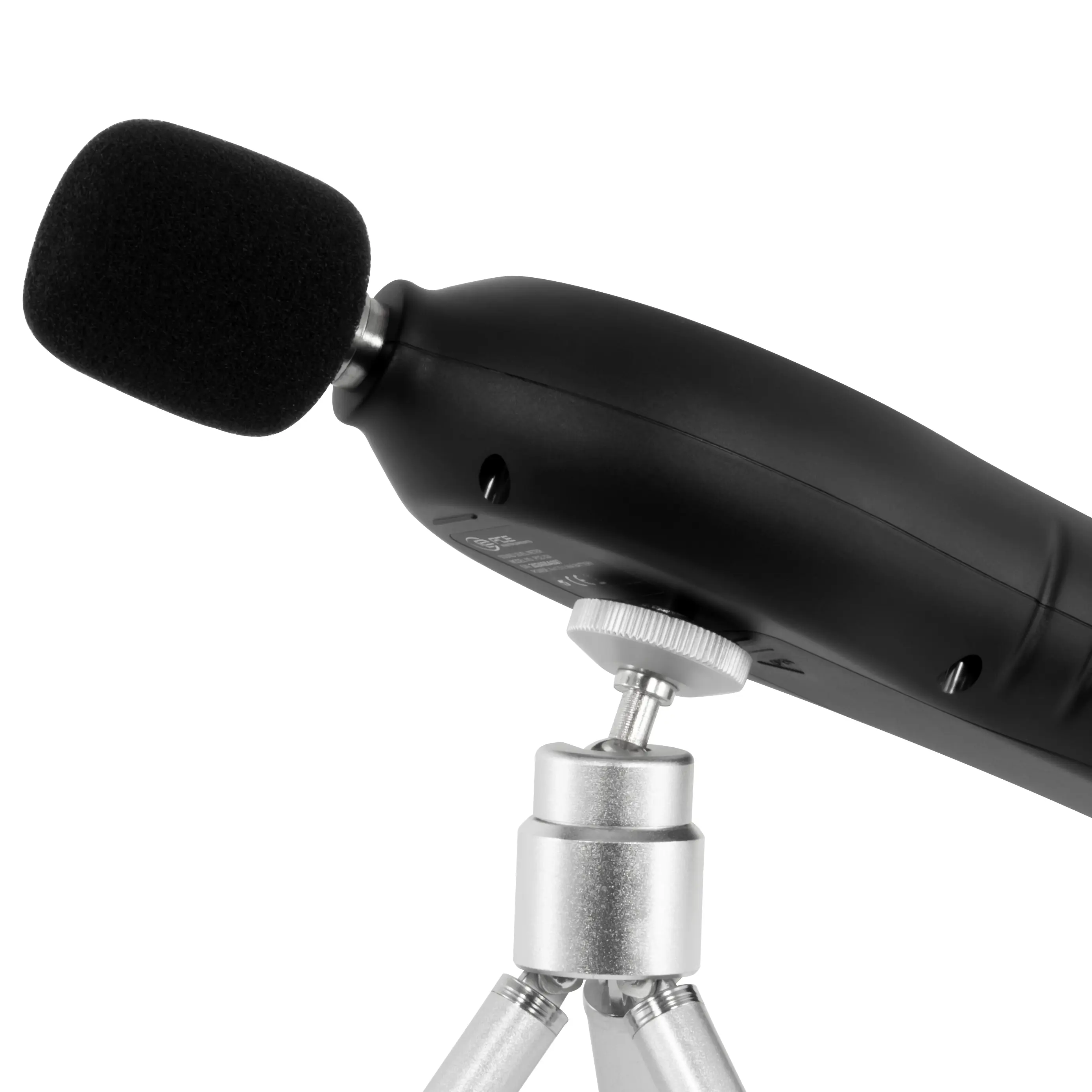

Tripod thread  1/4 inch
Menu language  English, English (GB)
Protection class (device)  IP20
Weight  123 g
Operating conditions  0 ... 40 °C , 10 ... 80 % RH
Storage conditions  -10 ... 60 °C , 10 ... 70 % RH

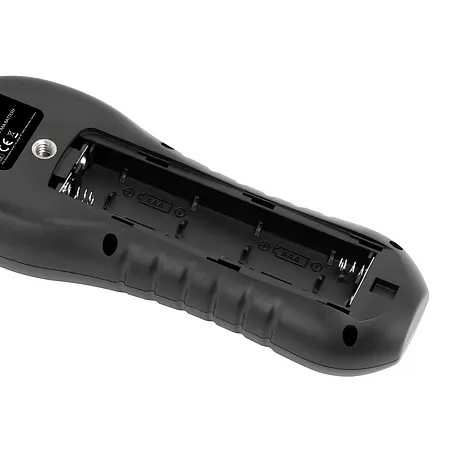

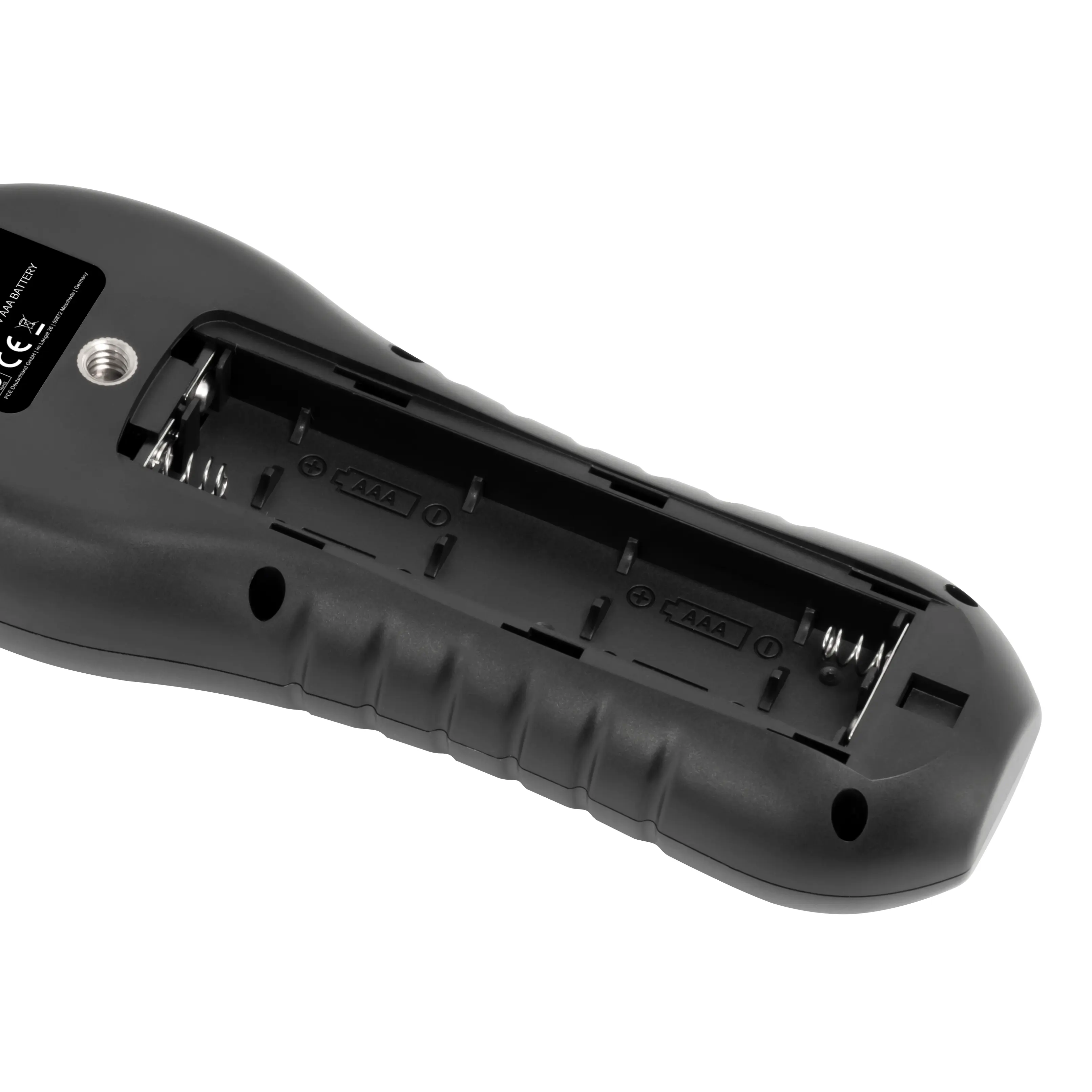

(Rechargeable) battery  4 x 1,5 V AAA battery , Alkali-manganese
Capacity  1200 mAh
Dimensions ( L x W x H )  210 x 64 x 32 mm

Delivery Scope

1 x Environmental Meter PCE-324

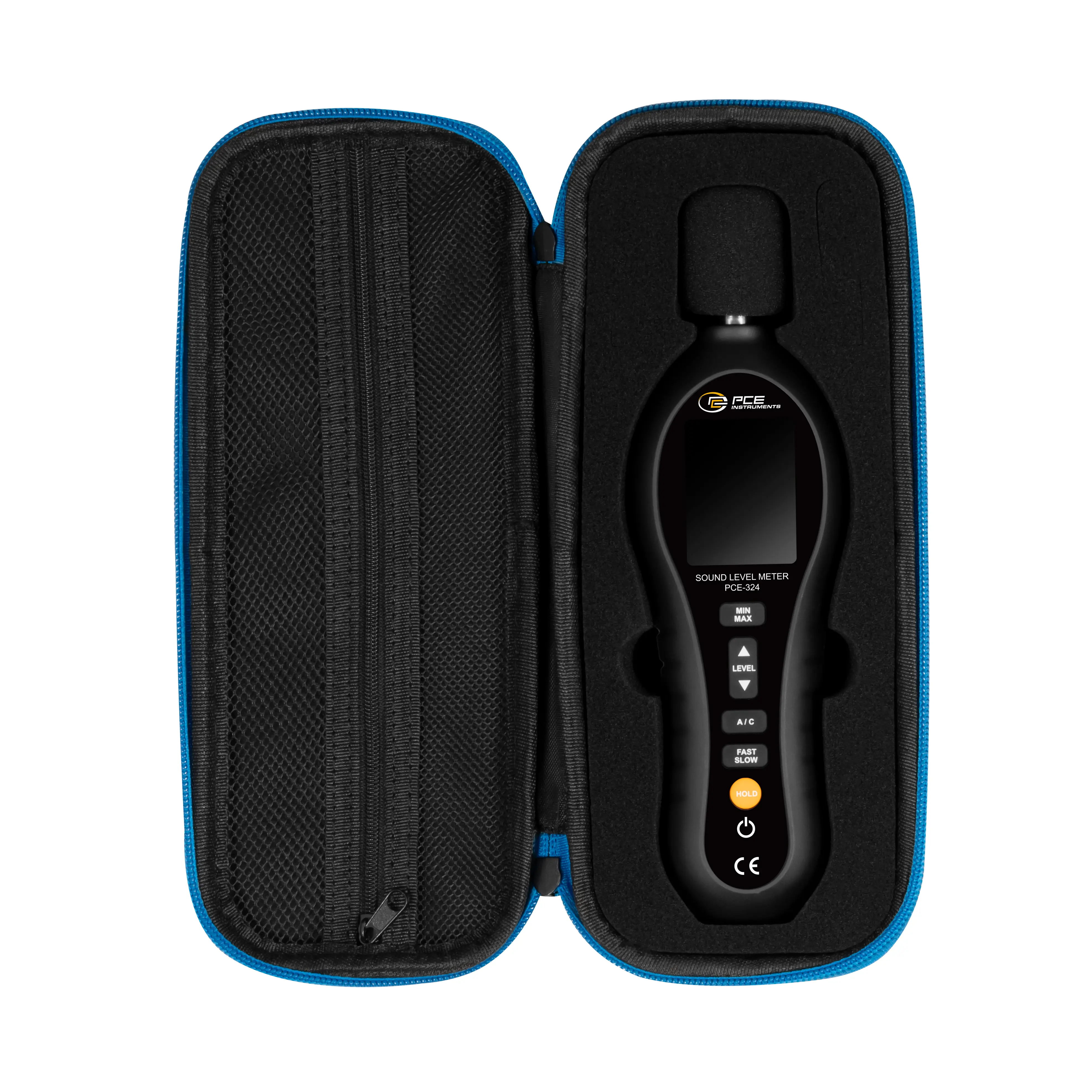

1 x carrying bag
4 x 1.5 V AAA batteries
1 x user manual
