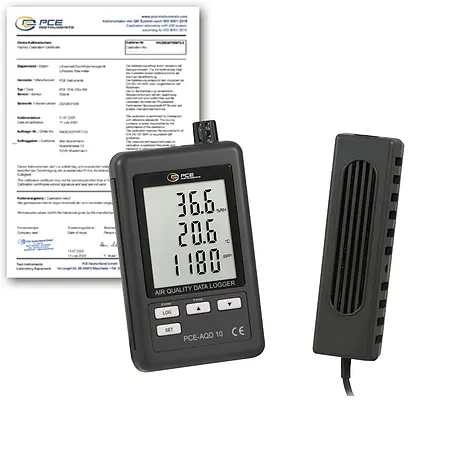

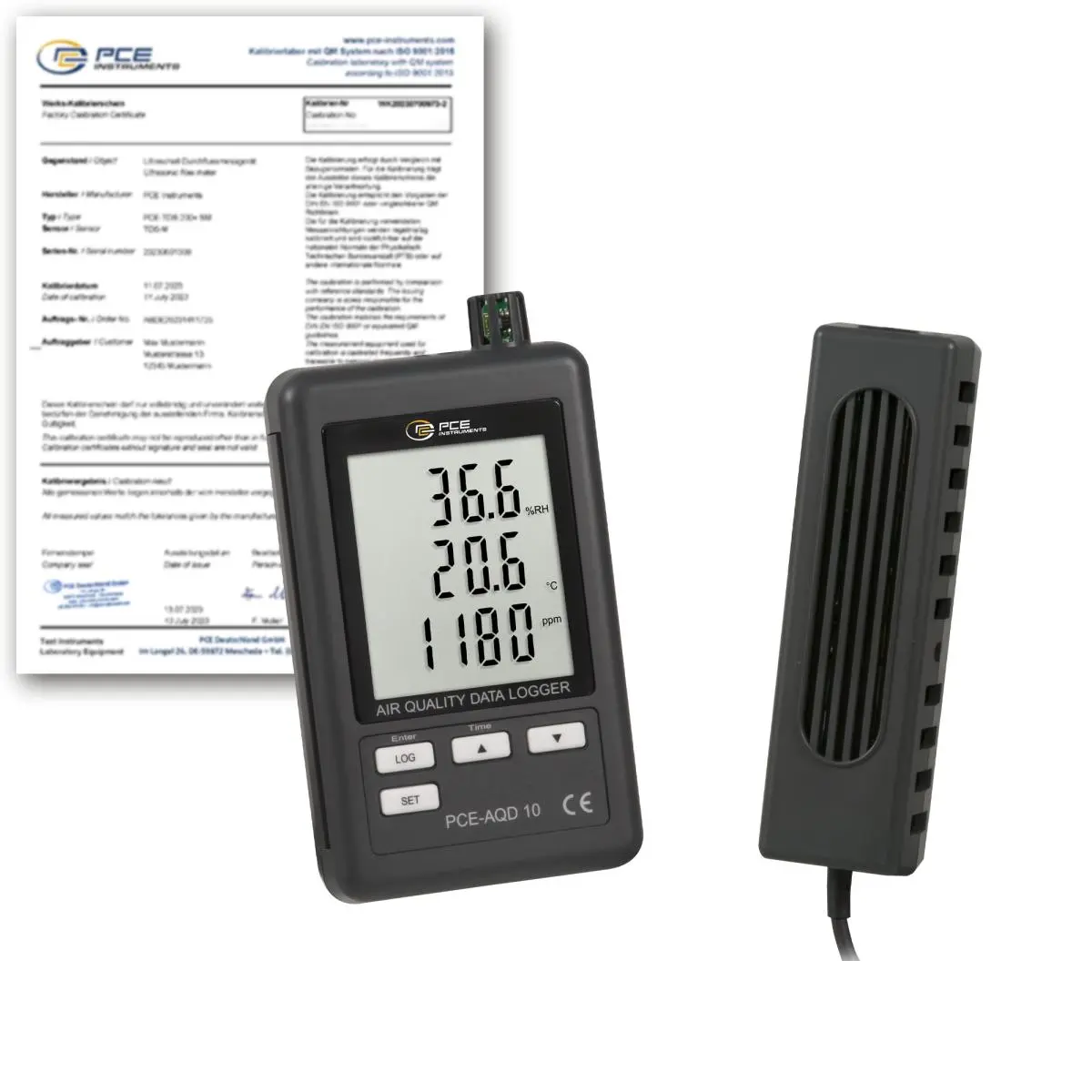

Environmental Meter PCE-AQD 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-AQD 10-ICA

GTIN (EAN): 4250348725103

Accessory

ISO Calibration Certificate for Temperature and Humidity

₹23,793.00

Calibration certificate for PCE-AQD 10 (CO2 function only)

₹18,139.00

Description

Environmental Meter PCE-AAQD 10 incl. ISO Calibration Certificate

CO2 datalogger for air quality testing / Adjustable storage rate / Backlit LCD / Storage on SD card / Storage as XLS

The environmental meter is used to measure air quality. The environmental meter measures carbon dioxide, temperature and humidity. The CO2 sensor from the environmental meter is separated from the main unit with a connection cable. The measured values are displayed on the large display of the environmental meter. The environmental meter data is stored on an SD card. The environmental meter can set the measured data in adjustable intervals of 1 ... 600 seconds.

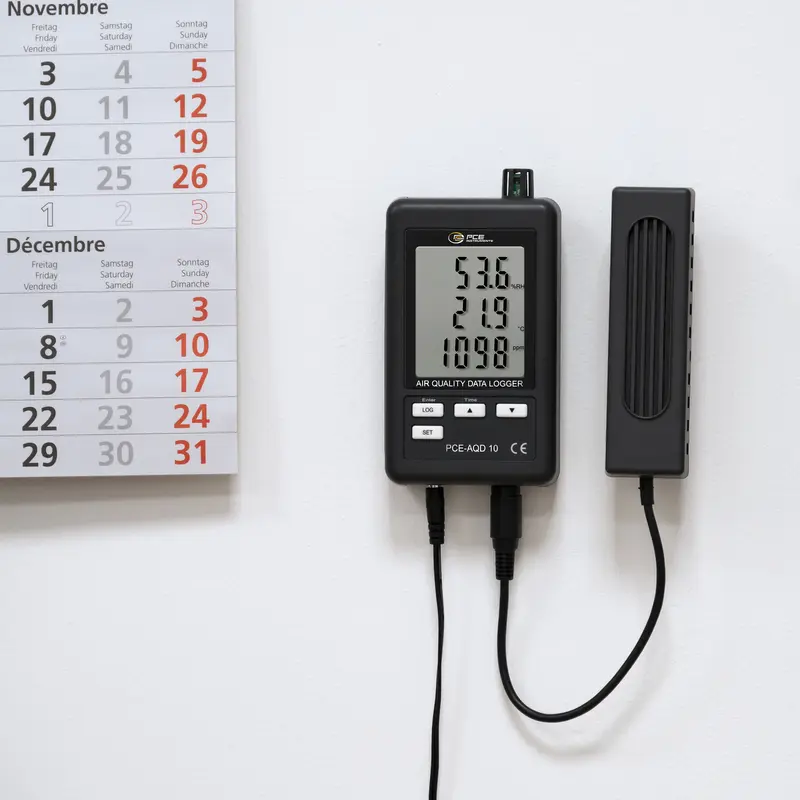

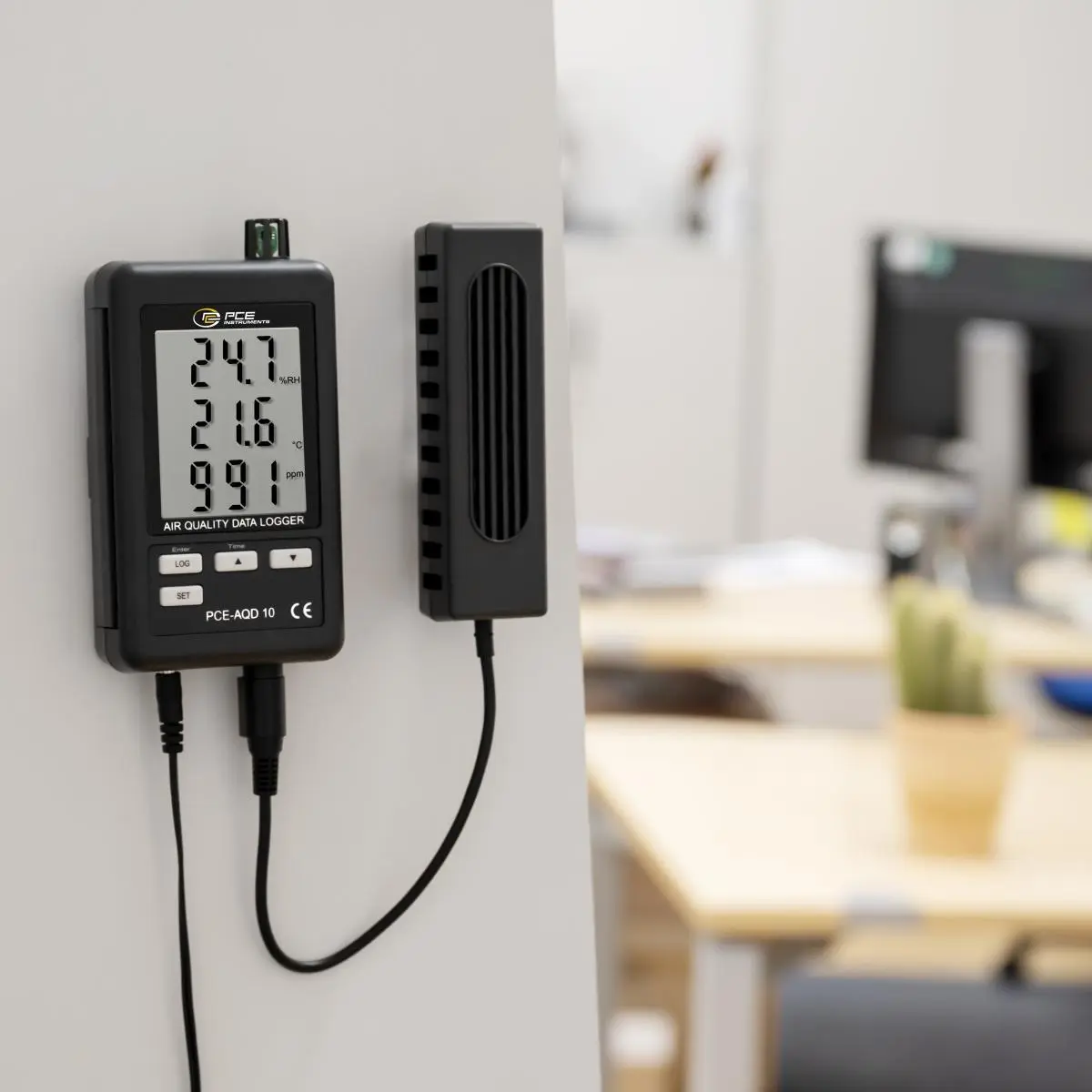

The environmental meter is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.

Highlights

- Memory on SD card
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting
- incl. ISO Calibration Certificate (for CO2 only)

Specification

Measured variable CO2
Measuring range	0 ... 4000 ppm
Resolution	1 ppm
Accuracy	± 70 ppm (<1000 ppm)
	±5% of measured value (<3000ppm)
	±250 ppm (>3000 ppm)
Measured variable humidity
Measuring range	10 ... 90 % RH
Resolution	0.1 % RH
Accuracy	±(4% of measured value + 1 % RH) (>70% RH )
	±4% RH (<70 % RH)
Measured variable temperature
Measuring range	0 ... 50 °C / 32 ... 122 °F
Resolution	0.1 °C / 0.18 °F
Accuracy	± 0.8 °C / 1.4 °F

Storage rate	1, 2, 5, 10, 30, 60, 120, 300, 600 seconds

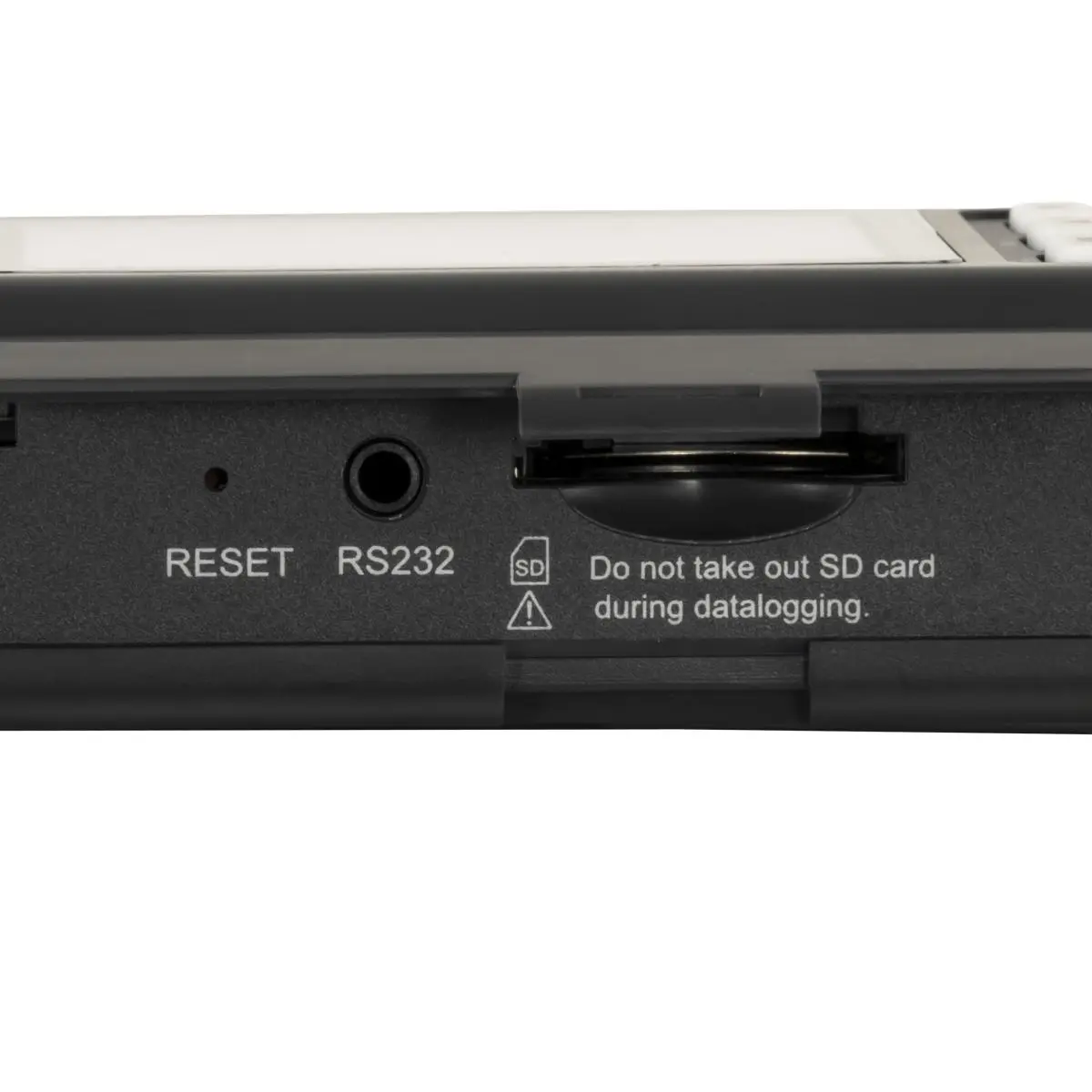

Memory	SD card up to 16 GB
Display	LCD with lighting
Refresh rate display	1s

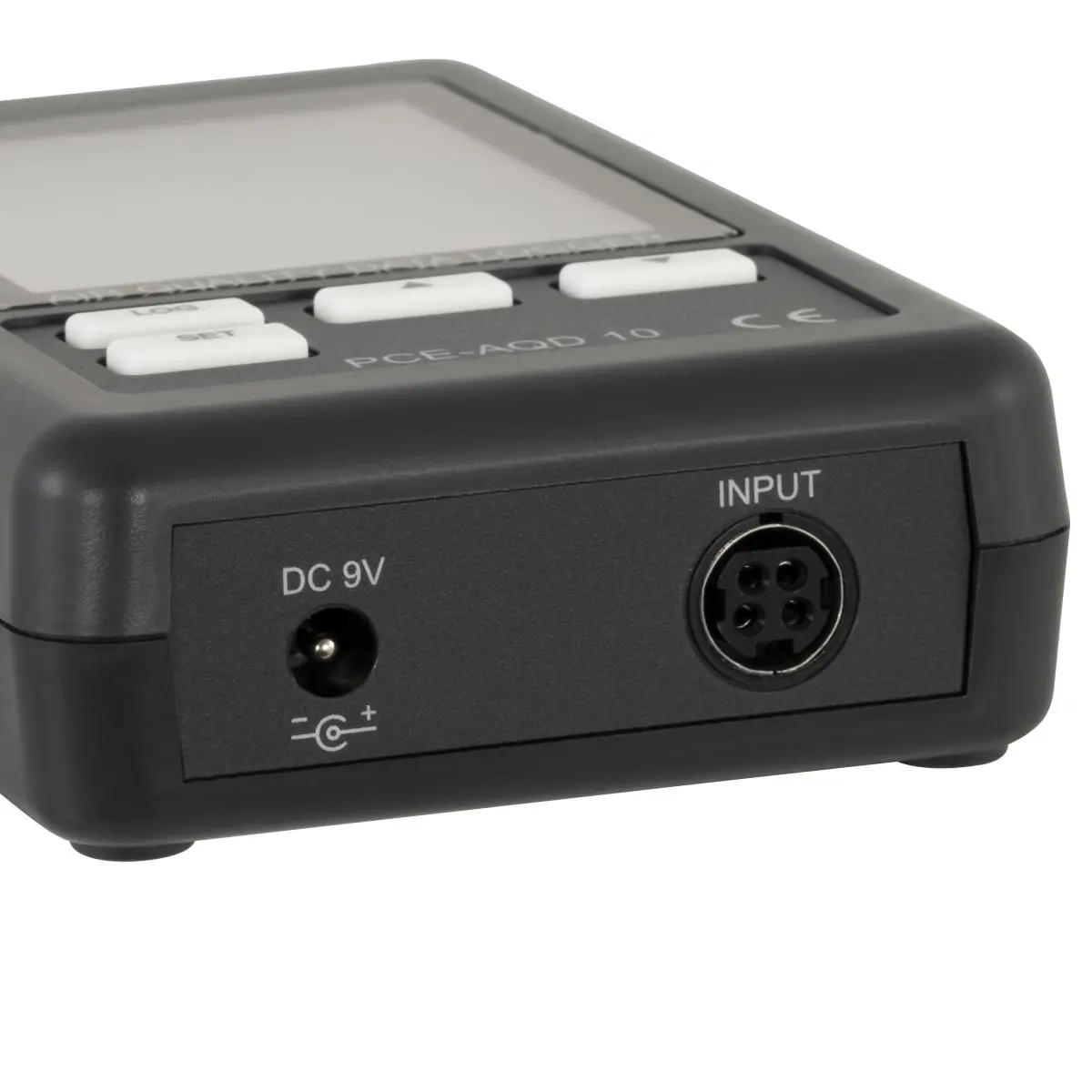

Power supply	plug-in power supply 9 V / 800 mA
Operating conditions	0 ... 50 °C / 32 ... 122 °F / < 85 % RH
Dimensions	main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3"
	CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3"
Weight	ca. 390 g / 13.7 oz (total)

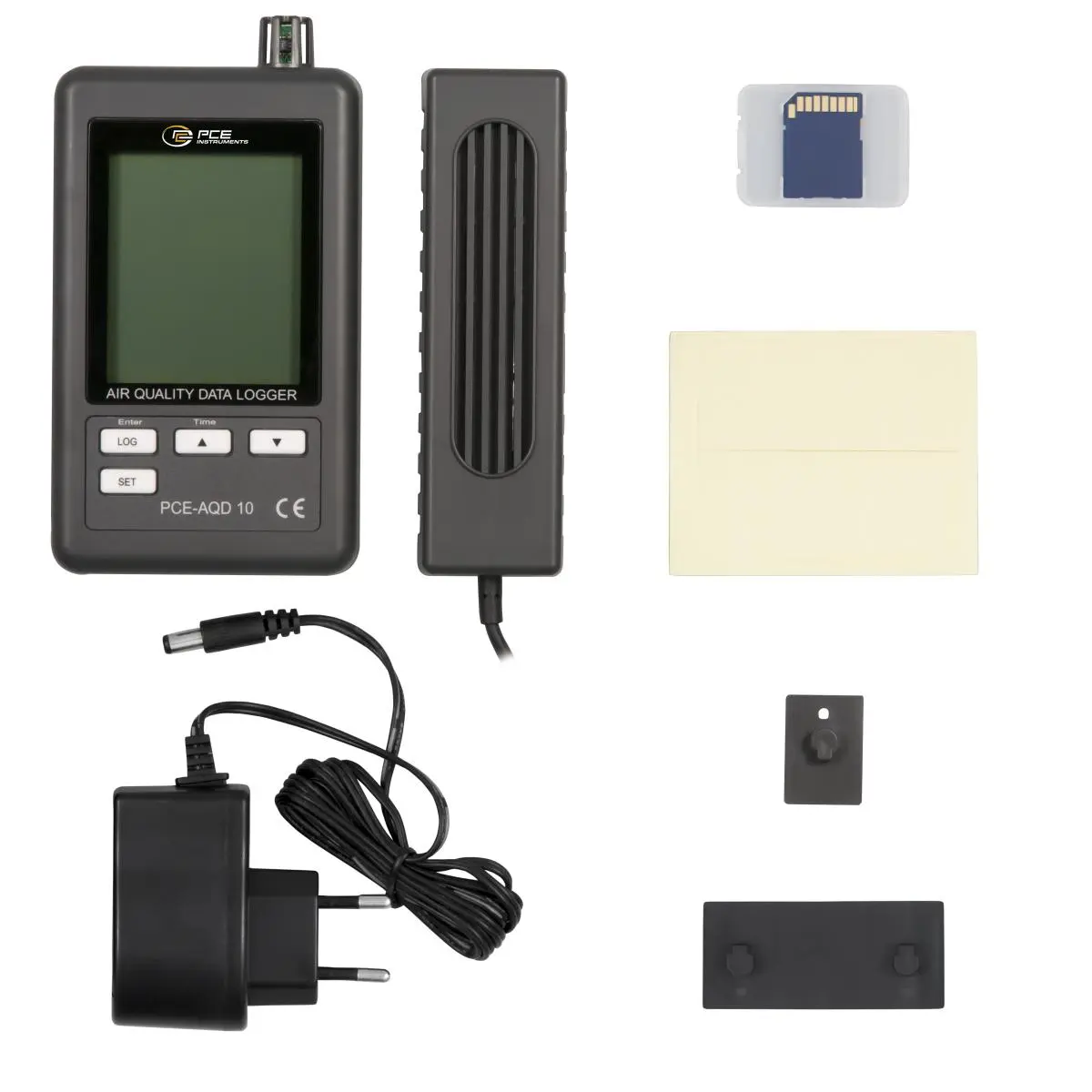

Delivery Scope

1 x Environmental Meter PCE-AQD 10-ICA
1 x CO2 sensor
1 x Mains power adapter
1 x SD memory card
2 x Wall holder
1 x Adhesive pad
1 x User manual
1 x ISO Calibration Certificate (for CO2 only)

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
