Food / Hygiene Meter PCE-IR 100

Order no.: PCE-IR 100
GTIN (EAN): 4250348700926
₹13,377.00
₹15,784.86
price ex. (VAT / delivery)
:
4250348700926
PCE-IR 100
Delivery time: 1-2 working days

Description

PCE-IR 100 is both an infrared non-contact thermometer for measuring surface temperature and a contact thermometer with probe for measuring core temperature of food. This food-grade thermometer allows for quick and easy testing of food surface temperatures without contamination using the infrared sensor, while also offering the possibility of testing food internal temperatures using the food-quality sensor probe, making the thermometer a useful tool for complying with the hazard analysis and critical control points (HACCP) system.

The HACCP system was established to ensure food safety and consistent product quality. Food cannot be put into circulation if it doesn't meet strict safety standards like those in the HACCP. Temperature checks should be made frequently throughout the food supply chain. It is particularly important to test perishable food temperature during transport, as food products can travel significant distances to reach their final destination.

Highlights

- Ideal for use in food processing, food inspection, food safety, food quality control, food preparation and food catering applications
- Aids in compliance with the hazard analysis and critical control points (HACCP) system
- Sensor probe folds into unit for convenient storage
- Accurately covers a wide measurement range
- Quick response time
- Minimum, maximum and lock functions
- Enables continuous measurement over a period of time
- IP 65 ingress protection rating allows hygienic cleaning
- Easy to use: LEDs indicate temperatures below 4 ºC / 39.2 ºF, temperatures between 4 ºC / 39.2 ºF and 60 ºC / 140 ºF, and temperatures above 60 ºC / 140 ºF

Specification

Non-contact measurement with infrared sensor

Temperature range-33 ... +220 °C / -27 ... +428 °F
Resolution0.2 °
Accuracy-33 ... 0 °C: ± 1 °C + 0.1 / degree
0 ... 65 °C: ± 1 °C
65 ... 200 °C: ± 1.5 % of reading

Response time< 500 ms
Wavelength8 ... 14 µm
EmissivityAdjustable in intervals of  0.1 ... 1.0 (default is 0.95 - ideal for food)
Distance to target ratioSpot (FOV) = 2.5:1
Minimum diameter of the measurement point11.5 mm / 0.44"

Contact measurement with sensor probe

Temperature range-55 ... + 330 °C / -67 ... +626 °F
Resolution0.2 °
AccuracyBelow -5 °C: ± 1°C
Between - 5 °C ... +65°C: ± 0.5 °C
Above 65 °C: ± 1.0 % of reading
Response time7 ... 8 seconds
Sensor dimensionsDiameter: 3.2 mm / 0.13", Length: 150 mm / 5.91"
Sensor typeThermal element (type-K)

General characteristics

RepeatabilityWithin the accuracy of the device
FunctionsMax / Min / Lock
Operating temperature0 ... +50 °C / +32 ... +122 °F
Dimensions (with battery)190 x 22 x 38 mm / 7.48 x 0.87 x 1.5"
Power2 x 1.5 V AAA batteries
Operating timeApprox. 40 hours of continuous use
Measurement point illuminationLED
Holding of values on the display15 seconds
Display4 positions
Ingress protection ratingIP 65


Delivery Scope

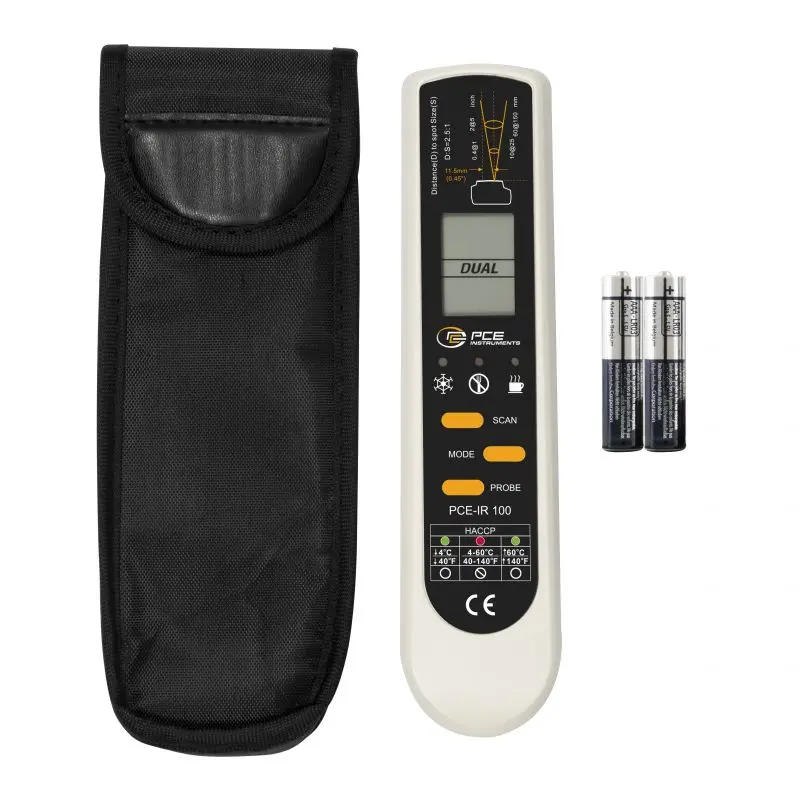

1 x PCE-IR 100 Food / Hygiene Meter
2 x batteries
1 x user manual
