Force Gage PCE-DDM 50WI

Order no.: PCE-DDM 50WI

GTIN (EAN):

Accessory

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

₹212,025.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

₹202,651.00

Calibration certificate for tensile or compressive force up to max 1000kN / 100t

₹121,704.00

Description

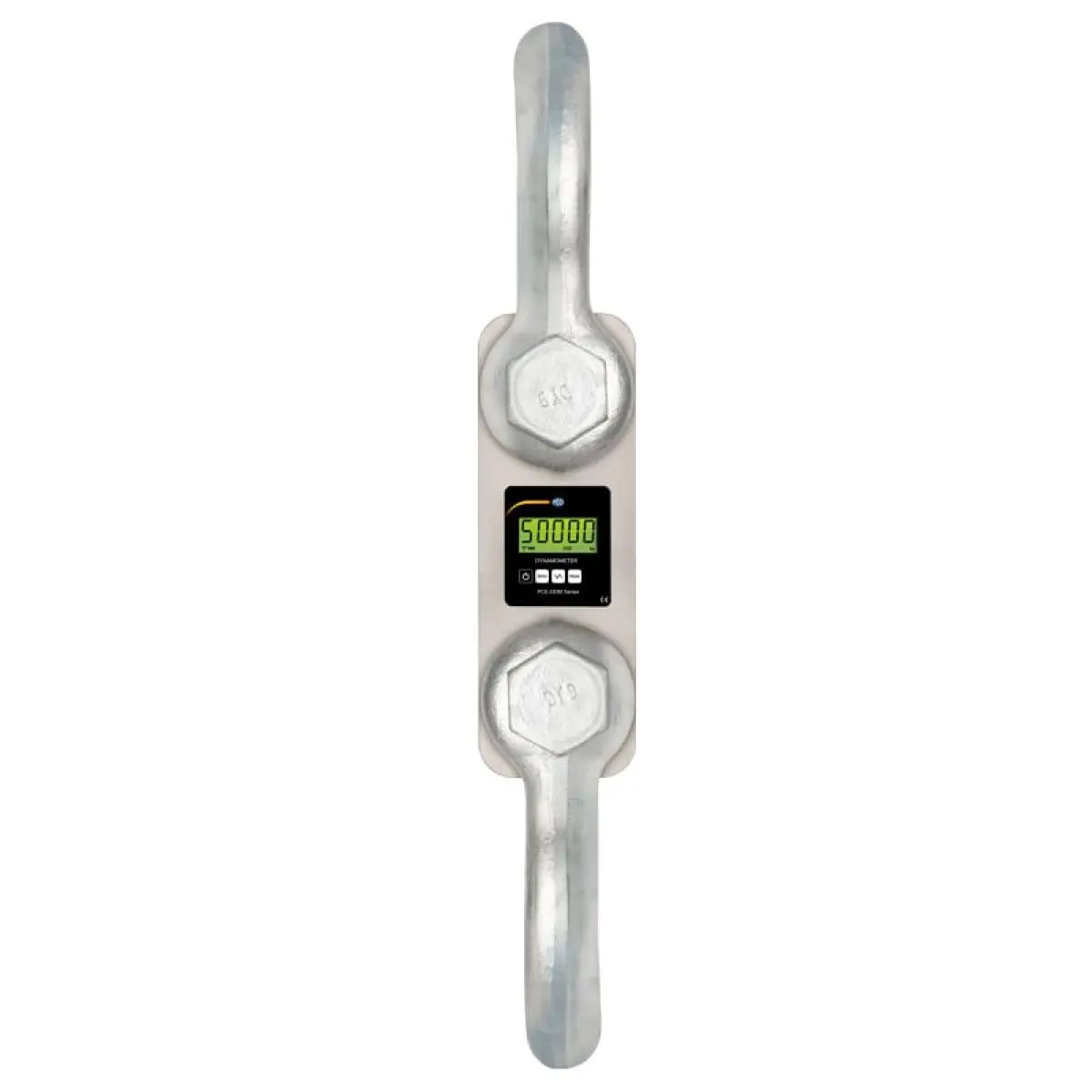

Mobile Force Gage / Measuring range up to 50 t /
PEAK hold function / incl. shackles and transport case

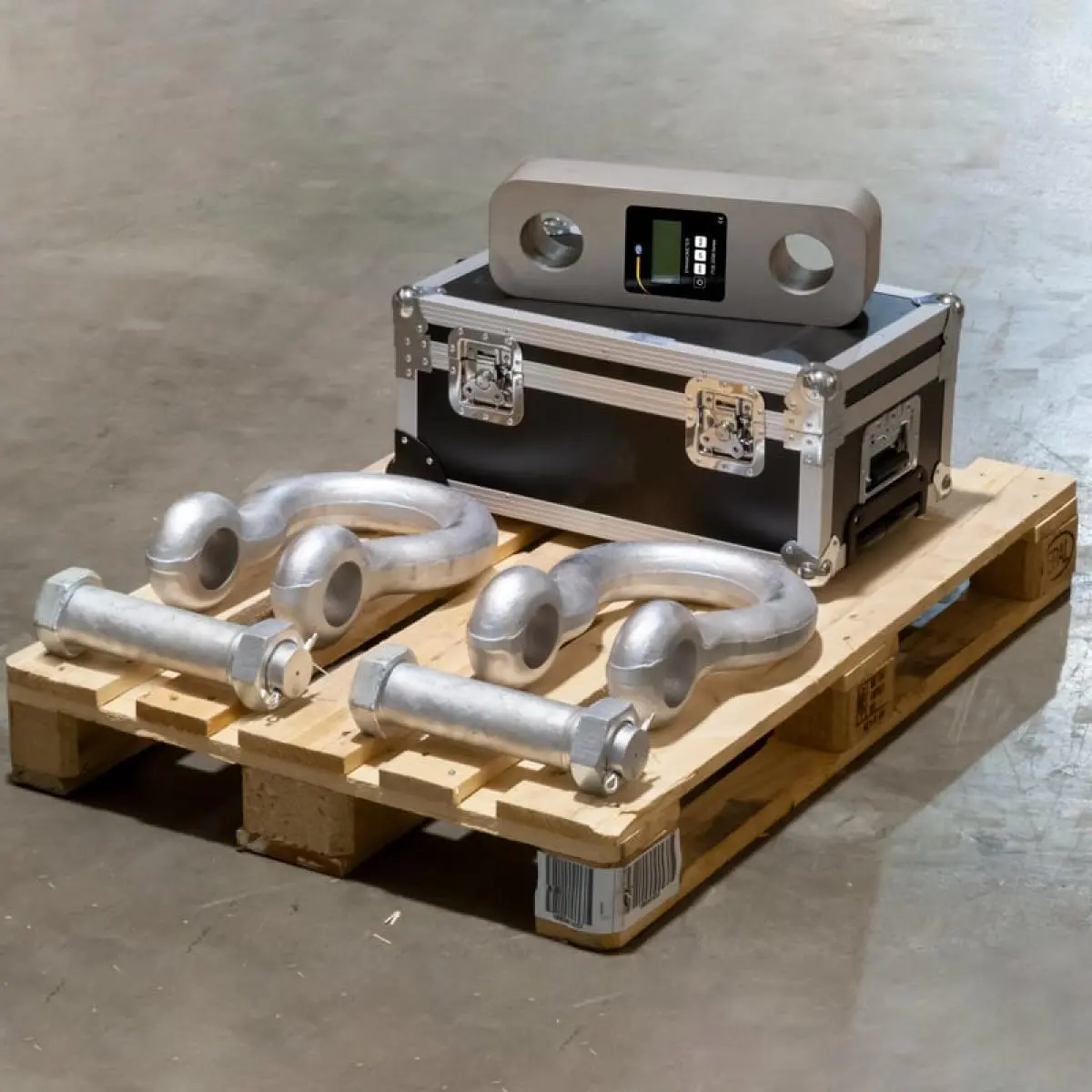

The force gage is ideal for carrying out mobile tension measurements such as those made by surveyors. Quality materials are used for the manufacture of the tension force gage. Despite the high measuring capacity, these materials enable a compact design with a low weight. The tension force gage is supplied with two shackles in a transport case.

Interesting functions of the force gage are the PEAK hold function, summation function and the various units of measurement such as kg / t / lb / N or kN. The tensile force gage is only suitable for tensile measurements; other force measuring devices must be used for pressure tests, such as our PCE-FB series force measuring gauges.

Highlights

- Measurement range up to 50000 kg / 500 kN

- High capacity

- Compact and portable

- Long battery life

- Peak hold function

- Summation function

- Selectable units of measurement: kg / t / lb / N / kN

- Adjustable gravitation range

- Shackles and carrying case included

Specification


Measuring range	50000 kg / 500 kN / 110231 lbs
Resolution	20 kg / 200 N / 44 lbs
Min. range	400 kg / 881 lbs
Weight (with shackle)	39 kg / 86 lbs (128 kg / 282 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours
