Swivel head PCE-C-A-50KN-EB

Order no.: PCE-C-A-50KN-EB
GTIN (EAN):
₹5,461.00
₹6,443.98
price ex. (VAT / delivery)
PCE-C-A-50KN-EB
Delivery time: 1-2 working days

Description

The high-strength eye bolt is supplied individually. With an M20 thread and a maximum load of 9.35 t, the eye bolt fits into the S cells of the PCE-DFG N 20K and PCE-DFG N 50K. Depending on the application, up to two eye bolts are required per measuring cell.

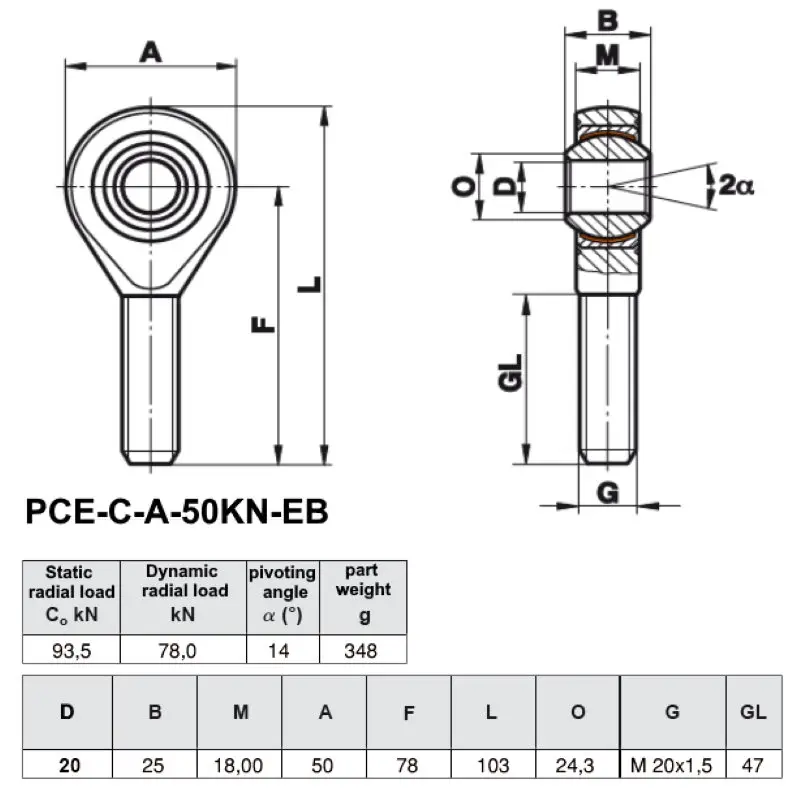

- Static load capacity 93,500 N / 9.35 t
- Dynamic load capacity 78,000 N / 7.8 t
- Thread D: M20x 1.5
- Inner ring D 20 mm
- Outer ring A 50 mm
- Length thread GL 47 mm

Delivery Scope


1 x high-strength swivel head PCE-C-A-50 KN-EB
