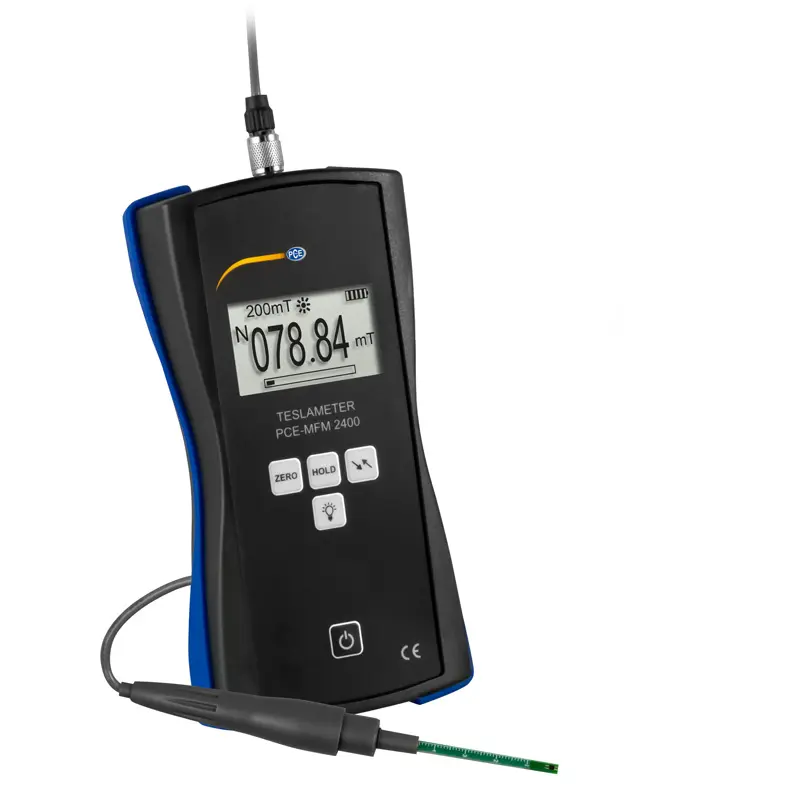

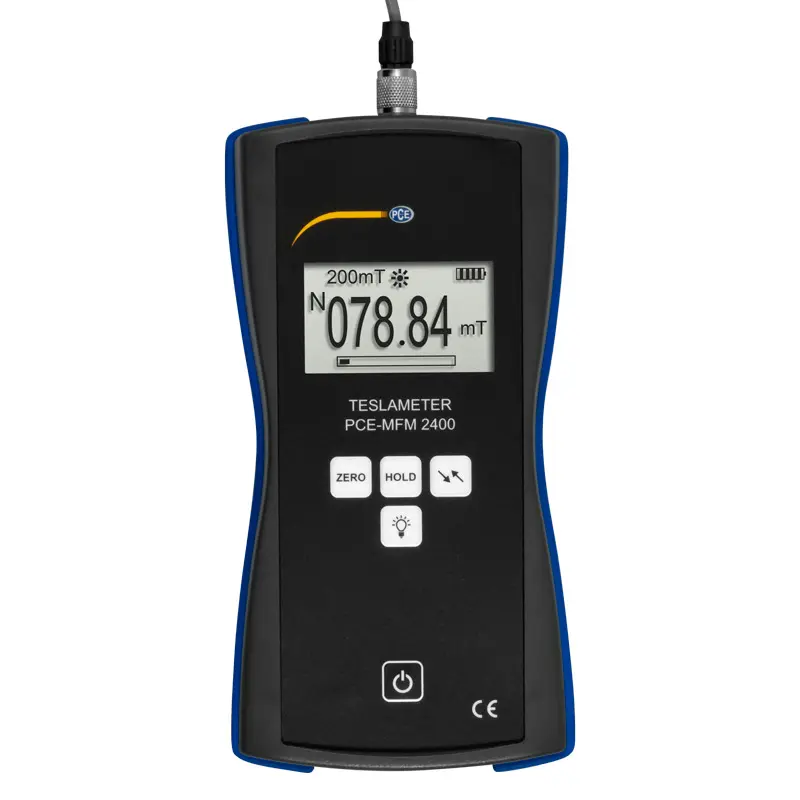

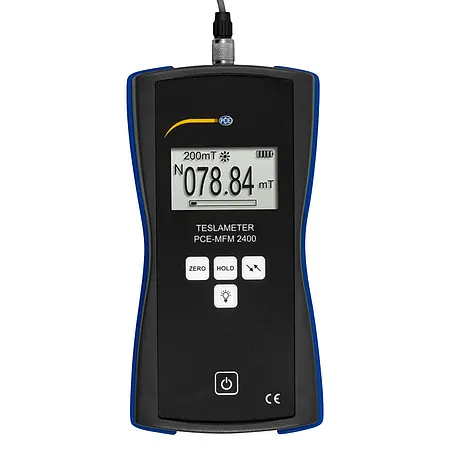

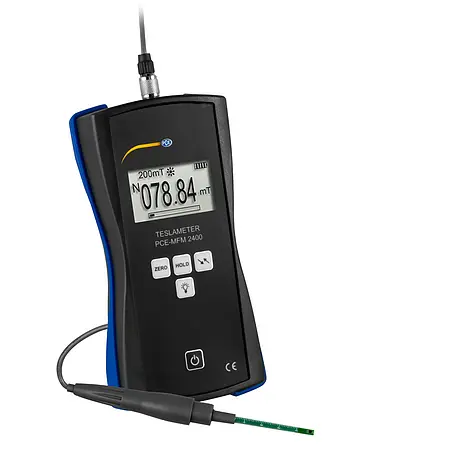

High Precision Gaussmeter PCE-MFM 2400-ICA incl. ISO Calibration Certificate

Order no.: PCE-MFM 2400-ICA
GTIN (EAN): 4250348726315

₹138,369.00
₹163,275.42
ISO Calibration
price ex. (VAT / delivery)
:
4250348726315
PCE-MFM 2400-ICA
Delivery time: 10 - 14 days

Description

Precise Gaussmeter with an accuracy of 1% /
automatic switch-off / transverse measurement / backlight /
Tesla and Gauss measurement / for static magnetic fields

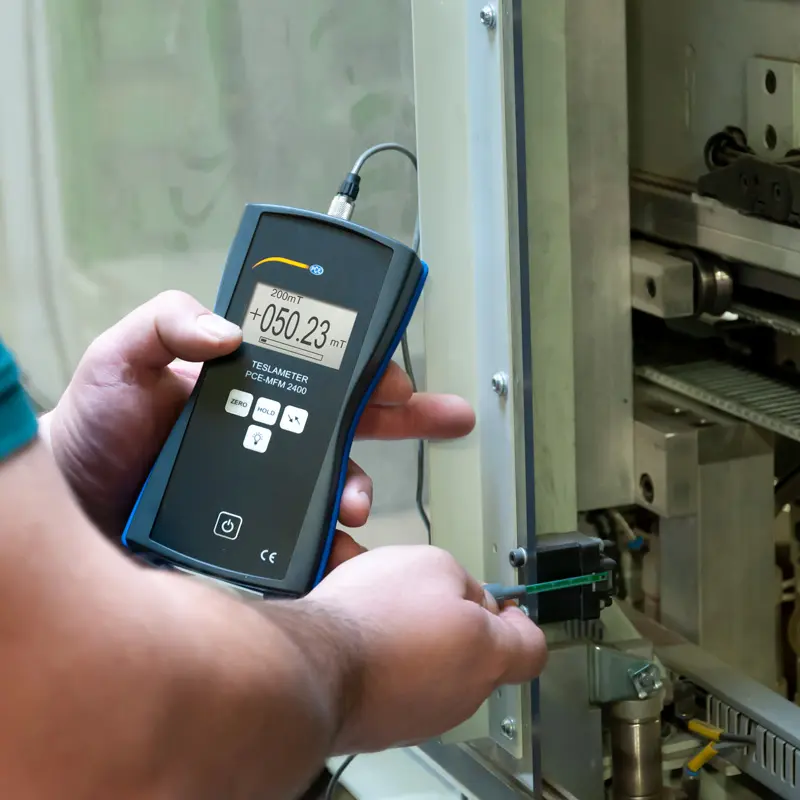

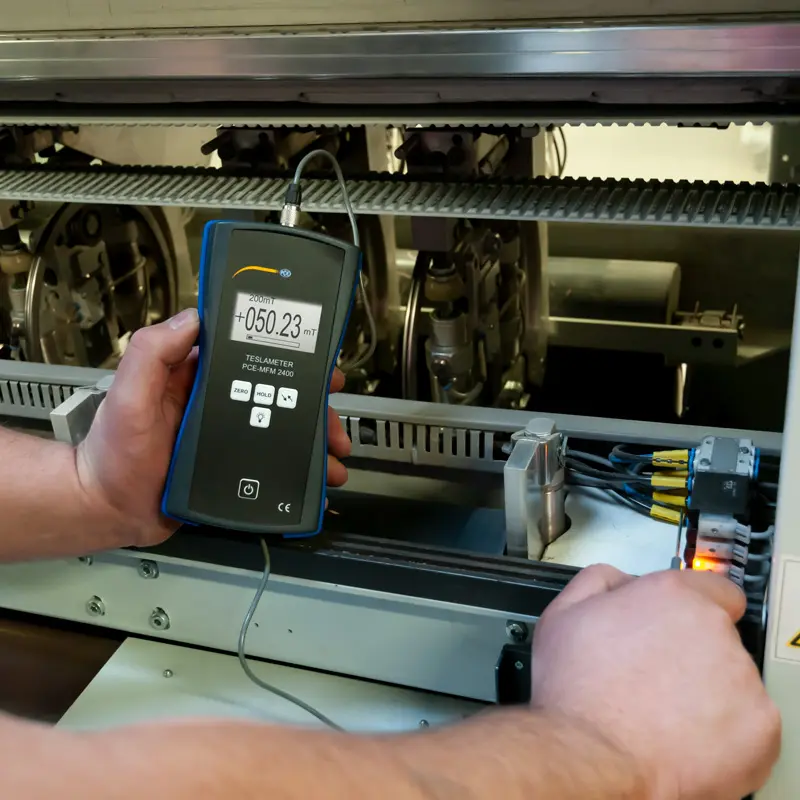

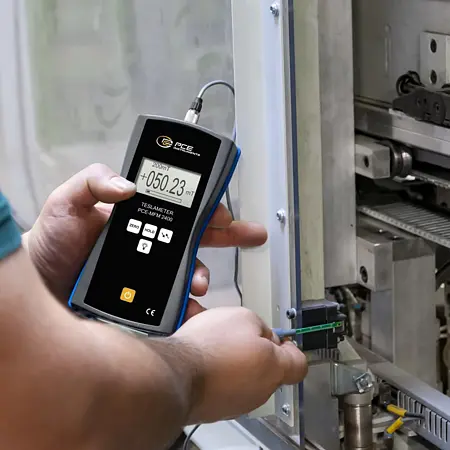

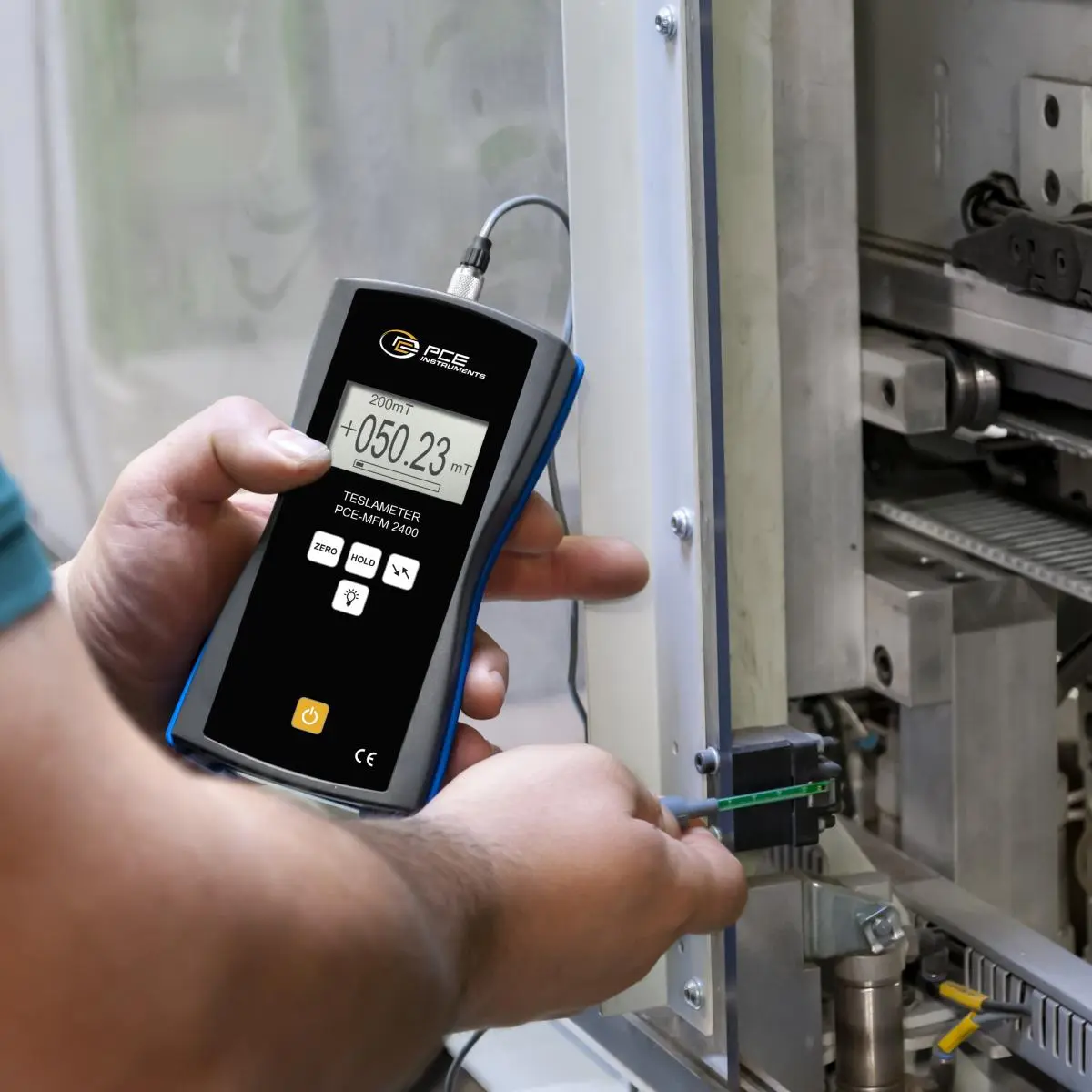

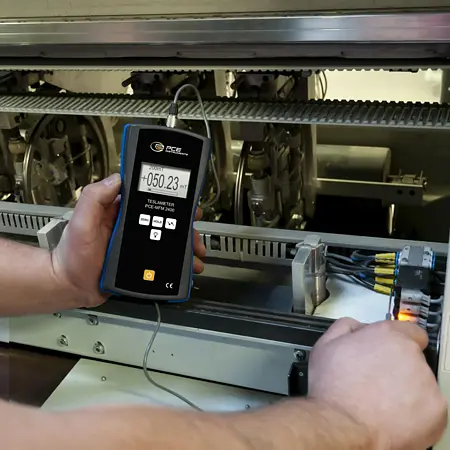

With a measuring range of 2,400 mT, the gaussmeter covers a wide range of measuring tasks. The field strength meter has an accuracy of 1%. This makes the Electromagnetic Radiation Detector a very precise measuring device. For example, the Electromagnetic Radiation Detector can be used to test relays and permanent magnets for the existing magnetic field. The Electromagnetic Radiation Detector is therefore used in production processes or in quality control.

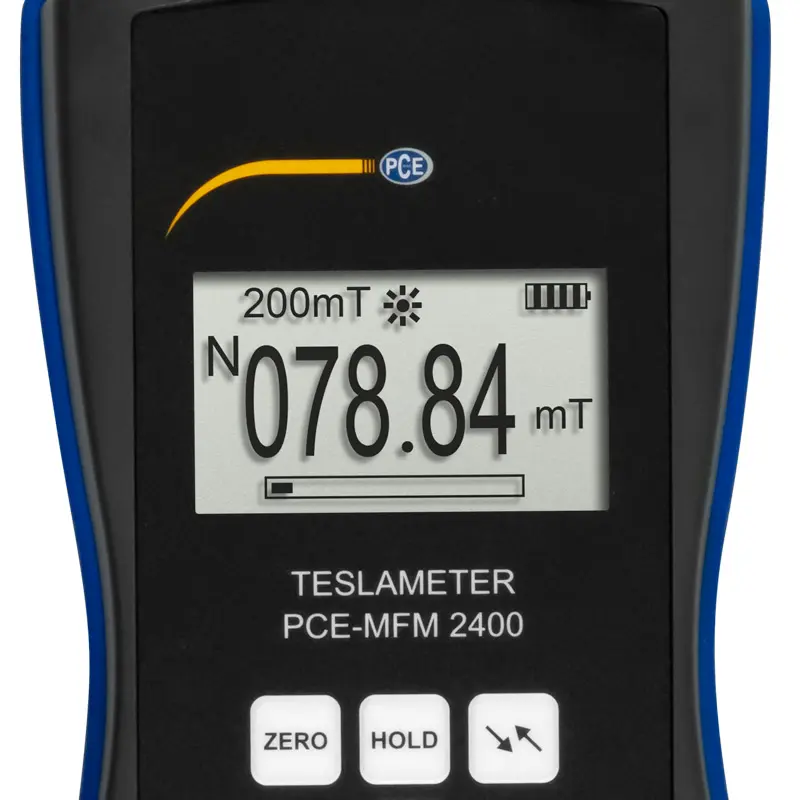

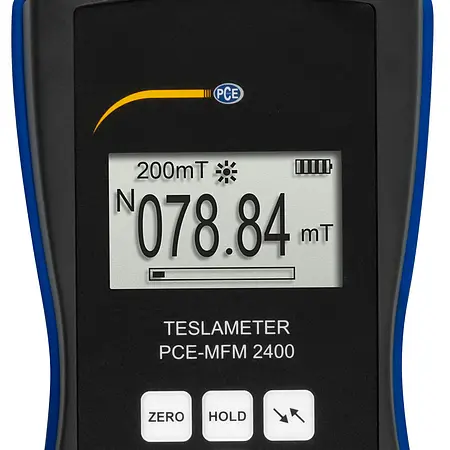

With the backlight on the Electromagnetic Radiation Detector, the measured values ​​are always easy to read even in poor lighting. Thanks to the automatic switch-off function, the Electromagnetic Radiation Detector automatically switches itself off after 5 minutes. This ensures that the battery of the Gauss meter does not discharge completely.


Highlights

- very precise measurement technology
- measuring range up to 24,000 G and 2,400 mT

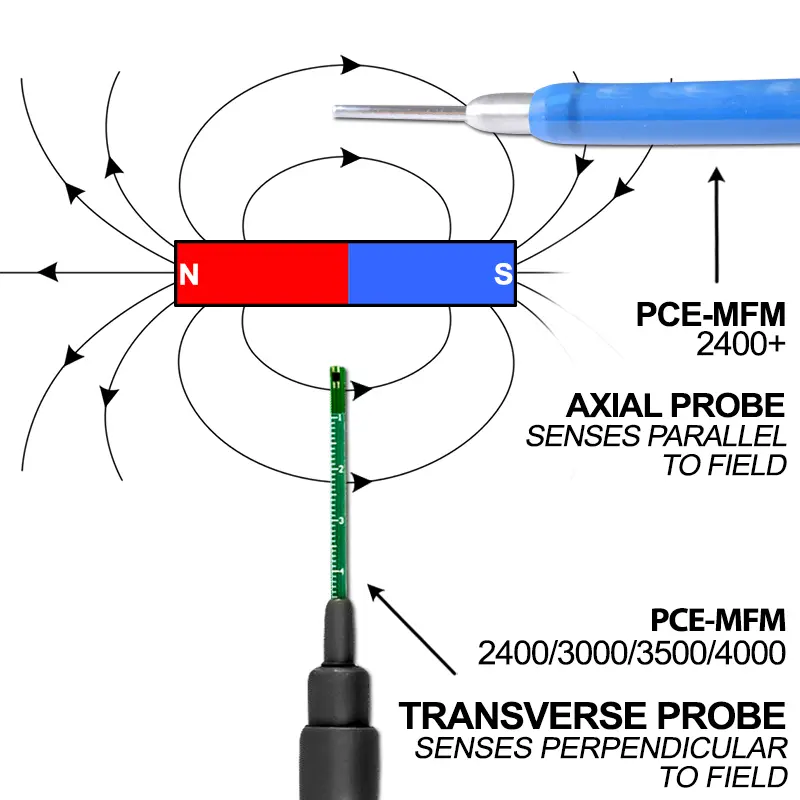

- transverse sensor
- for measuring static magnetic fields
- automatic shutdown

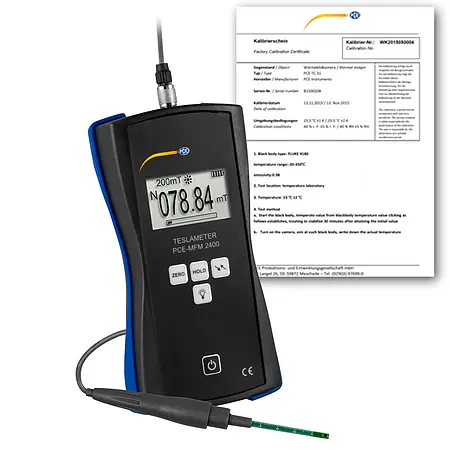

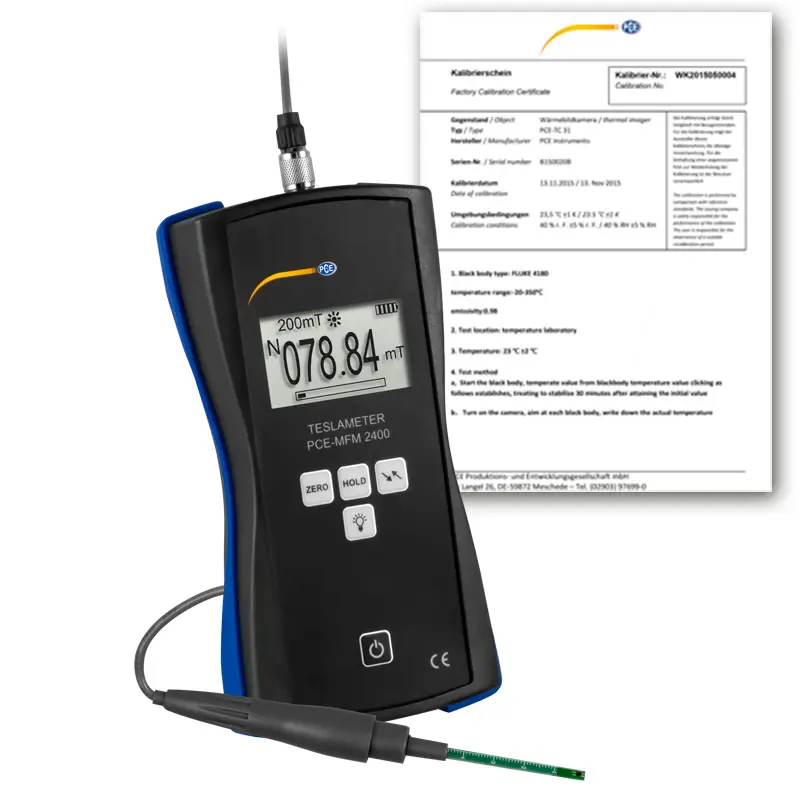

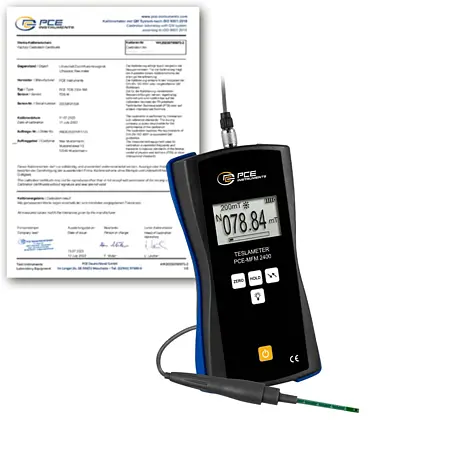

- incl. ISO Calibration Certificate

Specification


Measuring range 0… 200 mT
  200… 2,400 mT
  0 ... 2,000 G
  2,000 ... 24,000 G

Accuracy ± 1% of reading

Resolution 0.01 mT
  0.1 g

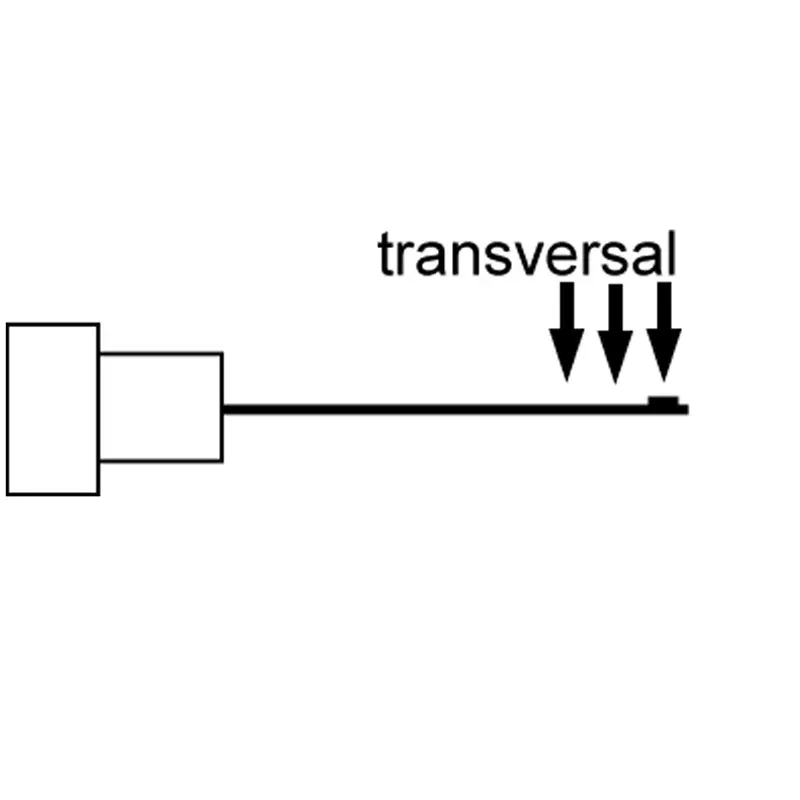

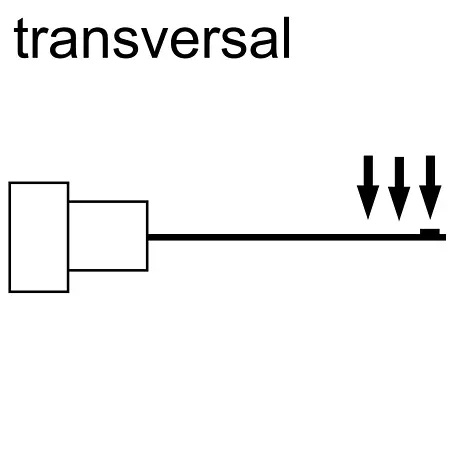

Measuring direction transversal
Magnetic field static (DC)
Unit mT, G

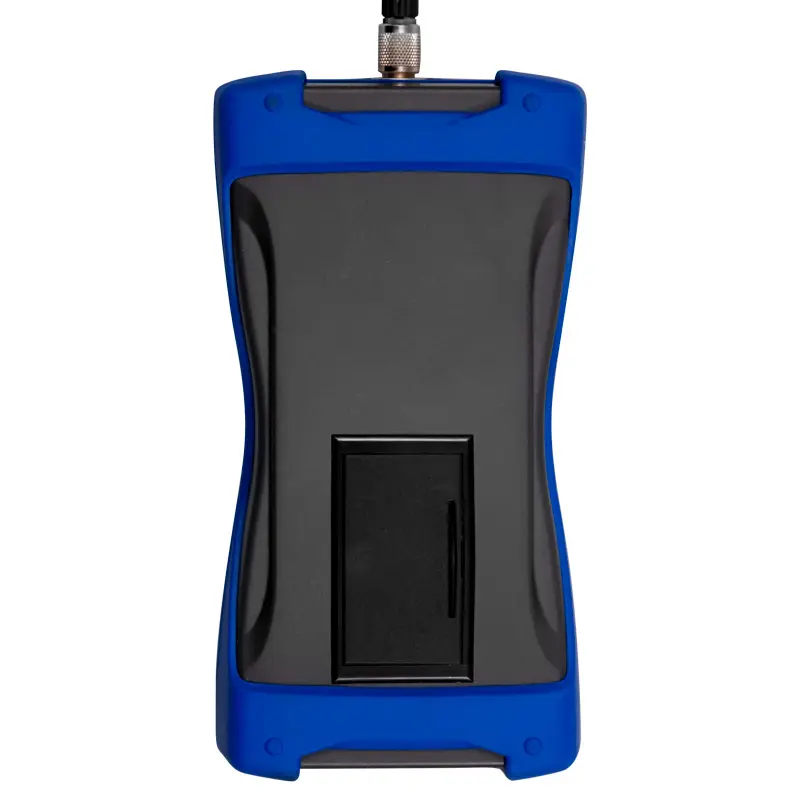

Power supply 1 x 9 V block battery
Automatic shutdown    Automatic shutdown after 5 minutes in idle status
Modes
Hold mode, measurement mode

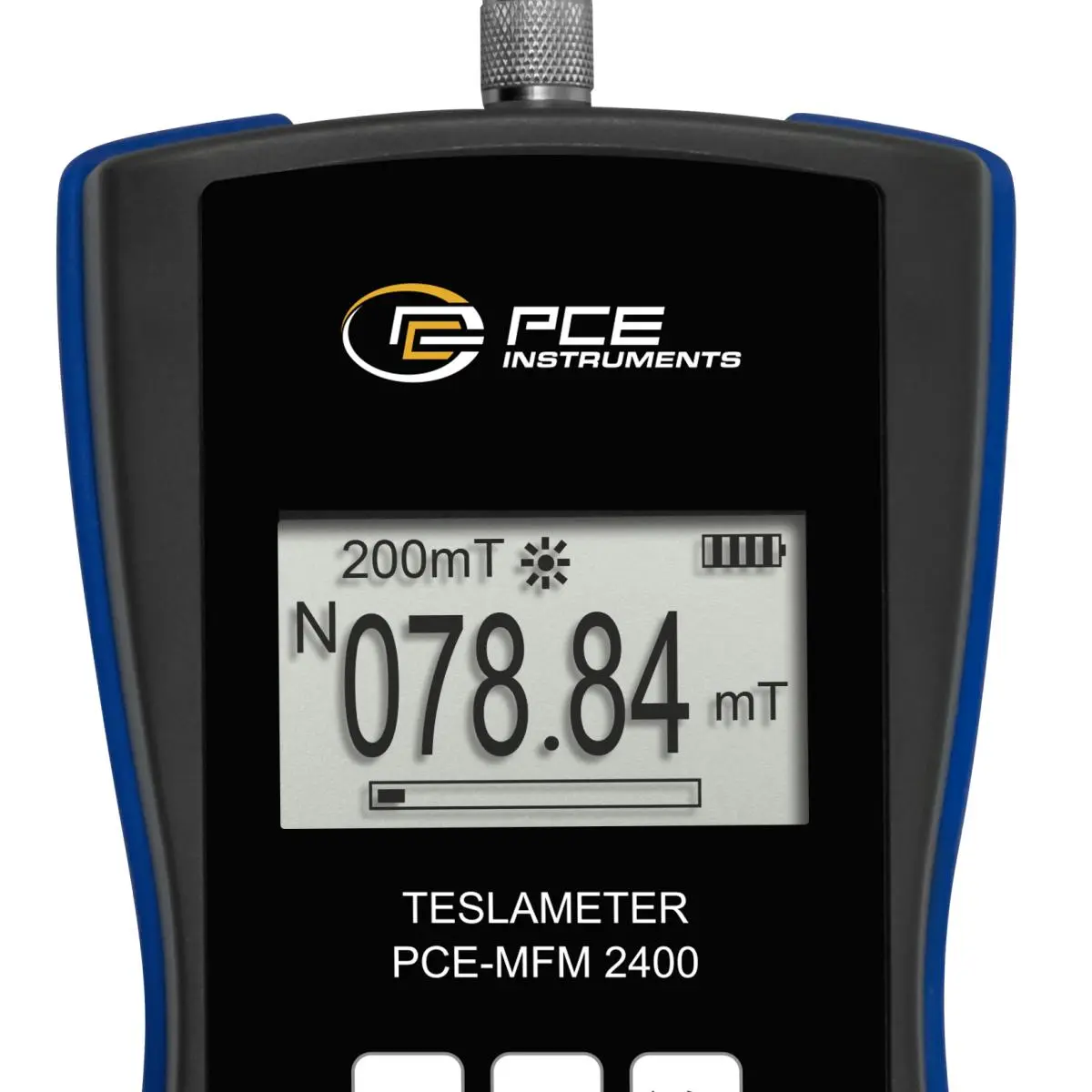

Display
Backlight digital 4-digit value display
Operating temperature 32 ... 122 ° F, 0… +50 ° C
storage temperature -4 ... 122 ° F, -20… +50 ° C
Dimensions 7.28 x 3.82 x 1.57 inch; 185 x 97 x 40 mm
Weight 0.68 lb, 310 g

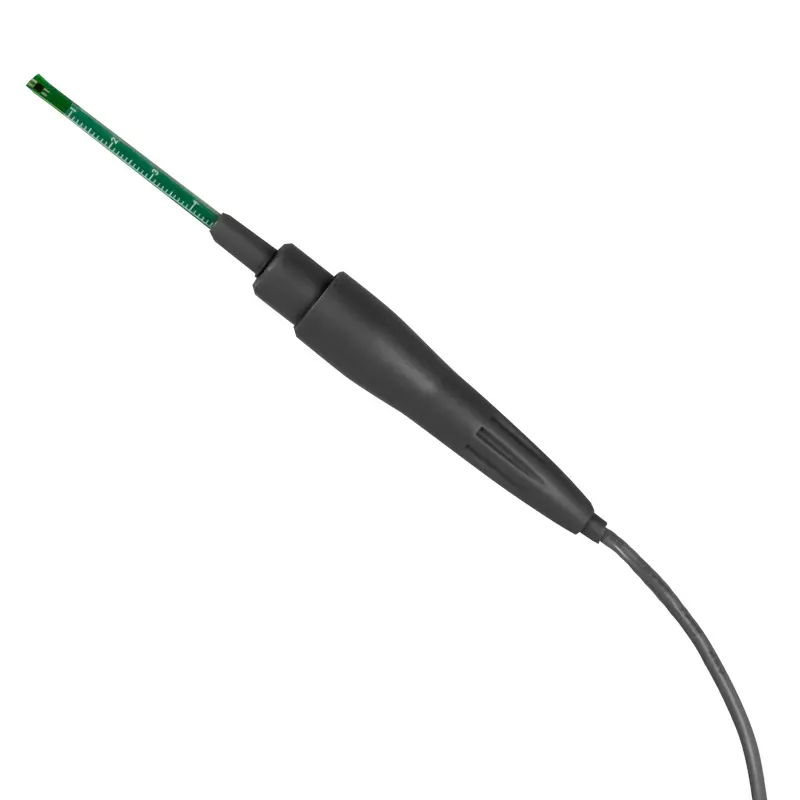

sensor Hall sensor transversal, cable length approx. 3.28 ft., 1 m

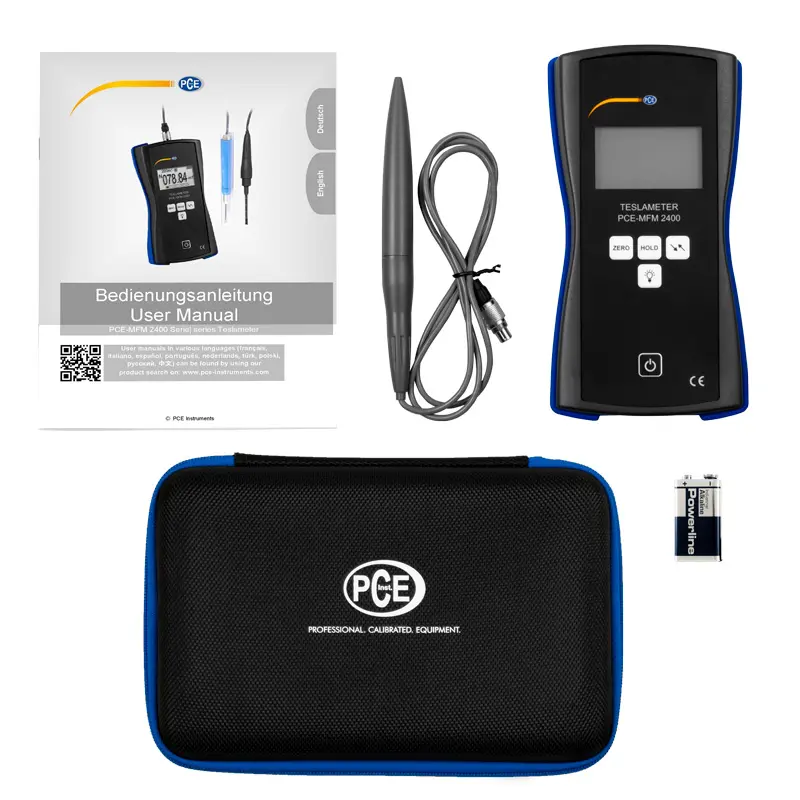

Delivery Scope

1 x High Precision Gaussmeter PCE-MFM 2400-ICA
1 x Hall sensor (transverse)
1 x service bag
1 x 9 V block battery
1 x instruction manual
1 x ISO Calibration Certificate
