Geiger Counter PCE-RAM 3

Order no.: PCE-RAM 3
GTIN (EAN): 4250348737045
1 pc.
β-, X- radiation
No

Description

Geiger Counter / measurement of gamma, beta and X-rays / adjustable alarm values / numerical and graphical display / min, max and average values

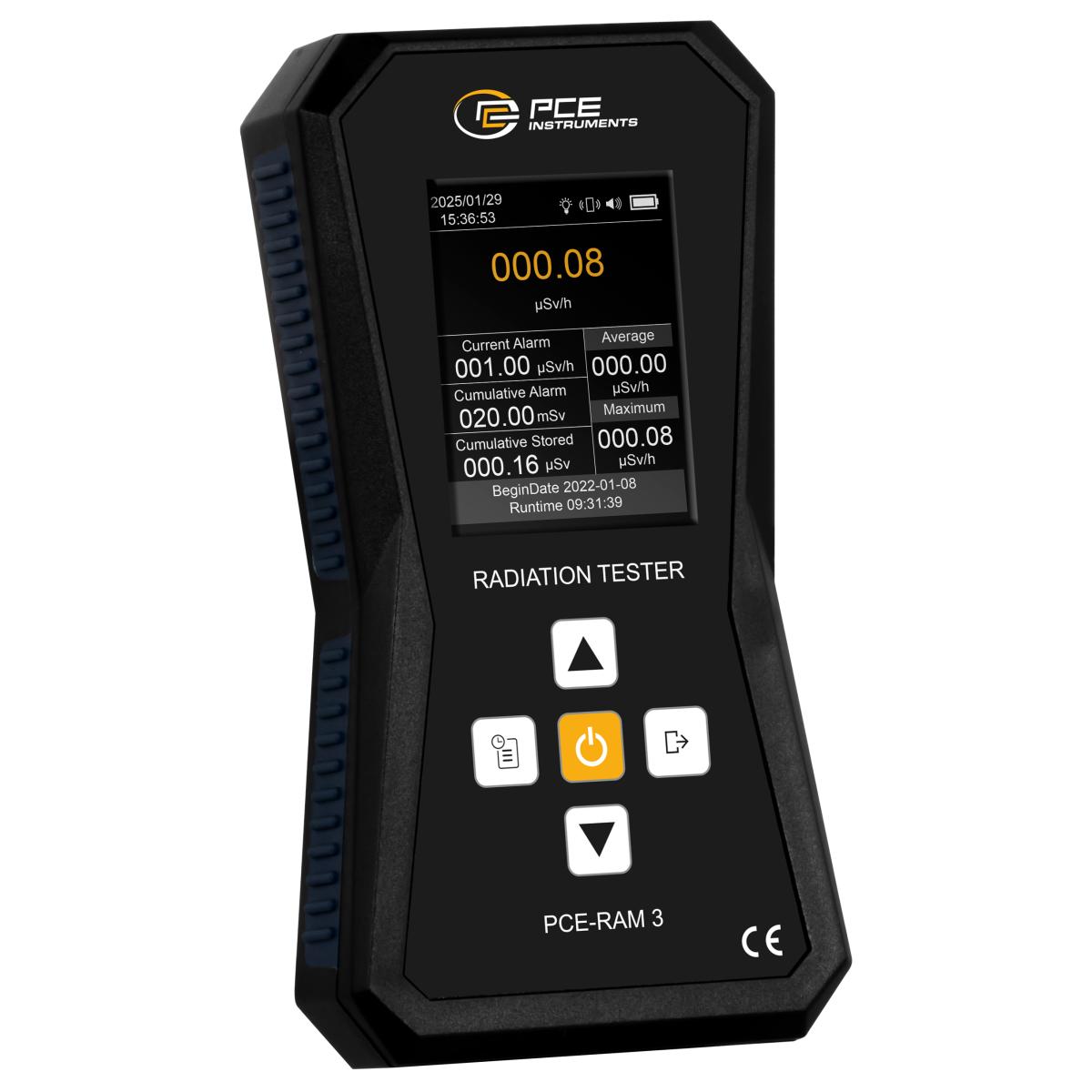

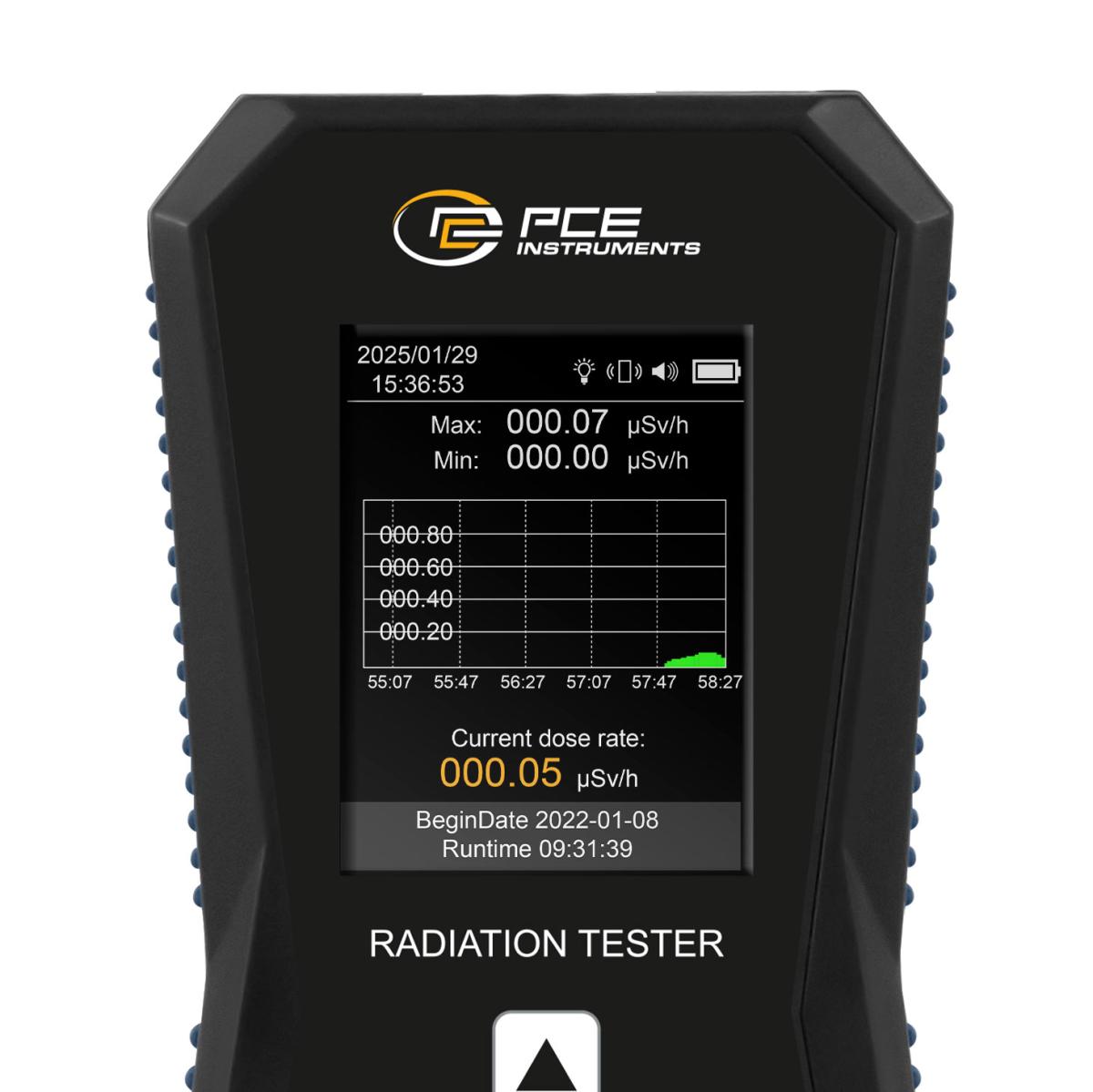

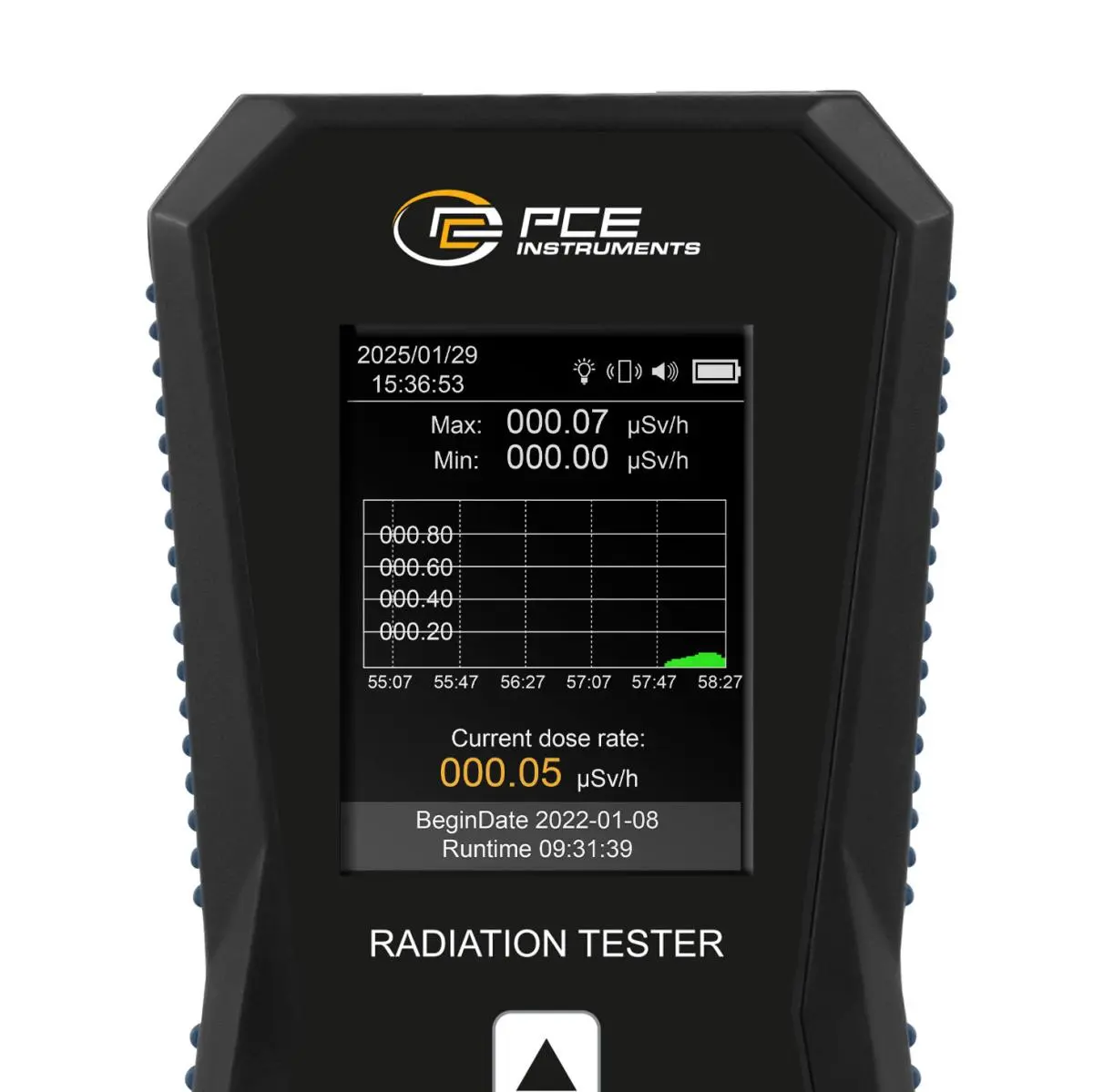

Our Geiger Counter is mainly used to measure gamma, beta and X-rays and uses a Geiger-Müller counter to measure the intensity of ionising radiation. The measuring range extends from 0 ... 10 mSv/h. The cumulative dose, average and maximum dose are shown on the larg 2.3 inch multifunctional display, while the real-time measurements are also shown graphically.

The device has two alarm modes: the radiation alarm (0 ... 100 µSv/h) and the cumulative radiation alarm (0 ... 100 mSv). Both alarms are equipped with different settings for visual, audible and vibrating warning signals. The energy range of the device is between 48 and 1500 keV. The radiation measuring device is equipped with a micro USB interface and a rechargeable lithium battery.

The Geiger Counter also displays the current battery level so that the user is always informed. The brightness of the display can be adjusted as required so that it is easier to read even in different lighting conditions. The date and time are also shown on the display.

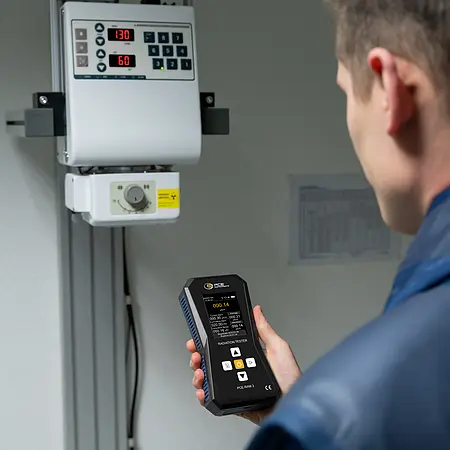

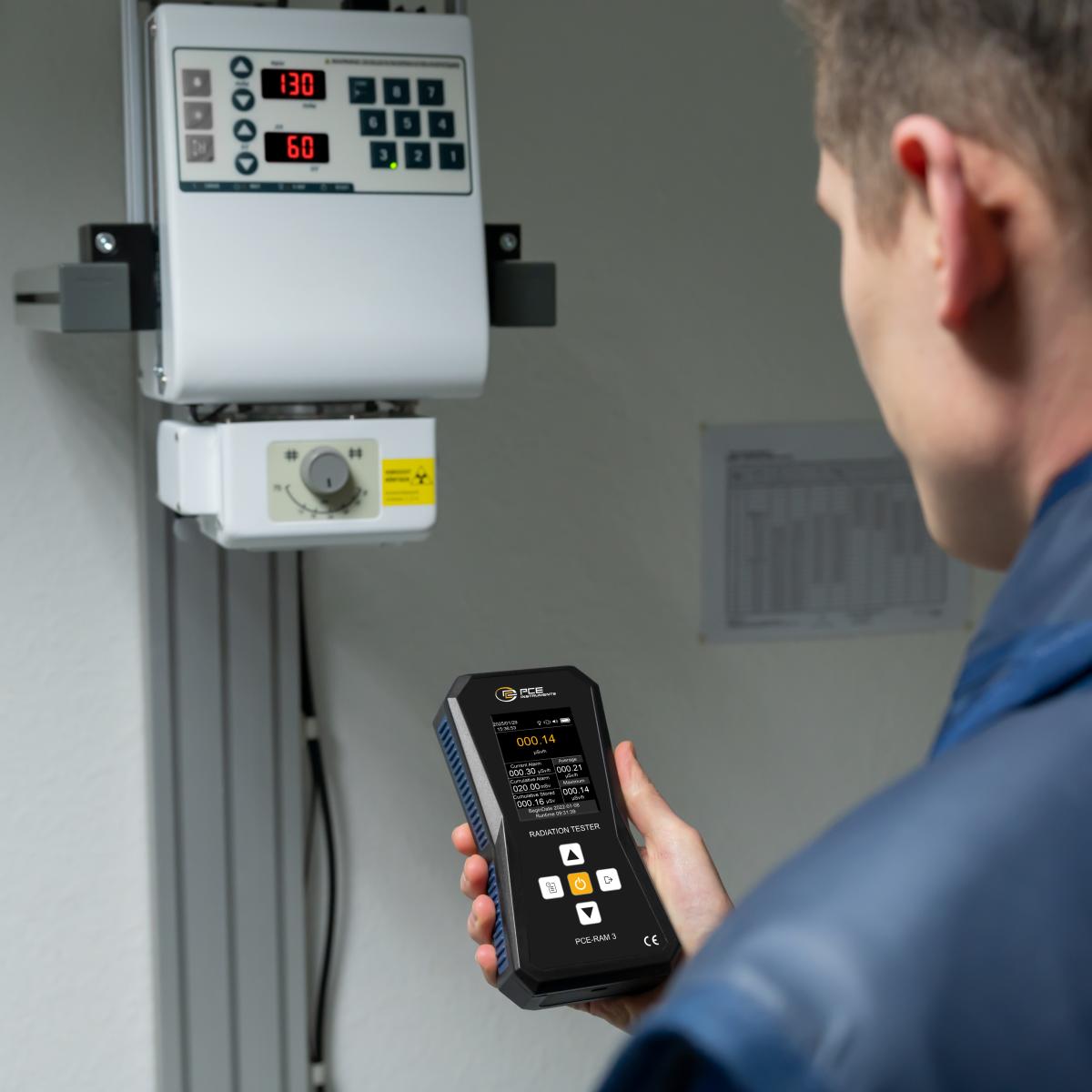

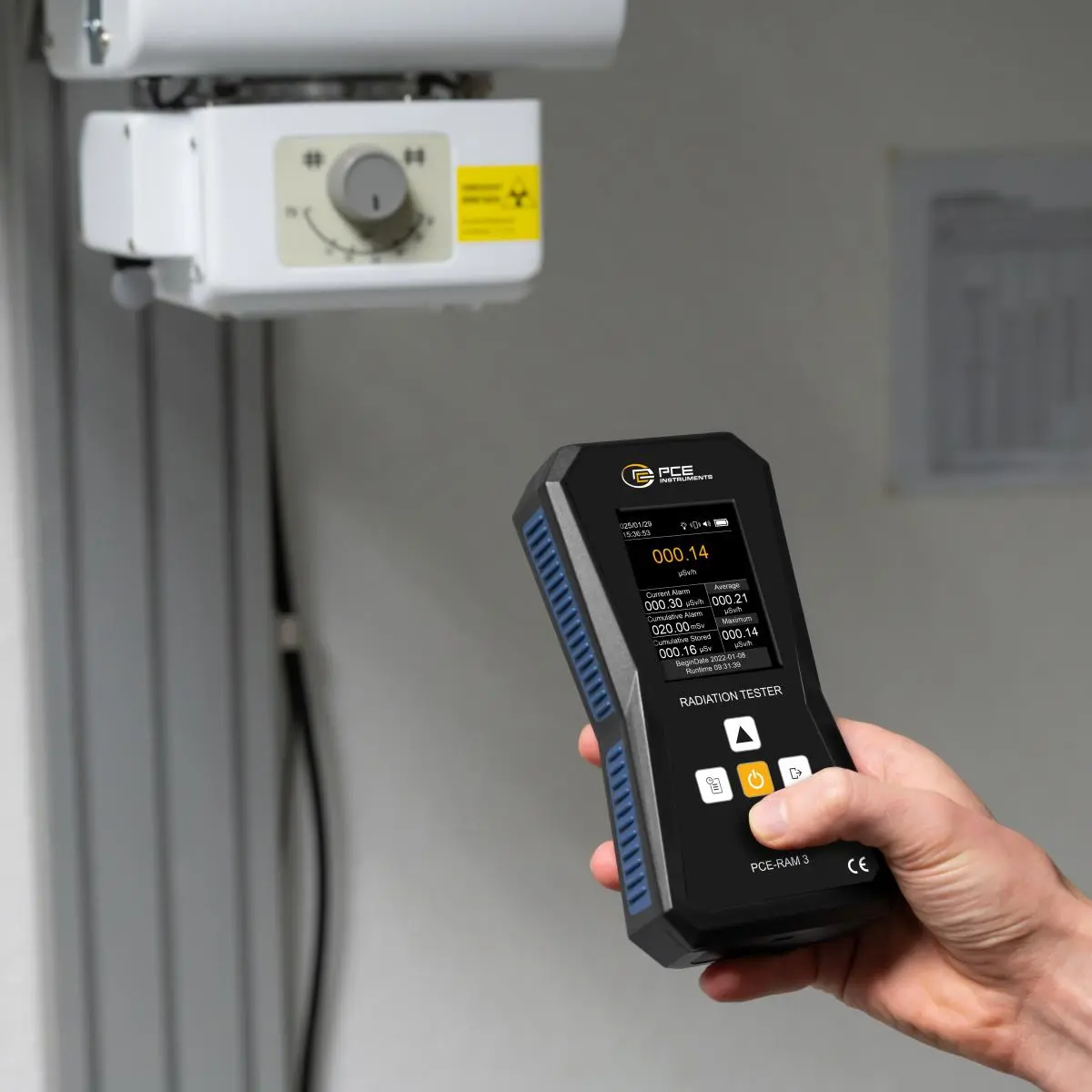

This Geiger Counter is ideal for applications in research, medicine, industry and environmental protection. It can be used in nuclear power stations, hospitals, laboratories, radiation monitoring and emergency scenarios. Furthermore, it is also useful for construction companies that are working with radioactive materials and in environmental monitoring to ensure that radiation exposure remains within safe limits.


Highlights

- real-time value, average value
- measuring functions: Min, Max
- sensitivity: 80 CPM/µSv (based on Co-60)
- radiation alarm adjustable
- adjustable cumulative radiation alarm
- cumulative dose display

Specification

Radiation
Measurement range up to  0 ... 10 mSv/h
Resolution  0,01 µSv/h
Accuracy  ±30 % (for 137 Cs)

Radiation
Measurement range up to  0 ... 500 mSv
Resolution  0,01 µSv
Accuracy  ±30 % (for 137 Cs)

General technical data
Measuring functions  MIN, MAX, Average value
Units  μSv/h, μGy/h, mR/h, cps, cpm
Energy range  48 ... 1500 keV
Display type  LCD with backlight
Display size  2,8 Inch

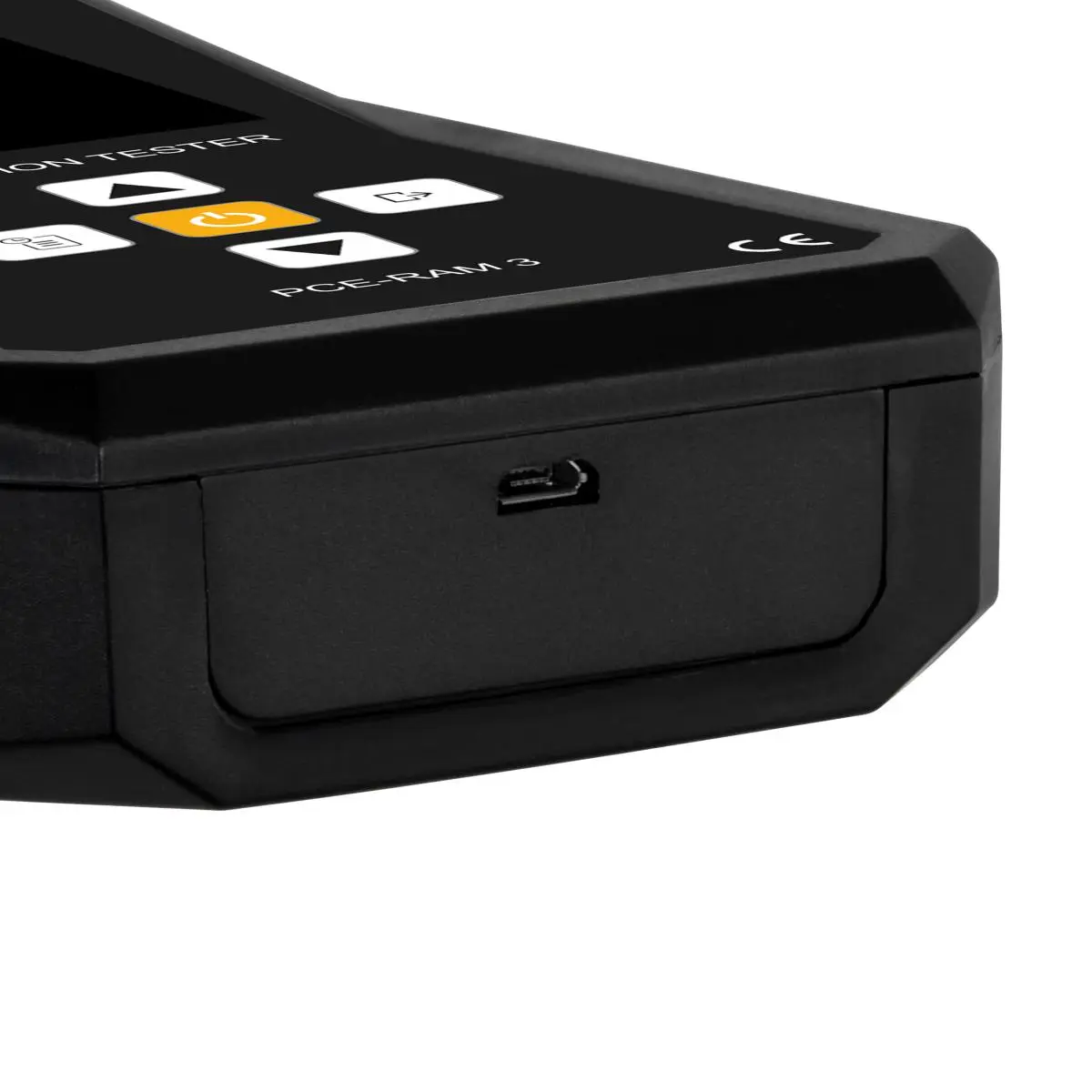

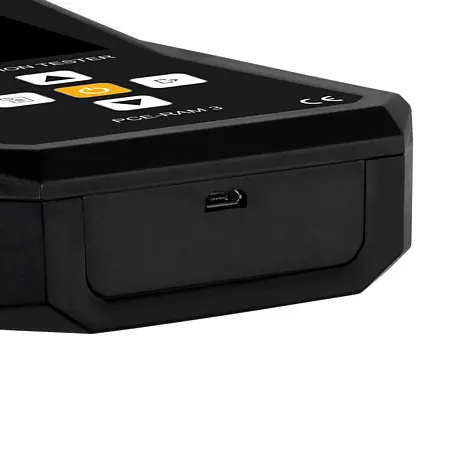

Interface  Micro-USB
Sensor  Geiger-Mueller counter tube
Alarm  optical, Acoustic, Vibration
Alarm modes  Radiation alarm: 0 ... 100 µSv/h
Cumulative radiation alarm: 0 ... 100 mSv
Sensitivity  80 CPM/µSv (related to Co-60)
Menu language  English, Chinese, English (GB), Russian, Japanese, Spanish, Portuguese, Korean
Protection class (device)  IP20
Power supply  5 V DC
(Rechargeable) battery  1 x 3,7 V JHCY703048 , Lithium polymer battery
Capacity  1100 mAh
Operating conditions  0 ... 50 °C , 5 ... 70 % RH
Storage conditions  0 ... 50 °C , 5 ... 70 % RH
Dimensions ( L x W x H )  165 x 90 x 32 mm
Weight  213 g

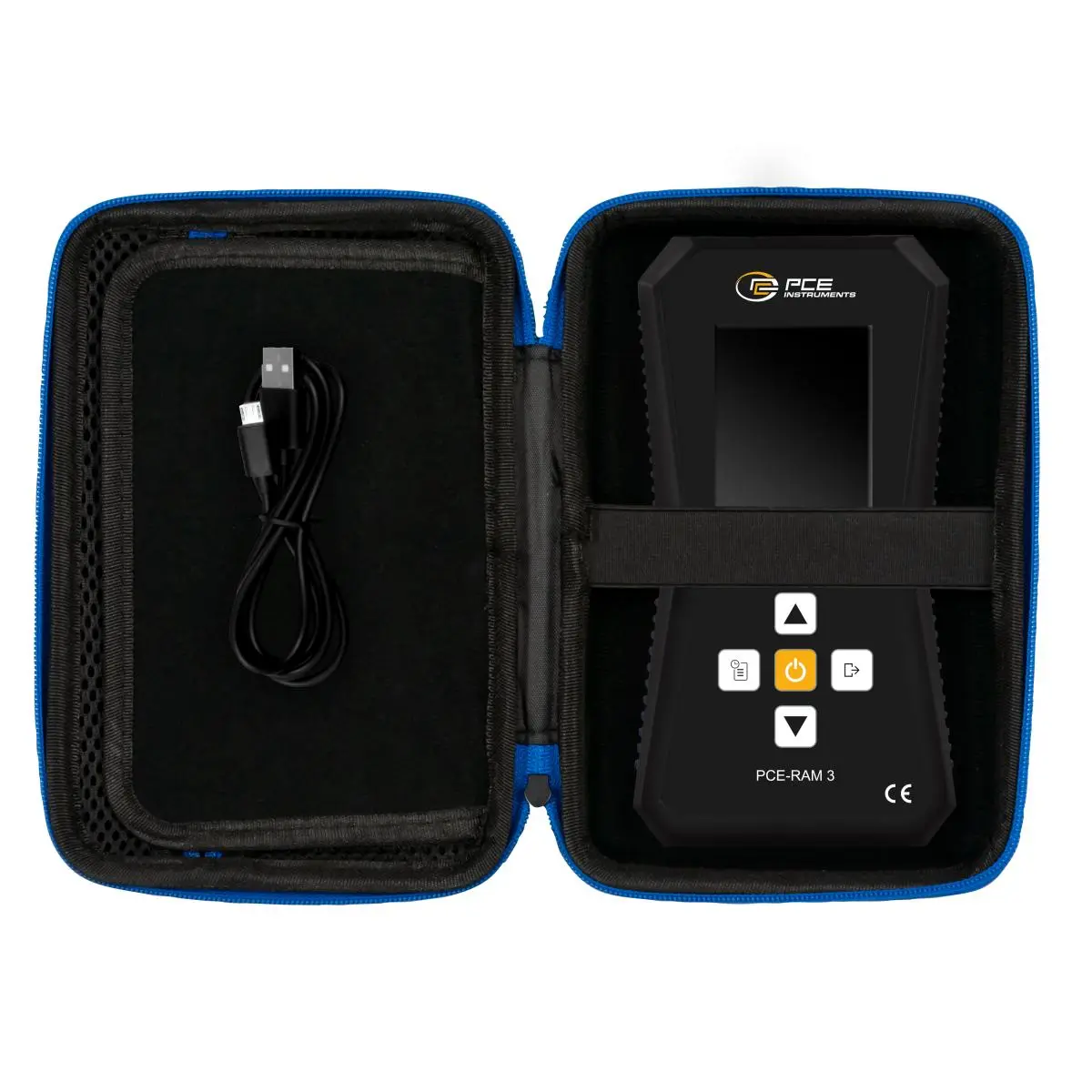

Delivery Scope

1 x Geiger Counter PCE-RAM 3
1 x micro-USB cable
1 x instruction manual
1 x carrying case
