Hardness Tester for Metals PCE-2500N

Order no.: PCE-2500N

GTIN (EAN): 4250348716064

Accessory

Calibration certificate CAL-HT-2

₹39,864.00

Adapter set for hardness measuring instruments with Impact D impactor

₹49,536.00

Description

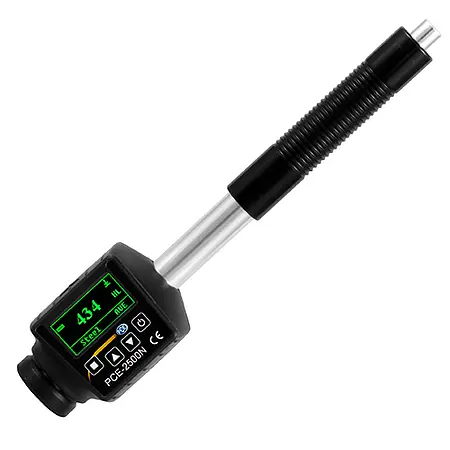

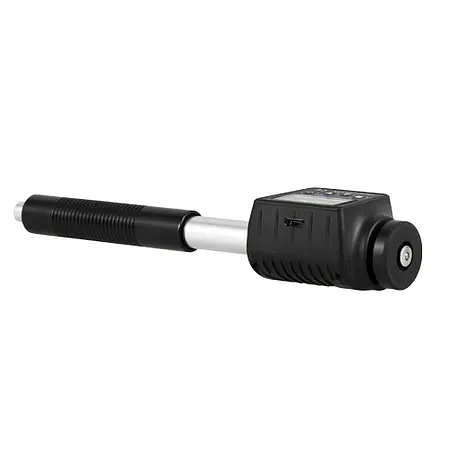

PCE-2500N Hardness Tester for Metals
Portable handheld pen-sized durometer for use with steel, iron, aluminum, brass, bronze, copper and more

PCE-2500N is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper.

Highlights

- Displays measurements in Rockwell A, B or C (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD)
- Measurement ranges: 170 ... 960 HLD, 17.9 ... 69.5 HRC, 3.5 ... 101.7 HRB, HB 19 ... 683 HB,
80 ... 1042 HV, 30.6 ... 102.6 HS, 59.1 ... 88 HRA
- Accuracy: ± 0.5 HLD
- Type D impact device
- Measuring principle: Rebound method
- For use with metal materials
- Pocket-sized design
- Rechargeable Li-ion battery
- Internal read-only memory

Specification

Measuring ranges	HLD: 170 ... 960 HRC: 17.9 ... 69.5 HB: 19 ... 683 HV: 80 ... 1042 HS: 30.6 ... 102.6 HRA: 59.1 .. 88 HRB: 3.5 ... 101.7
Measurement accuracy	HLD: ± 0.5%
Measuring principle	Rebound method

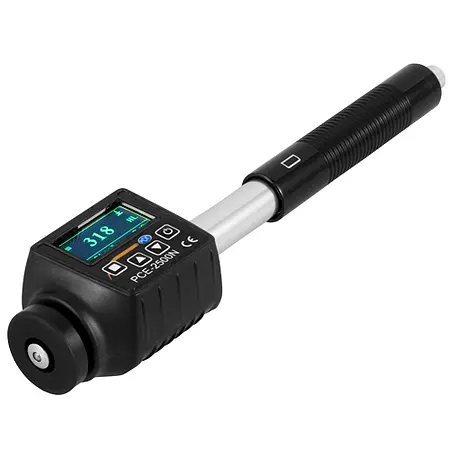

Impact device	Type D striker

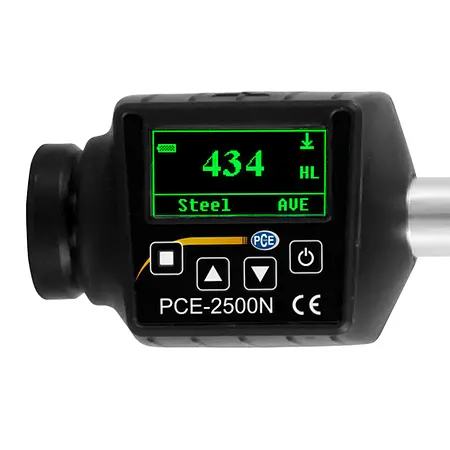

Display	128 x 64 OLED
Repeatability	HLD: ± 0.8%
Hardness max.	1042 HV
Measurement units	HLD, HRC, HB, HV, HS, HRA, HRB
Running time	Approx. 10 hours of continuous use at full charge
Power supply	Rechargeable Li-ion battery
Storage conditions	-30 ... 60°C / -22 ... 140°F, <90% RH
Operating conditions	-10 ... 50°C / 14 ... 122°F, <90% RH
Dimensions	148 x 32 x 25 mm / 5.83 x 1.26 x 0.99 in
Limit alarm	Yes
Automatic shutdown	Yes
Weight	650 g / 1.44 lbs
Materials	Steel
	Cast steel
	Alloyed tool steel
	Stainless steel
	Cast iron
	Ductile iron
	Cast aluminum alloy
	Brass
	Bronze
	Copper
Measuring ranges on various material surfaces
Steel	HRC: 17.9 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 127 ... 651 HV: 83 ... 976 HS: 32 , 2 ... 99.5
Tool steel	HRC: 17.9 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 127 ... 651 HV: 83 ... 976 HS: 32 , 2 ... 99.5
Stainless steel	HRB: 46.5 ... 101.7 HB: 85 ... 655 HV: 85 ... 802
Cast iron	HB: 93 ... 334
Brass	HRB: 13.5 ... 95.3 HB: 40 ... 173
Bronze	HB: 60 ... 290
Copper	HB: 45 ... 315
