Heat Stress Meter PCE-HVAC 3S

Order no.: PCE-HVAC 3S

GTIN (EAN): 4250348723550

Accessory

ISO calibration certificate for PCE-HVAC 3

₹23,793.00

Description

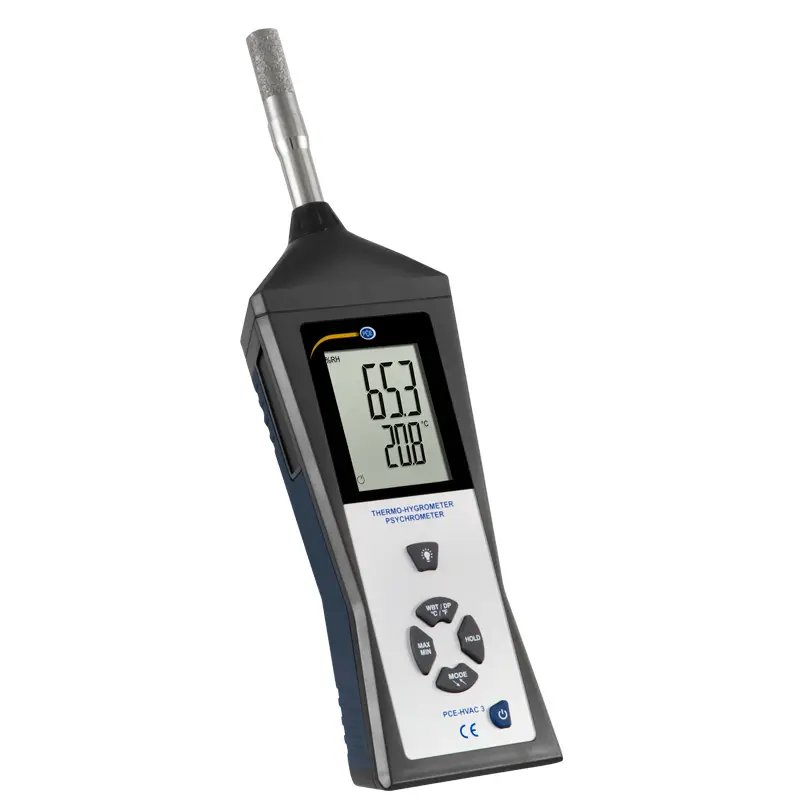

Heat Stress Meter PCE-HVAC 3S
Environmental measuring device in an ergonomically shaped housing / Backlighting / For recording ambient humidity (% rH) and room temperature (°C / °F) / Calculation of dew point and wet bulb temperature in °C and °F / Extreme value measurement

The environmental measuring device PCE-HVAC 3 is a multifunctional diagnostic device for climate testing. In addition to the ambient humidity and room temperature, the environmental measuring device also determines the dew point and wet bulb temperature in °C and °F. The heat and climate measurement and installation is therefore one of the core areas of application of the PCE-HVAC 3 thermo hygrometer. The measurement of ambient humidity and temperature is determined directly via the built-in sensors. In addition, there is the option of showing the dew point temperature and wet bulb temperature on the display. The basis for the calculation are the values transmitted via the sensors.

In addition to the large, easy-to-read dual display, which also offers the option of lighting, the environmental measuring device needs six buttons, which is the reason why it is an intuitively operated measuring instrument that performs extensive climate tests in private and professional Area in a simple way. In addition to the one-off measurement with the climate measuring device, condition monitoring can also be carried out over a long period of time. The thermo hygrometer is equipped accordingly.

Highlights

- Ergonomically shaped housing
- One-hand operation
- Background lighting
- HOLD and extreme value display
- Automatic switch-off can be deactivated
- Measurement of dew point and wet bulb temperature

Specification

Humidity measuring range	0 ... 20% (accuracy: ± 4% rh) 20 ... 40% (accuracy: ± 3% rh) 40 ... 60% (accuracy: ± 2% rh) 60 ... 80% (accuracy : ± 3% RH) 80 ... 100% (accuracy: ± 4% RH)
Measuring range temperature	-30 ... -19.9°C / -22 ... -3.8°F (accuracy: ± 1.0°C / 1.8°F) -20 ... 60°C / -4 ... 140°F (accuracy: ± 0.5°C / 0.9°F) 60 ... 100°C / 140 ... 212°F (accuracy: ± 1.0°C / 1.8°F)
Resolution air humidity	0.1%
Resolution temperature	0.1°C / 0.18°F
Units of measurement	°C °F Dew point (°C / °F) Wet bulb temperature (°C / °F)
Measurement parameters	% RH, GPP (grains per pound), g / kg, g / m³ (absolute), gr / ft³ (absolute)

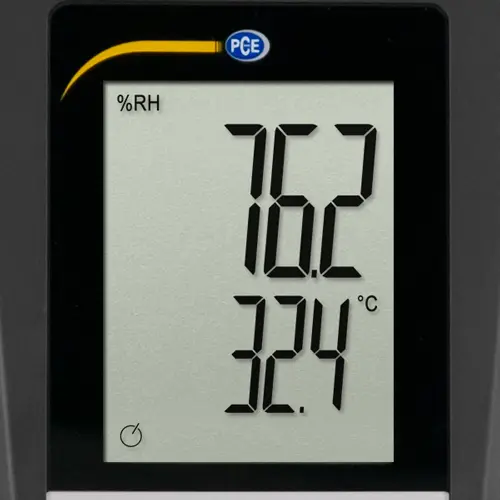

Display	Dual LCD
Response time	< 15 seconds
Sensor type	Humidity: Precise capacitive Sensor Temperature: Thermistor
Absolute humidity	0 ... 500 g / m³ 0 ... 218.5 g / ft³
Measuring range dew point temperature	-30 ... 100°C / -22 ... 212°F
Wet bulb temperature measurement range	0 ... 80°C / 32 ... 176°F
Operating conditions	0 ... 50°C / 32 ... 122°F, < 80% RH (non-condensing)
Storage conditions	-40 ... 85°C / -40 ... 185°F, < 99% RH (non-condensing)
Power supply	9V block battery
Battery life	Approx. 48 hours
Dimensions	300 x 75 x 50 mm / 11.8 x 3 x 2 in
Weight	400 g / < 1 lb

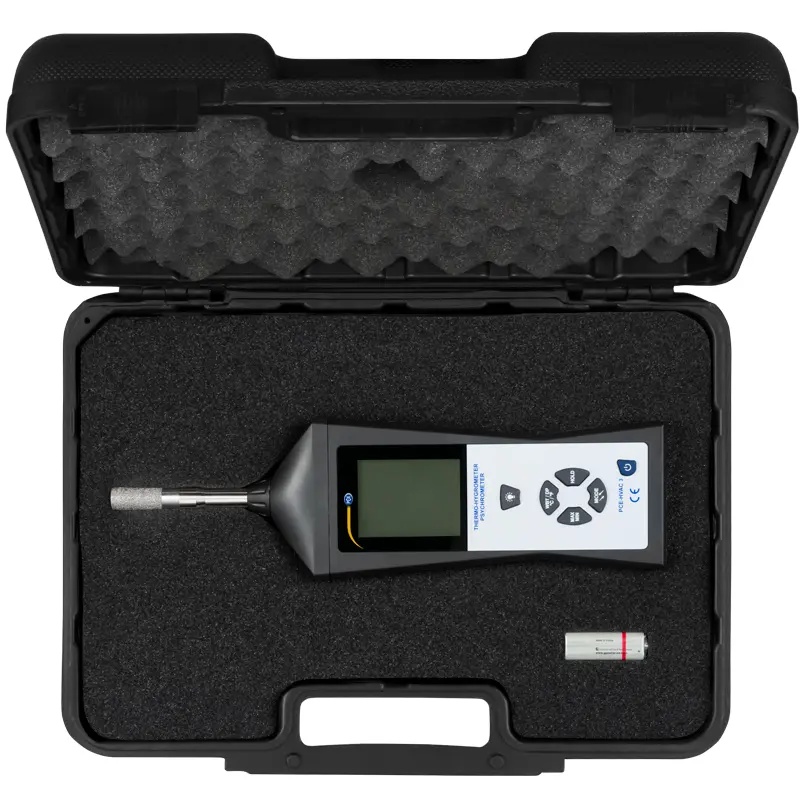

Delivery Scope

1 x Heat Stress Meter PCE-HVAC 3S
1 x Carrying case
1 x Battery
1 x Operating instructions

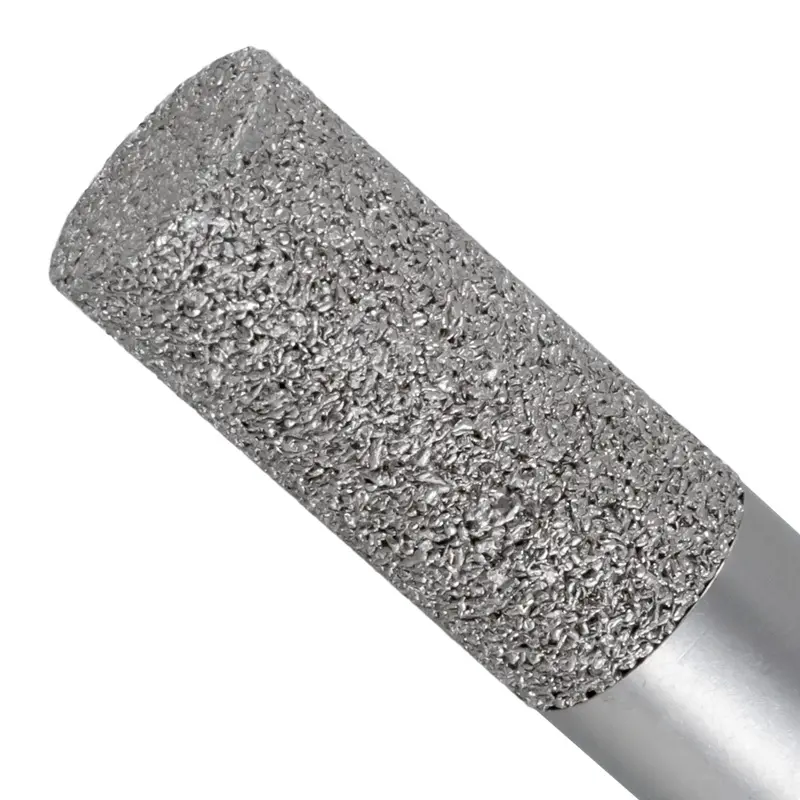

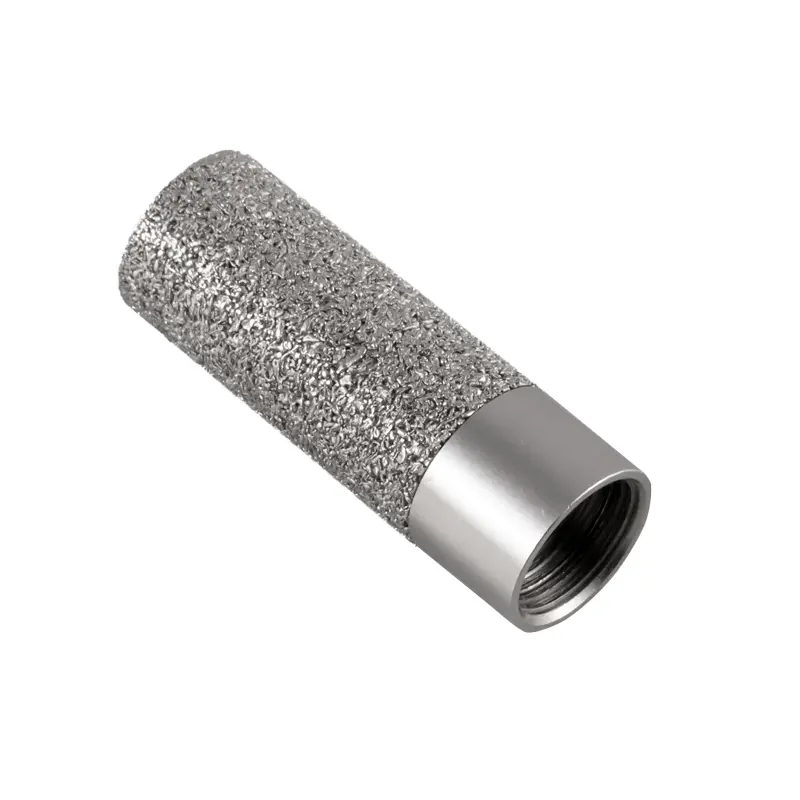

1 x Sintered filter

Downloads

Datasheet

Manual
