High-Speed Camera PCE-HSC 1660

Order no.: PCE-HSC 1660
GTIN (EAN): 4250348714749
₹816,302.00
₹963,236.36
price ex. (VAT / delivery)
:
4250348714749
PCE-HSC 1660
Delivery time: 1-2 working days

Description

High-Speed Camera PCE-HSC 1660
Up to 2420 pictures per second / Ease of use / USB 3.0 / Software incl. /
Plug and Play / Compact and Robust /

The high-speed camera PCE-HSC 1660 is suitable for simple slow motion recordings in industry and research. With the help of this camera the filming can take place with the refresh rate of 2420 images per second. This high-speed camera is distinguished by its compact design and ease of use. It is connected to the PC or laptop via USB 3.0. The supplied software recognizes the SloMo camera immediately and the recordings can be created immediately after the driver installation. A CMOS image sensor with a memory depth of 10 bits is used in the camera. Thus, the camera is capable of recording high-speed images with a resolution of 1280 x 1024 in black and white. The PCE-HSC 1660 can be mounted on a tripod thread. Mount is C-Thread with F=75 mm / 3 in and f/2.8 lens.


Highlights

- USB 3.0 connection
- 1.3 megapixel
- Maximum 2420 FPS
- 10-bit CMOS
- Plug and Play
- Controllable directly via PC
- Trigger port
- Threaded tripod connector

Specification

Specifications slow motion camera PCE-HSC 1600
CMOS1.3 Megapixel
Max. resolution1280 x 1024
Max. recording rate 2420 FPS
Resolution / recording rate 1280 x 1024 / 210 FPS
1024 / 1024 / 260 FPS
1024 x 2768 / 346 FPS
640 x 480 / 825 FPS
512 x 512 / 950 FPS
256 x 256 / 2420 FPS
Pixel depth 10 Bit CMOS
Pixel size 4.8 µm per pixel
Memory Via connected PC
Power supply Via USB 3.0 Port
Interface USB 3.0
TriggerExternal
Mount and LensC-Thread with F=75 mm and f/2.8
Housing material Aluminium
Dimensions 80 x 74 x 40 mm / 3.1 x 2.9 x 1.6 in
Weight 180 g / < 1 lb (without lens)
Operating Conditions 0 ... 40°C / 32 ... 104°F
Max 80% RH
Storage conditions -20 ... 60°C / -4 ... 140°F
Max. 95% RH

Specifications LED lighting of the slow motion camera PCE-HSC 1660
Power6 x 3W LED
Filter5800 K Frost filter
3200K Amber filter
Dimmer functionYes
Power supply Main power supply 100 ... 240V AC
Output 12V / 2 A
Battery pack 7.4V @ 6000-mAh
Battery run-timeApprox. 150 minutes

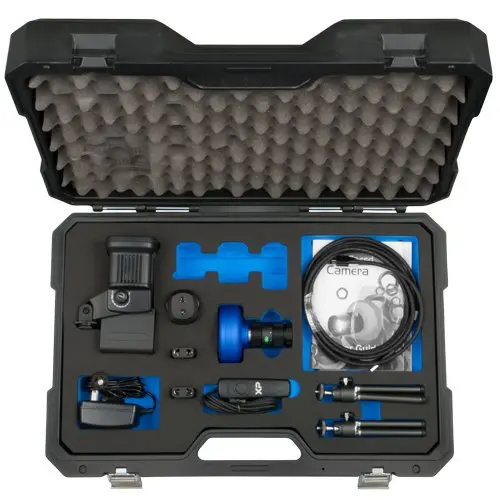

Delivery Scope

1 x High-speed camera PCE-HSC 1660
1 x 75mm lens f/2.8 2/3 (C-Thread)
1 x LED light
1 x USB 3.0 cable
1 x Remote trigger mechanism
1 x Carrying case
1 x Software
2 x Mini tripod
1 x User manual
