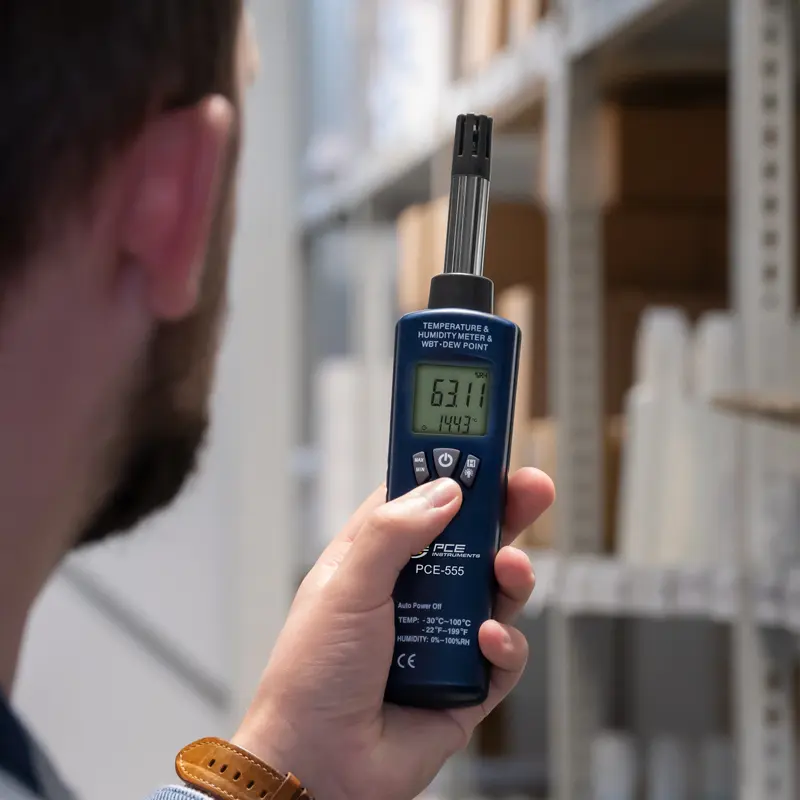

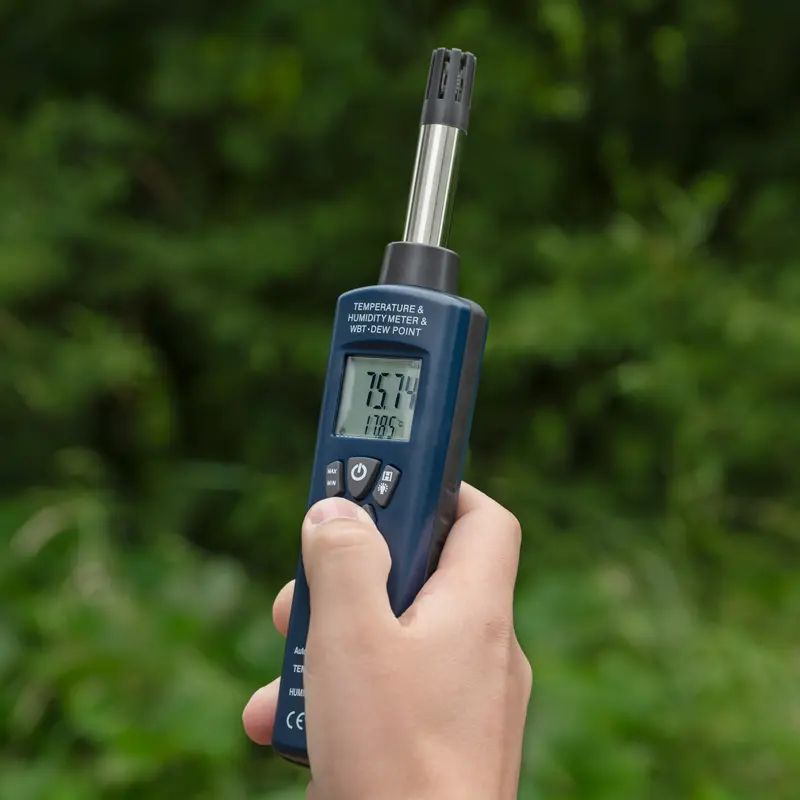

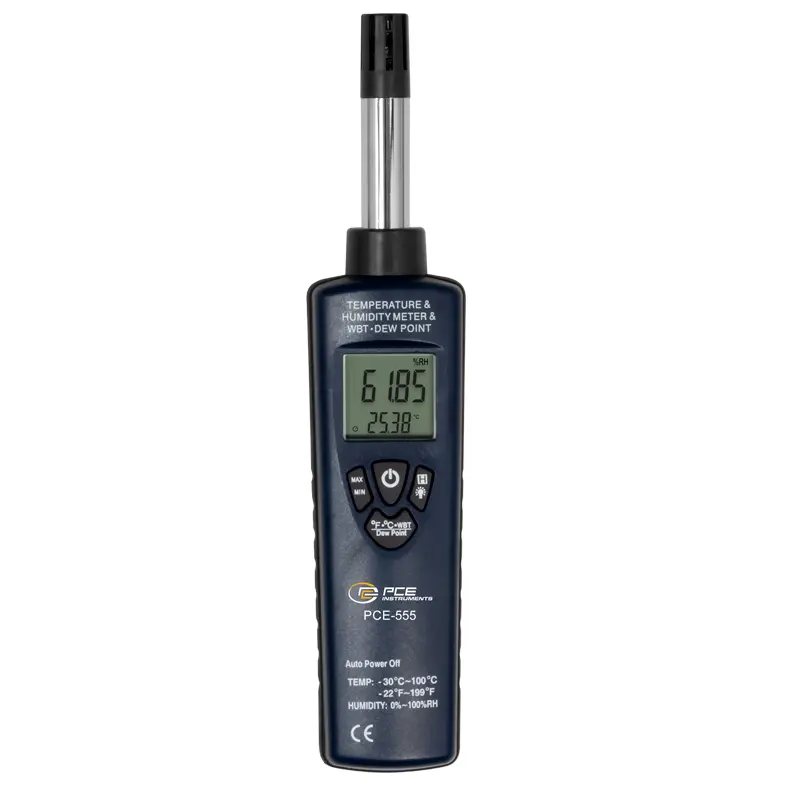

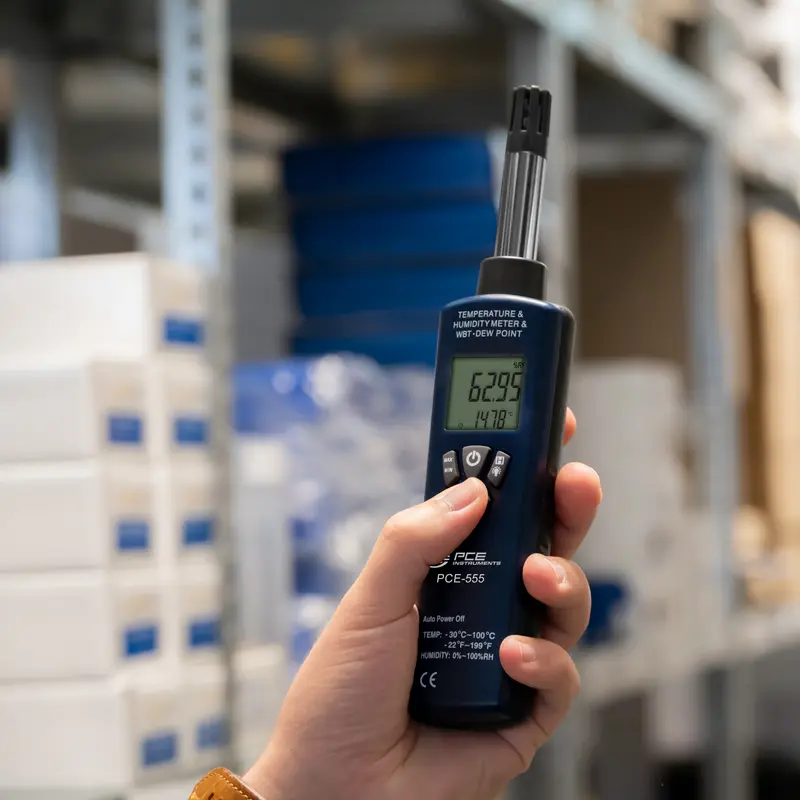

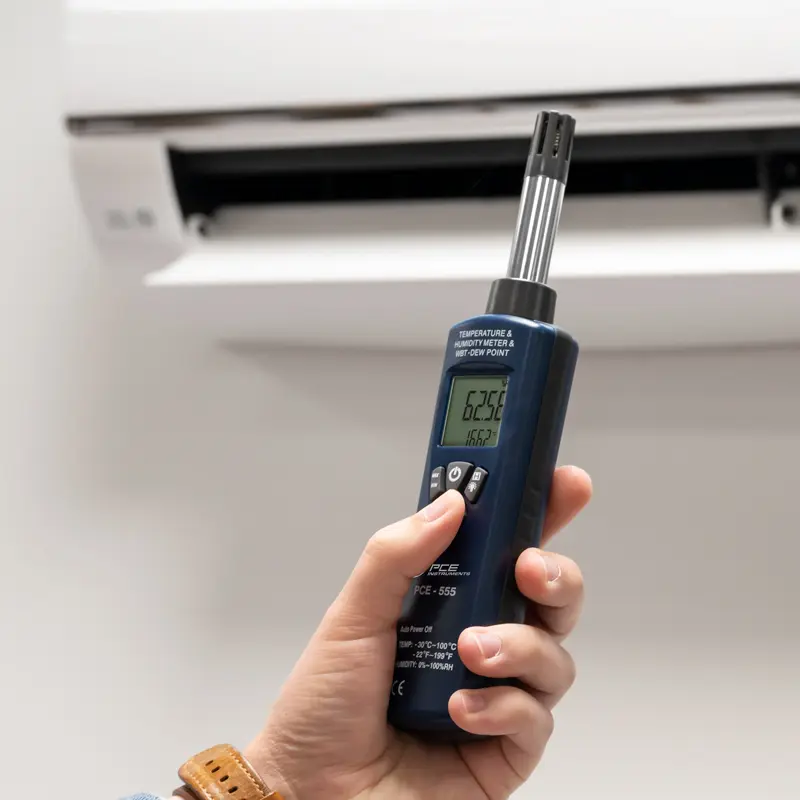

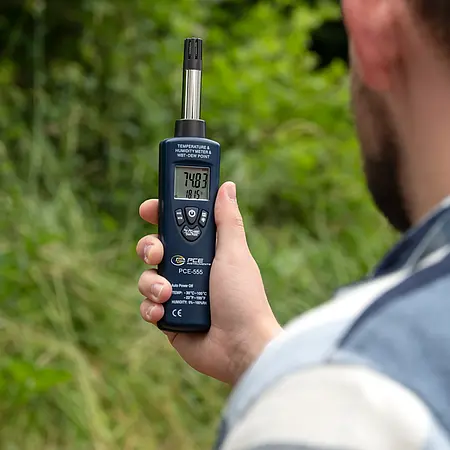

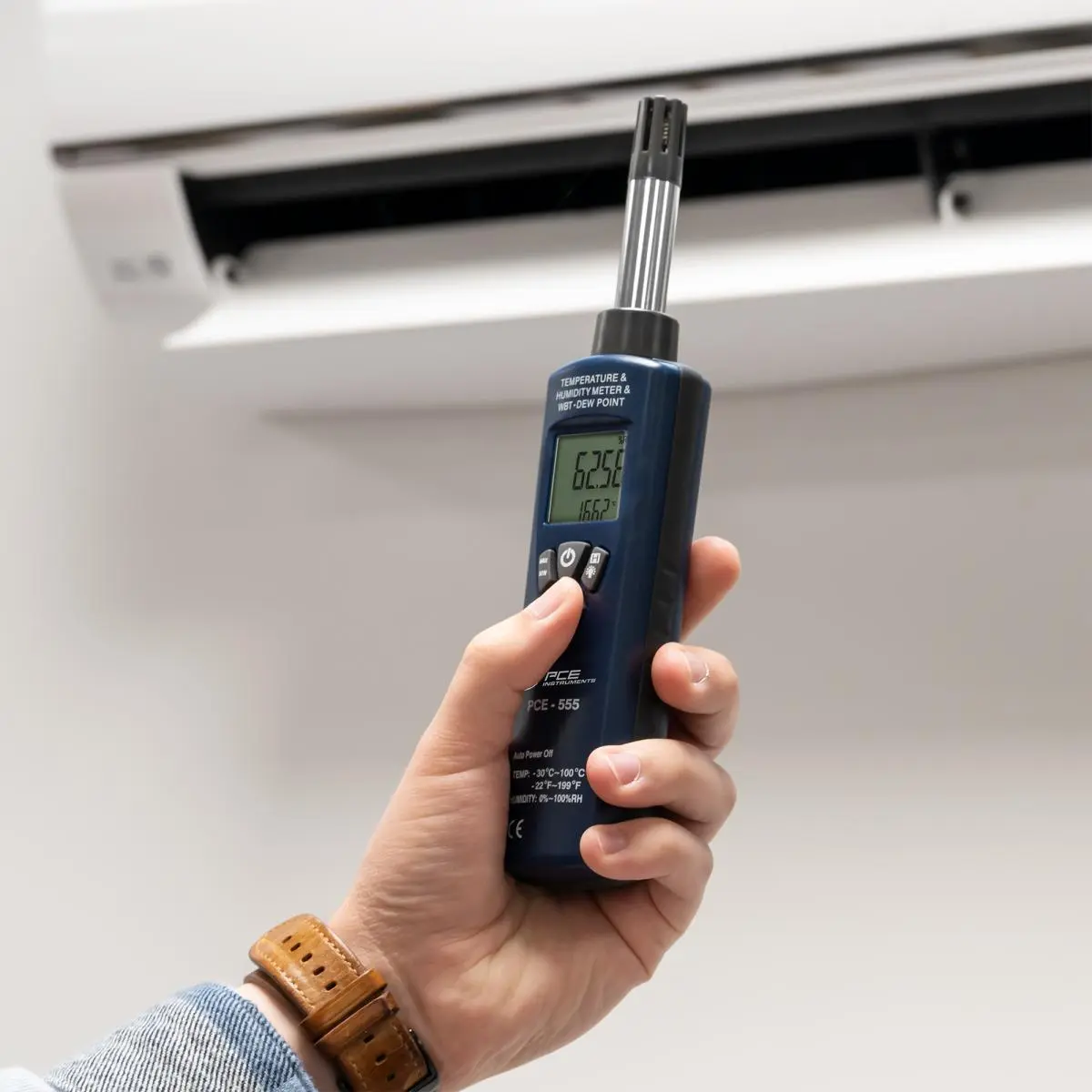

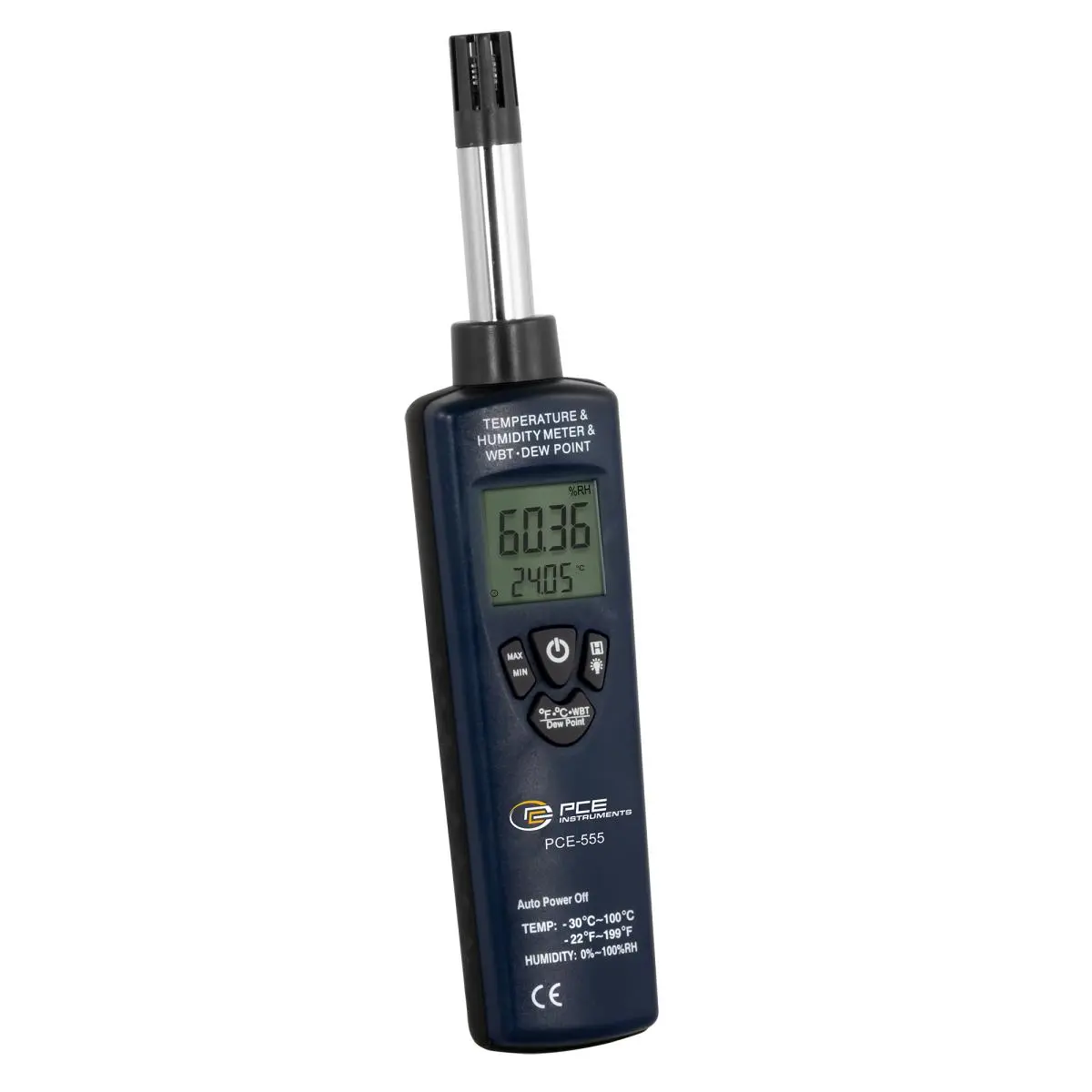

PCE-555 is a combination digital hygrometer and digital thermometer used to measure relative humidity as well as air temperature, dew-point temperature and wet-bulb temperature. This handheld multifunctional meter allows for quick and easy analysis of environmental conditions indoors and outdoors. Applications include monitoring of refrigerated trucks, warehouses, construction sites and heating, ventilation and air conditioning (HVAC) systems. PCE-555 is ideal for use anywhere excess moisture, condensation and uneven temperatures can create mold, spoilage and health hazards due to heat stress or poor indoor air quality (IAQ).
Measuring ranges |
|
Humidity |
0 ... 100% relative humidity (rh) |
Temperature |
-30 ... 100°C / -22 ... 212°F |
Dew point temperature |
-30 ... 100°C / -22 ... 212°F |
Wet-bulb temperature |
0 ... 80°C / 32 ... 176°F |
General specifications |
|
| Accuracy | ± 2% rh at 25°C / 77°F and 20 ... 80% rh, otherwise ± 2.5% ± 0.5°C / ± 0.9°F (at 25°C / 77°F), otherwise ± 0.8°C / ± 1.5°F |
| Resolution | 0.01% rh, 0.01°C / 0.018°F |
| Response time (% rh) | Approx. 10 sec. (90% at ambient temperature of 25°C / 77°F) |
| Sampling rate | 2.5 times per sec. |
| Display | 4.5-digit dual LCD with backlight |
| Energy efficiency | Automatic power off after 15 min. inactivity (To deactivate, turn device off. Press and hold Hold key and On/Off key at same time. When display comes on, release both keys.) |
| Storage conditions | -10 … 60°C / 14 … 140°F, ˂ 80% rh, noncondensing |
| Operating conditions | 0 … 40°C / 32 … 104°F, ˂ 80% rh, noncondensing |
| Power supply | 1 x standard 9V battery, NEDA1604 or 6F22 |
| Approx. dimensions | 225 x 45 x 34 mm / 8.9 x 1.8 x 1.3 in |
| Approx. weight | 200 g / < 1 lb |
See user manual for complete technical specifications and operating instructions. |
|
