Humidity Detector PCE-HT 72-ICA incl. ISO Calibration Certificate

Order no.: PCE-HT 72-ICA
GTIN (EAN):
₹36,441.00
₹43,000.38
ISO Calibration
price ex. (VAT / delivery)
PCE-HT 72-ICA
Delivery time: 10 - 14 days
Temp. / Humidity

Description

Humidity Detector incl. ISO Calibration Certificate
PDF data logger for temperature and humidity / Report as PDF file / Software for programming / Data logger with display / Export as CSV possible


The humidity detector is a data logger for temperature and humidity. A memory of 20010 measured value sets allows the data logger to be used for up to several months. The humidity detector is particularly suitable for measuring tasks where it is not possible for the user to install software to read the measured values. The data logger automatically generates a measurement report, which can be printed out or saved directly.

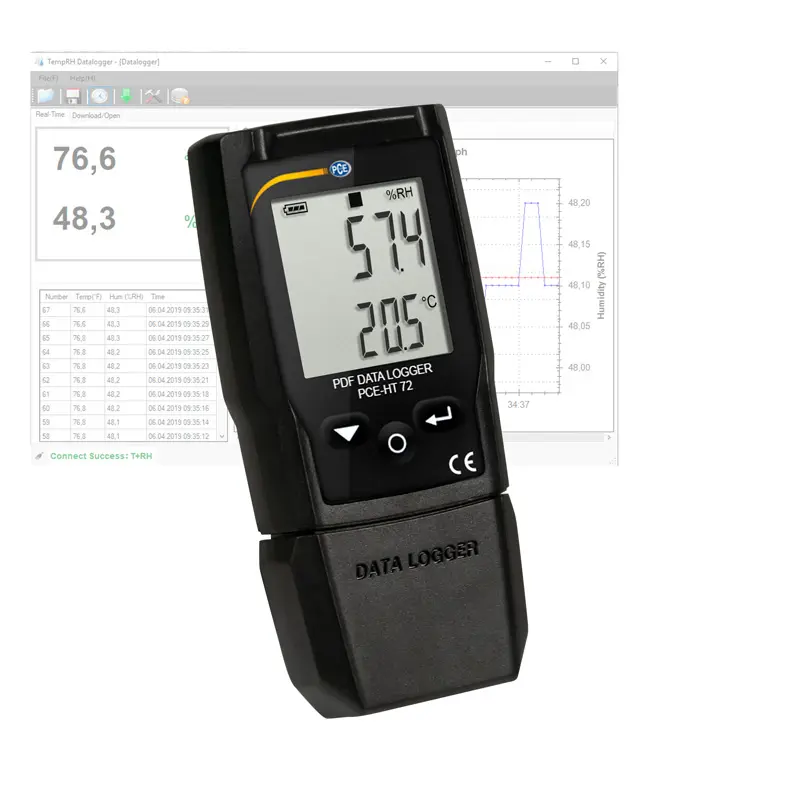

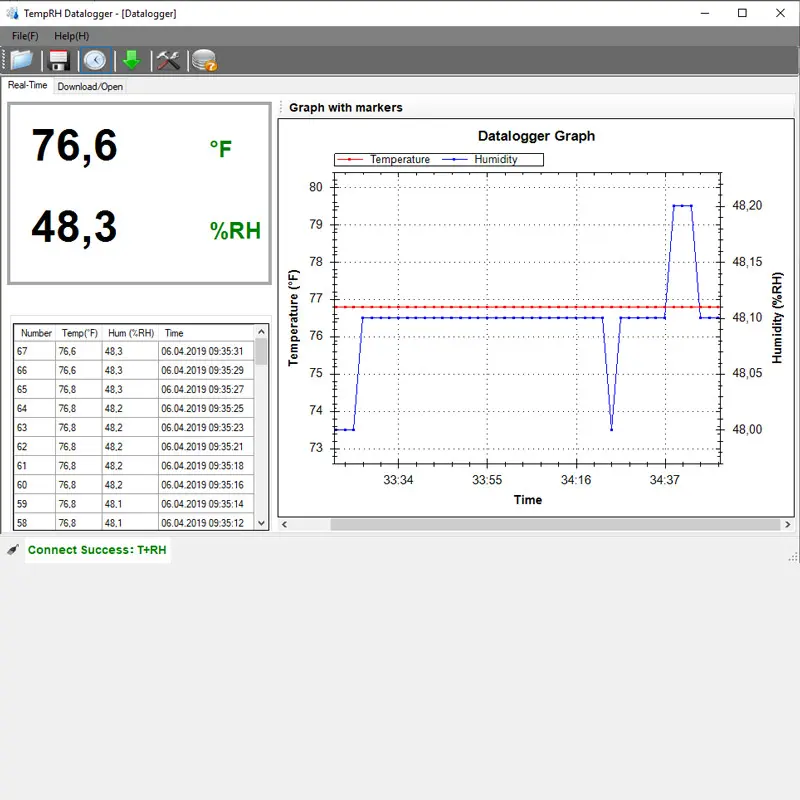

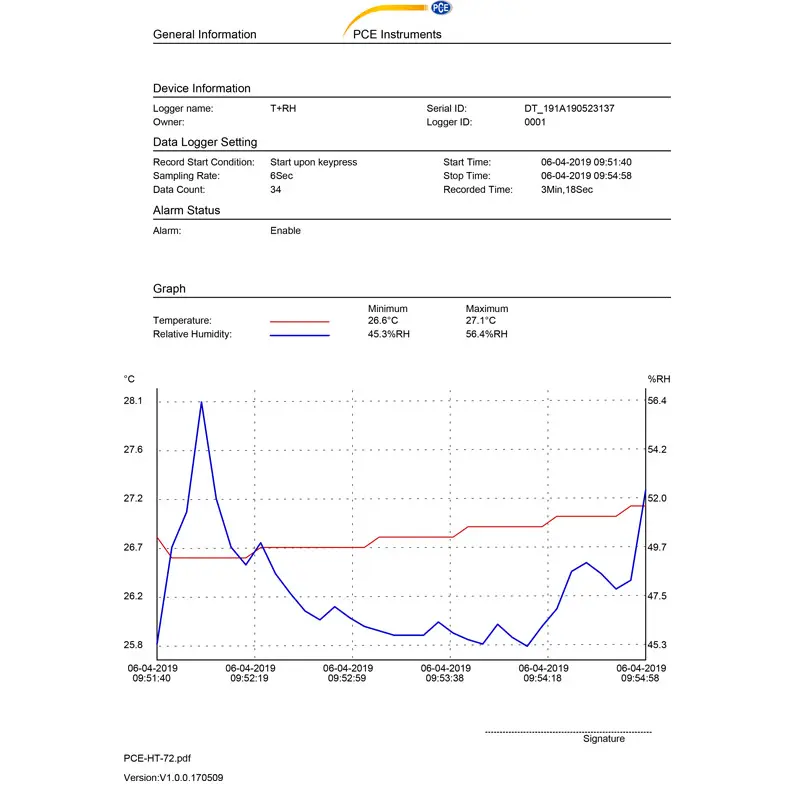

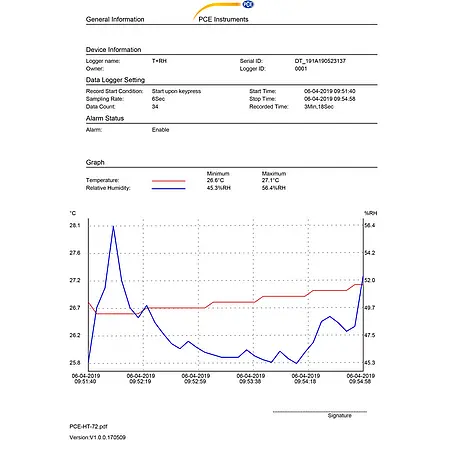

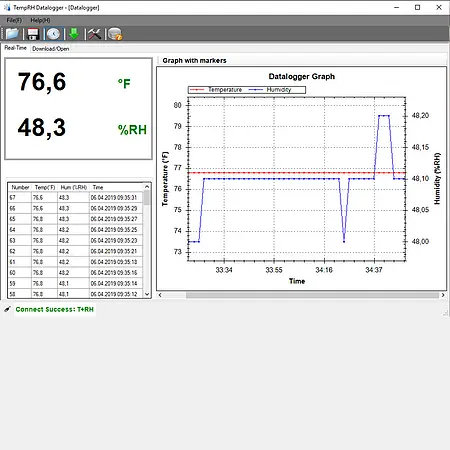

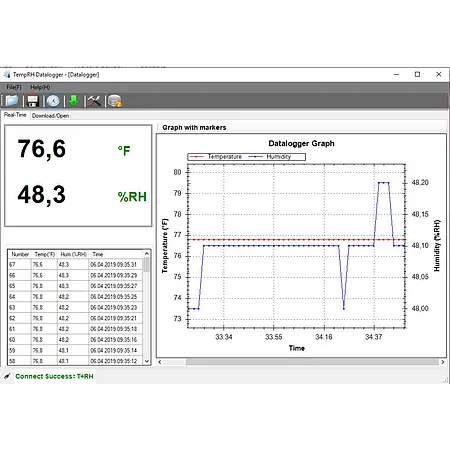

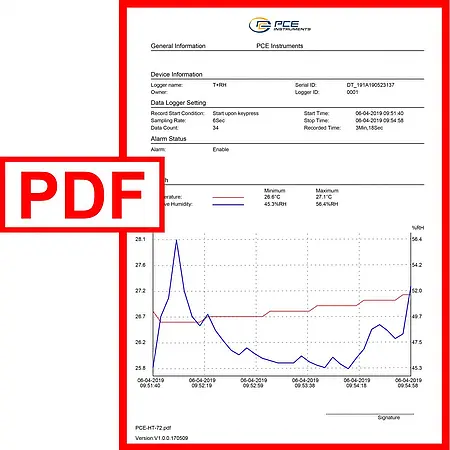

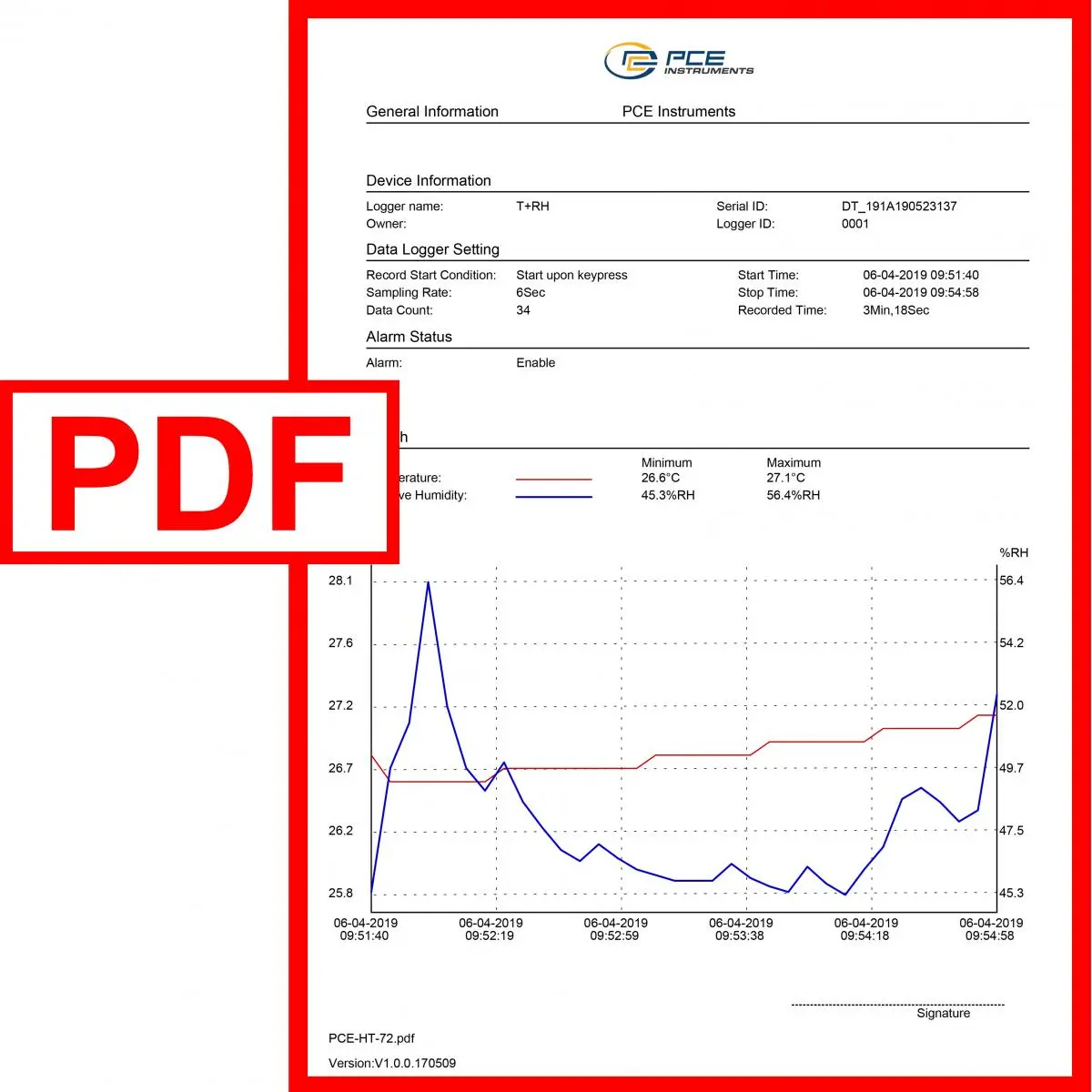

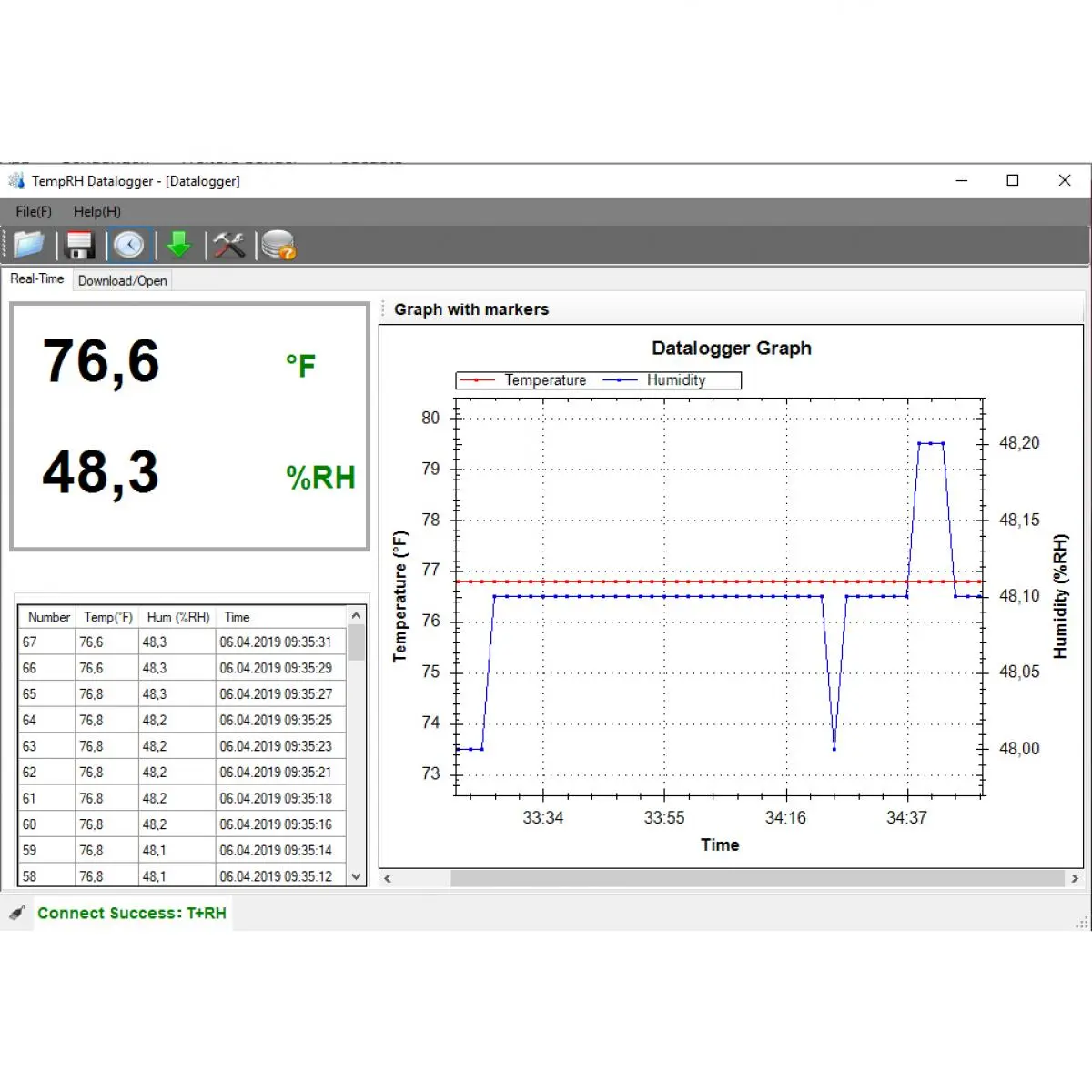

The measurement protocol of the humidity detector contains the maximum and minimum measurement values ​​for temperature and humidity, as well as a graph showing the measurement process. The data logger saves the measured values ​​in its memory until it is full or a new measurement is started via the software. In the software, the user has further options for analyzing the measurement data. With the help of the software it is also possible to export the measurement data as a CSV file from the humidity detector.

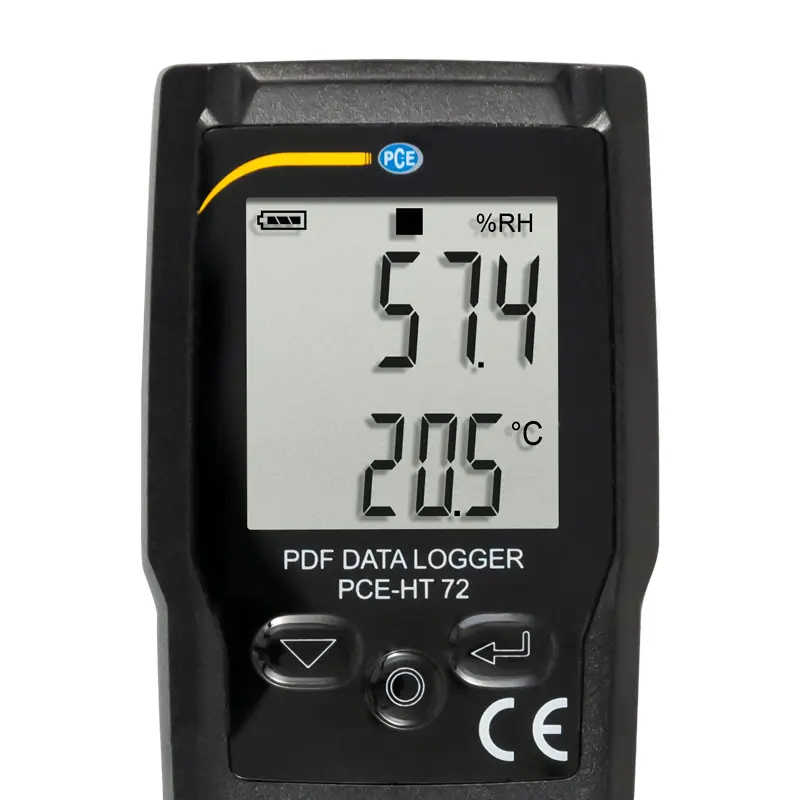

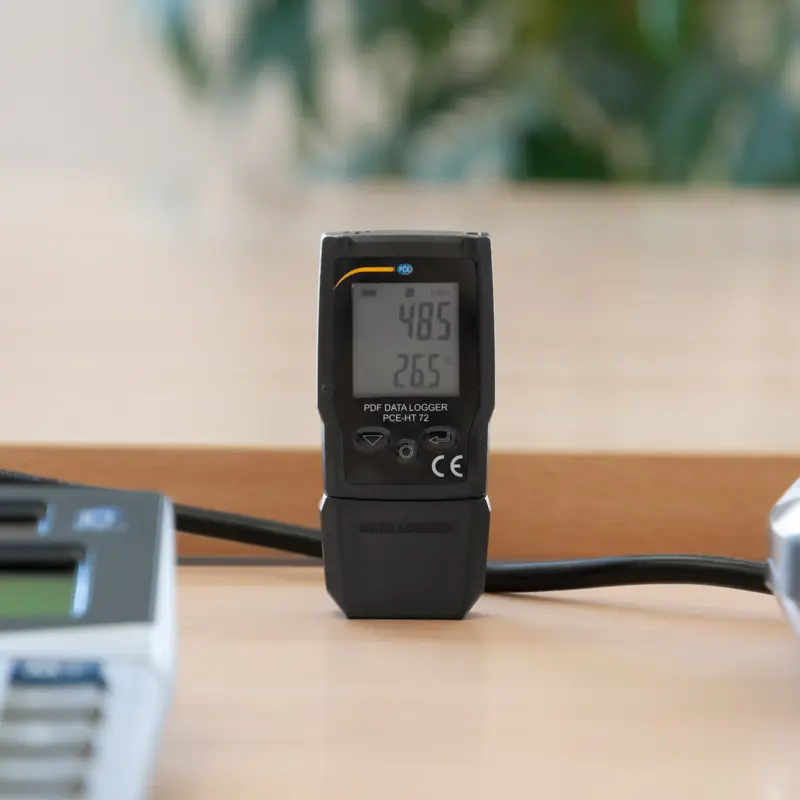

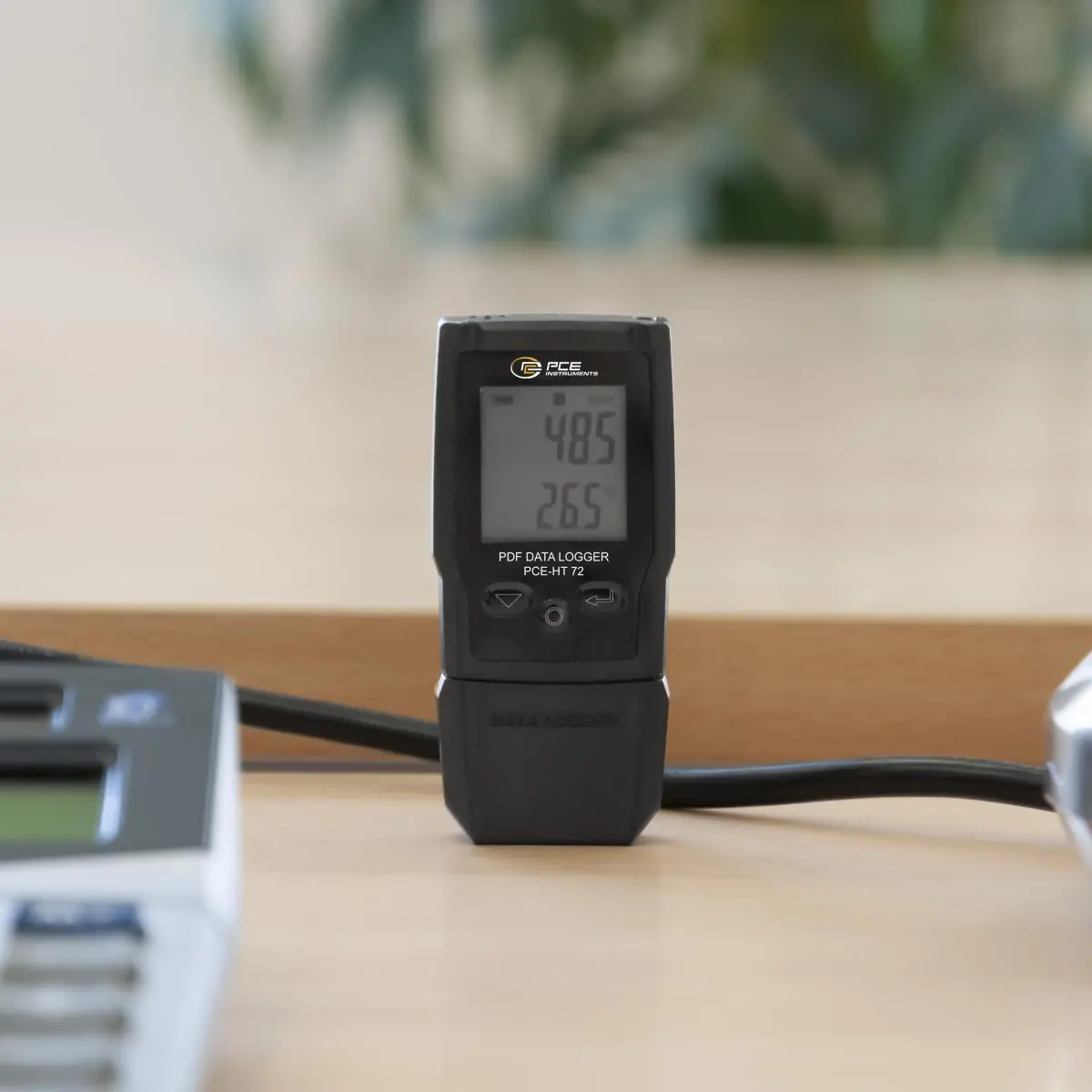

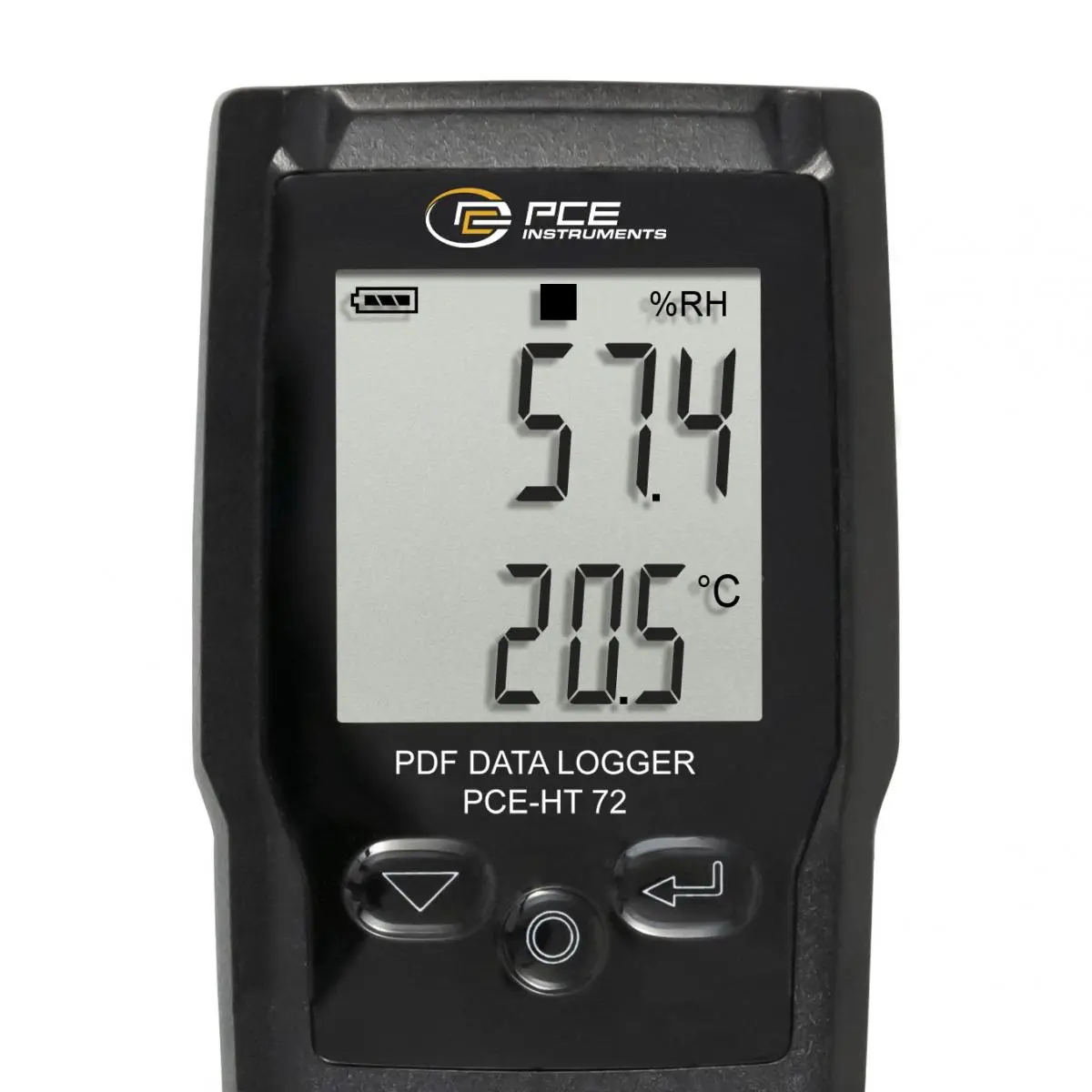

So that the user of the humidity detector for temperature and humidity always has an overview of the measured values, the data logger is equipped with an LCD. The display provides continuous information on the temperature and humidity measured by the humidity detector, as well as the battery status and the memory status. The maximum and minimum measured values ​​can also be called up quickly and easily on the humidity detector at the touch of a button.

Highlights

- Measurement protocol as PDF
- Readable without software
- Data logger for temperature and humidity
- LC display
- Min-Max memory
- Compact dimensions
- 20,010 sets of measured values ​​can be stored
- Data export possible as CSV
- incl. ISO Calibration Certificate

Specification

Measuring function Temperature
Measuring range -30 ... 60 °C / -22 ... 140 °F
Resolution 0.1 °C / 0.18 °F
Accuracy < 0 °C / 32 °F: ± 1°C / 1.8 °F
  < 60 °C / 140 °F: ± 0.5 °C / 0.9 °F

Measuring function Humidity
Measuring range 0 ... 100% RH
Resolution 0.1% RH
Accuracy 0 ... 20% RH: 5%
  20 ... 40% RH: 3.5%
  40 ... 60% RH: 3%
  60 ... 80% RH: 3.5%
  80 ... 100% RH: 5%

Storage 20,010 readings
Measuring rate / storage interval          Adjustable 2 s, 5 s, 10 s ... 24h
Start-Stop Adjustable, immediately or by pressing a button
Status display By a symbol in the display
Display
LC display
Power supply CR2032 battery

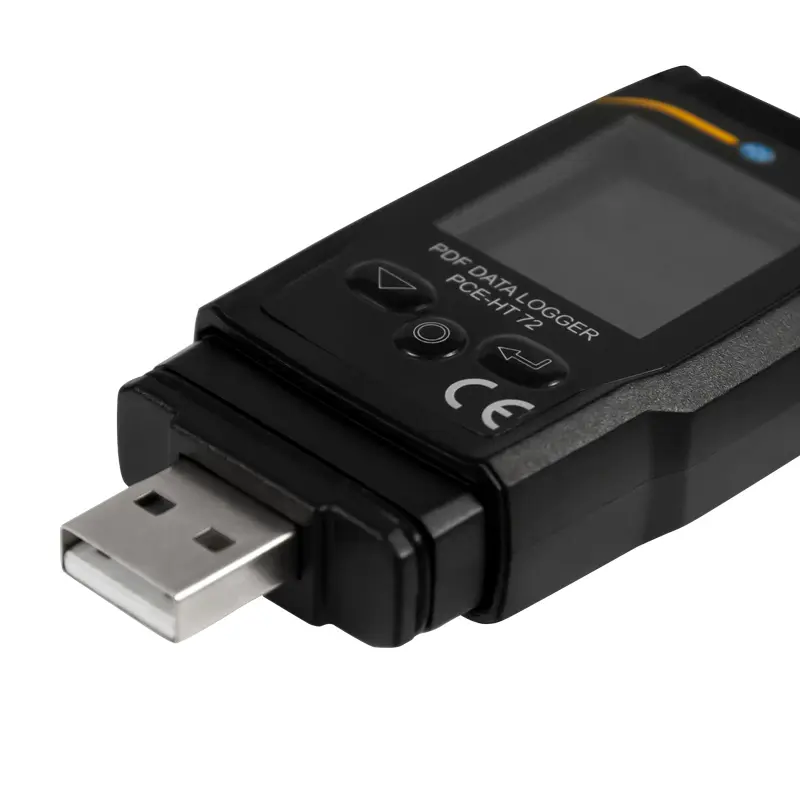

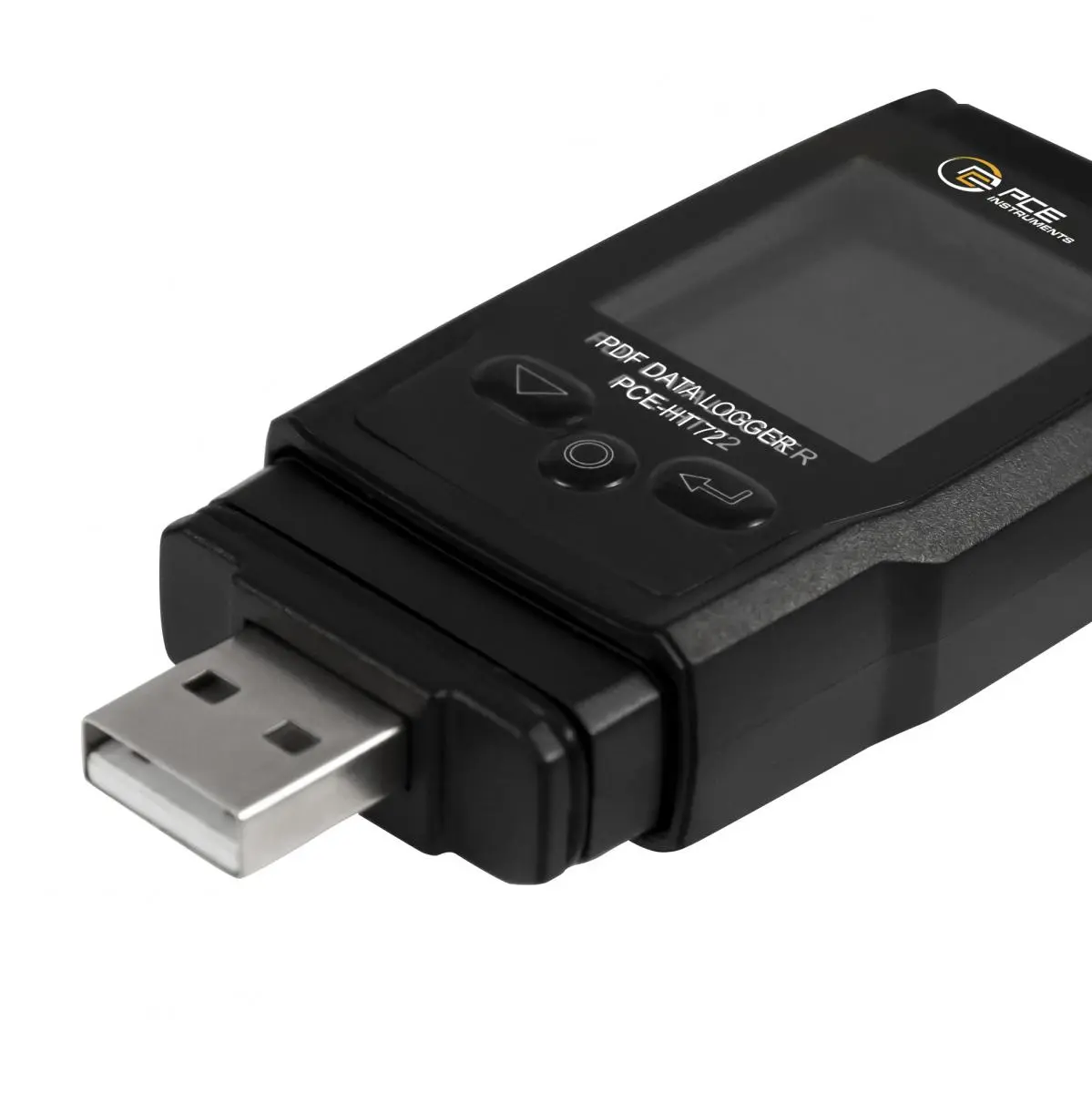

Interface USB
Dimensions 75 x 35 x 15 mm / 3 x 1.4 x 0.6 in
Weight approx. 35 g / < 1 lb

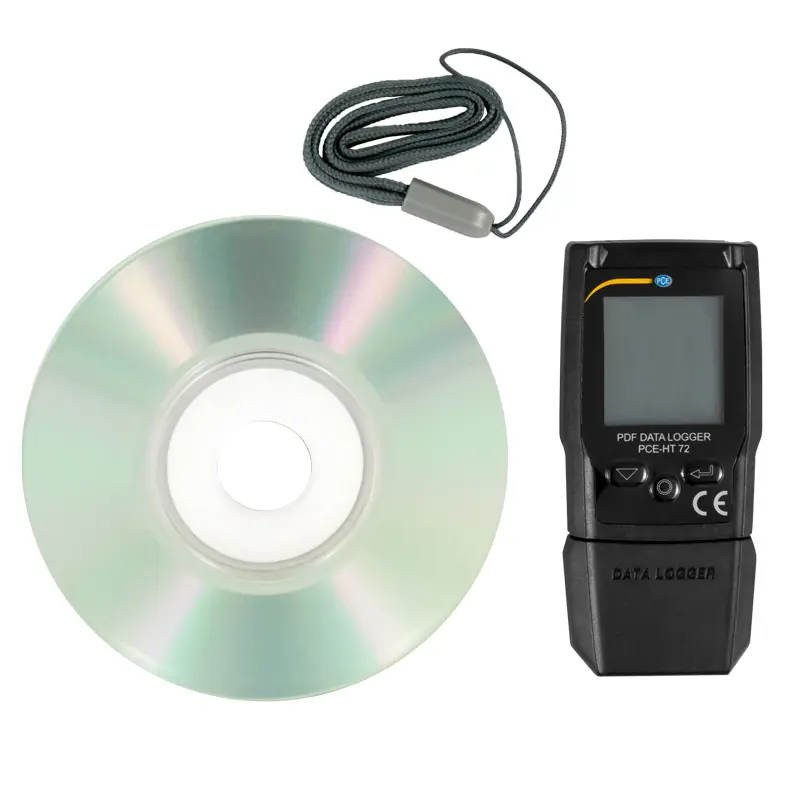

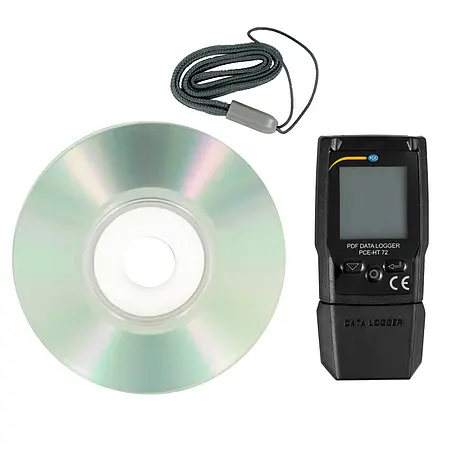

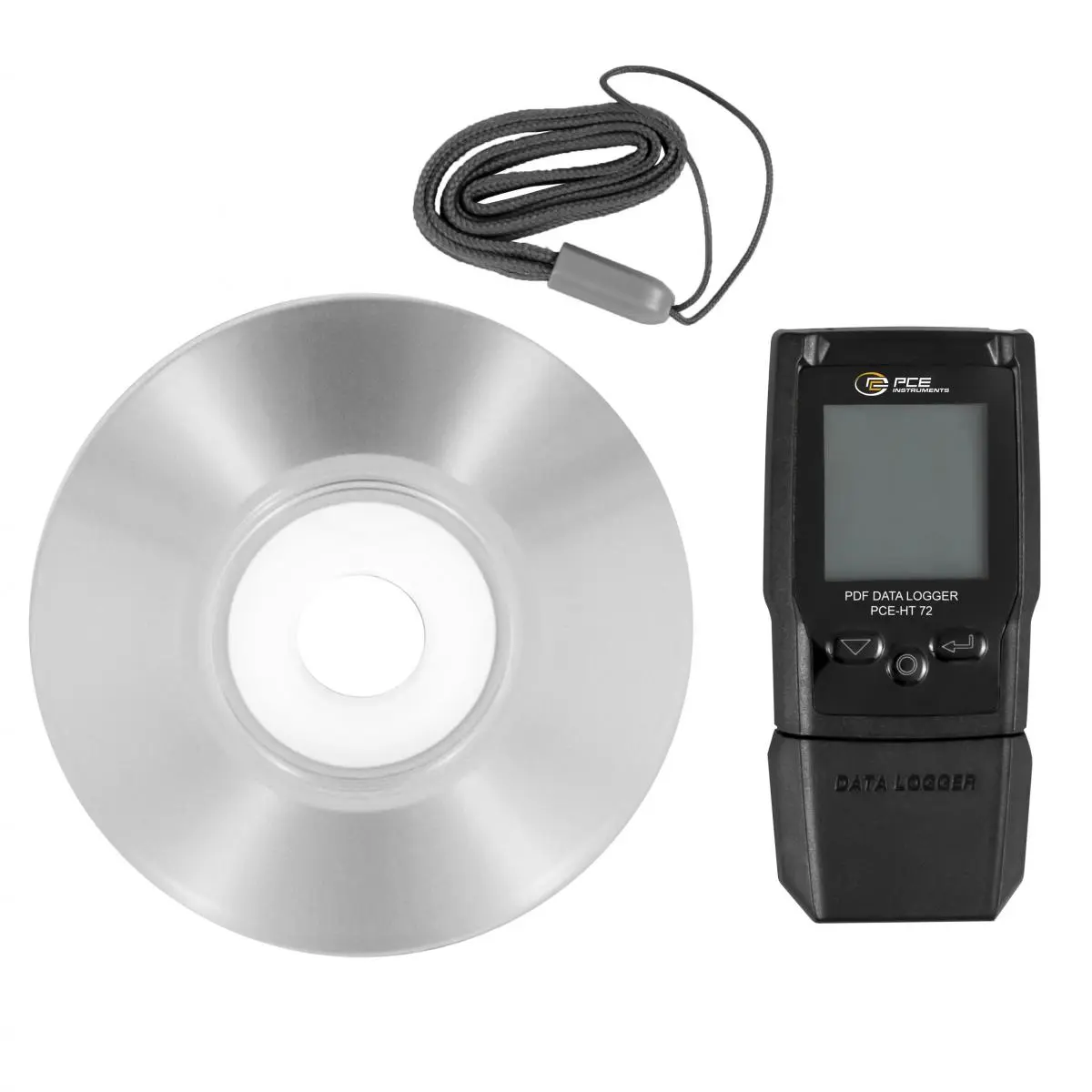

Delivery Scope

1 x Humidity Detector PCE-HT 72-ICA
1 x Wrist strap
1 x CR2032 battery
1 x Software (available in the download area)
1 x User manual

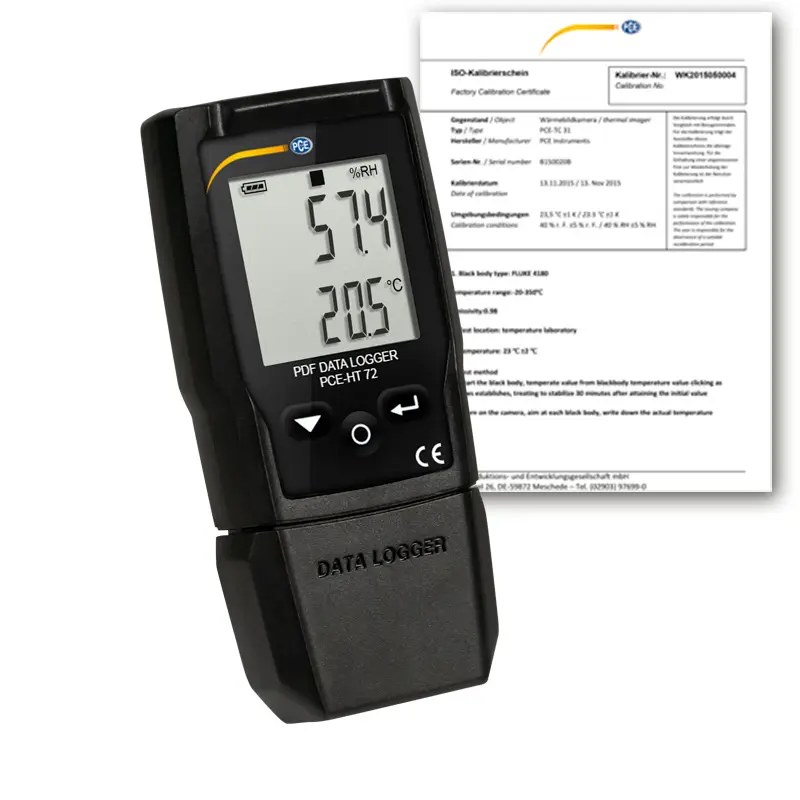

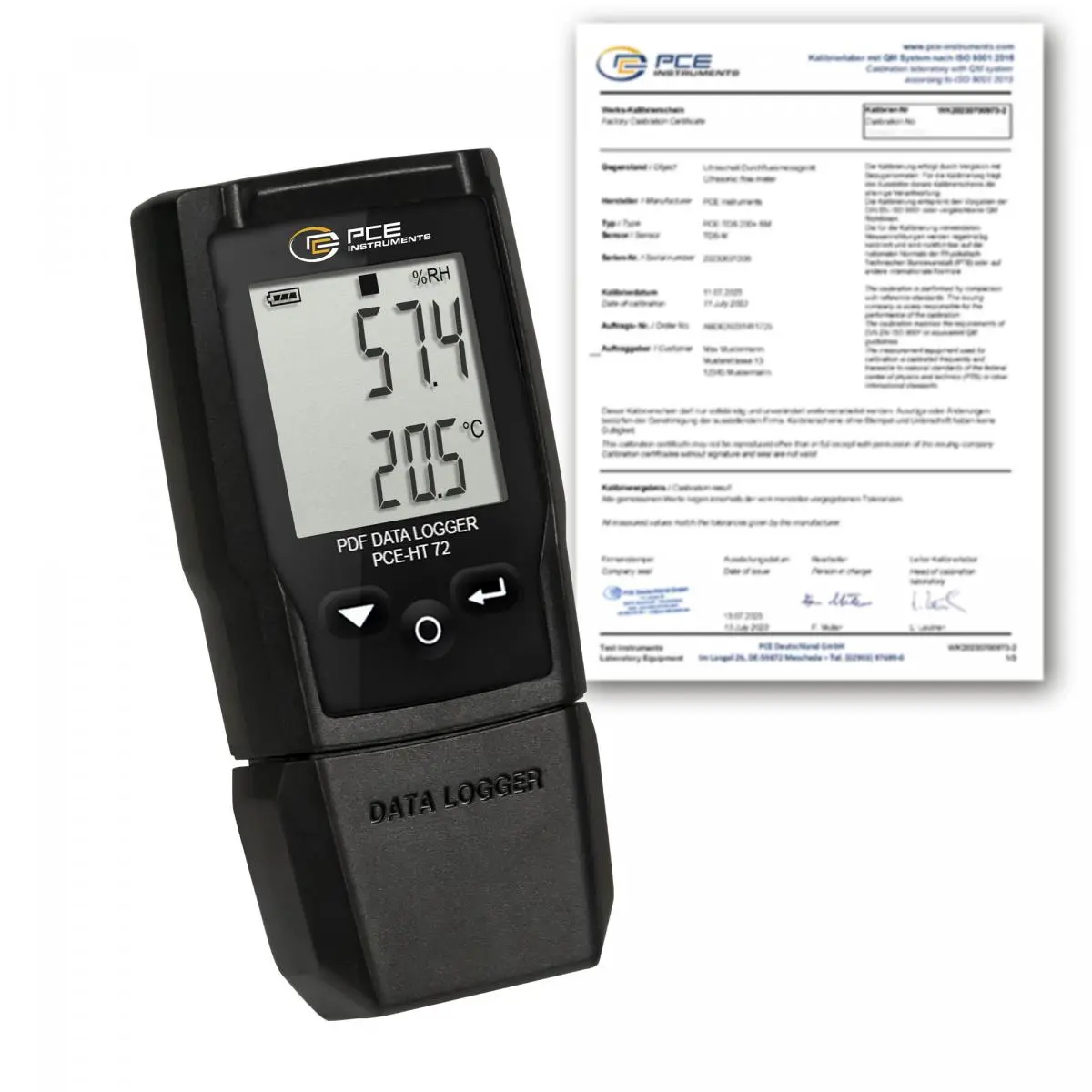

1 x ISO Calibration Certificate
