₹27,364.00
PCE-VA 20-SET Multifunction HVAC Meter with Flow Hoods
Combination anemometer-hygrometer-thermometer for HVAC system testing, adjusting and balancing (TAB)

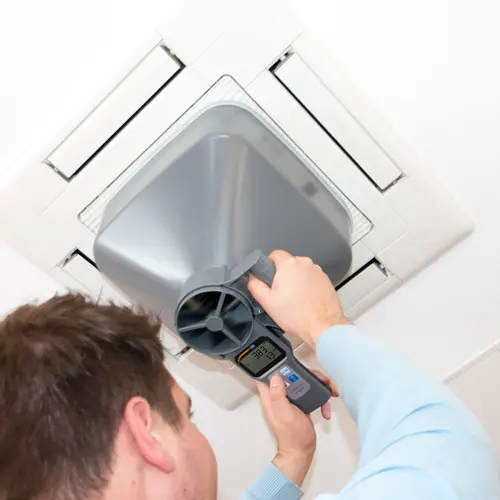

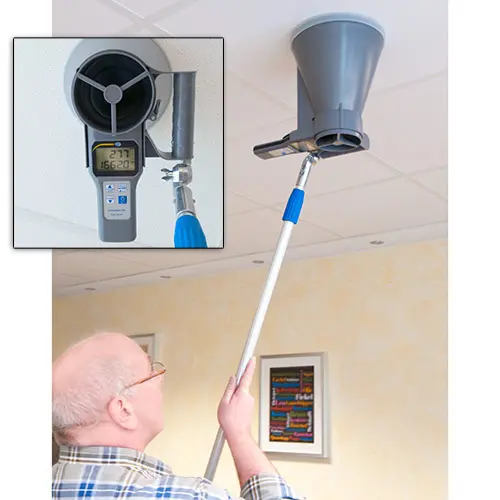

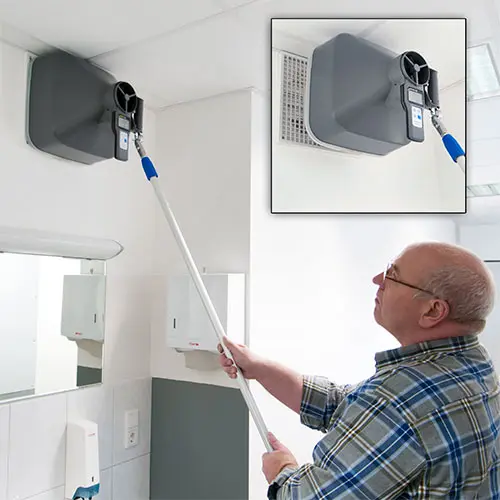

PCE-VA 20-SET is a multifunction HVAC meter with flow hoods for testing, assessing and balancing (TAB) heating, ventilation and air conditioning or cooling (HVAC) systems. This combination anemometer-hygrometer-thermometer features a 10 cm / 3.9" diameter fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.
- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet-bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3 m/s) when more than 20 m/s
- Resolution: 0.1

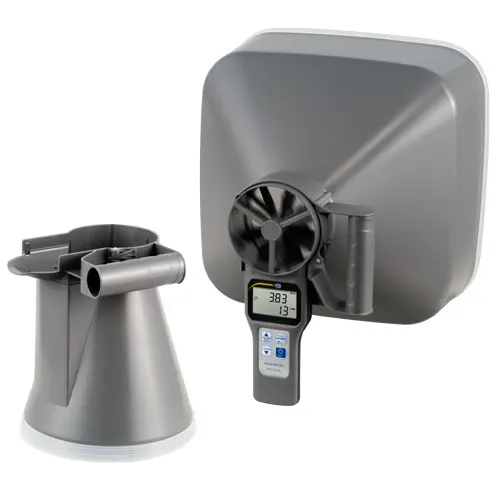

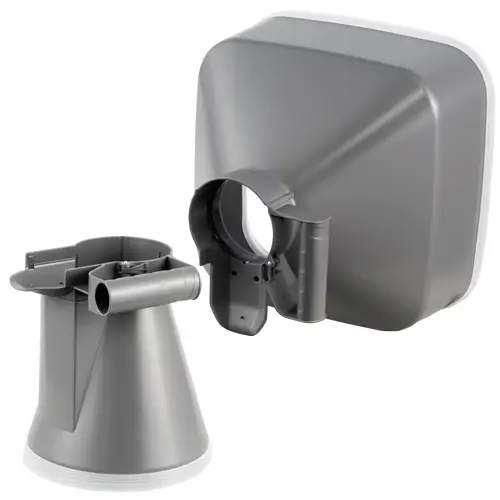

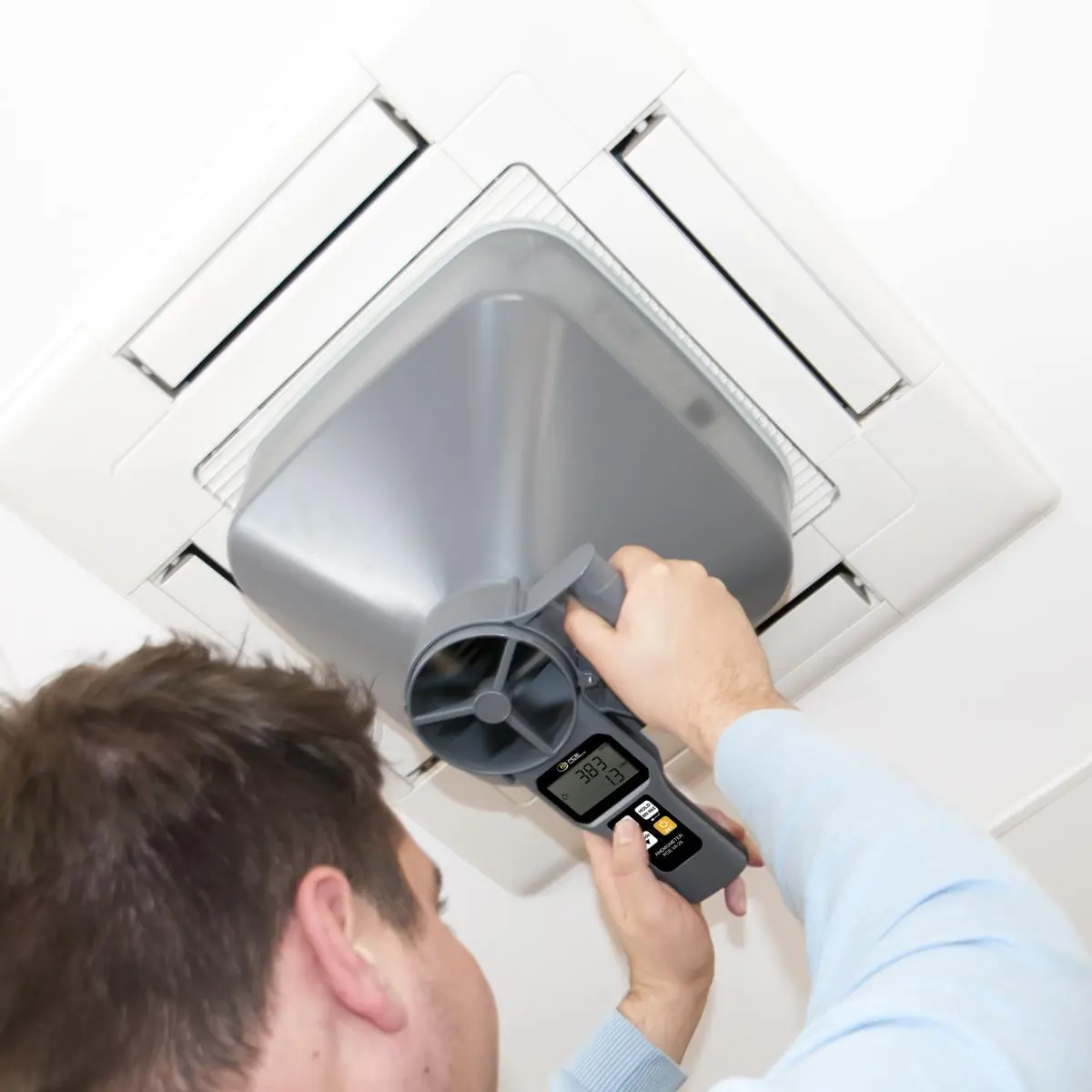

- Includes 2 x capture hoods (1 x round 210 mm / 8.3 in Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)

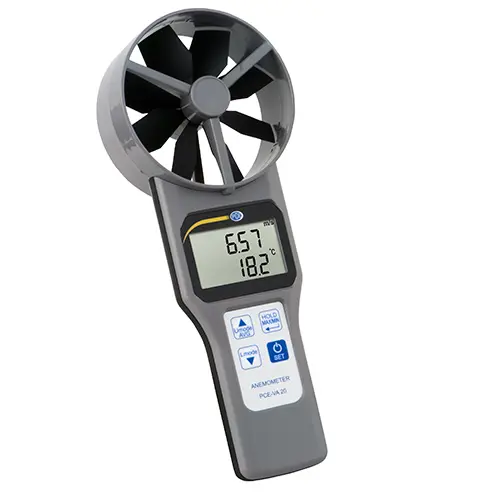

- 10 cm / 3.9 in Ø fan impeller

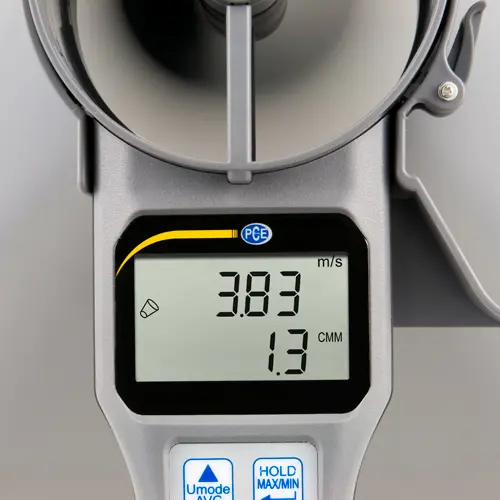

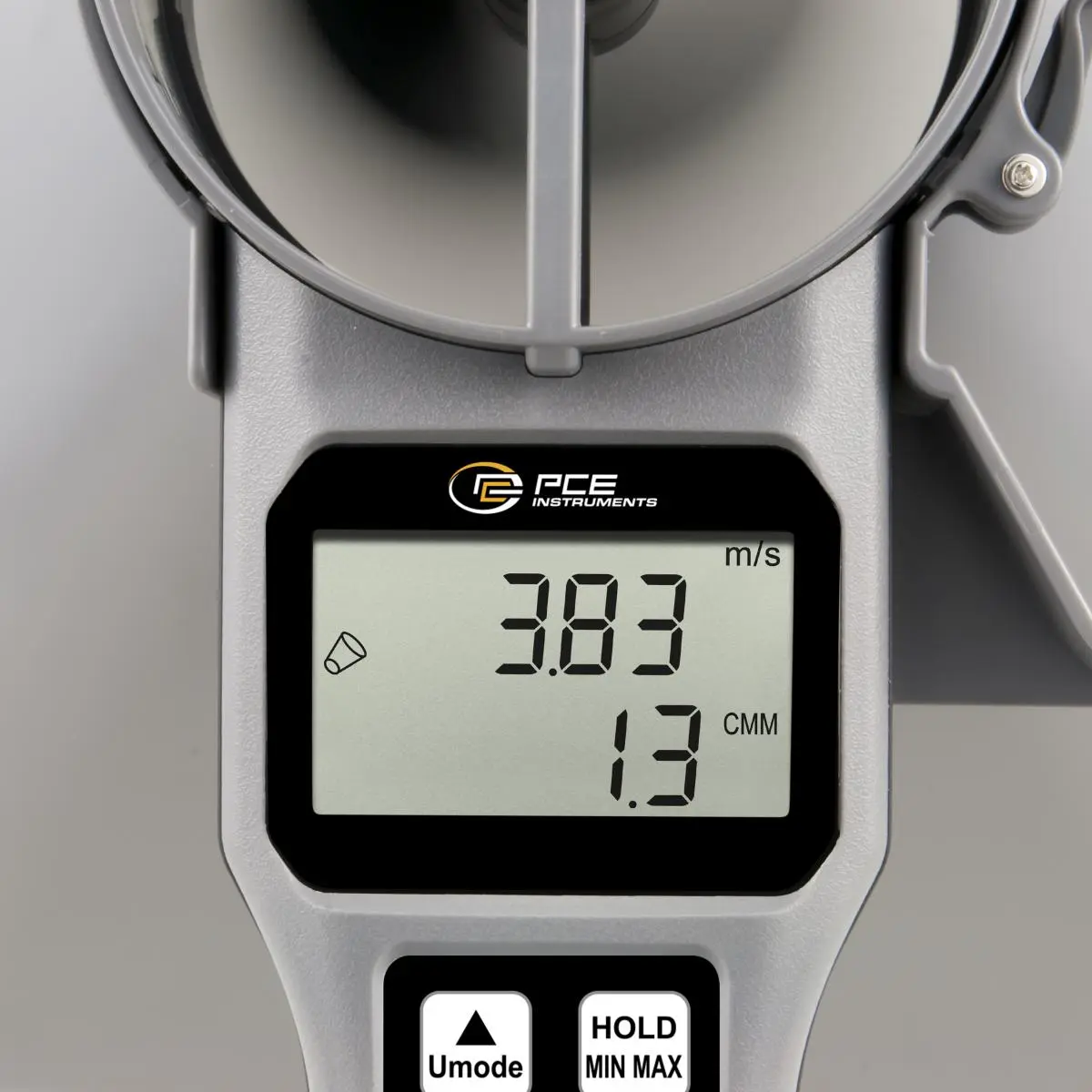

- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection functions
| Technical Specification | ||
| Air flow velocity measuring range |
|
|
| Air flow velocity accuracy | <20 m/s: ±(1.5% of rdg. + 0.3 m/s) >20 m/s: ±(3% of rdg. + 0.3 m/s) |
|
| Air temperature measuring range | -20 ... 60 °C / -4 ... 140 °F | |
| Air temperature accuracy | ±0.6 °C | |
| Air temperature resolution | 0.1 °C / °F | |
| Humidity measuring range | 0.1 ... 99.9 % r.H. | |
| Humidity accuracy | ±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.) else: ±5 % r.H. |
|
| Humidity resolution | 0.1 % r.H. | |
| Temperature response time | 60 seconds | |
| Humidity response time | 60 seconds | |
| LCD update | 1 x per second | |
| Wet bulb temperature display | -20 ... +59.9 °C / -4 ... 139.8°F | |
| Dew point temperature display | -5 ... +59.9 °C / 23 ... 139.8°F | |
| Volume flow display | 0 ... 99999 m³/min | |
| Volume flow resolution | 0.1 m³/min (0...9999,9 m³/min) 1 m³/min (10000...99999 m³/min) |
|
| Automatic shutdown | after 20 minutes of inactivity | |
| LCD size | 32.5 x 54 mm / 1.28 x 2.13" (H x W) | |
| Power supply | 4 x 1.5 V AAA batteries | |
| Operating conditions | 0 ... +50 °C / 32 ... 89.6°F, <80 % r.H. | |
| Storage conditions | -10 ... +50 °C / 14 ... 89.6°F, <90 % r.H. | |
| Dimensions | 269 x 106 x 51 mm / 10.6 x 4.1 x 2.0" | |
| Weight | ca. 200 g / 7 oz |

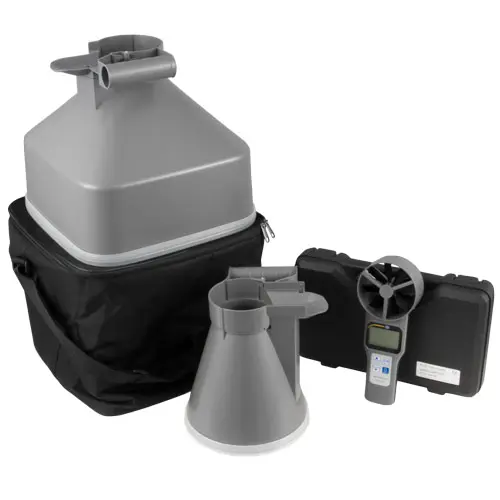

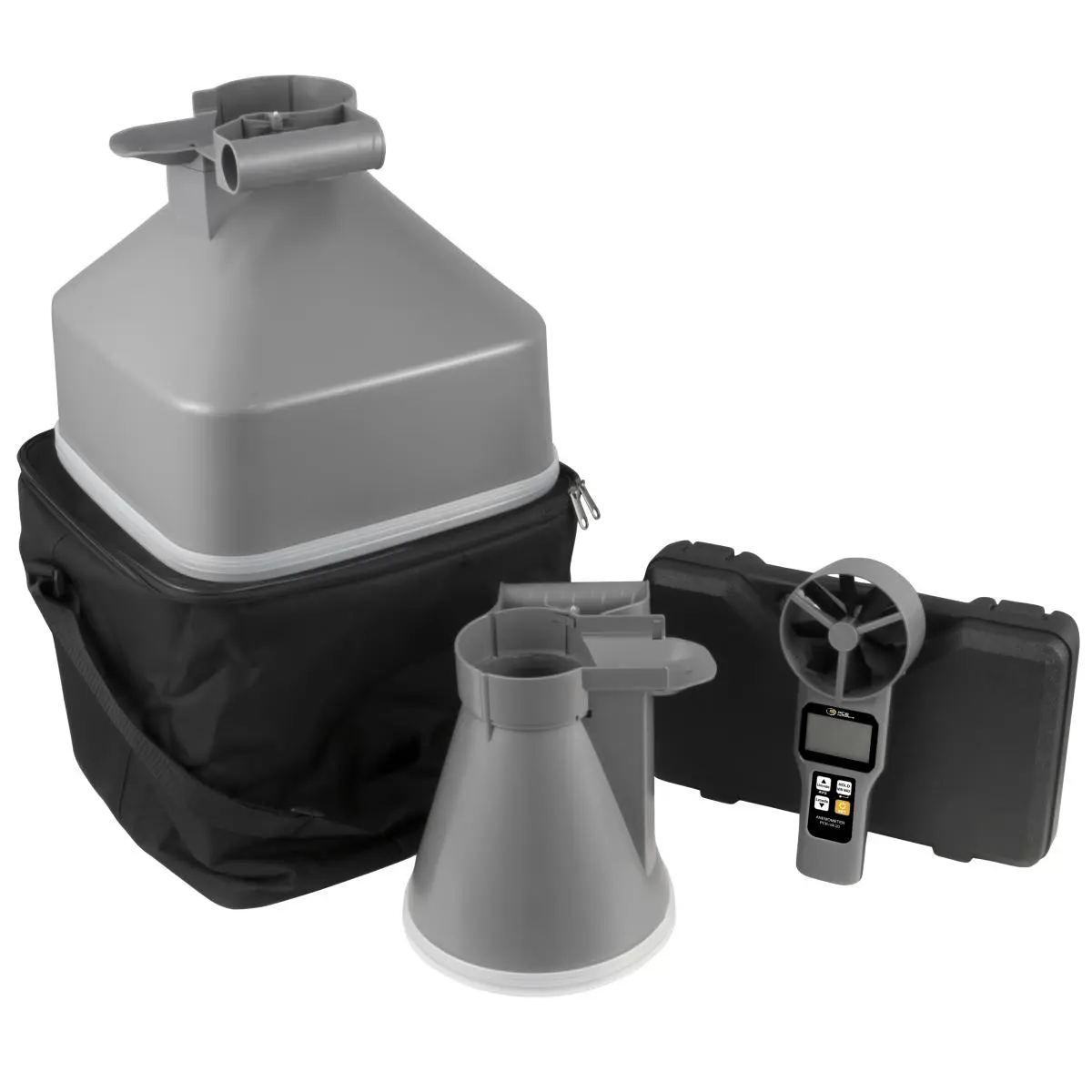

1 x Multifunction HVAC meter (PCE-VA 20)
1 x Square flow hood (AFC-PCE-VA)
1 x Round flow hood (AFC-PCE-VA)
4 x AAA batteries
1 x User manual
1 x Carrying case
