Hygrometer PCE-AQD 10

Order no.: PCE-AQD 10
GTIN (EAN): 4250348719362
₹67,689.00
₹79,873.02
price ex. (VAT / delivery)
:
4250348719362
PCE-AQD 10
Delivery time: 1-2 working days
±4%
Yes (SD card)

Accessory

ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
₹23,793.00
Calibration certificate for PCE-AQD 10 (CO2 function only)
Calibration certificate for PCE-AQD 10 (CO2 function only)
₹18,139.00

Description

Hygrometer
CO2 datalogger for air quality testing / Adjustable storage rate /  Backlit LCD / Storage on SD card / Storage as XLS

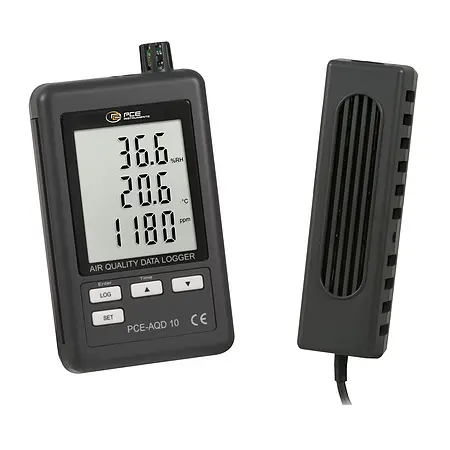

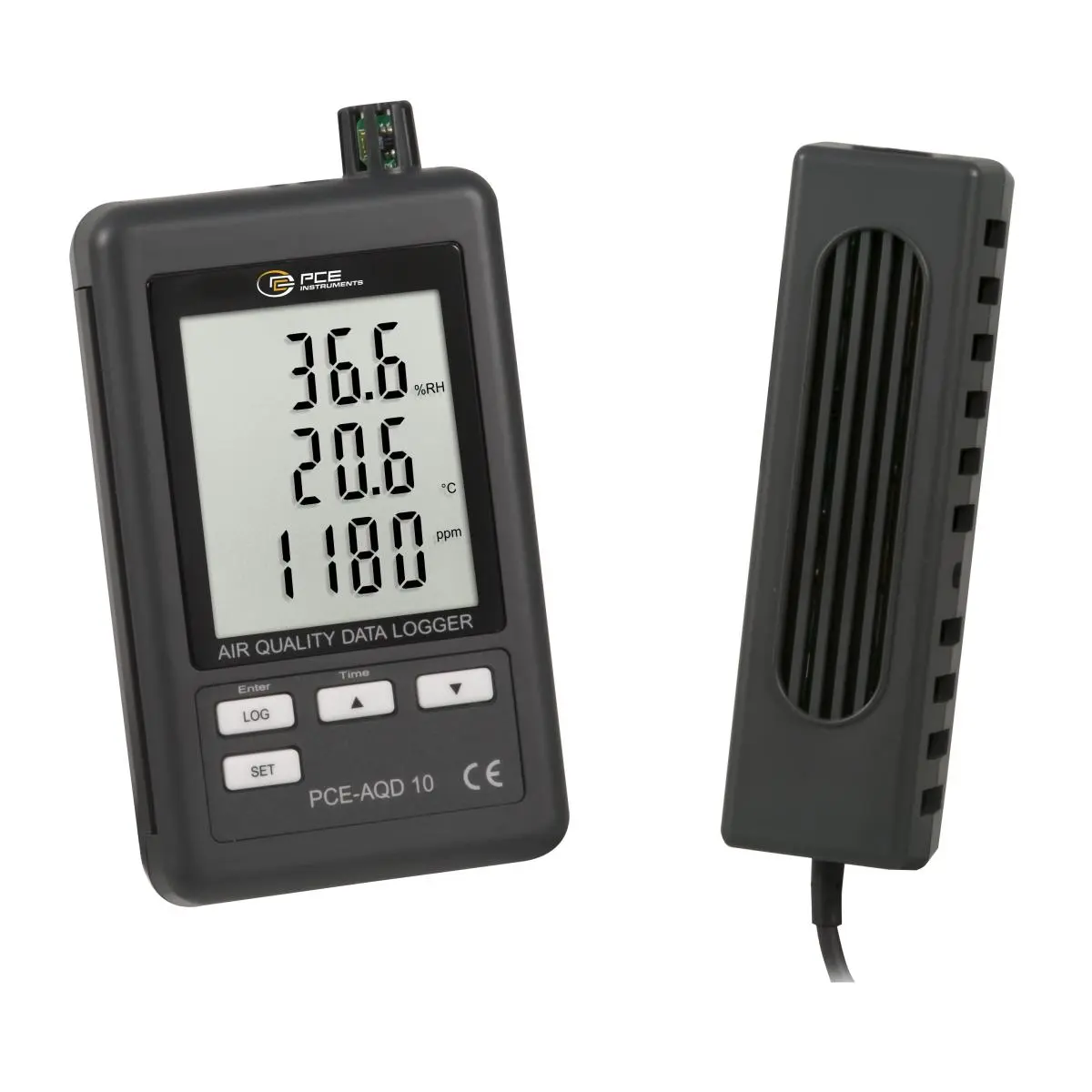

The hygrometer is used to measure air quality. The air quality meter measures carbon dioxide, temperature and humidity. The CO2 sensor from the air quality meter is separated from the main unit with a connection cable. The measured values ​​are displayed on the large display of the air quality meter. The air quality meter data is stored on an SD card. The air quality meter can set the measured data in adjustable intervals of 1 ... 600 seconds.

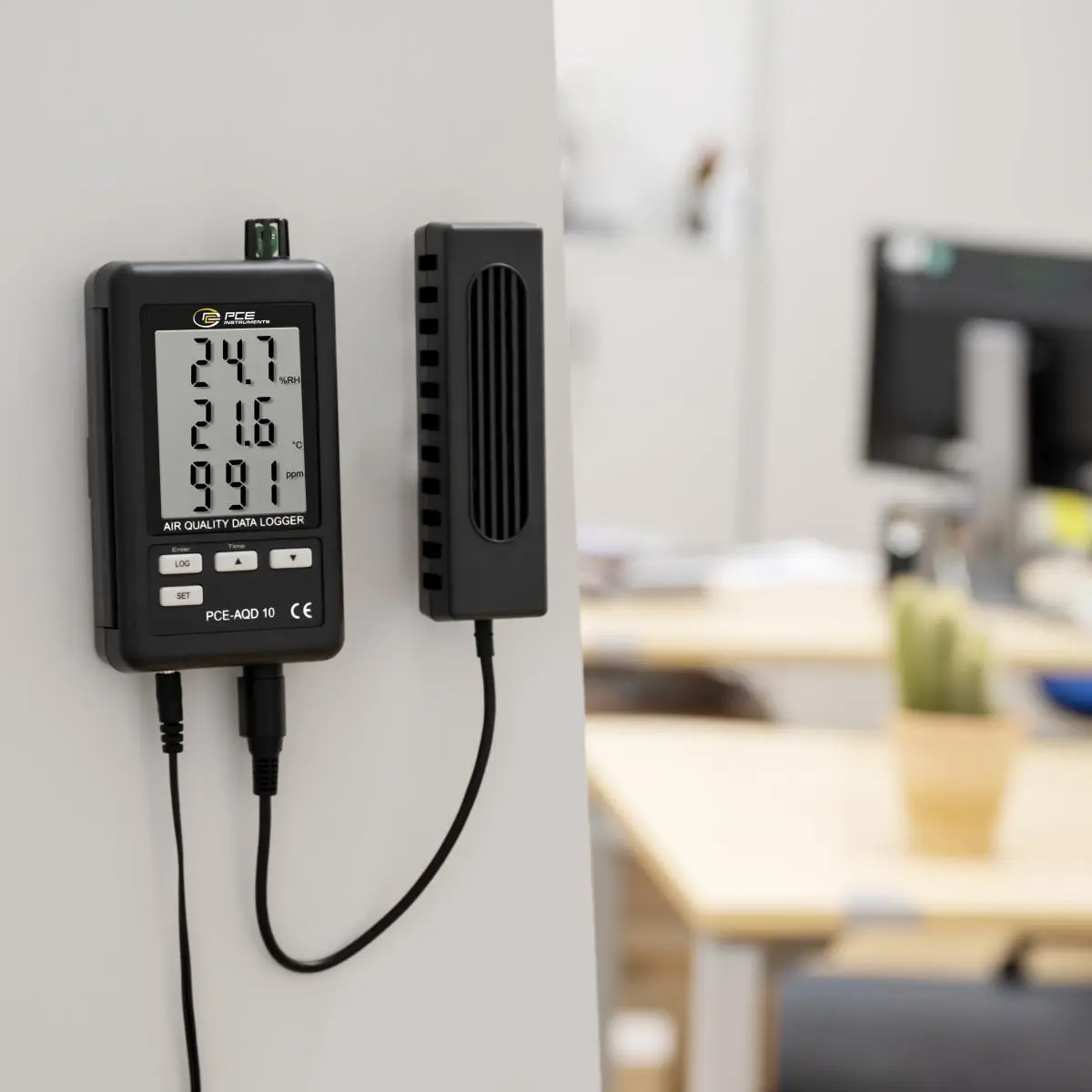

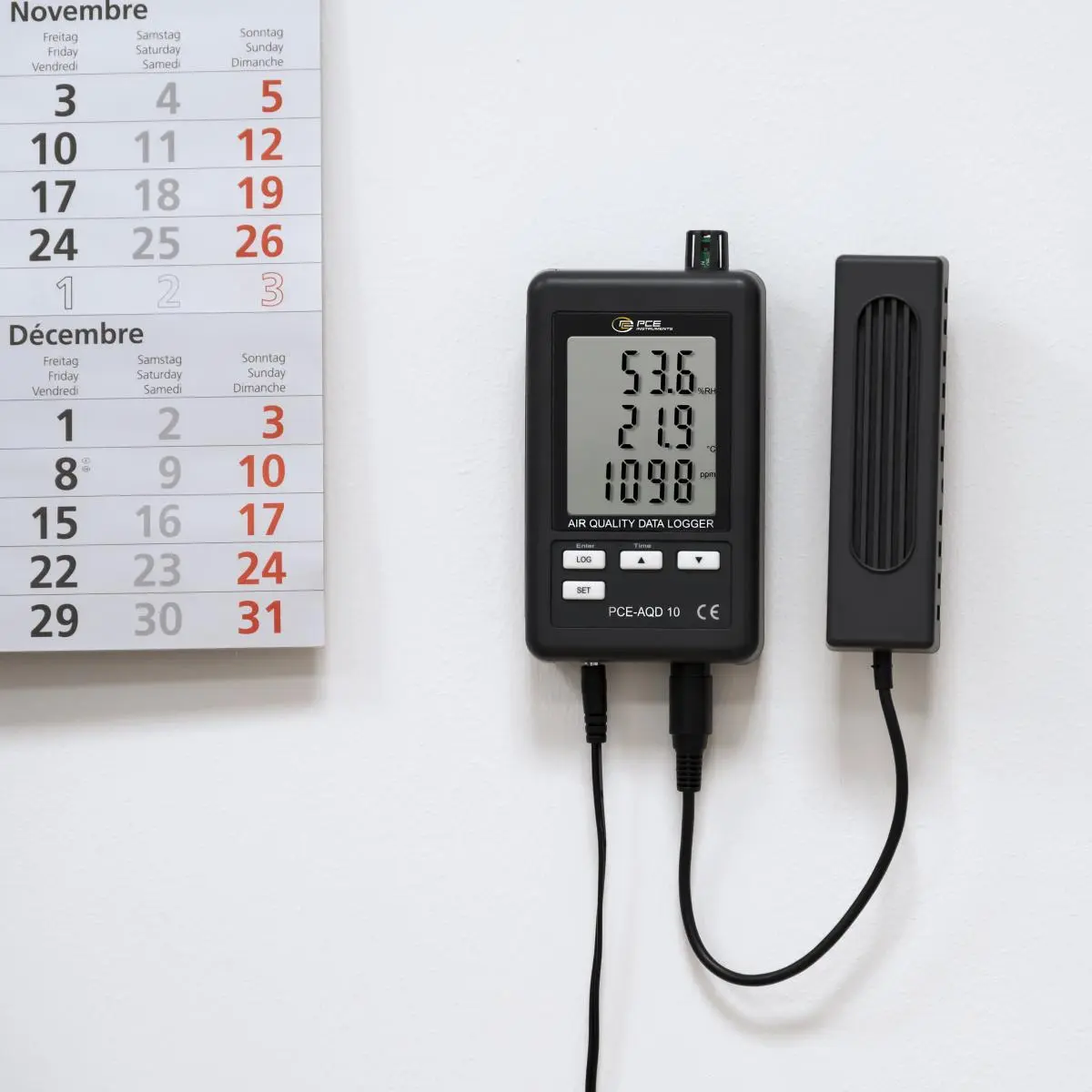

The hygrometer is used to monitor indoor air quality in lounges, offices, schools, etc. Through the SD memory, the CO2 measurement data can be monitored over a long period of time to initiate further measures to improve the room air quality.

Highlights

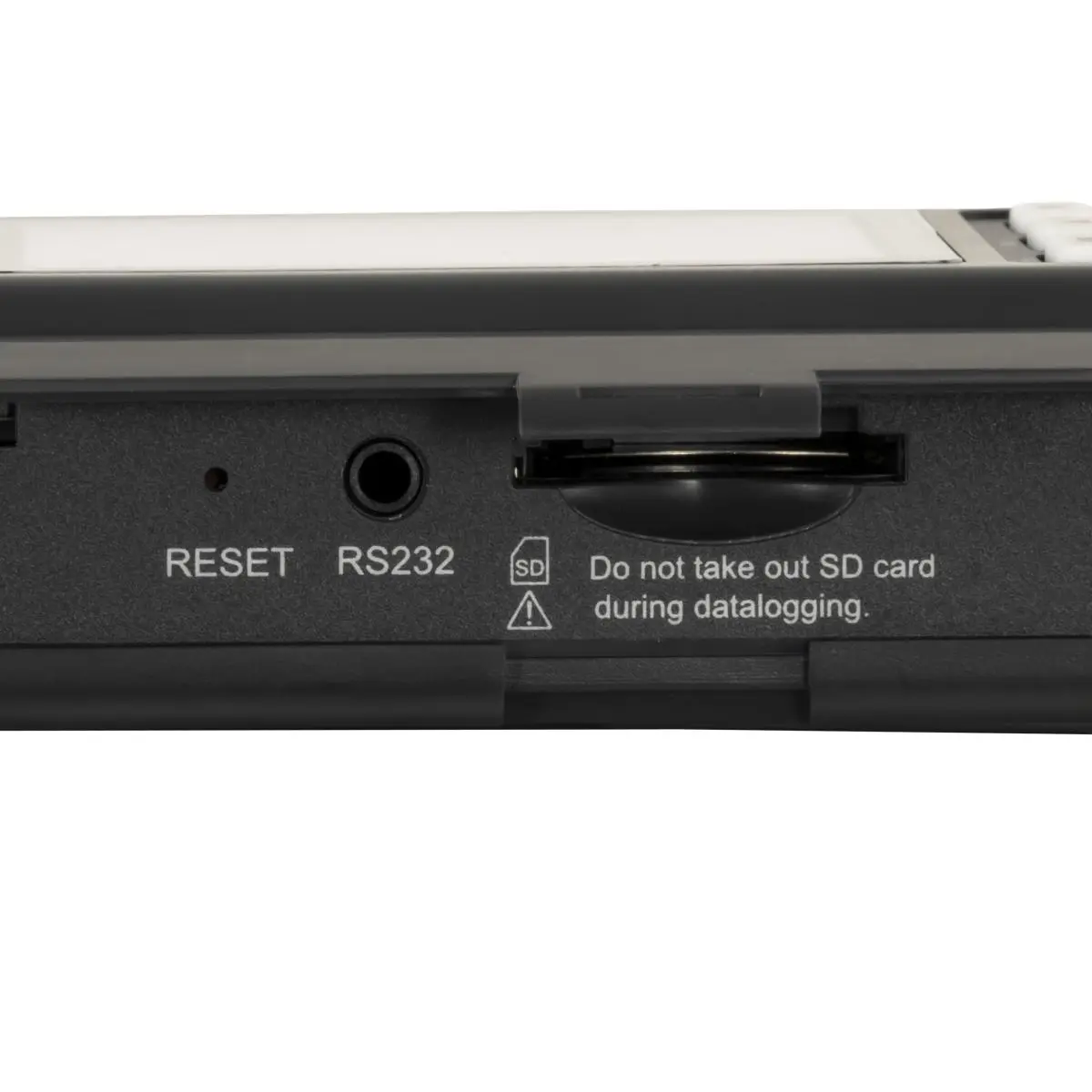

- Memory on SD card
- 3 parameters of air quality
- CO2, air temperature and humidity
- Mains operation, A/C power adapter
- Save as XLS file
- Large display with lighting

Specification

Measured variable CO2
Measuring range0 ... 4000 ppm
Resolution1 ppm
Accuracy± 70 ppm (<1000 ppm)
  ±5% of measured value (<3000ppm)
 ±250 ppm (>3000 ppm)
Measured variable humidity
Measuring range10 ... 90 % RH
Resolution0.1 % RH
Accuracy±(4% of measured value + 1 % RH) (>70% RH )
 ±4% RH (<70 % RH)
Measured variable temperature
Measuring range 0 ... 50 °C / 32 ... 122 °F
Resolution 0.1 °C / 0.18 °F
Accuracy ± 0.8 °C / 1.4 °F

Storage rate 1, 2, 5, 10, 30, 60, 120, 300, 600 seconds
Memory SD card up to 16 GB
Display LCD with lighting
Refresh rate display 1s

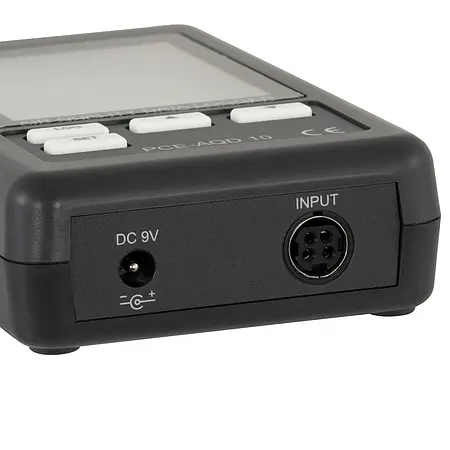

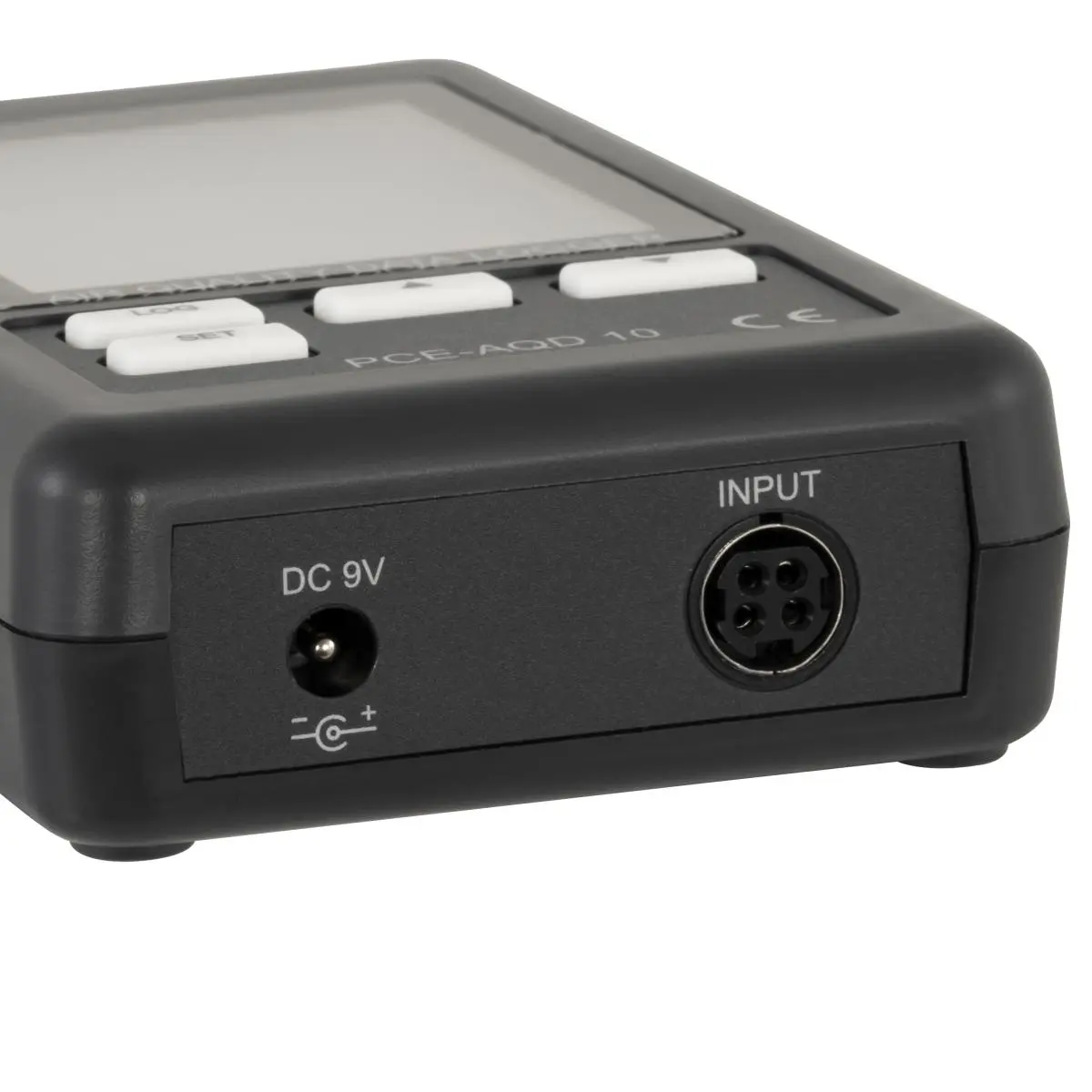

Power supply plug-in power supply 9 V / 800 mA
Operating conditions 0 ... 50 °C / 32 ... 122 °F / < 85 % RH
Dimensions main unit: 132 x 80 x 32 mm / 5.2 x 3.1 x 1.3"
  CO2 sensor: 132 x 38 x 32 mm / 5.2 x 1.5 x 1.3"
Weight ca. 390 g / 13.7 oz (total)

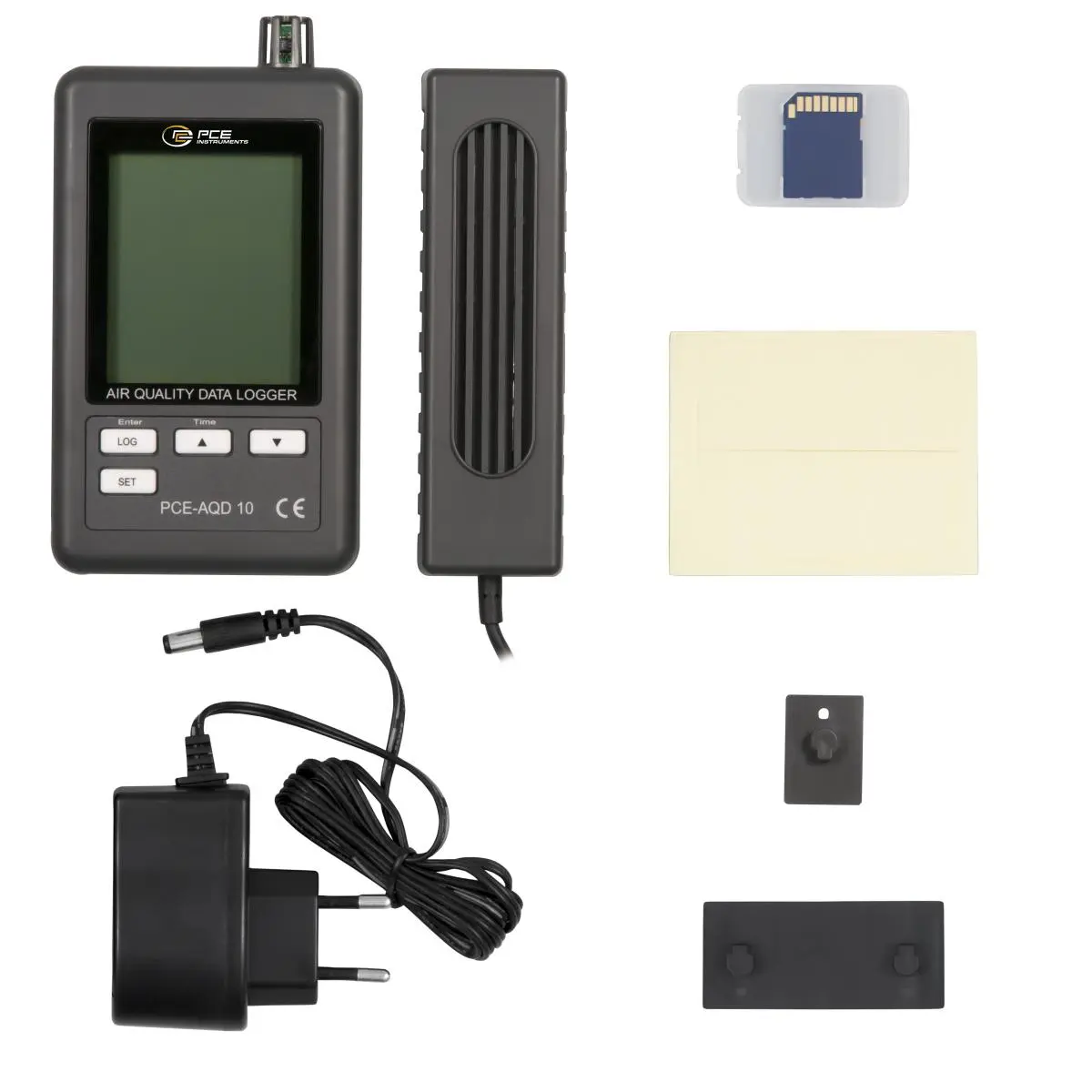

Delivery Scope

1 x Hygrometer PCE-AQD 10
1 x CO2 sensor
1 x Mains power adapter
1 x SD memory card
2 x Wall holder
1 x Adhesive pad
1 x User manual
