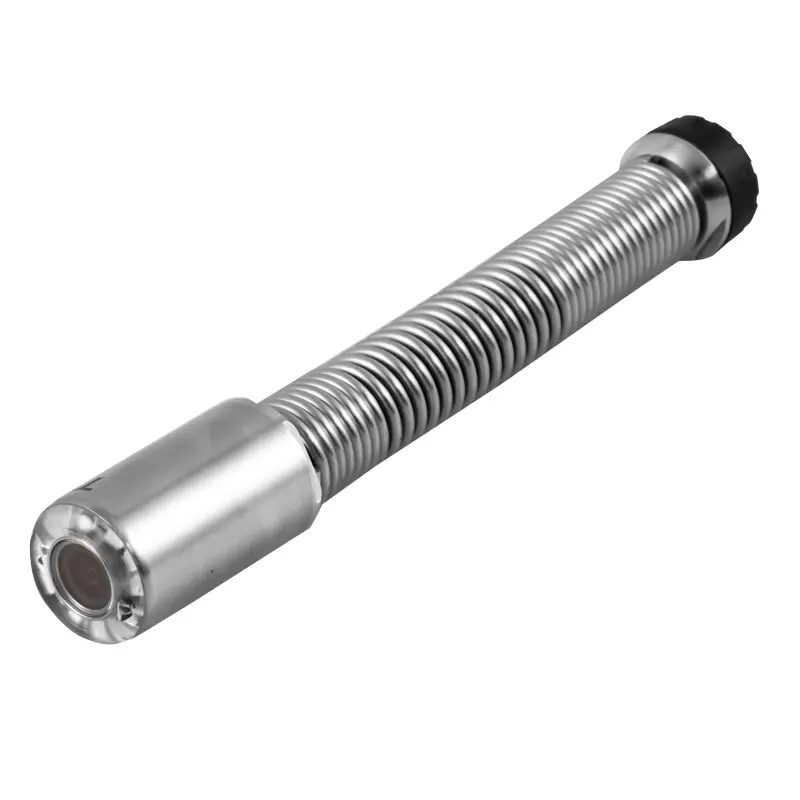

Camera Head with Transmitter PCE-PIC-TCH

Order no.: PCE-PIC-TCH

GTIN (EAN):

Description

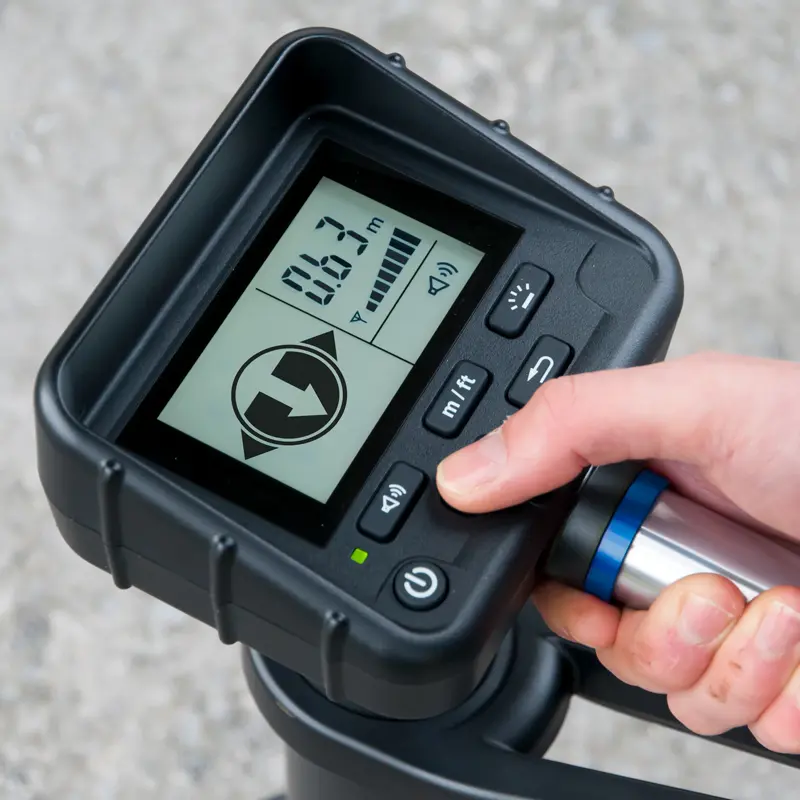

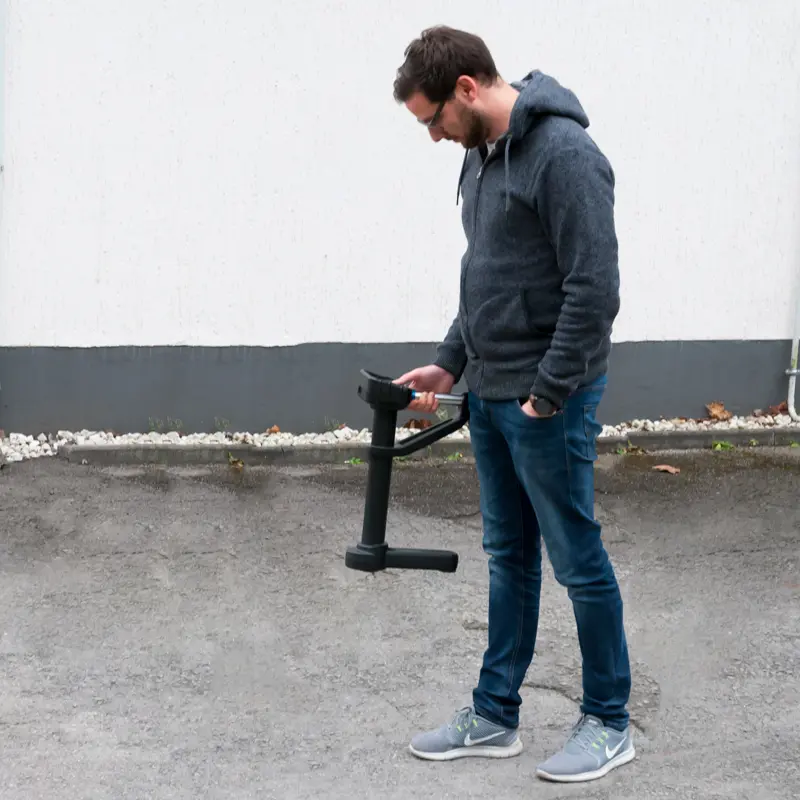

The camera head for the PCE-PIC series can be used to locate the endoscope cable in a pipeline. The camera head sends out a constant signal at 512 Hz. This signal can be located using the Locator PCE-VE-LOC. This feature ensures that in addition to the optical inspection, the course of a line over days can be found out.

Highlights

- 23 mm camera head
- Camera head with 512 Hz transmitter
- For use with PCE-VE-LOC

Specification

Dimensions of camera head	23 mm x 45 mm
Camera length	150 mm / 5.9 in
Water resistance	Up to 20 m / 65.6 ft
Material	Stainless steel
Weight	About 150 g / < 1 lb
Focus distance	About 20 cm
Field depth	About 100 cm
Resolution	720 x 576 Px
Transmission frequency	512 Hz
Sendo mode	Constant
Transmission depth	Max. 5 m / 16.4 ft in the ground

Delivery Scope

1 x Camera head PCE-PIC-TCH
