Insulation Tester PCE-ITE 55A

Order no.: PCE-ITE 55A

GTIN (EAN): 4250348732019

Accessory

CAL-ITE calibration certificate for installation tester

₹42,542.00

Description

Insulation Tester with Carrying Strap / Fast Testing for Fixed Installations / Insulation Resistance / Fault Loop Impedance / Switchable Test Voltages and Fault Currents / Menu Languages: German and English

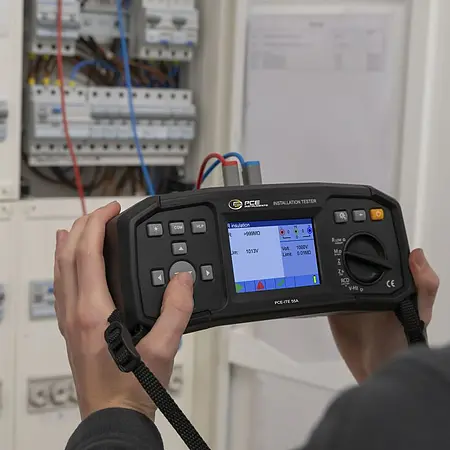

The insulation tester is a multifunctional measuring device designed for testing electrical safety in accordance with the standards EN 61557 and DIN VDE 0100. It offers many functions specifically designed for the inspection and assessment of electrical installations. The insulation tester can perform precise measurements of insulation resistance between live parts and ground. With special functions for RCDs, both Type A and AC-controlled residual current circuit breakers can be efficiently tested, ensuring the proper functioning of these vital protective devices.

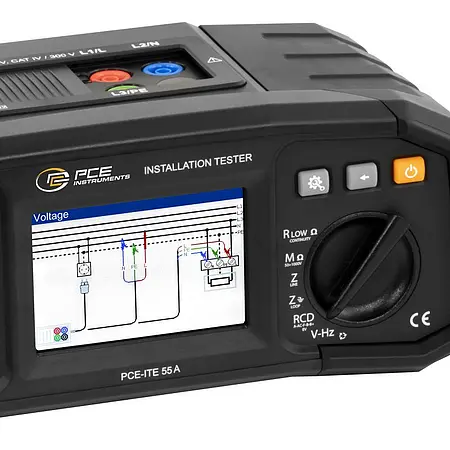

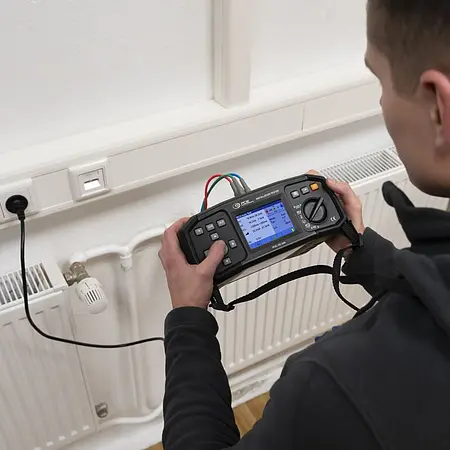

The insulation tester allows for the quick and accurate measurement of loop resistance to ensure that, in the event of a fault current, sufficient resistance is present to ensure a safe disconnection. Additionally, a measurement of the protective conductor resistance allows for checking the continuity of conductors and connections. A graphical representation of the wiring helps the operator perform measurements accurately.

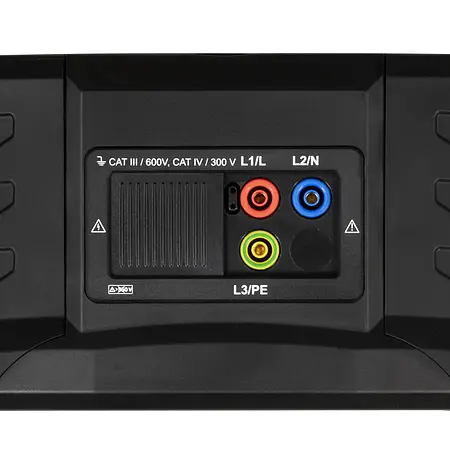

The brightness of the display can be adjusted in 4 levels. An adjustable alarm tone warns of errors or exceeding the limit. The adjustable auto-off time of the insulation tester prevents unintentional battery discharge. The device comes with test leads that meet the specific requirements of CAT III / 600 V and CAT IV / 300V.

The insulation tester offers a user-friendly interface, clear display elements, and a robust construction to meet the requirements in various environments. By complying with international standards, it ensures a safe and reliable assessment of electrical installations according to the highest industry standards.

With our optional EVSE test adapters, tests can also be conducted on wall boxes and charging stations for electric vehicles.

Highlights

- Testing according to EN 61557 and DIN VDE0100

- Insulation resistance

- RCD Type A and AC

- Line and fault loop impedance

- Continuity test

- Voltage, phase sequence, and frequency

- Testing of EV charging stations with optional test adapter

- Includes test leads

Specification

AC voltage AC
Measuring range	0 V ... +550 V
Resolution	1 V
Accuracy	±(2 % v. Mw. + 2 digits)

Insulation resistance
Test voltage DC	50 V
Measuring range	0.1 M Ω ... +80 M Ω
Resolution	0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 80.00)
Accuracy	±(5 % of VAT + 3 digits)

Insulation resistance
Test voltage DC	100 V, 250 V
Measuring range	0.1 M Ω ... +199.9 M Ω
Resolution	0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 99.99) 0.1 MΩ (100.0 ... 199.9)
Accuracy	±(5% of VAT + 3 digits)

Insulation resistance
Test voltage DC	500 V, 1000 V
Measuring range	0.1 M Ω ... +199.9 M Ω
Resolution	0.001 MΩ (0.100 ... 1.999) 0.01 MΩ (2.00 ... 99.99) 0.1 MΩ (100.0 ... 199.9)
Accuracy	±(2% of VAT + 3 digits)

Insulation resistance
Test voltage DC	500 V, 1000 V
Measuring range	+200 M Ω ... +999 M Ω
Resolution	1 MΩ
Accuracy	±(10% of VAT)

Passage check
Measuring range	0.1 Ω ... +20 Ω
Resolution	0.01 Ω
Accuracy	±(3% of VAT + 3 digits)

Passage check
Measuring range	+20 Ω ... +1999 Ω
Resolution	0.1 Ω (20.0 Ω ... 99.9 Ω) 1 Ω (100 Ω ... 1999 Ω)
Accuracy	±(5 % of VAT)

Impedance
Measuring range	0.25 Ω ... +9999 Ω
Resolution	0.01 Ω (0.20 ... 19.99) 0.1 Ω (20.0 ... 99.9) 1 Ω (100 ... 9999)
Accuracy	±(5 % of VAT + 5 digits)

Frequency
Measuring range	+10 Hz ... +499.9 Hz
Resolution	0.1 Hz
Accuracy	0.2 % + 1 digit

General technical data
Display type	TFT color display
Display size	3.3 inch
Standard(s)	EN61557, DIN VDE 0100
Operating time	15 h
Automatic switch-off adjustable	0.5 ... 60 min
Automatic switch-off can be deactivated	Yes
RCD test current characteristic	A, AC
RCD tripping current	650 mA, 500 mA, 30 mA, 6 mA, 300 mA, 10 mA, 1000 mA, 100 mA
RCD tripping time	0 ... 500 ms
Touch voltage	0 ... 99.9 V
Menu language	German, English
Protection class (device)	IP42
Power supply	Battery, power supply unit
Weight	1300 g
Device weight with scope of delivery	1750 g
Device weight with scope of delivery and outer packaging	1930 g
Dimensions (L x W x H)	250 x 135 x 107 mm
Operating conditions	0 ... 40 °C , 95 % r.h.
Storage conditions	-10 ... 70 °C , 90 % r.H

Delivery Scope

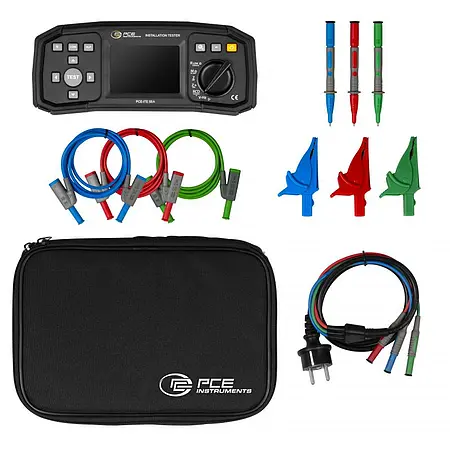

1 x Insulation Tester PCE-ITE 55A

1 x Test Cable for EU Schuko Sockets

3 x Test Leads 1m

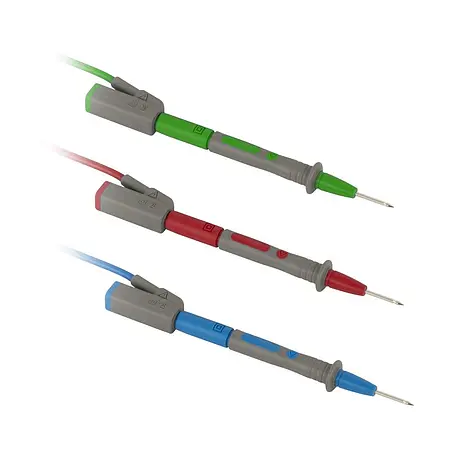

3 x Test Probes

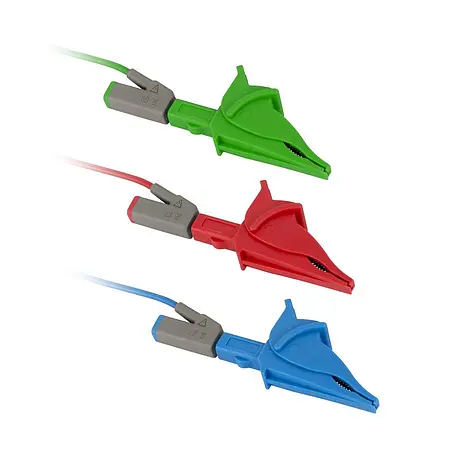

3 x Crocodile Clips

1 x Carrying Strap

6 x 1.5V AA Batteries

1 x Factory Calibration Certificate

1 x User Manual
