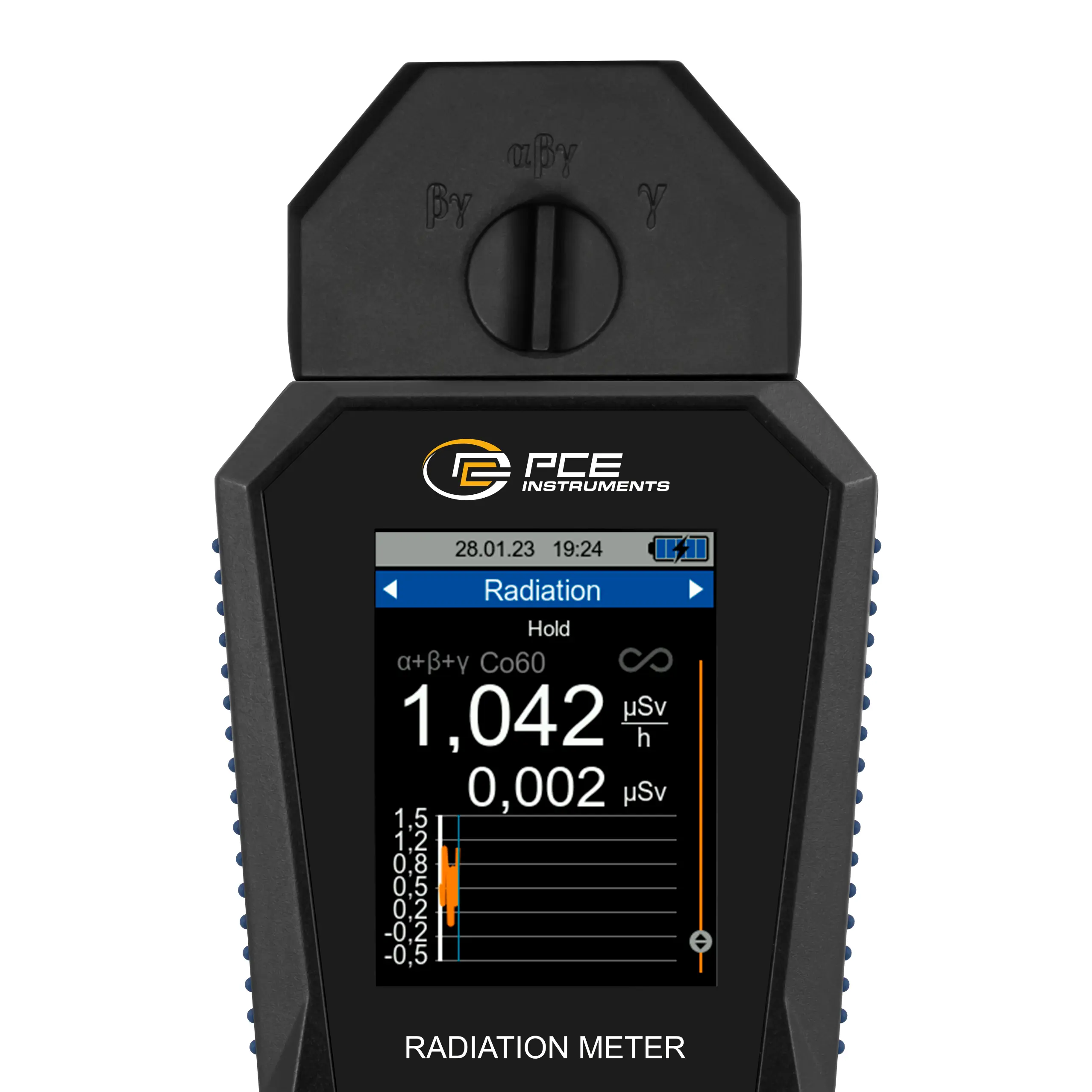

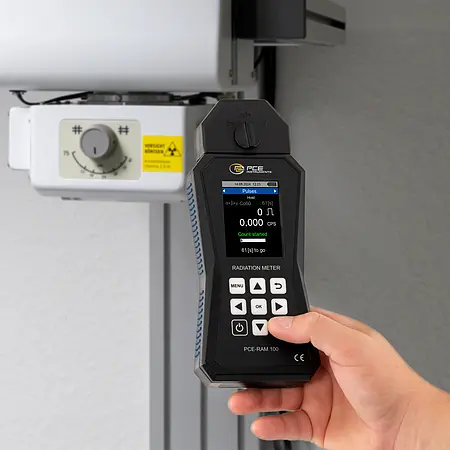

The IoT Meter / IoT Sensor offers comprehensive measurement functions for α, β and γ radiation and is the test instrument of choice for professional radiation measurements. With the ability to precisely record the accumulated radiation dose and count the radiation in both cps (counts per second) and cpm (counts per minute), the IoT Meter / IoT Sensor provides accurate and reliable measurement data at all times. The integrated data logger with 32 GB memory saves the measured values and allows them to be analysed in detail. The measurement history is shown graphically on the TFT colour display. Individual alarm limits can also be set in the IoT Meter / IoT Sensor: a warning message appears if a certain radiation value or a defined radiation dose is exceeded.
Another feature of the IoT Meter / IoT Sensor is the acoustic radiation pulse output. Each detected radiation pulse is made audible by a sound, which provides immediate feedback on the radiation activity in the environment. This function can also be deactivated. The integrated data logger can record up to 10 million measuring points at the touch of a key or after entering a start time.
This IoT Meter / IoT Sensor combines precision, ease of use and innovative technology - an indispensable tool for the safe handling of radioactive materials. Radiation protection officers and safety specialists use the IoT Meter / IoT Sensor when they are exposed to radioactive environments but it can also be used quickly in scientific fields such as nuclear research, medical physics or for simple environmental monitoring.
| Radiation | |
| Measurement range up to | 0 ... 1500 µSv/h |
| Resolution | 0,001 µSv/h |
| Accuracy | <10 % of Rd (<1000 µSv/h) |
| Radiation | |
| Measurement range up to | 0 ... 150 mrem/h |
| Resolution | 0,001 mrem/h |
| Accuracy | <10 % vof Rd (< 100 mrem/h) |
| Radiation | |
| Measurement range up to | 0 ... 9,9 Sv |
| Resolution | 0,1 Sv |
| Accuracy | <10 % of Rd (< 100 µSv) |
| Radiation | |
| Measurement range up to | 0 ... 167000 cps |
| Resolution | 1 cps |
| Accuracy | <10 % of Rd |
| Radiation | |
| Measurement range up to | 0 ... 9999999 cpm |
| Resolution | 1 cpm |
| Accuracy | <10 % of Rd |
| General technical data | |
| Measuring functions | MIN, MAX, Average value |
| Display type | TFT colour display |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 32 GB |
| Memory capacity (additional information) | 10 million measuring points |
| Storage interval from | 1 s |
| Storage interval to | 12 h |

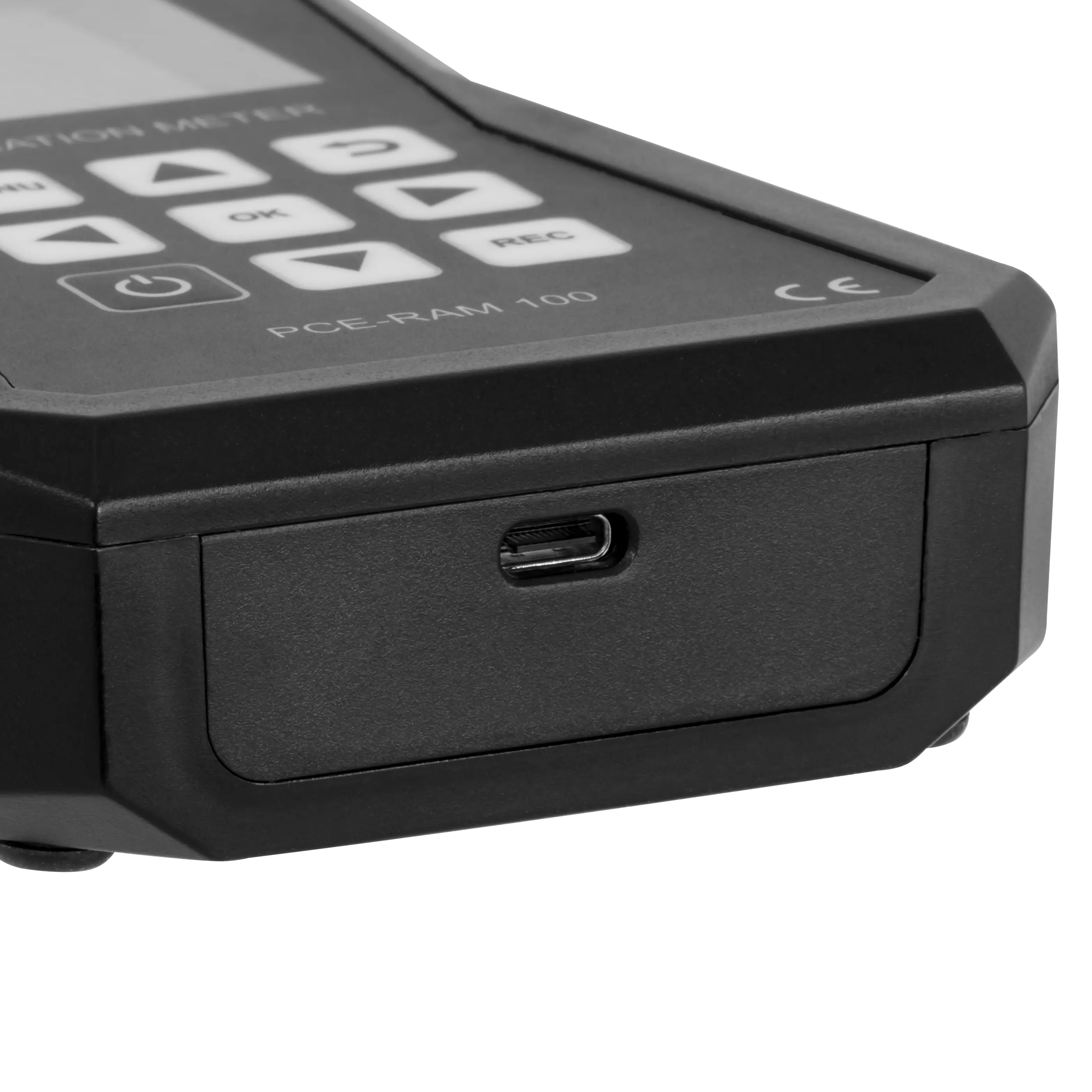

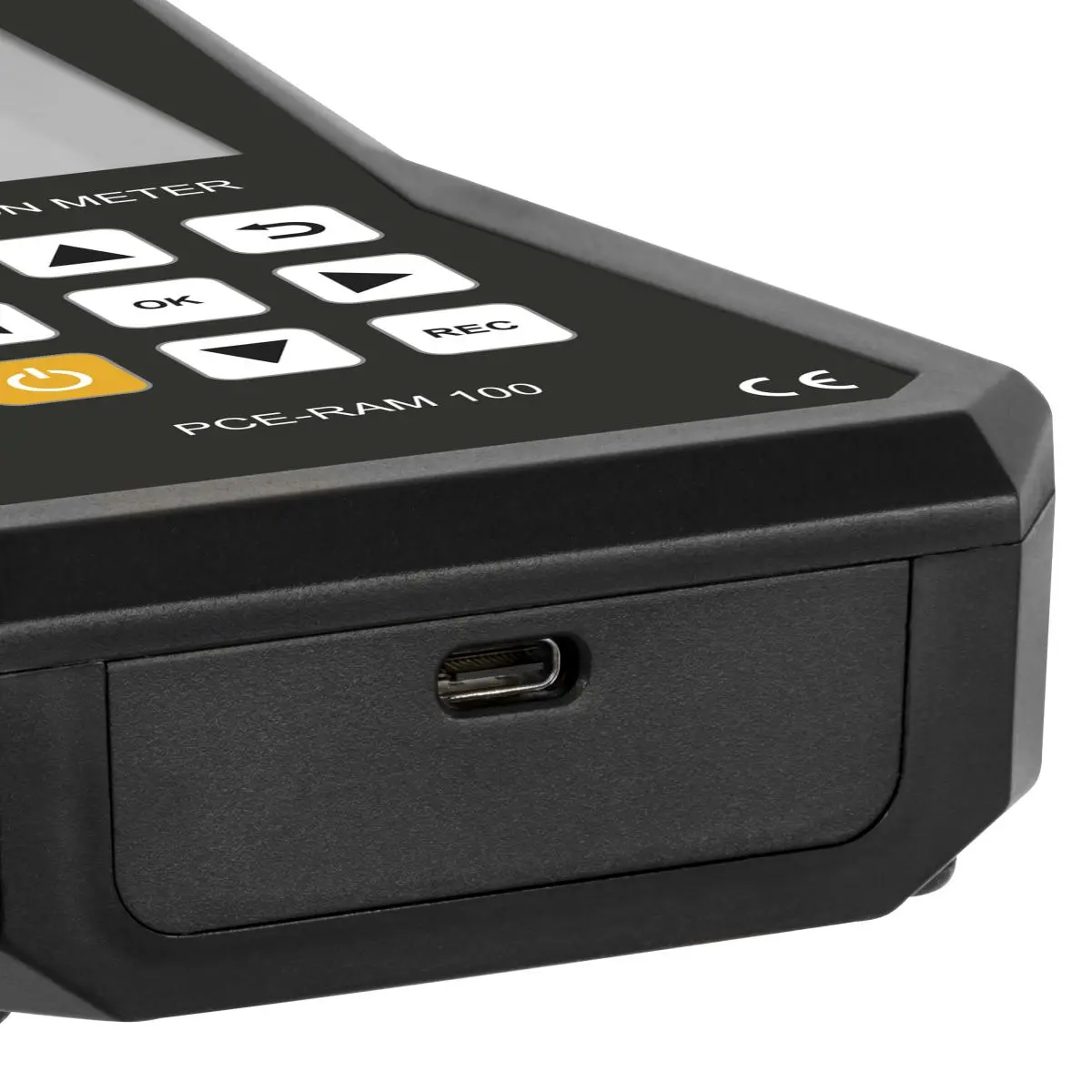

| Interface | USB-C |

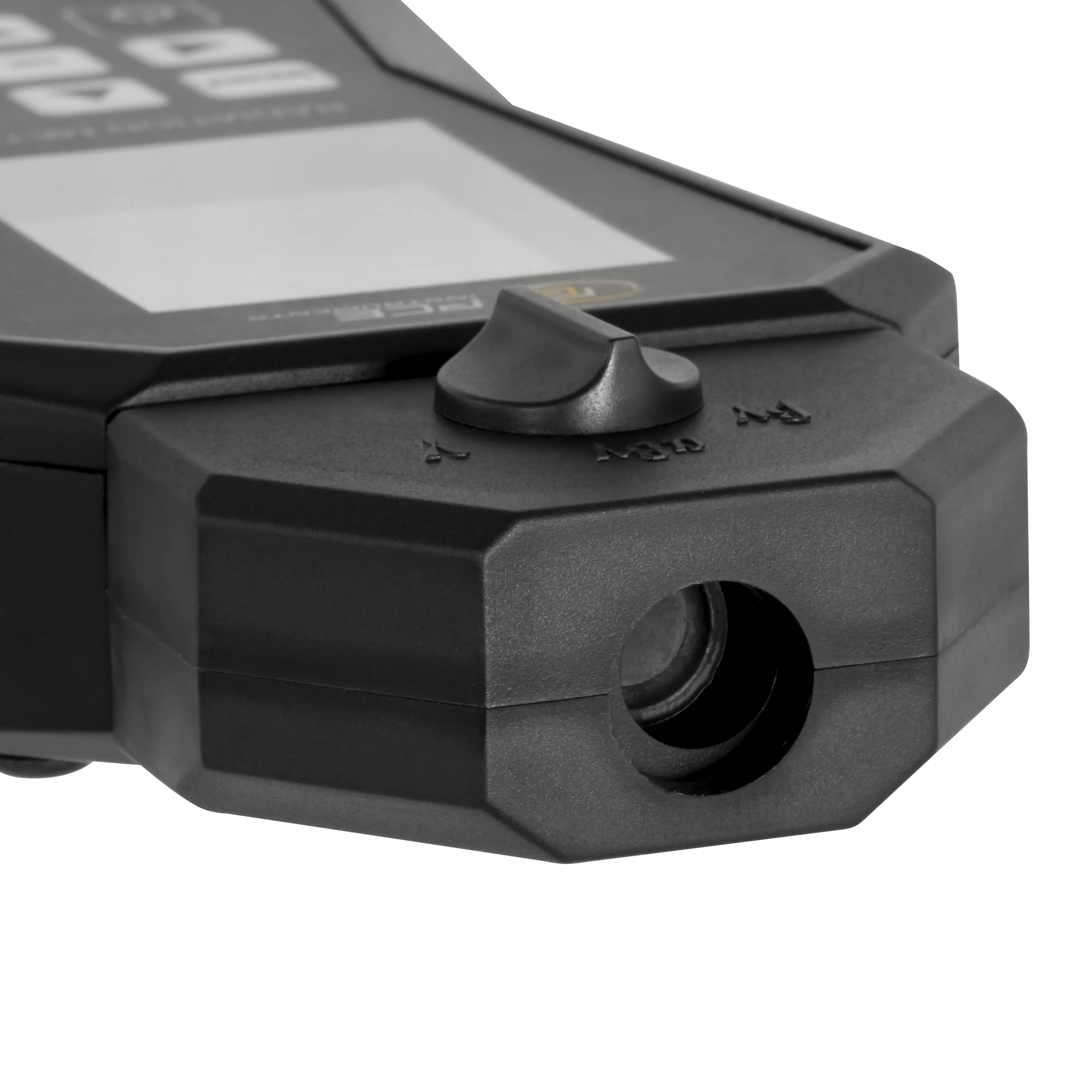

| Sensor | Geiger-Mueller counter tube |
| Operating time | 24 h |
| Operating time additional information | depending on display brightness and data logger settings |
| Automatic power-off from...to | 1 ... 15 min. |
| Automatic power-off can be deactivated | Yes |
| Alarm | optical, Acoustic |
| Alarm modes | Radiation, radiation dose, number of pulses |
| Sensitivity | α-rays from 4 MeV β-rays from 0.2 MeV γ-rays from 30 keV |
| Menu language | German, English (GB), English, French, Spanish, Italian, Danish, Portuguese, Turkish, Polish, Russian, Chinese, Dutch, Japanese |
| Protection class (device) | IP52 |
| Power supply | 5 V DC, 500 mA (USB) |
| Weight | 280 g |
| Operating conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Storage conditions | -20 ... 65 °C , 10 ... 95 % RH |
| Capacity | 2500 mAh |
| Dimensions ( L x W x H ) | 208 x 85 x 37 mm |
