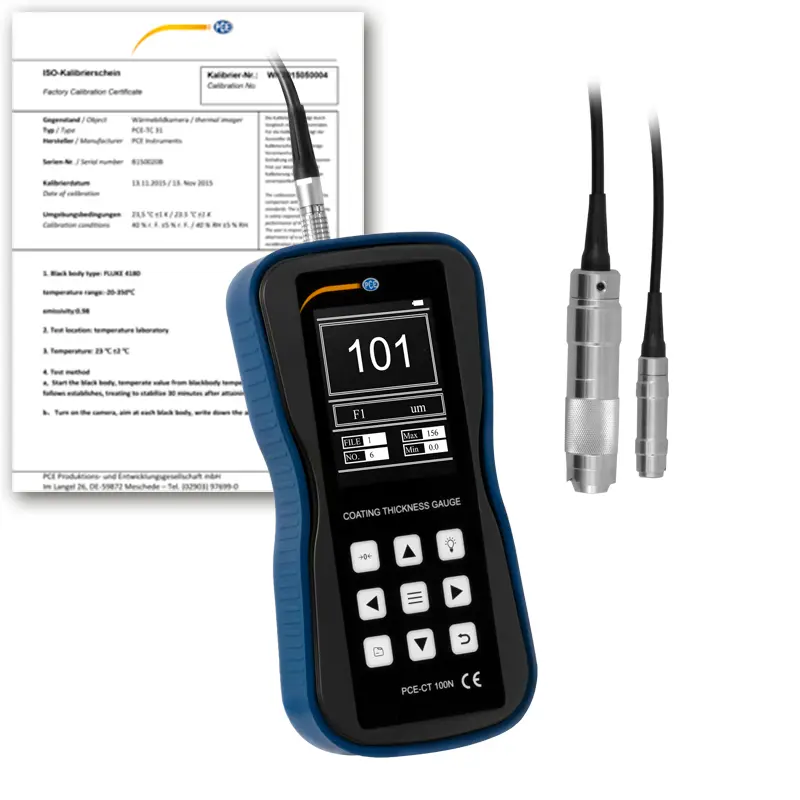

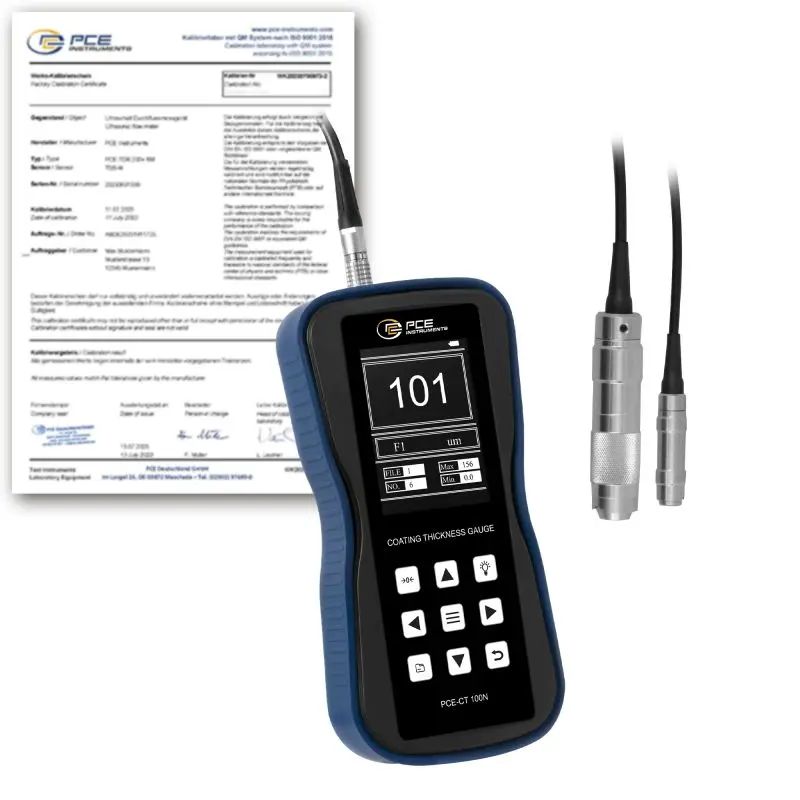

IoT Sensor PCE-CT 100N-ICA incl. ISO Calibration Certificate

Order no.: PCE-CT 100N-ICA
GTIN (EAN): 4250348725318
₹248,332.00
₹293,031.76
ISO Calibration
price ex. (VAT / delivery)
:
4250348725318
PCE-CT 100N-ICA
Delivery time: 10 - 14 days

Accessory

Re-Calibration for Coating Thickness Meter
Re-Calibration for Coating Thickness Meter
₹15,734.00
ISO Calibration Certificate for Coating Thickness Meter
ISO Calibration Certificate for Coating Thickness Meter
₹25,728.00
Replacement probe SP-PCE-CT 100N-F Fe type
Replacement Probe SP-PCE-CT 100N-F Fe type
₹43,137.00
Replacement probe SP-PCE-CT 100N-N NFe type
Replacement Probe SP-PCE-CT 100N-N NFe type
₹43,137.00

Description

IoT Sensor PCE-CT 100N-ICA incl. ISO Calibration Certificate
Surface tester for ferrous and non-ferrous metals / Very compact size / Non-destructive, precise measurements / Data transmission via USB and Wifi / Simple operation / Uncomplicated and reliable

The IoT sensor works according to the magnetic inductive (ISO 2178) and the eddy current method (ISO 2360). These methods supported by the IoT sensor are used for the non-destructive testing of materials. The IoT sensor is used to measure the thickness of magnetically neutral layers on a magnetic or non-magnetic base material.

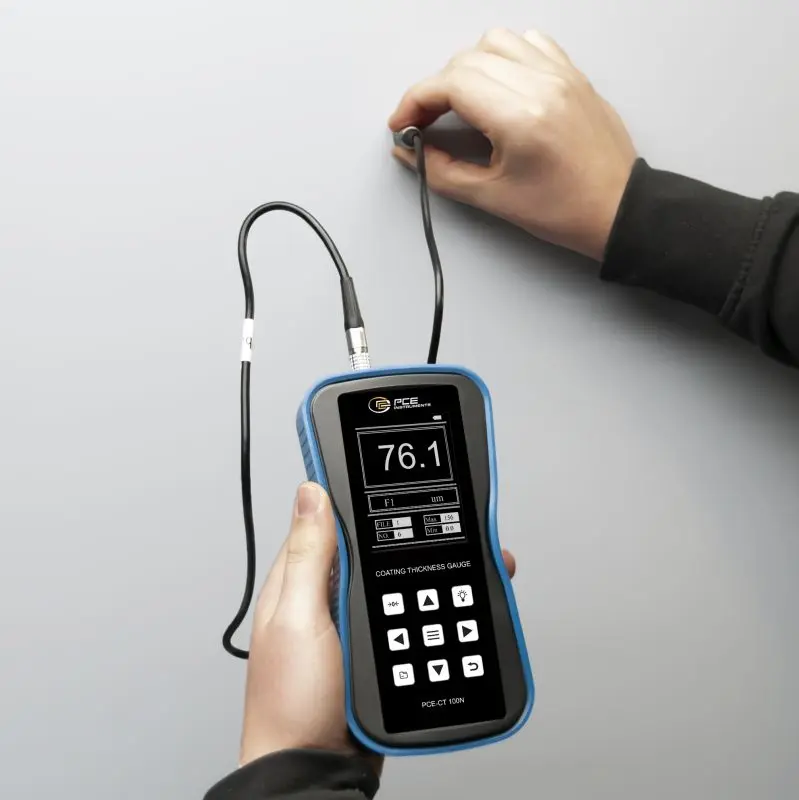

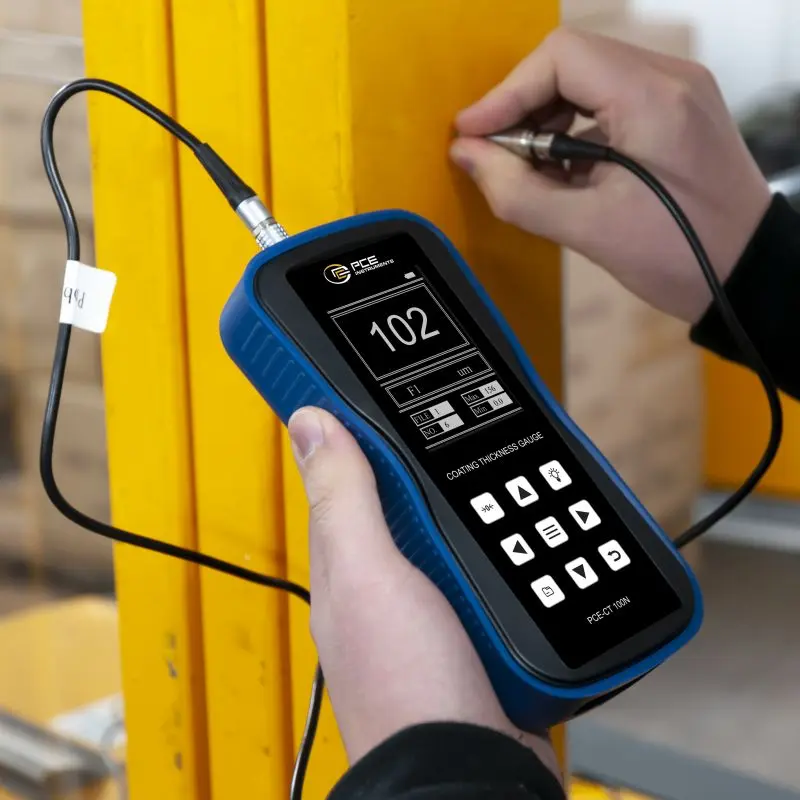

The IoT sensor is ideal for reliable layer thickness measurements on site. With the external probe, the layer thickness can be measured quickly and easily, even in hard-to-reach places. The IoT sensor was developed for non-destructive, fast and precise layer thickness measurements and is easy to use. Measured data can be easily transferred to a PC using a USB data storage device or via WiFi.

The IoT sensor is used in particular in the finishing industry, electroplating, ship and bridge construction, aircraft construction and the machine and chemical industry.

Highlights

- Illuminated touch keyboard
- Measurement data storage for up to 1260 data
- One-point and multi-point calibration
- Single measurement and continuous measurement
- Data transfer via wifi and USB
- Two different probes for NFe and Fe
- incl. ISO Calibration Certificate

Specification

Measuring range0 ... 1250 µm; 0 ... 49.2 mil
Min. coating thickness of base material 50 µm
Smallest measuring surface (diameter) 10 mm
Min. radius of curvature convex 15 mm
Min. radius of curvature concave 15 mm
Accuracy ± (1% + 1 µm); ± (1% + 0.04 mil)
Resolution 0.1 µm (<99.9 µm); 0.004 mil (<3.9 mil)
 1 µm (> 100 µm); 0.04 mil (> 3.9 mil)
Calibration Single point, multiple point
Data storage 1260 data
Measuring modes Single measurements, continuous measurement
Interfaces Wifi , USB
Operating conditions 0 ... 50°C / 32 ... 122°F, 20 ... 90% RH non-condensing
Dimensions170 x 85 x 35 mm / 6.7 x 3.3 x 1.4 in
WeightApprox. 335 g / < 1 lb (with battery)


Delivery Scope

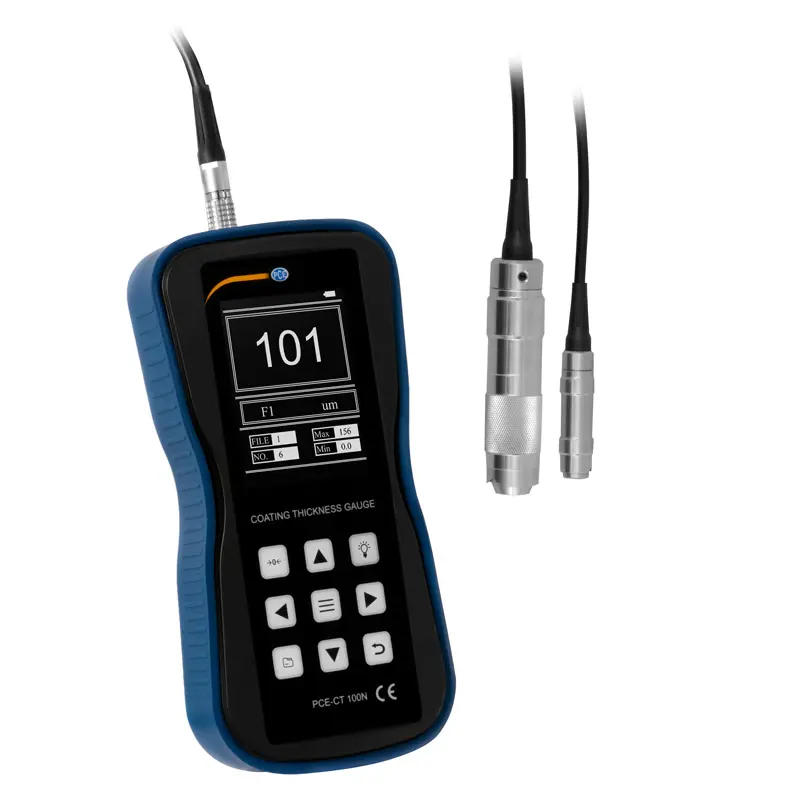

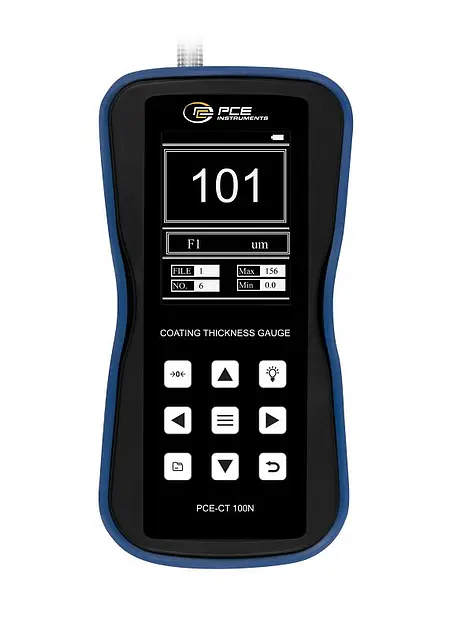

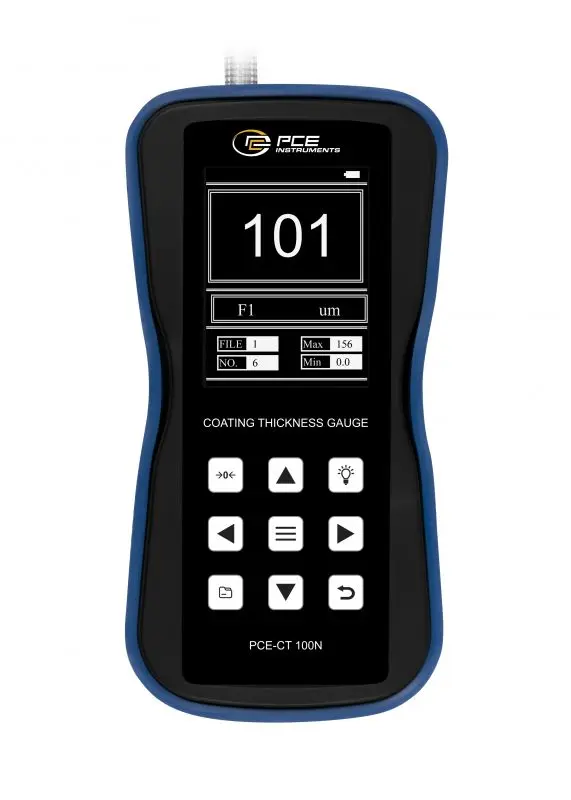

1 x IoT Sensor PCE-CT 100N

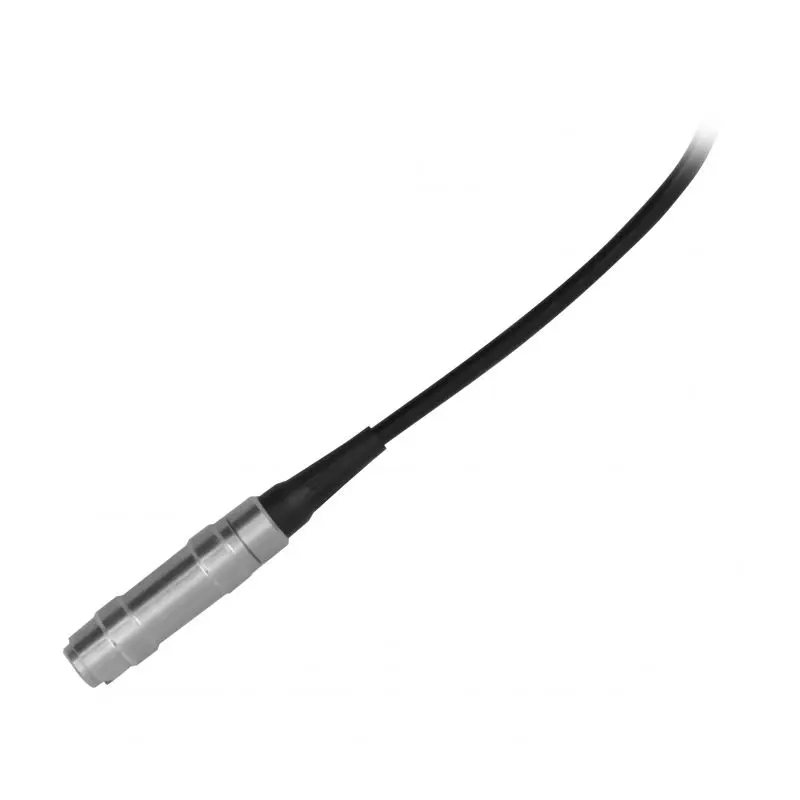

1 x NFe probe
1 x Fe probe
1 x USB data carrier
1 x Reference film set
1 x Calibration plate (ferrous)
1 x Calibration plate (non-ferrous)
2 x 1.5V AA batteries
1 x Instruction manual
1 x ISO Calibration Certificate
