Lux Meter PCE-LM 4

Order no.: PCE-LM 4
GTIN (EAN): 4250348733573
₹5,640.00
₹6,655.20
price ex. (VAT / delivery)
:
4250348733573
PCE-LM 4
Delivery time: 1-2 working days

Description

Lux Meter with internal sensor / measuring range 0 lx ... 200 klx / Temperature measurement / Internal memory for up to 12 values / Units: lx, fc, °C, F / Min-Max-HOLD display

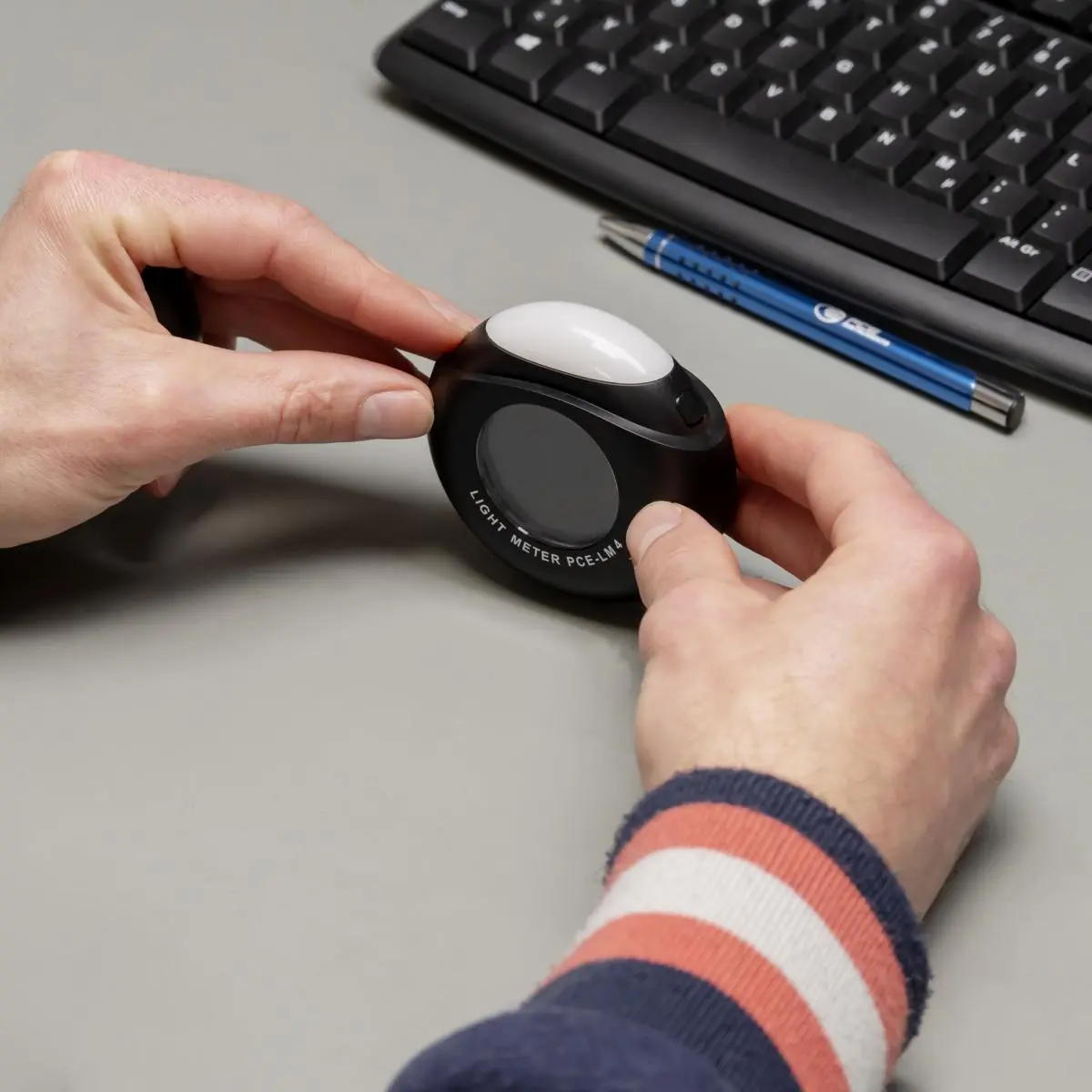

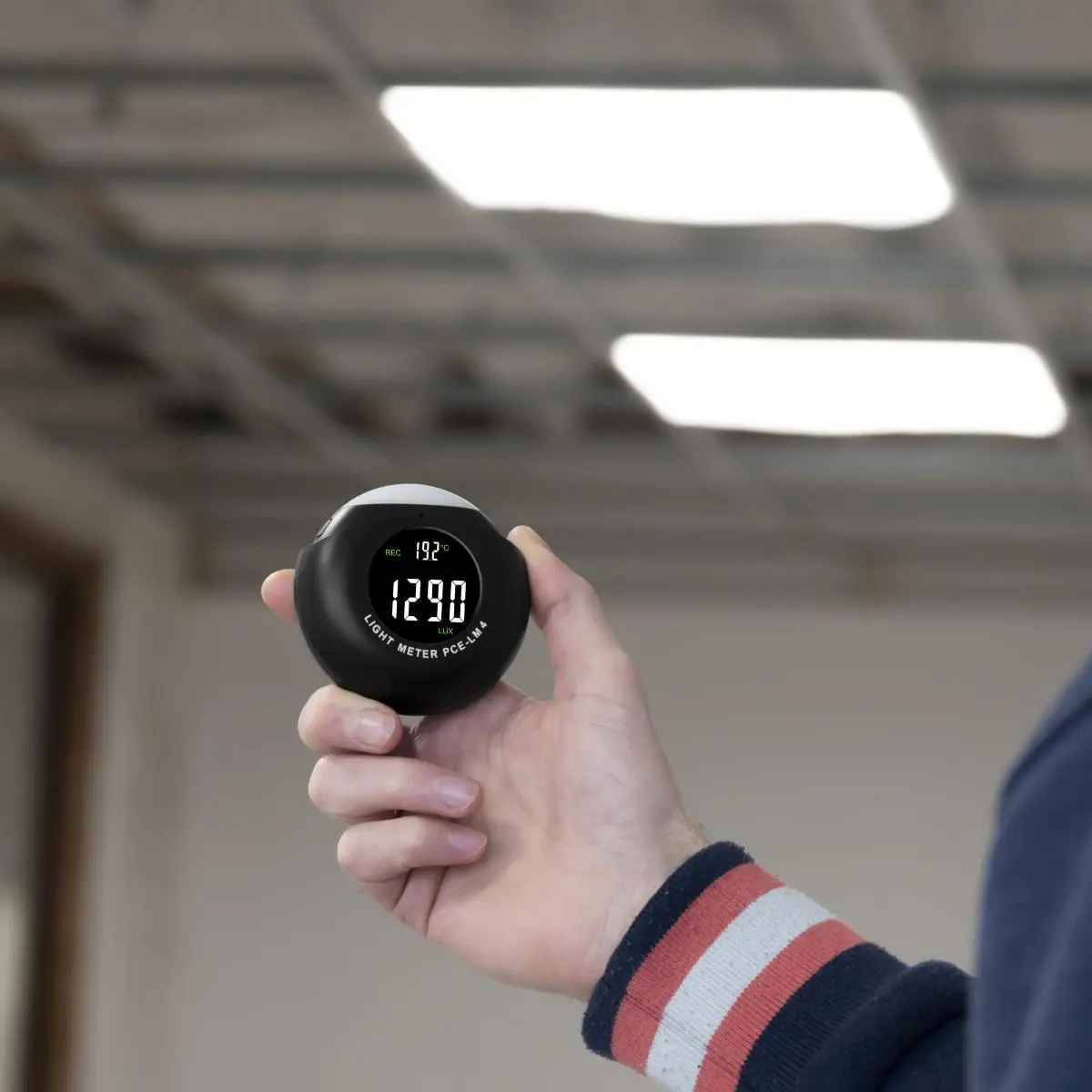

With its compact size and easy handling, this lux meter is the ideal measuring device for anyone who wants to take quick light measurements. After removing the cover, the lux meter delivers reliable results in seconds. With a large measuring range of up to 200 klx or 20 kfc, the luxmeter offers a wide range of applications in different lighting environments.

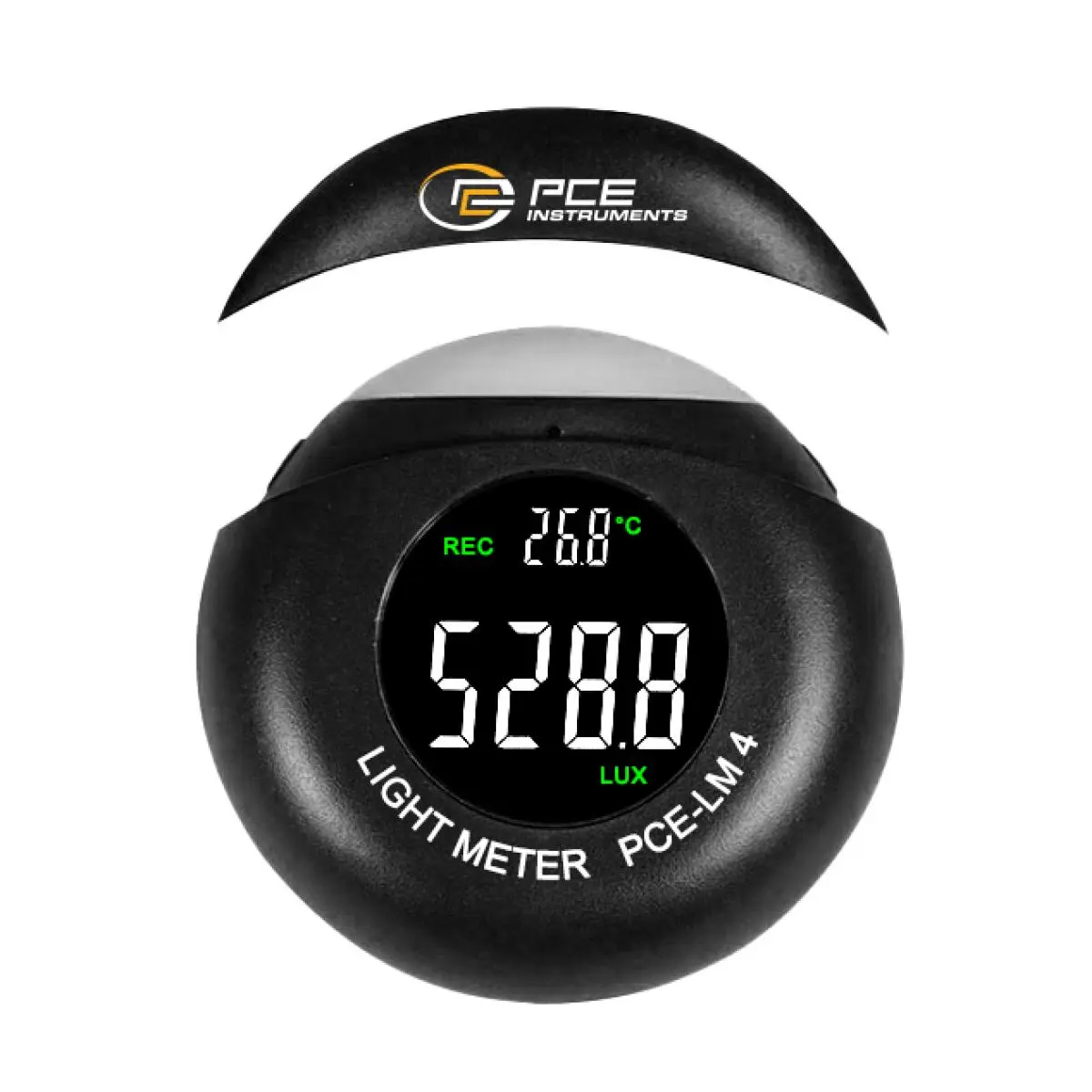

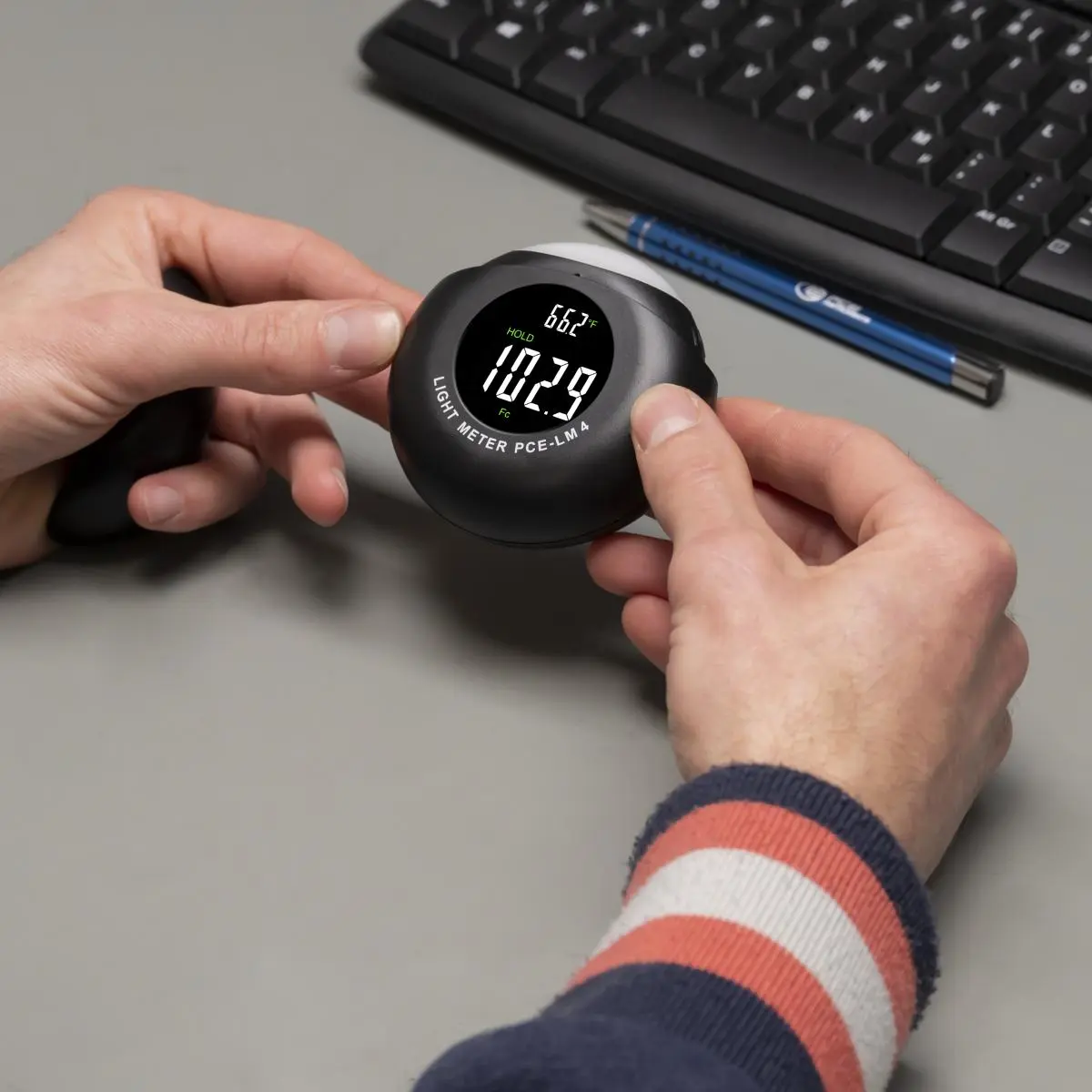

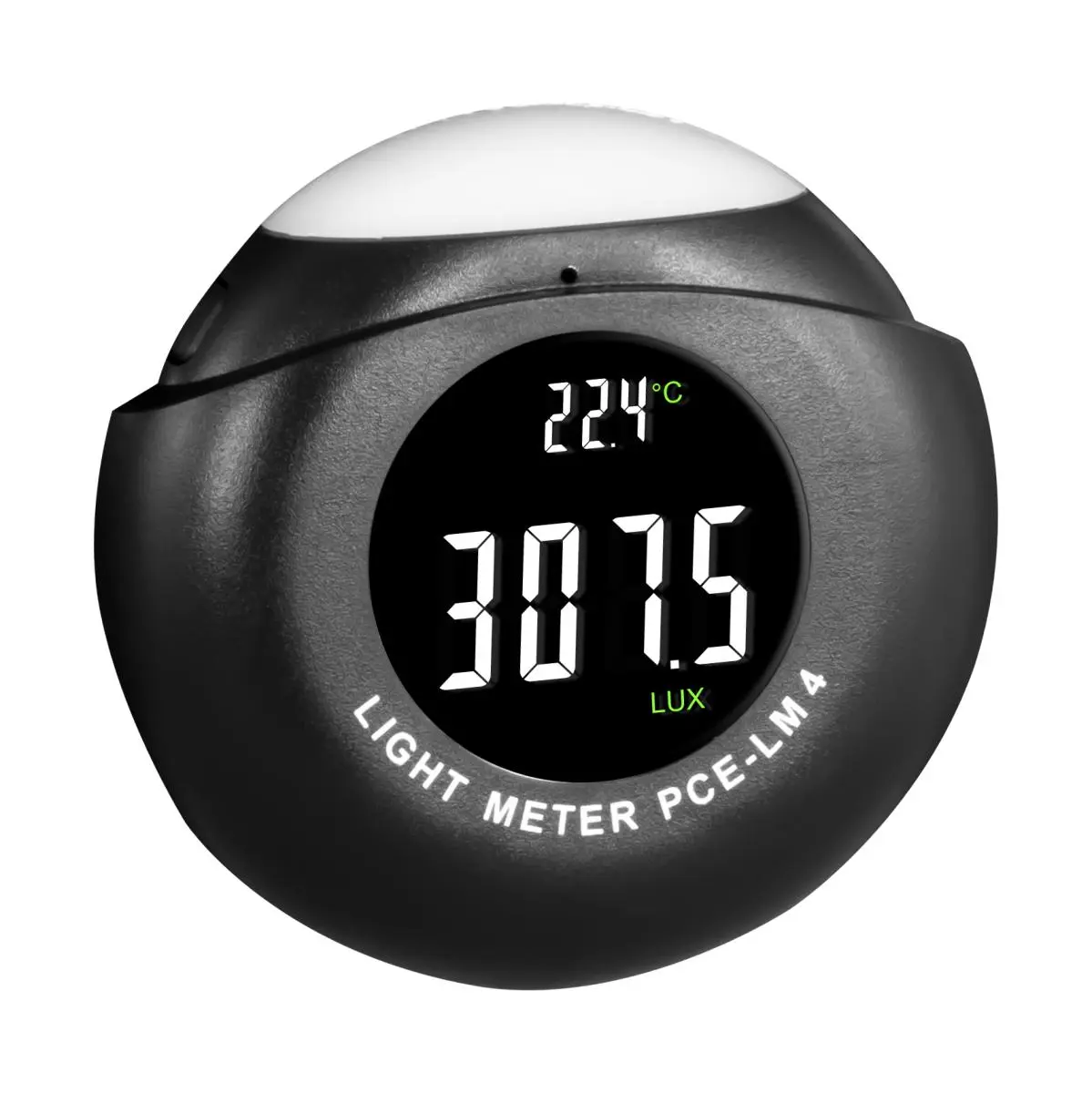

With the min-max hold value display, the lux meter ensures that the most important values are not overlooked, while the temperature display provides additional information about the measuring environment. The luxmeter has an easy-to-read LC display. Up to 12 measured values can be stored and recalled in the internal memory.

The automatic switch-off function prevents uncontrolled battery discharge. The lux meter switches off automatically after 15 minutes when the lid is open and after one minute of inactivity when the lid is closed. An operating time of up to 60 hours can be achieved with standard AAA batteries.


Highlights

- Measuring range up to 200 klx or 20 kfc
- Resolution from 0.1 lx
- Measuring accuracy: ±3 % + 8 digits
- MIN / MAX / HOLD
- Ambient temperature measurement
- Memory for 12 measured values

Specification

Light
Measuring range  0 lx ... 999.9 lx
Resolution  0.1 lx
Accuracy  ± (3 % v.Mw. ±8 digits)

Light
Measuring range  1000 lx ... 200 klx
Resolution  1 lx
Accuracy  ± (3 % of VAT ±8 digits) <10,000 lx, ± (4 % of VAT ±10 digits ) >=10,000 lx

Light
Measuring range  0 fc ... 99.9 fc
Resolution  0.01 fc
Accuracy  ± (3 % f.m. ±8 digits) <1000 fc, ± (4 % f.m. ±10 digits ) >=1000 fc

Light
Measuring range  100 fc ... 20 kfc
Resolution  0.1 fc
Accuracy  ± (3 % f.m. ±8 digits) <1000 fc, ± (4 % f.m. ±10 digits ) >=1000 fc

Temperature
Measuring range  -20 °C ... +70 °C
Resolution  0.1 °C
Accuracy  ±1.5 ℃

Temperature
Measuring range  -4 °F ... +158 °F
Resolution  0.1 °F
Accuracy  ±2.7 °F

General technical data
Measurement functions  MIN, MAX, HOLD
Units  lx, fc, °C, °F
Display type  LCD with illumination
Display refresh rate  2 x per second
Memory medium  Internal memory
Memory capacity  12 values
Operating time  60 h
Automatic switch-off  15 min
Menu language  English
Protection class (device)  IP20
Weight  90 g
Depth  31 mm
Diameter  80 mm
Operating conditions  -20 ... 60 °C , 0 ... 90 % r.H
Storage conditions  -20 ... 60 °C , 0 ... 75 % r.H

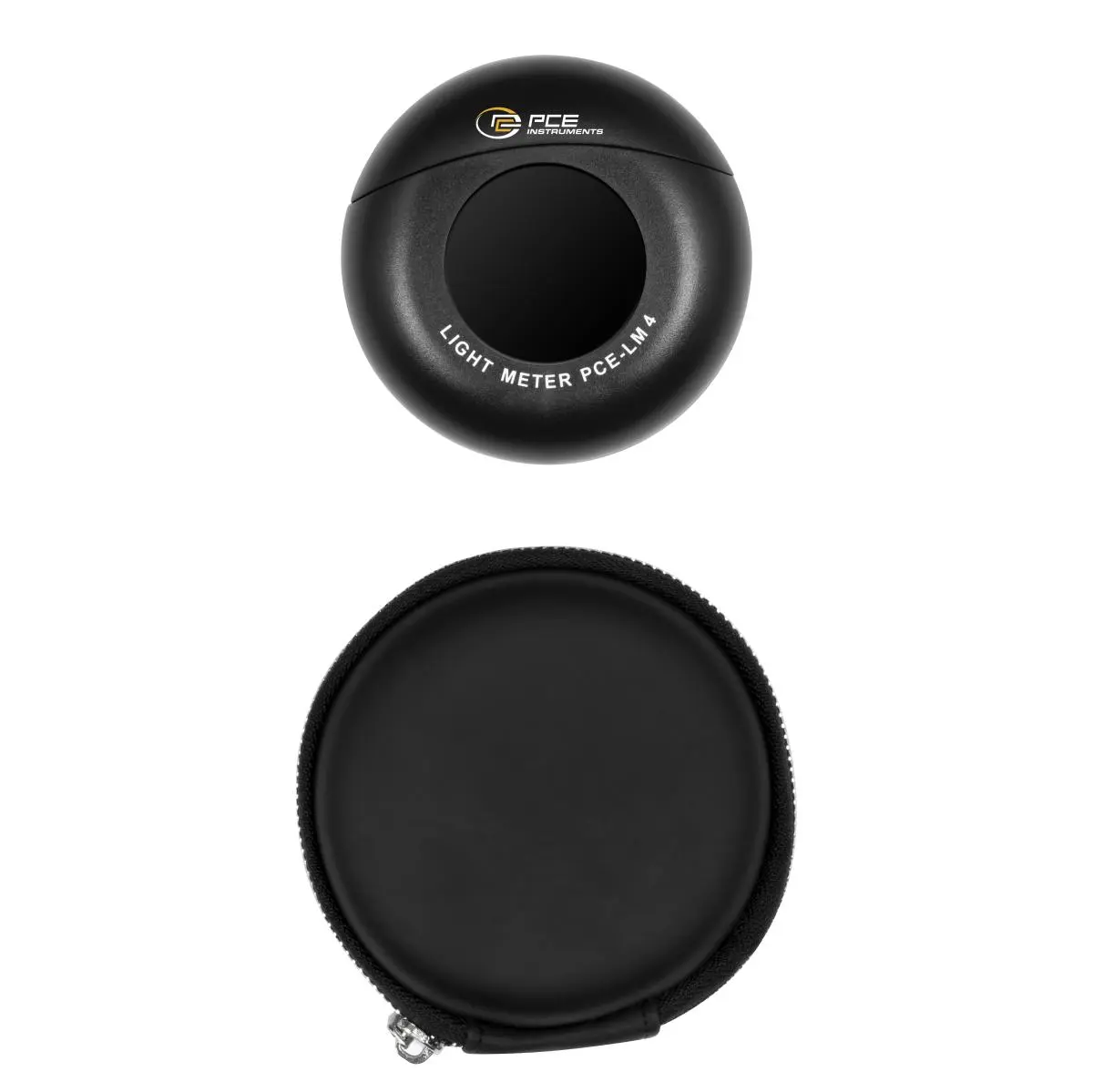

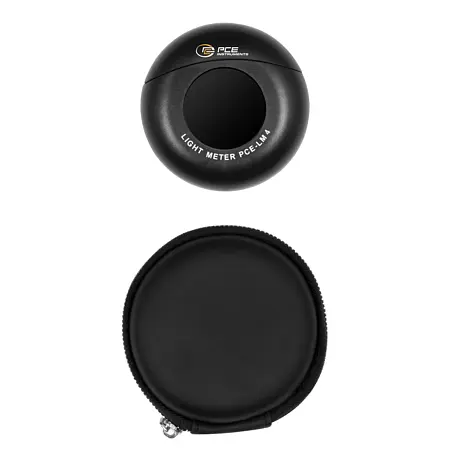

Delivery Scope

1 x PCE-LM 4 lux meter
1 x case
2 x 1.5 V AAA battery
1 x operating instructions
