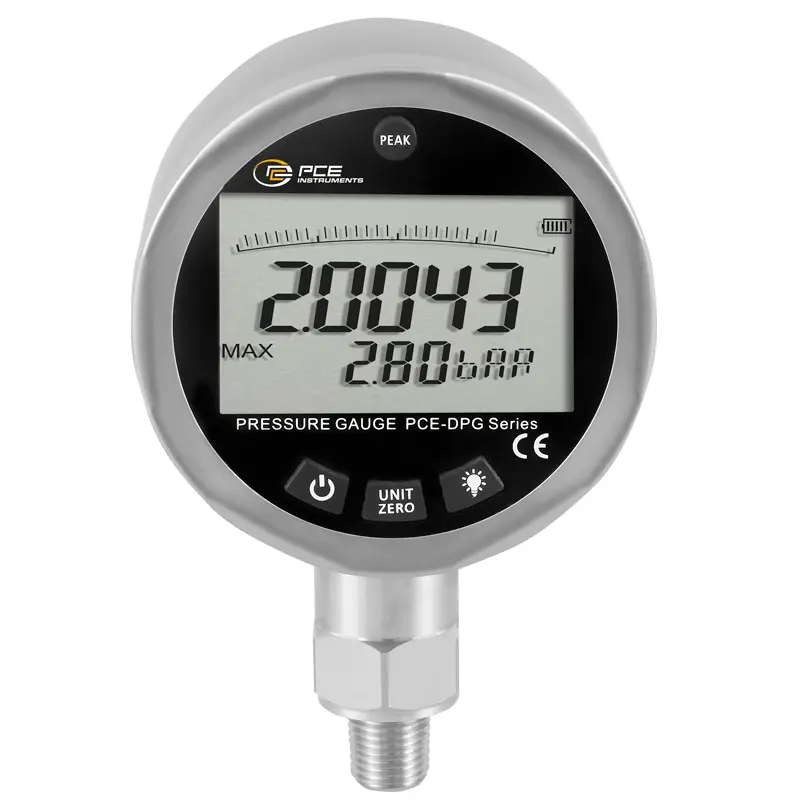

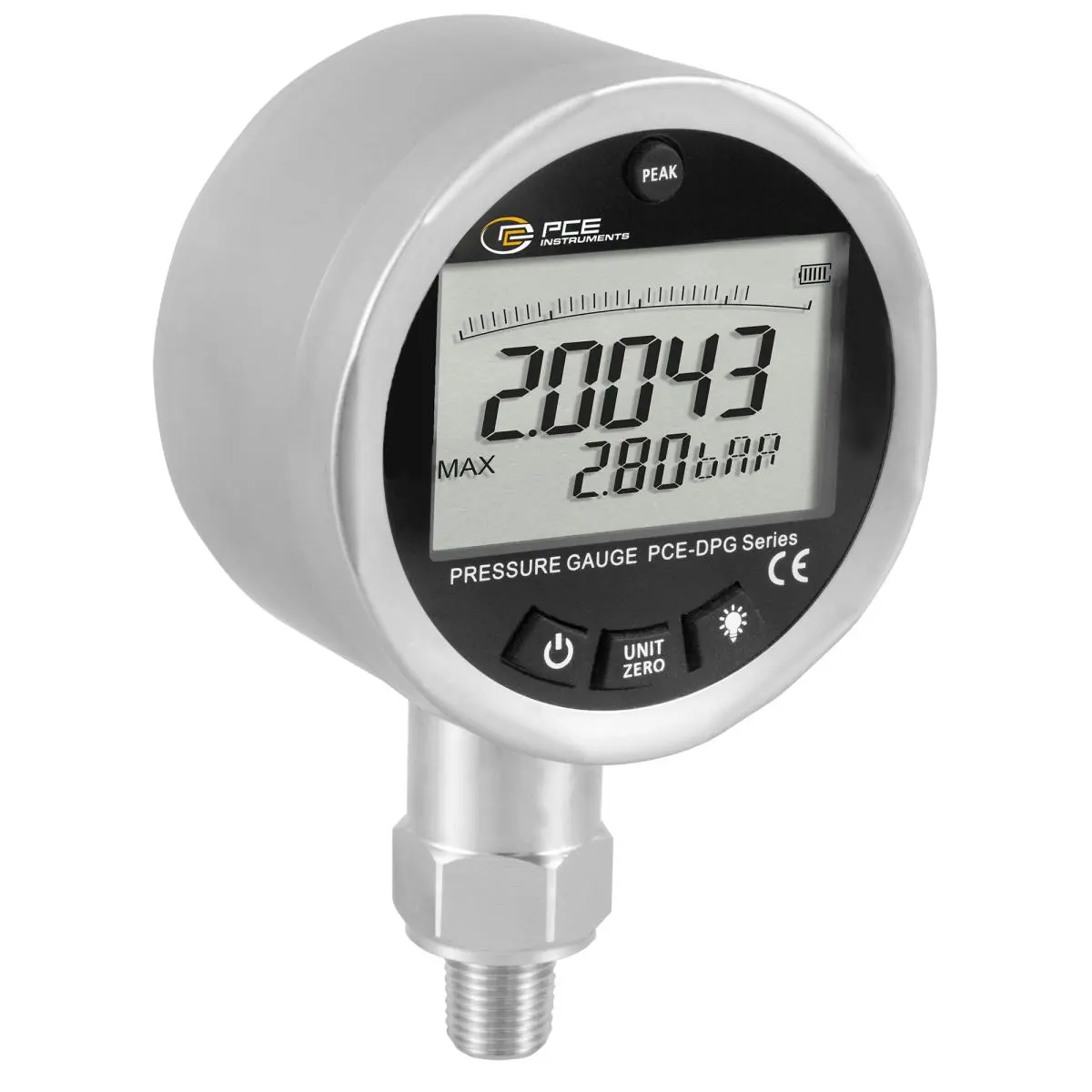

The manometer of the PCE-DPG series is well suited for monitoring and displaying air pressure and water pressure. Thanks to its high measuring resolution and high accuracy, this manometer is versatile. The current pressure is displayed by the manometer as a value and at the same time as a bar graph. As an additional function, the manometer offers a peak function. This function shows the operator the maximum and minimum pressure measured on the manometer at the push of a button.

Thanks to the large display of 2.5" almost all measured values ​​can be read directly. Possible adjustable units for the manometer would be Mpa, bar, Kpa, mH2o, kg / cm2, psi, mmH2o, in.WC and mbar. The response time of the manometer is < 50 ms. The connection of the manometer to the process is realized via a 1/4" NPT connection. Typical applications include suction control, leak testing or pressure monitoring.
