Manometer PCE-MPM 10

Order no.: PCE-MPM 10
GTIN (EAN): 4250348723246
₹12,633.00
₹14,906.94
price ex. (VAT / delivery)
:
4250348723246
PCE-MPM 10
Delivery time: 1-2 working days

Description

Manometer for determining differential pressure / For gaseous media / LC display /
Measuring range ±5000 Pa / For mobile use / 11 different pressure units

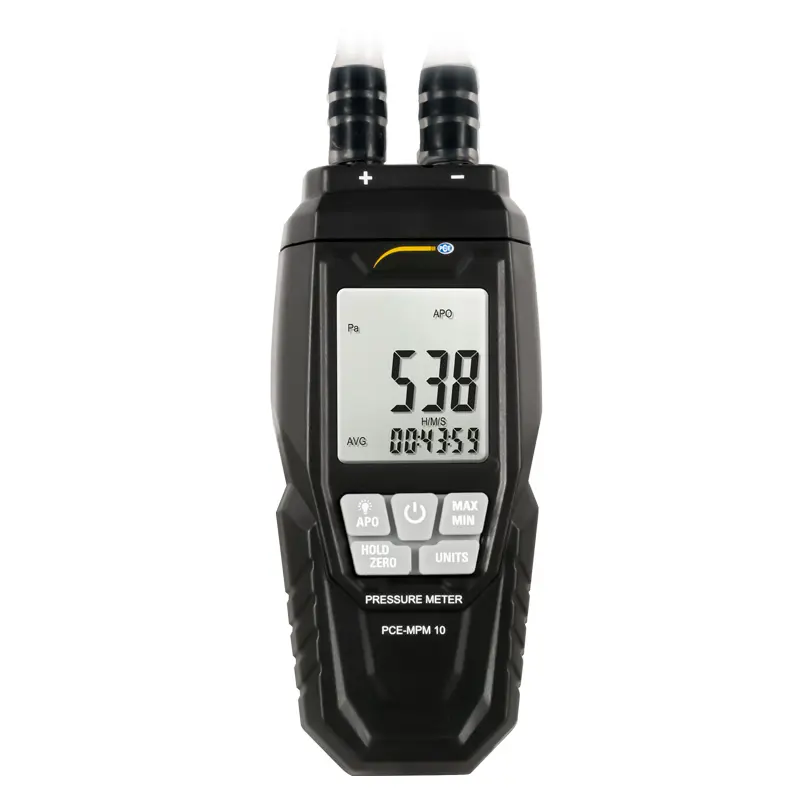

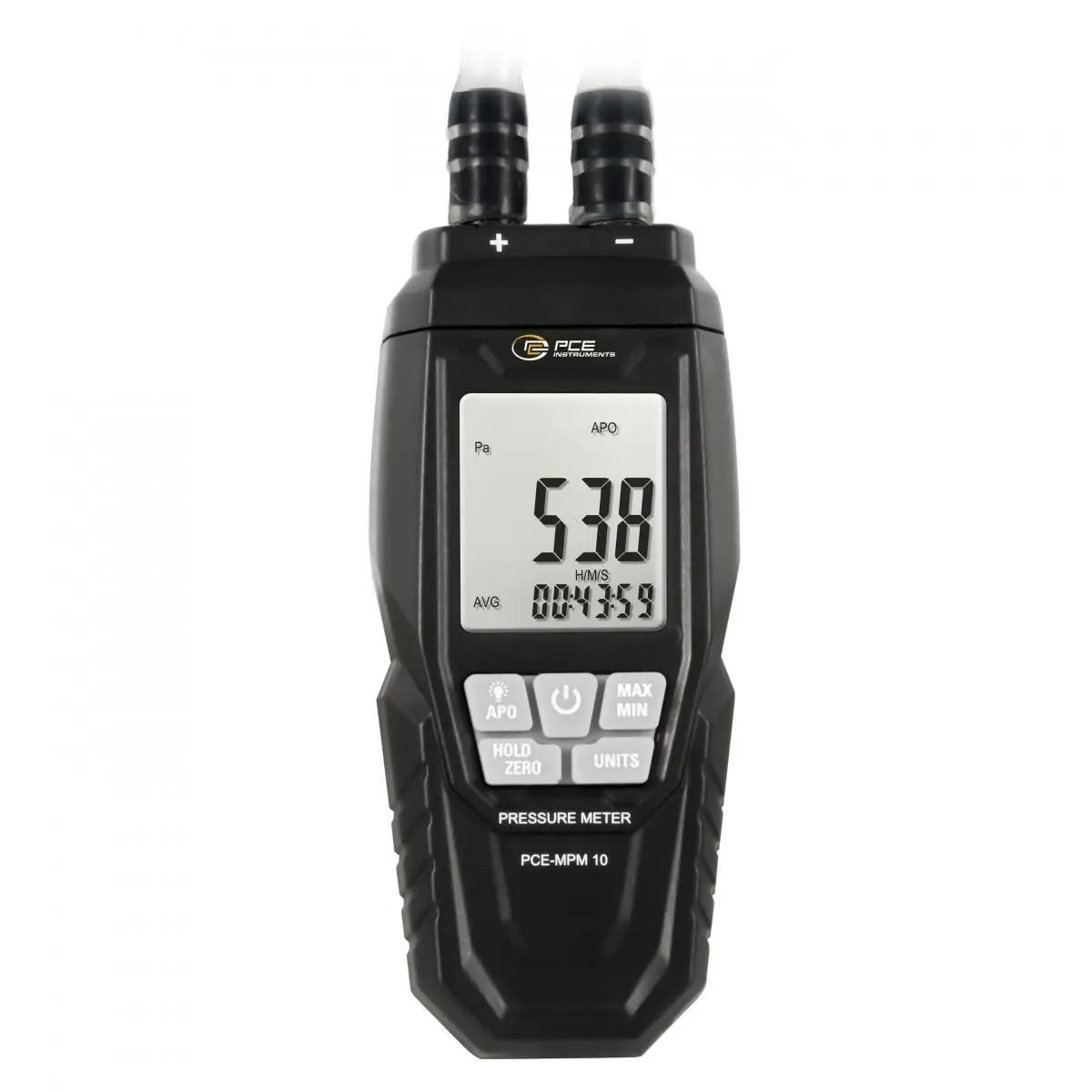

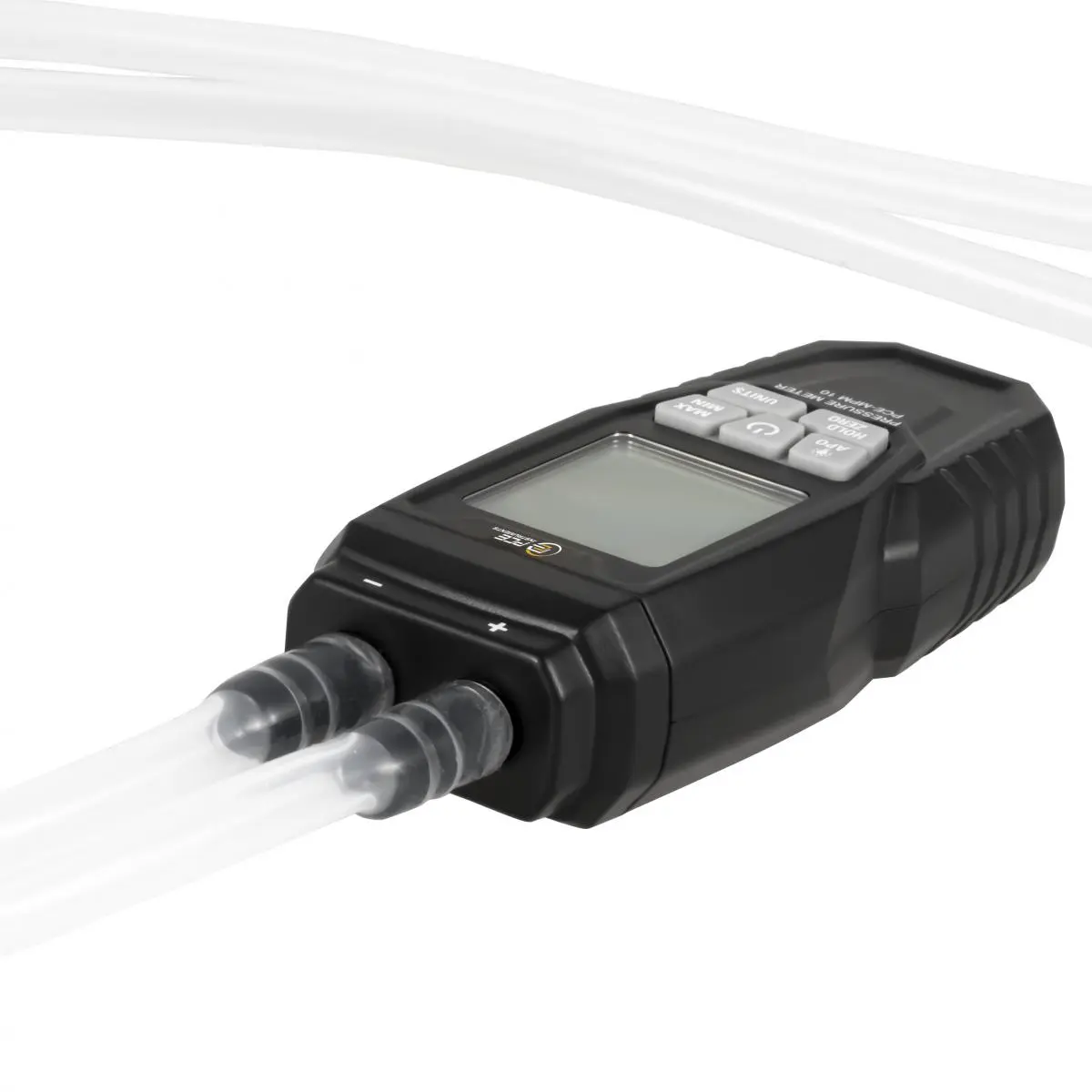

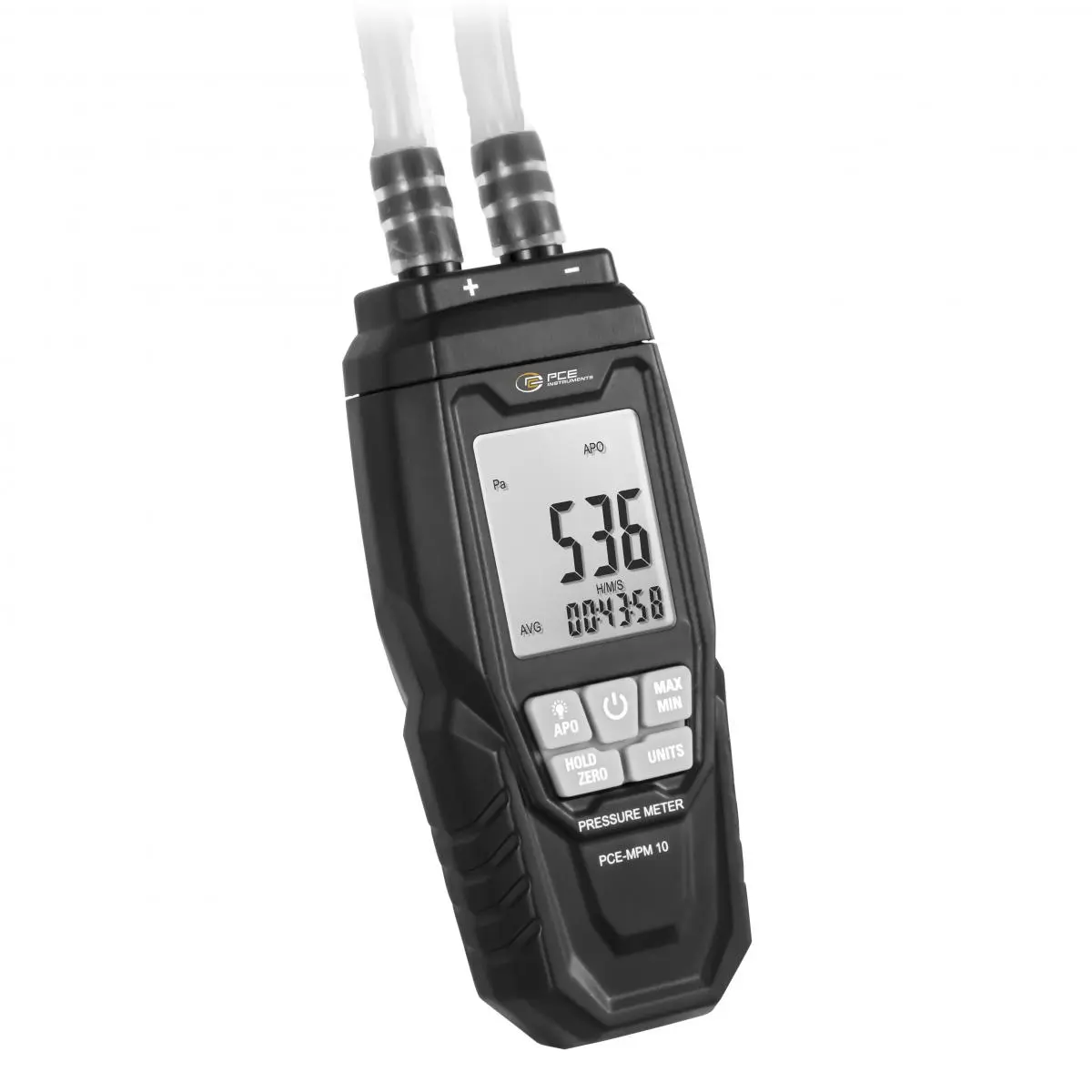

The manometer is a small and handy measuring device for determining the differential air pressure. The pressure meter has a measuring range of ±5000 Pa. The pressure meter is connected via two hose connections with a diameter of 8 mm. After switching on, the pressure meter shows the differential pressure directly. The measured value can be displayed in 11 different pressure units. The pressure meter is used, for example, in ventilation and air conditioning technology or in educational institutions such as technical colleges and universities.

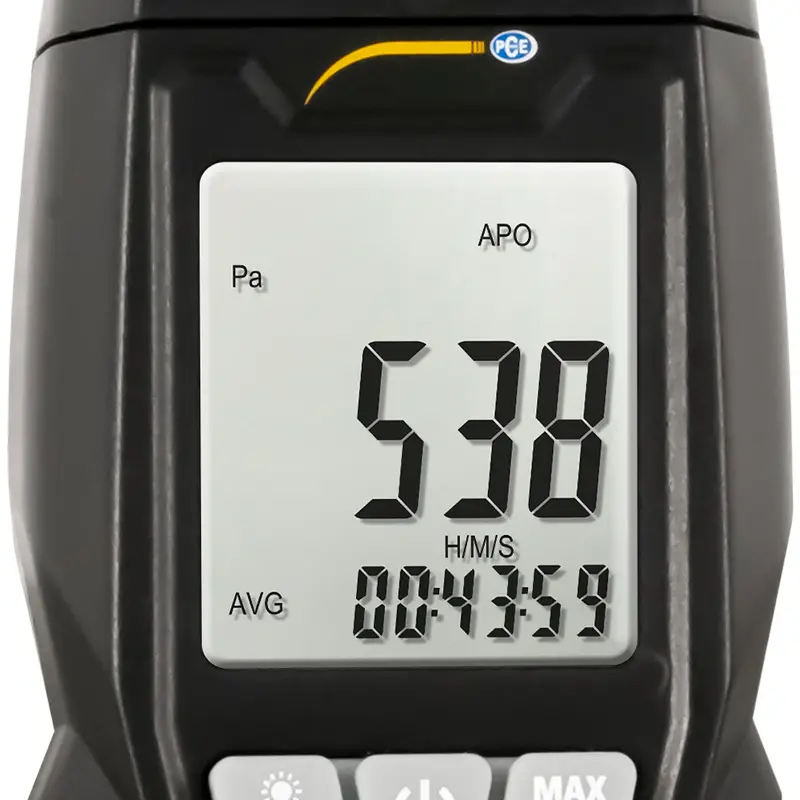

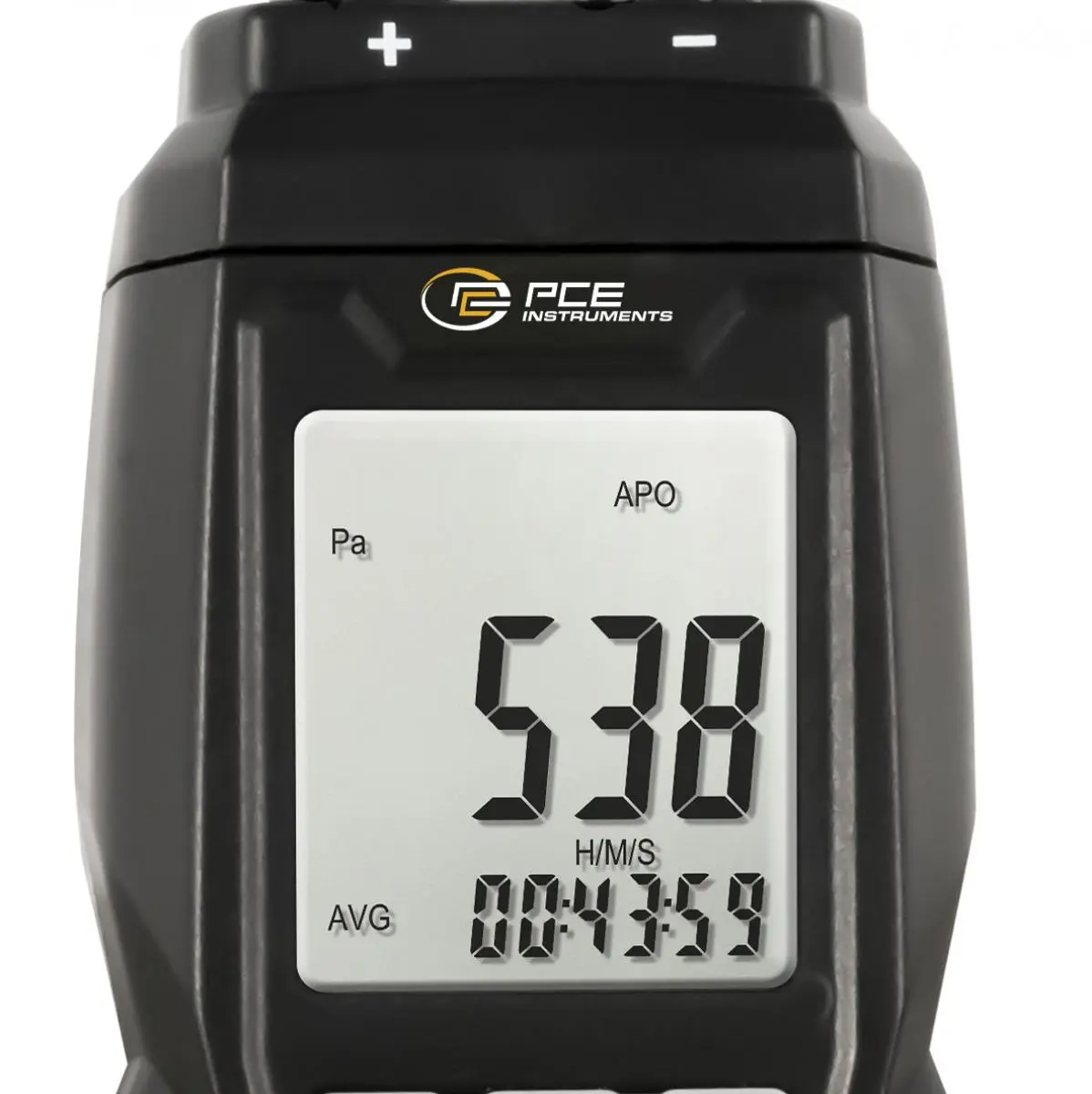

In addition to the normal display of measured values, the manometer can also display the smallest, largest and average measured values. This makes the pressure meter easier to analyze the measured values. To save the batteries, the pressure meter switches itself off automatically within five minutes.

Highlights

- 11 different pressure units
- Measuring range: ±5000 Pa
- Zero point calibration
- Relative pressure gauge
- Small and handy design
- Average measurement

Specification

Measuring range Pa±5000 Pa
Resolution1 Pa

Measuring range hPa±50.00 hPa
Resolution0.01 hPa

Measuring range mBar±50.00 mbar
Resolution0.01 mbar

Measuring range mmH2O±509.9 mmH2O
Resolution0.1 mmH2O

Measuring range mmHg±37.50 mmHg
Resolution0.01 mmHg

Measuring range inH2O±20.07 inH2O
Resolution0.01 inH2O

Measuring range inHg±1.476 inHg
Resolution0.001 inHg

Measuring range psi±0.725 psi
Resolution0.001 psi

Measuring range ozin²±11.60 ozin²
Resolution0.01 ozin²

Measuring range bar±0.050 bar
Resolution0.001 bar

Measuring range kPa±5.000 kPa
Resolution0.001 kPa

Further specifications
DisplayLCD
Accuracy±0.3 % of full scale @25 °C / 77 °F
Repeatability±0.2 % of full scale (maximum ±0.5 % of full scale)
Linearity±0.29 % of full scale
Mediumgaseous
Maximum pressure2 psi
Measuring rate2 Hz
Battery status displaydisplay when the battery voltage is too low
Exceeding the measuring range  "OL" display
Operating conditions0 ... 50 °C / 32 ... 122 °F, <90 % RH, non-condensing
Storage conditions-10 ... 60 °C / 14 ... 140 °F, <90 % RH, non-condensing
Hose connection2 x 8 mm / 0.078 x 0.315"
Power supply3 x 1.5 V batteries
Dimensions140 x 52 x 28 mm / 5.5 x 2.0 x 1.1"
Weight130 g / 4.58 oz

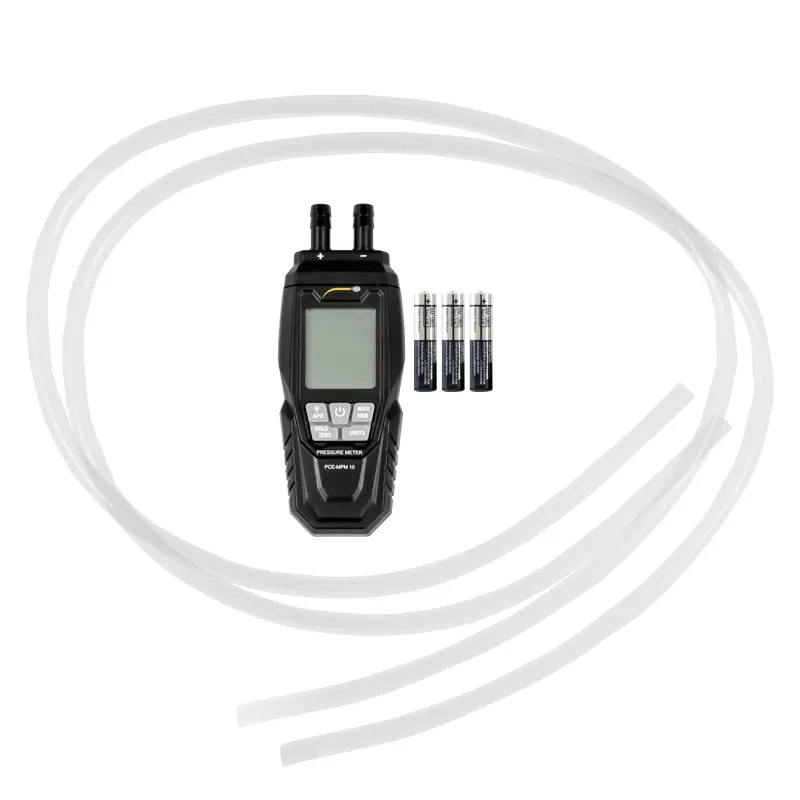

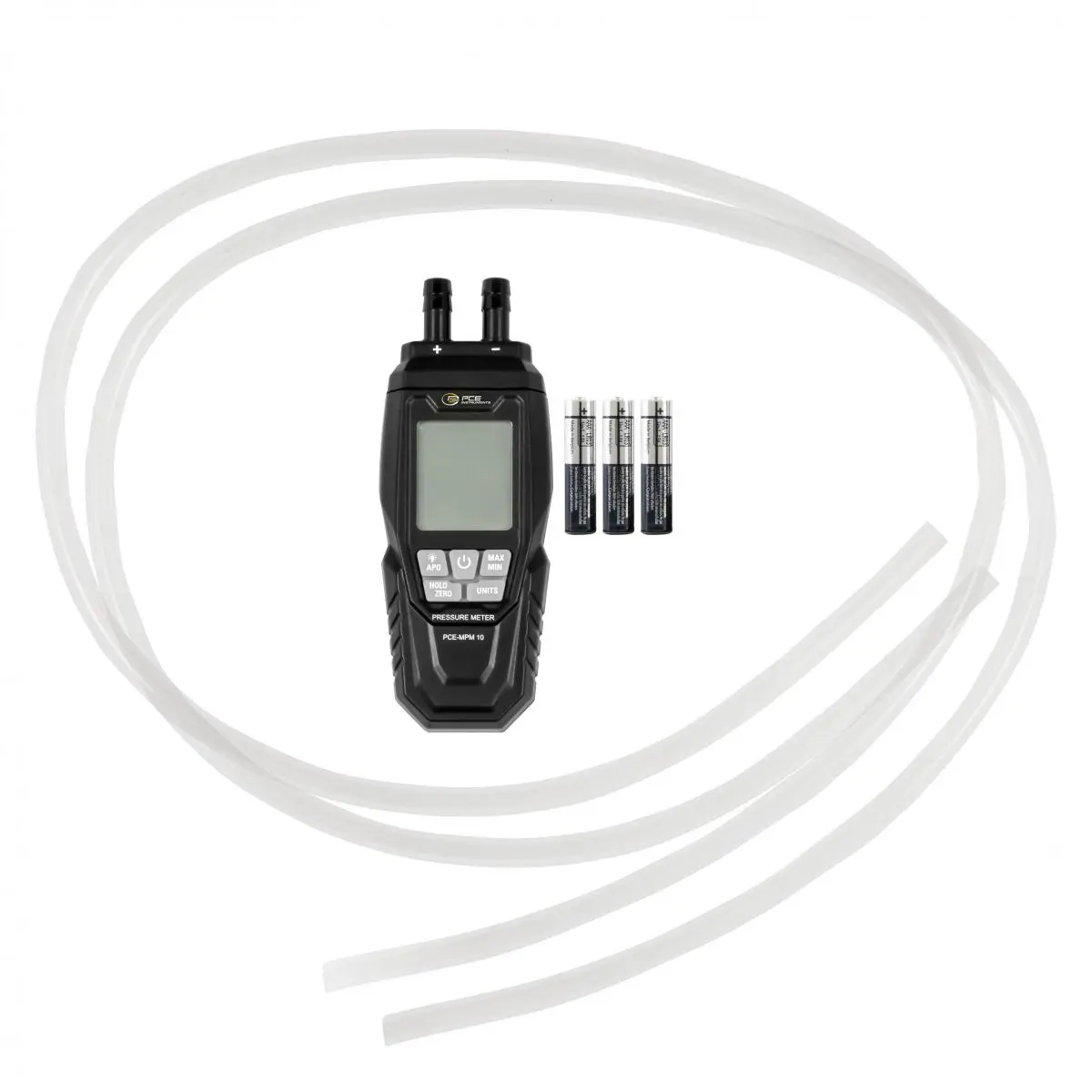

Delivery Scope

1 x Manometer PCE-MPM 10
2 x 1 m / 3.3 ft hose connection
3 x 1.5 V battery
1 x Instruction manual
