₹39,864.00

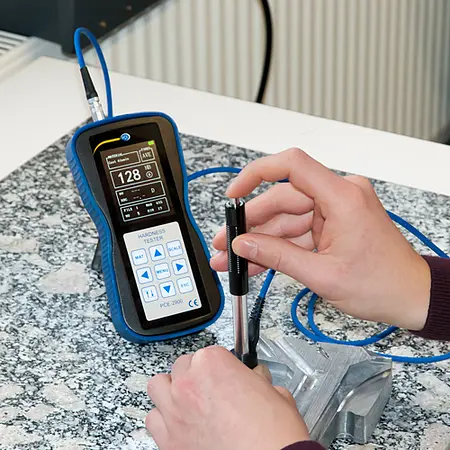

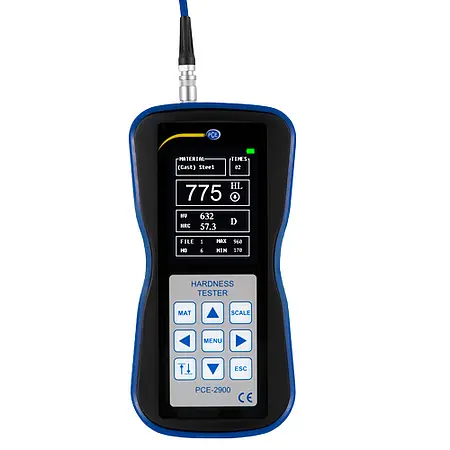

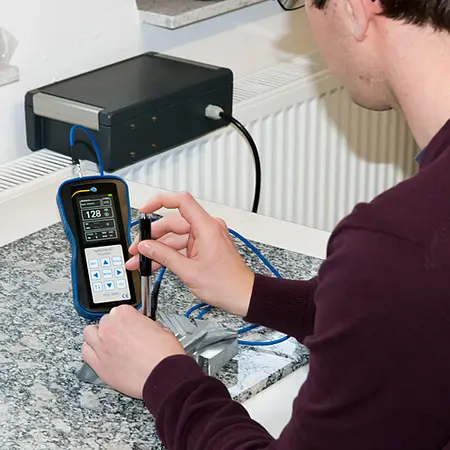

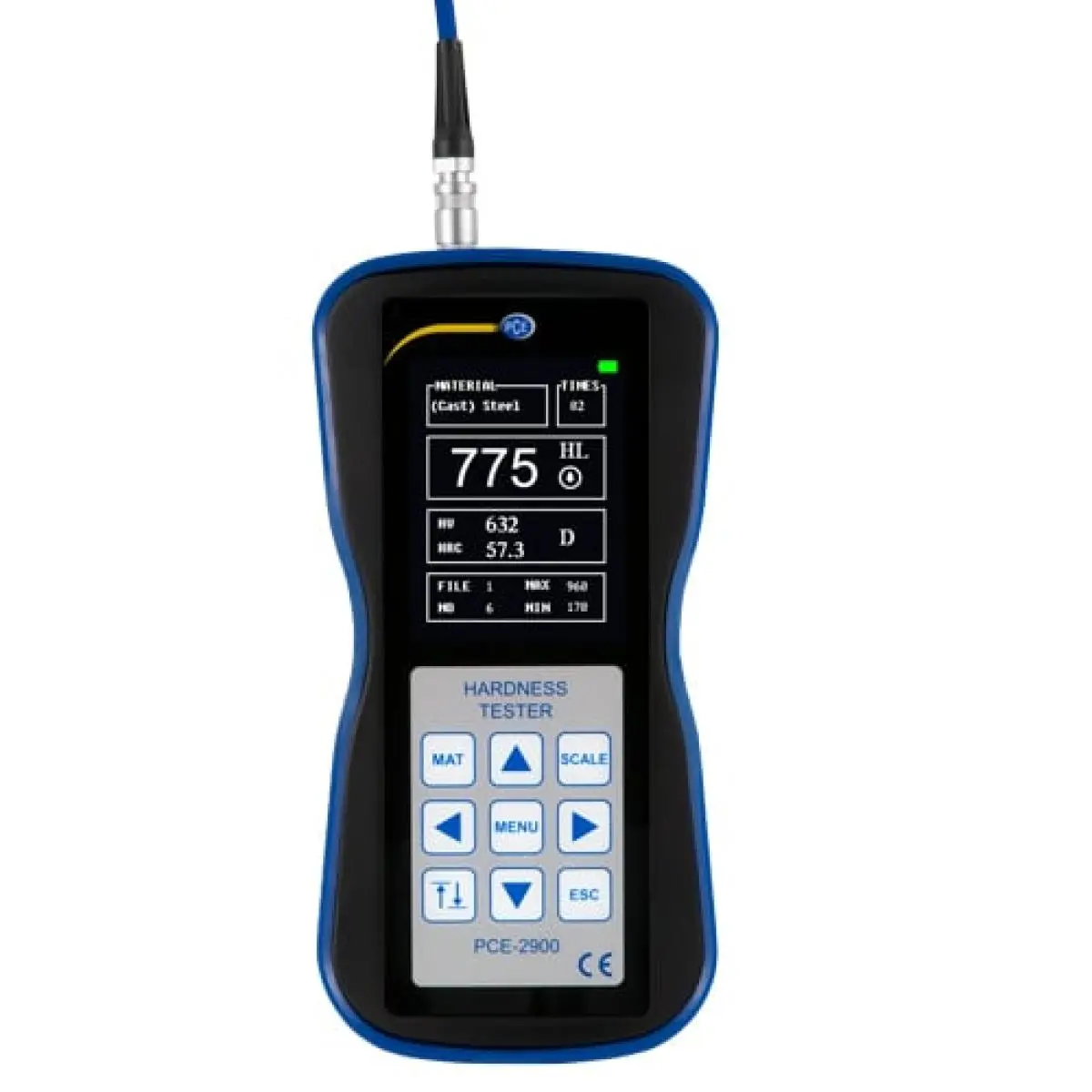

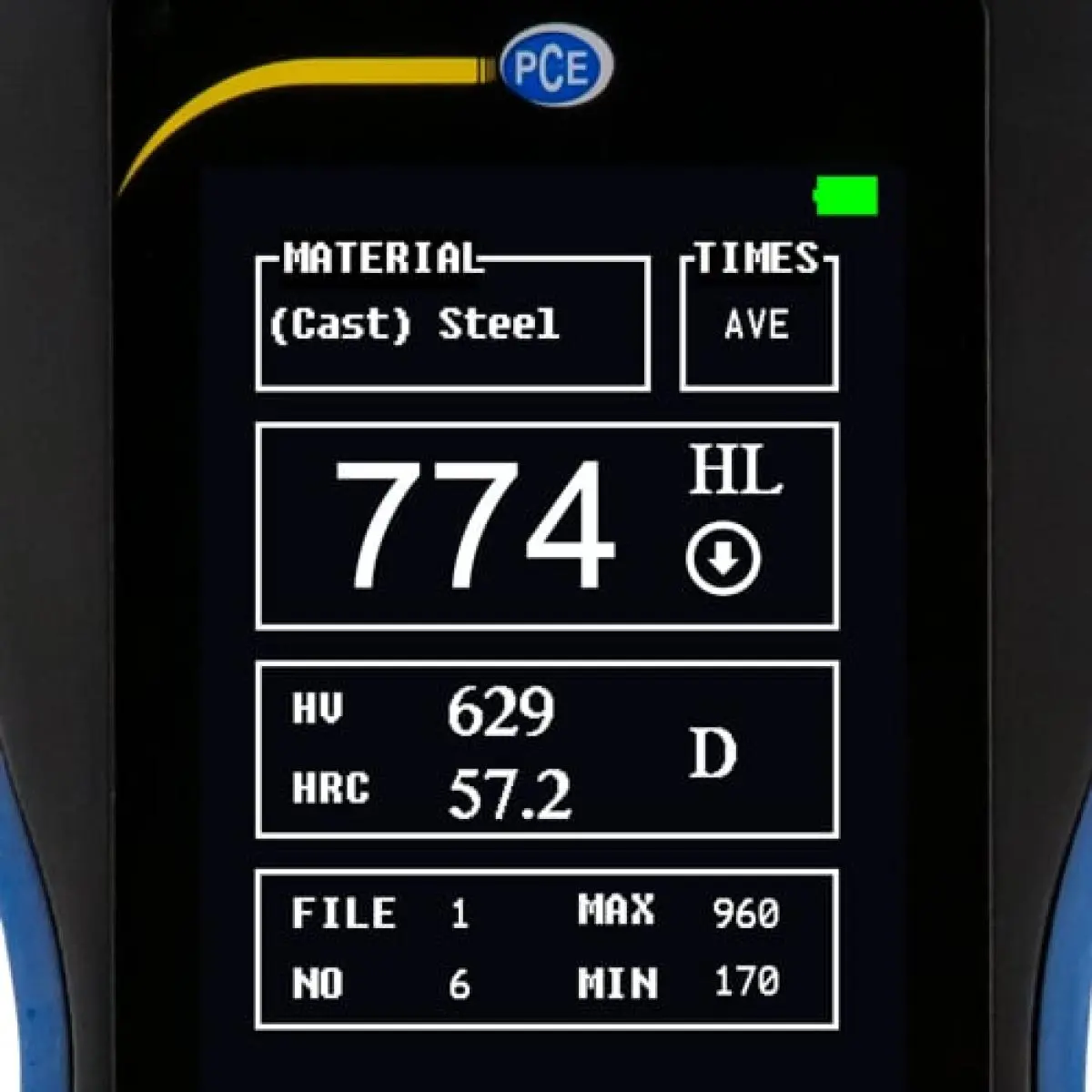

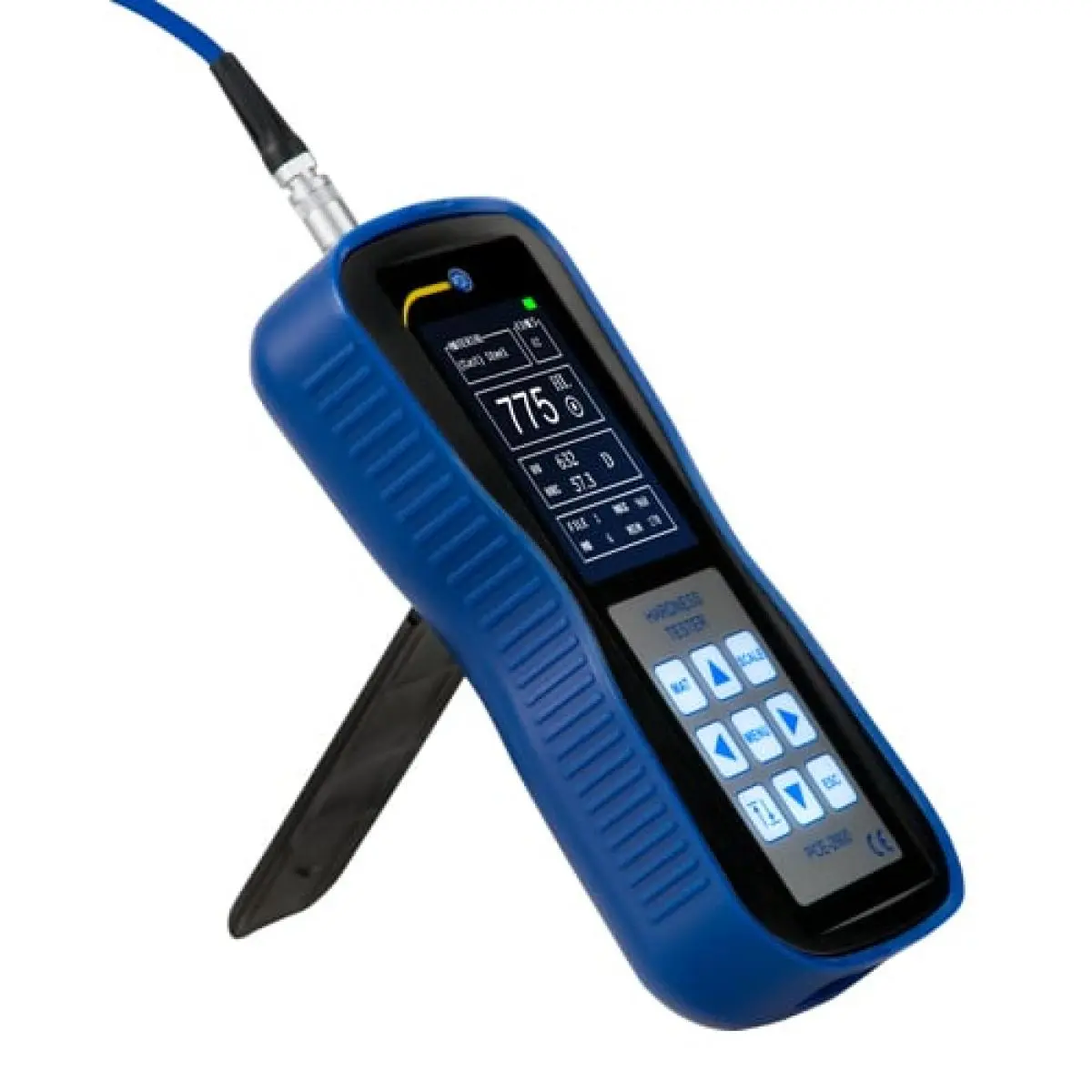

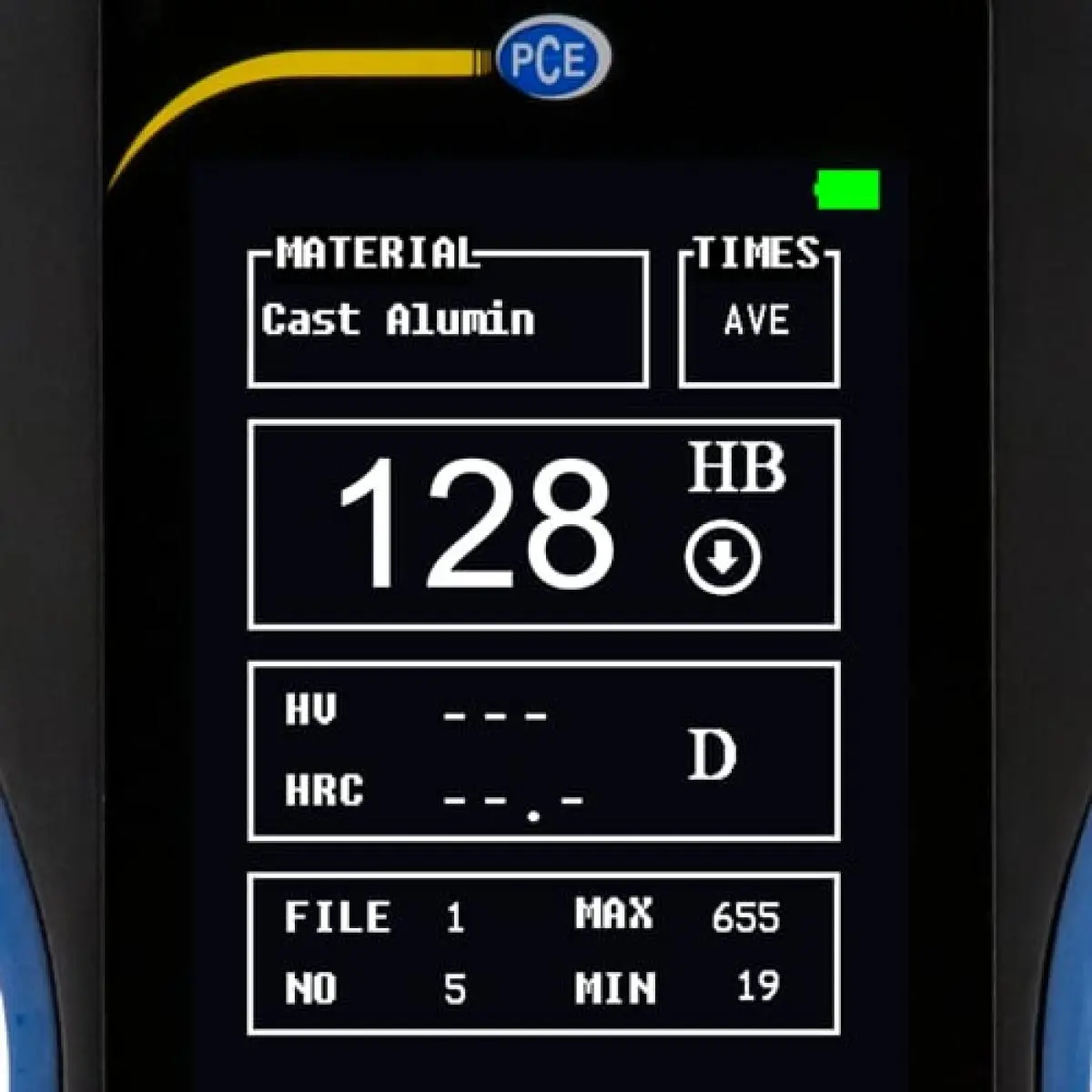

The material hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The material hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The material hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 material hardness meter is equipped with a backlit colour display.

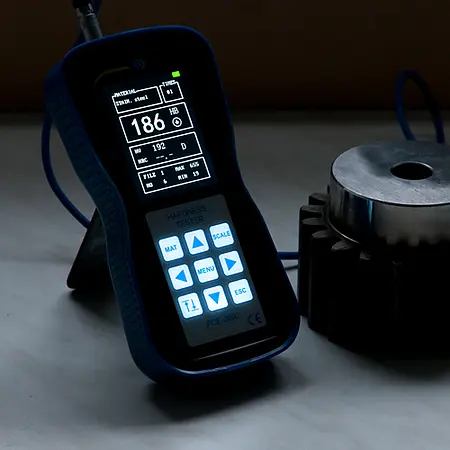

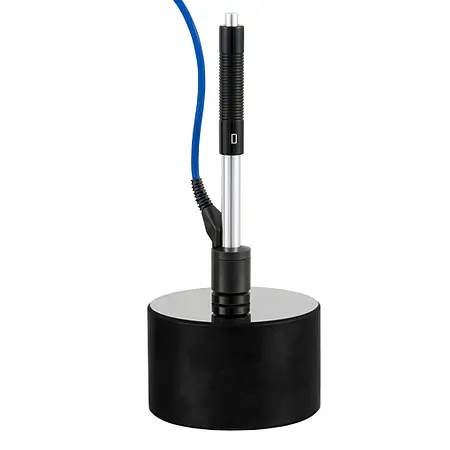

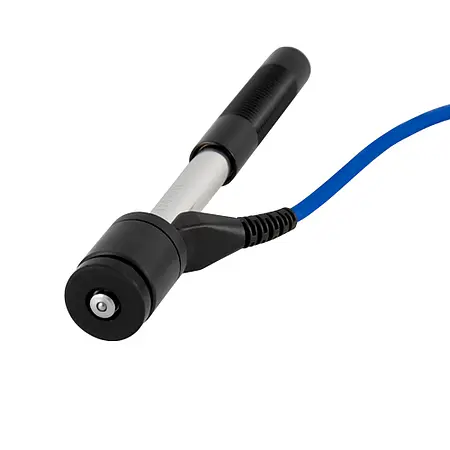

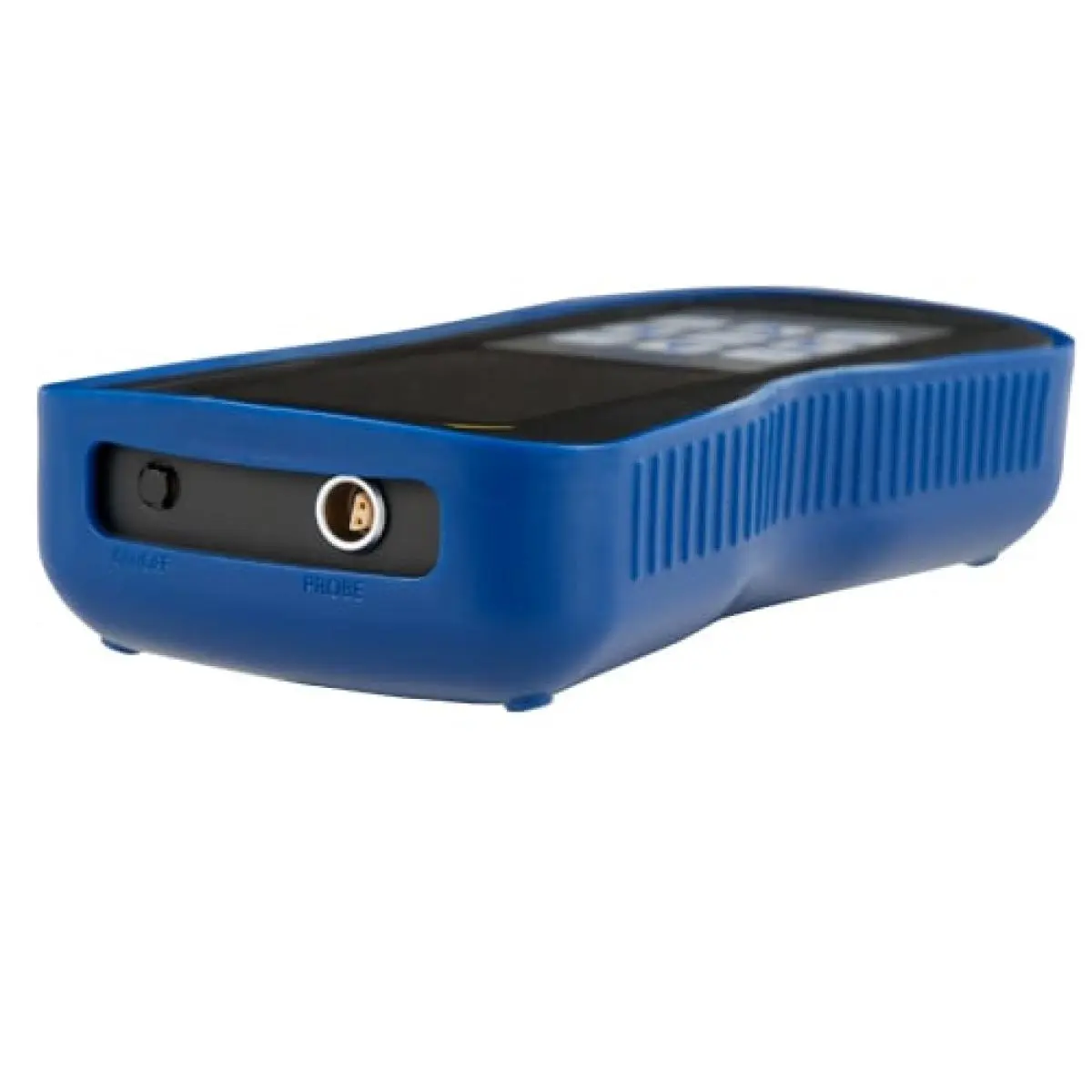

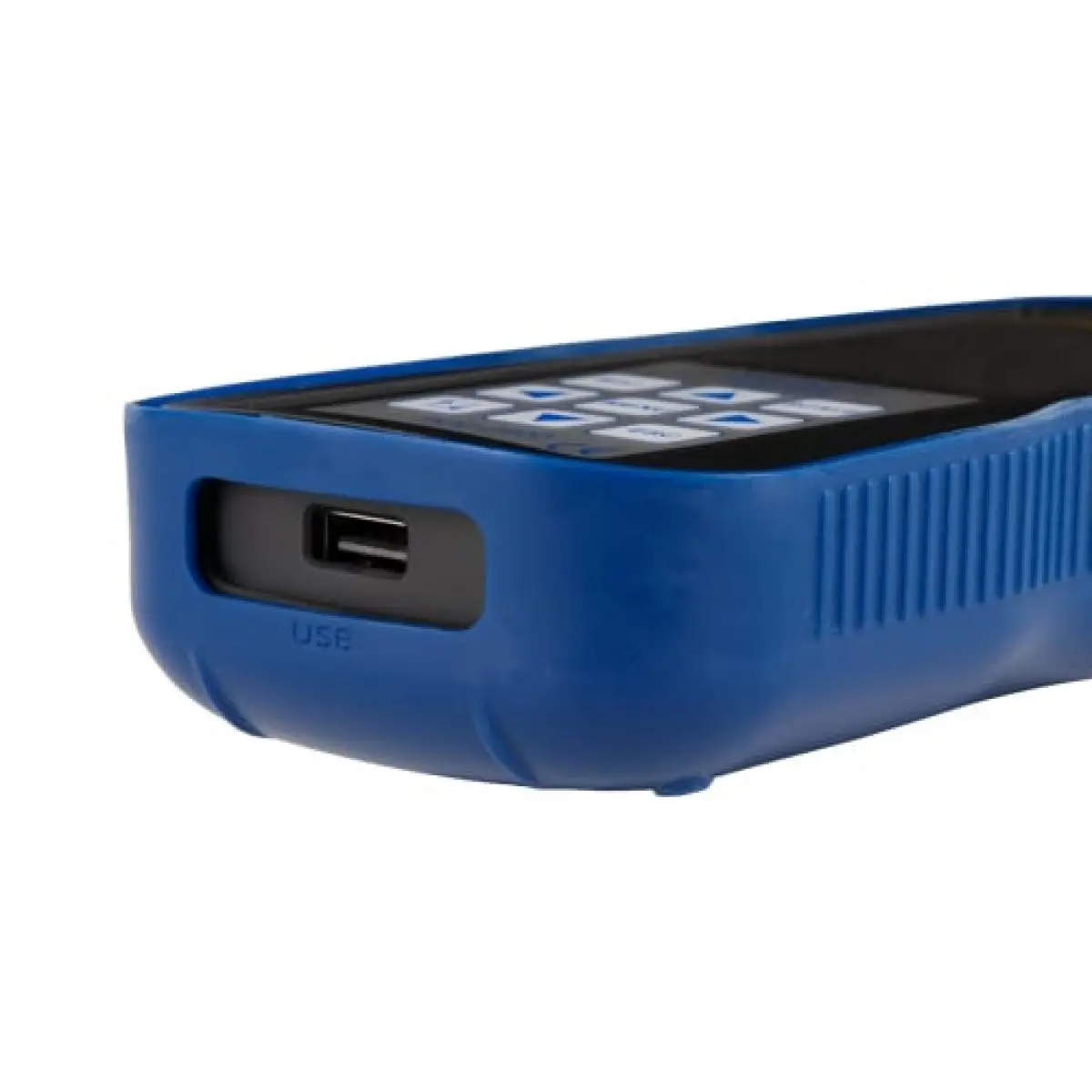

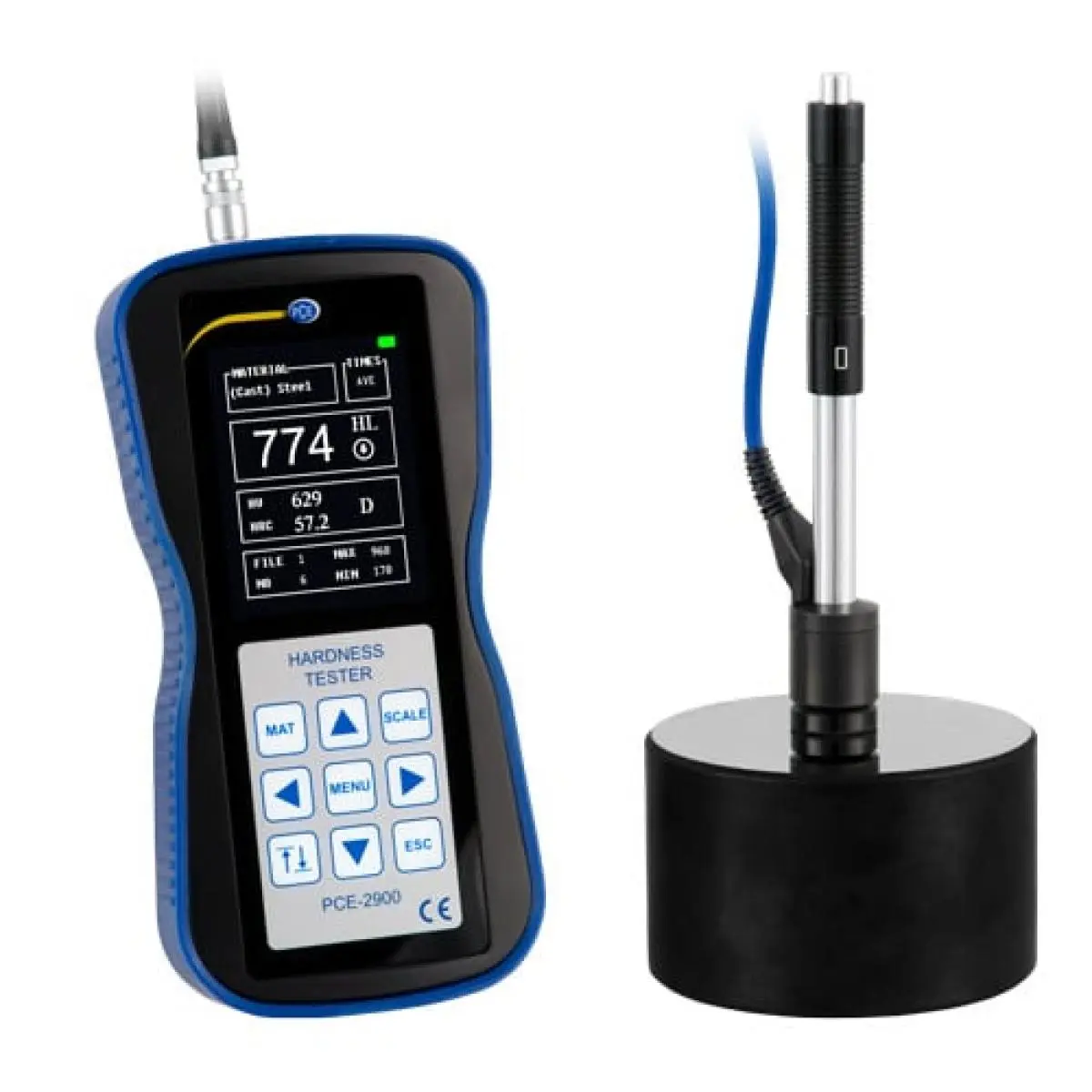

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The material hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the material hardness tester via software to a PC. The material hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.
| Measuring range |
170 ... 960 HLD |
| Reproducibility | ± 6 HLD |
| Impactor | Type D |
| Measuring direction | 360° |
| Adjustable scales | Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore |
| Surface quality Ra of the workpiece | 2 µm |
| Minimum weight of the workpiece | Direct measurement: 5 kg / 11 lbs Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs |
| Minimum thickness of the workpiece | Direct measurement: > 5mm / > 0.19 in With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in |
| Display | Colour LCD |
| Internal measured value memory | 600 records in 6 files |
| Interface | USB, WiFi |
| Power supply | 2 x 1.5V AA batteries |
| Operating time | ca. 50 hours |
| Operating conditions | 10 ... 50°C / 50 ... 122°F max. 90% r.H. |
| Storage conditions | -30 ... 60°C / -22 ... 140°F max. 90% r.H. |
| Dimensions | 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in |
| Weight | 350 g / < 1 lb |
