Metal Hardness Tester

The Material Hardness Tester for Metal PCE-2600N is used wherever a fast hardness test has to be carried out. It is possible to use the material tester PCE-2600N to determine the surface hardness of many metals. The material tester PCE-2600N is especially suitable for quality or product inspection.

• Measurement according to Leeb Rebound method
• Measurement units: HLD, HRA, HRB, HRC, HB, HV, HS
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%, Repeatability: ± 0.8%
• Impactor: DL
• Display: 128 x 64 OLED

The Material Hardness Tester for Metal PCE-2600N-ICA is used wherever a fast hardness test has to be carried out. It is possible to use the material tester PCE-2600N-ICA to determine the surface hardness of many metals. The material tester PCE-2600N-ICA is especially suitable for quality or product inspection.

• Measurement according to Leeb Rebound method
• Measurement units: HLD, HRA, HRB, HRC, HB, HV, HS
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%, Repeatability: ± 0.8%
• Impactor: DL
• Display: 128 x 64 OLED
• Includes ISO calibration certificate

The hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The hardness tester PCE-2900 measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle.

• Measurement according to Leeb Rebound method
• Measurement units: HLD, HRA, HRB, HRC, HB, HV, HS
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%, Repeatability: ± 0.6%
• Impactor: Type D
• USB and WiFi for data transmission

The hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The hardness tester PCE-2900 measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle.

• Measurement according to Leeb Rebound method
• Measurement units: HLD, HRA, HRB, HRC, HB, HV, HS
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%, Repeatability: ± 0.6%
• Impactor: Type D
• USB and WiFi for data transmission
• Incl. ISO Calibration Certificate

PCE-2500N is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper.

• Measuring principle: Leeb Rebound method
• Displays measurements in Rockwell A, B or C (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD)
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%; Repeatability: ± 0.8%
• Type D impact device

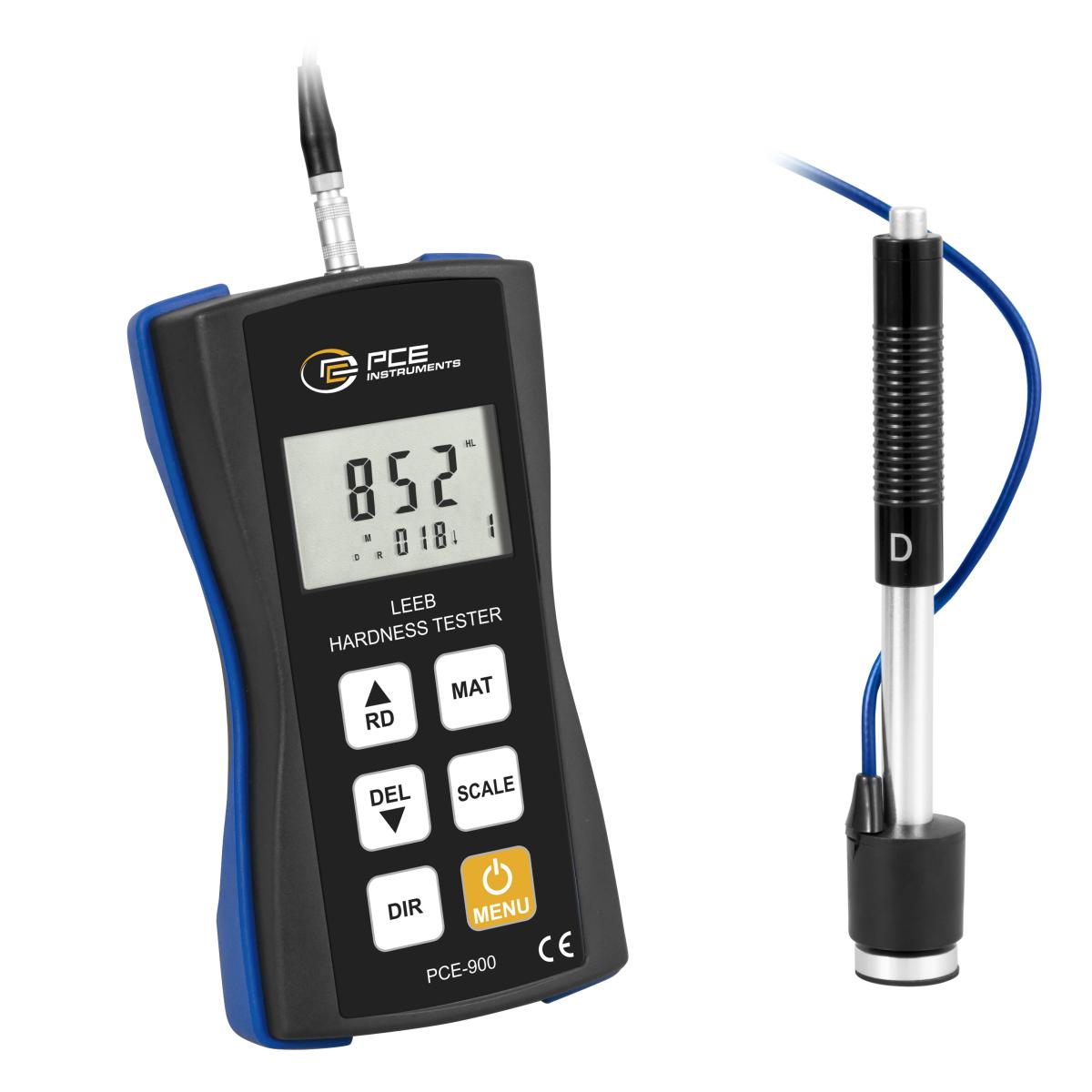

The Leeb Material Hardness Tester PCE-900 measures the hardness of nine different metals using the Leeb rebound method. This means that with the material hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness. The Material Hardness Tester PCE-900 measures the metal hardness in 6 different hardness scales.

• Measurement according to Leeb Rebound method
• Testing of HRC, HRB, HV, HB, HSD
• Measurement Range: 200-900 HLD / 13-99 HRB / 20-68 HRC / 20-655 HB / 80-940 HV / 32-99 HSD
• Accuracy: 0.80% / Repeatability: 1.10%
• Incl. type D Leeb probe
• Optional Software Available

Due to its compact design, the PCE-2550 metal hardness tester is very easy to use for incoming and outgoing inspections. Due to the adjustable hardness scales, the metal hardness tester PCE-2550 is versatile.

• Measurement according to Leeb Rebound method
• Measurement units: HLD, HRA, HRB, HRC, HB, HV, HS
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.4%, Repeatability: ± 0.6%
• Impact Device: Type D
• Measuring Direction: 360°
• Internal measured value memory

PCE-2500N-ICA is a portable handheld pen-sized digital material hardness tester, rebound hammer or durometer for use with metals. This high-accuracy hardness tester quickly and accurately measures the surface hardness of 10 common metal materials including steel, cast steel, alloy tool steel, stainless steel, cast iron, ductile iron, cast aluminum alloy, brass, bronze and copper.

• Measuring principle: Leeb Rebound method
• Displays measurements in Rockwell A, B or C (HRA, HRB or HRC), Brinell (HB), Vickers (HV), Shore (HS) or Leeb (HLD)
• Measurement ranges: 170-960 HLD, 59.1-88 HRA, 3.5-101.7 HRB, 17.9-69.5 HRC, 19-683 HB, 80-1042 HV, 30.6-102.6 HS
• Accuracy: ± 0.5%; Repeatability: ± 0.8%
• Type D impact device
• Includes ISO calibration certificate

The Leeb Metal Hardness Tester PCE-900-ICA measures the hardness of nine different metals using the Leeb rebound method. This means that with the material hardness tester a firing pin bounces on a metallic surface and the intensity of the rebound is used as an indicator of the material hardness. The Metal Hardness Tester measures the metal hardness in 6 different hardness scales.

• Measurement according to Leeb Rebound method
• Testing of HRC, HRB, HV, HB, HSD
• Measurement Range: 200-900 HLD / 13-99 HRB / 20-68 HRC / 20-655 HB / 80-940 HV / 32-99 HSD
• Accuracy: 0.80% / Repeatability: 1.10%
• Incl. type D Leeb probe
• Optional Software Available
• incl. ISO Calibration Certificate

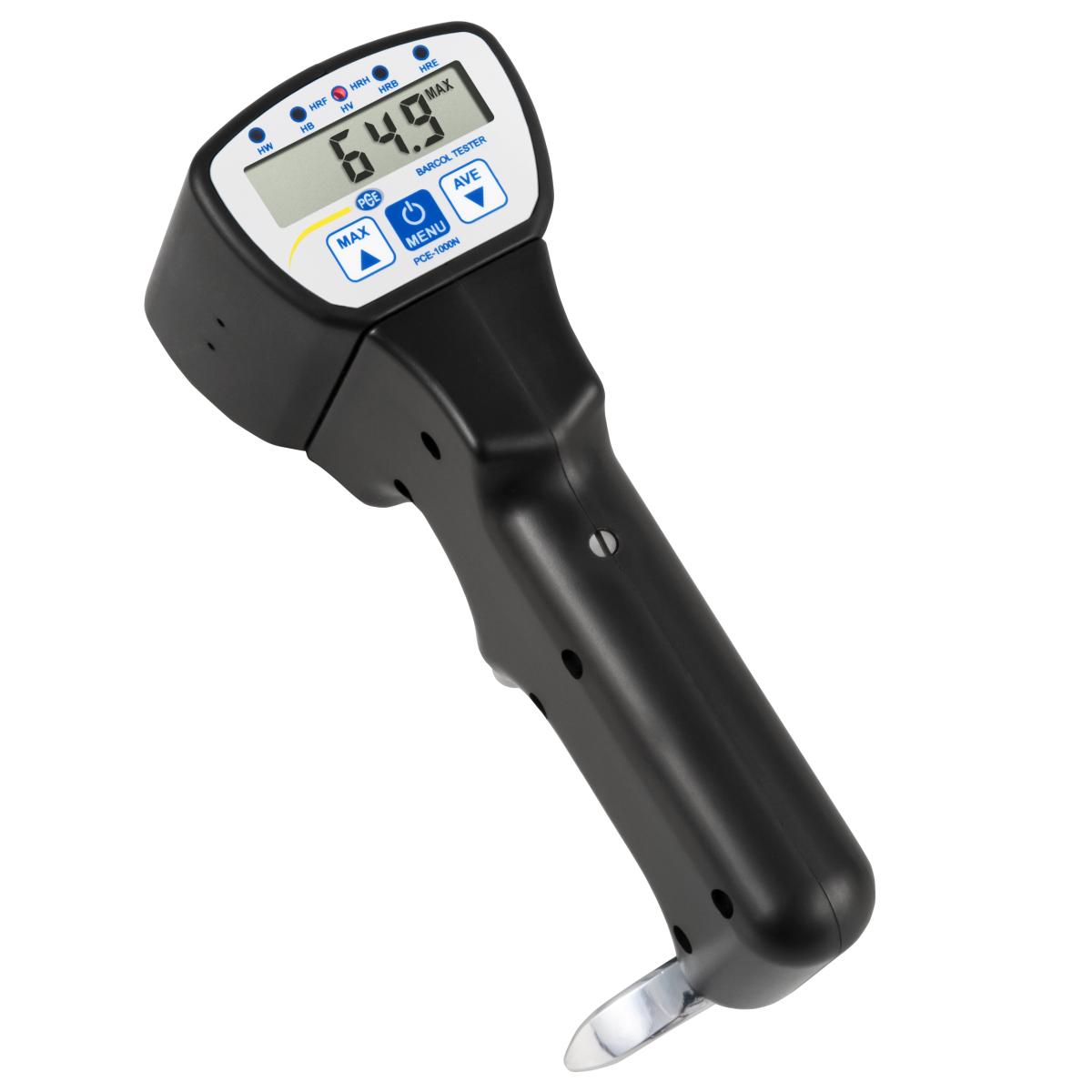

PCE-1000N is a portable handheld Barcol hardness tester used to measure the hardness of pure aluminum, soft aluminum, thick aluminum alloy and aluminum sheets, strips, rods, castings and forgings. The hardness of fiber-reinforced (FRP) plastics, glass-reinforced (GRP) plastics, hard plastics and soft metals (such as copper or lead) also can be tested using this battery-powered digital Barcol impressor hardness meter.

• Measurement parameters: Barcol (HBA), Brinell (HB), Vickers (HV), Webster  (HW)  Rockwell (HRB / HRE / HRF / HRH)
• Measuring range: 0 … 100 HBA / 25 … 150 HB
• Accuracy: 81 … 88 HBA: ± 1 HBA / 42 … 48 HBA: ± 2 HBA
• Repeatability: 81 … 88 HBA: ± 1.5 HBA / 42 … 48 HBA: ± 2.5 HBA
• Resolution: 0.1 HBA
• Meets ASTM standards: E140-97; D2583-75; B648-78

Due to its compact design, the PCE-2550-ICA metal hardness tester is easy to use for incoming and outgoing inspections. Due to the adjustable hardness scales, the metal hardness tester is very versatile.

• Measuring ranges: 170 … 960 HLD
• Measurement direction: 360°
• Impact device: Type D
• Measurement units: HL, HB, HRB, HRC, HRA, HV, HS
• Internal measurement memory
• incl. ISO Calibration Certificate

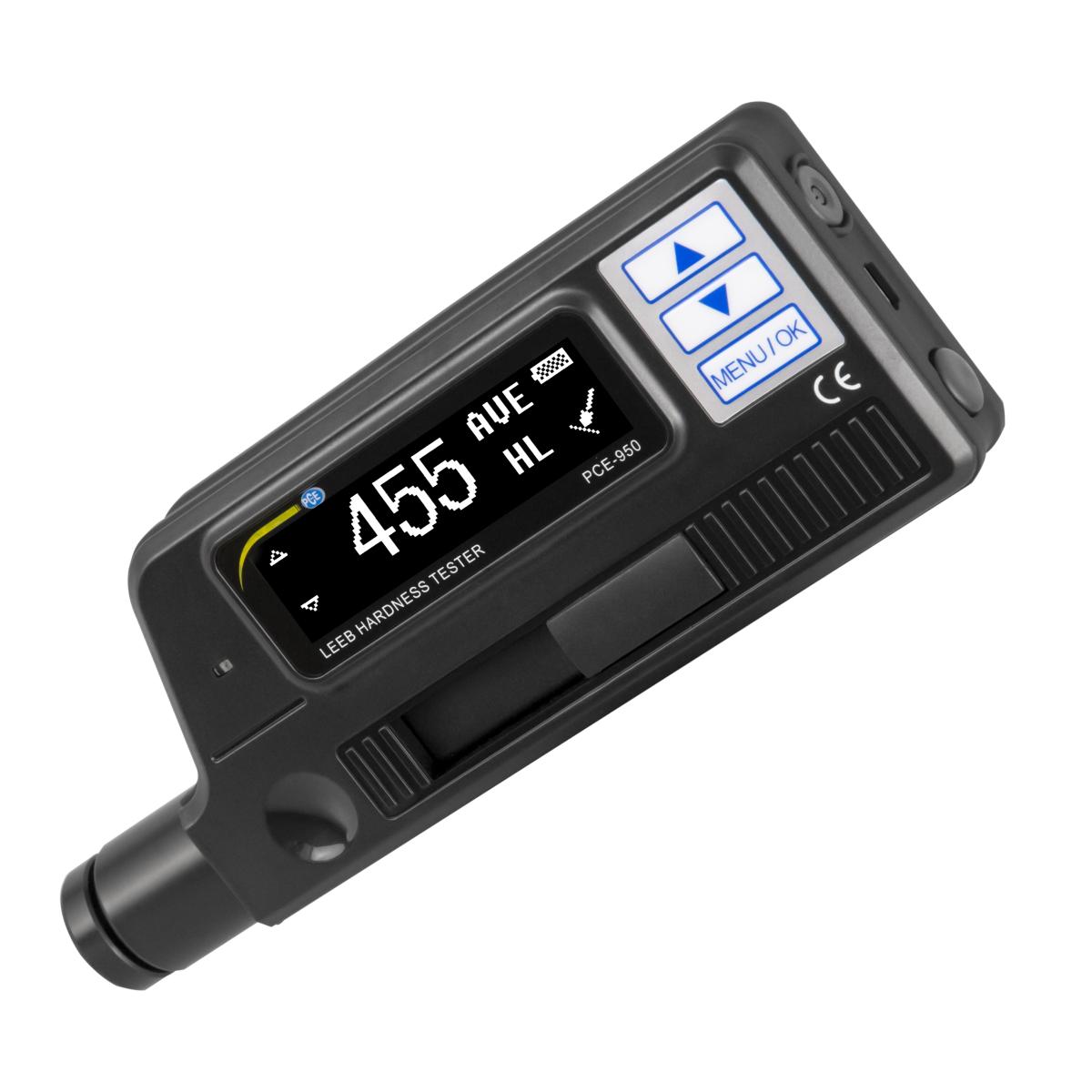

PCE-950 is a handheld material hardness tester used to determine the hardness of 10 different types of metal (i.e., cast steel, hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy) according to the Leeb rebound method. In addition to Leeb hardness units, the metal hardness tester displays hardness measurements in Rockwell C, Rockwell B, Rockwell A, Brinell, Vickers and Shore hardness units.

• Measurement ranges: 19.8-68.5 HRC / 13.5-101.7 HRB / 59.1-85.8 HRA /19-655 HB / 80-976 HV / 32.2-115 HS
• Hardness units: HL, HRC, HRB, HRA, HB, HV, HS
• Accuracy: ± 2% / Repeatability: ± 2%
• Impact device: Type D (integrated)
• Data Analysis Software
• For use with hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy metals

PCE-950-ICA is a handheld material hardness tester used to determine the hardness of 10 different types of metal (i.e., cast steel, hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy) according to the Leeb rebound method. In addition to Leeb hardness units, the metal hardness tester displays hardness measurements in Rockwell C, Rockwell B, Rockwell A, Brinell, Vickers and Shore hardness units.

• Measurement ranges: 19.8-68.5 HRC / 13.5-101.7 HRB / 59.1-85.8 HRA /19-655 HB / 80-976 HV / 32.2-115 HS
• Hardness units: HL, HRC, HRB, HRA, HB, HV, HS
• Accuracy: 2% / Repeatability: 2%
• Impact device: Type D (integrated)
• Data Analysis Software
• For use with hammered steel, cold-rolled steel, stainless steel, cast iron, ductile iron, aluminum alloy, brass, bronze and forged copper alloy metals
• Includes ISO calibration certificate

The Ultrasonic Contact Impedance (UCI) Metal Hardness Tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. A 136° Vickers diamond at the probe is stimulated with its self-resonance to allow the user to very accurately measure hardness of small items, thin-walled items (>1 mm), and surface-hardened layers. Small imprint after measuring for mirrored surfaces.

• Probe is 50 Newtons / 11.2 lbf force, 10 and 98 N probes are options
• Tests HRC, HRB, HV, HB, MPa
• Memory function via SD card and included PC software
• Large color LCD display with back lighting

The Ultrasonic Contact Impedance (UCI) Metal Hardness Tester PCE-3500 has been designed for the non-destructive hardness measurement of metallic components. A 136° Vickers diamond at the probe is stimulated with its self-resonance to allow the user to very accurately measure hardness of small items, thin-walled items (>1 mm), and surface-hardened layers. Small imprint after measuring for mirrored surfaces and nitrided surfaces.

• Probe is 10 Newtons / 2.2 lbf force, 50 and 98 N probes are options
• Tests HRC, HRB, HV, HB, MPa
• Memory function via SD card and included PC software
• Large color LCD display with back lighting
