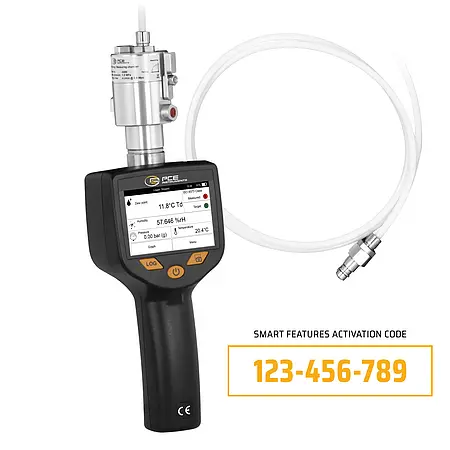

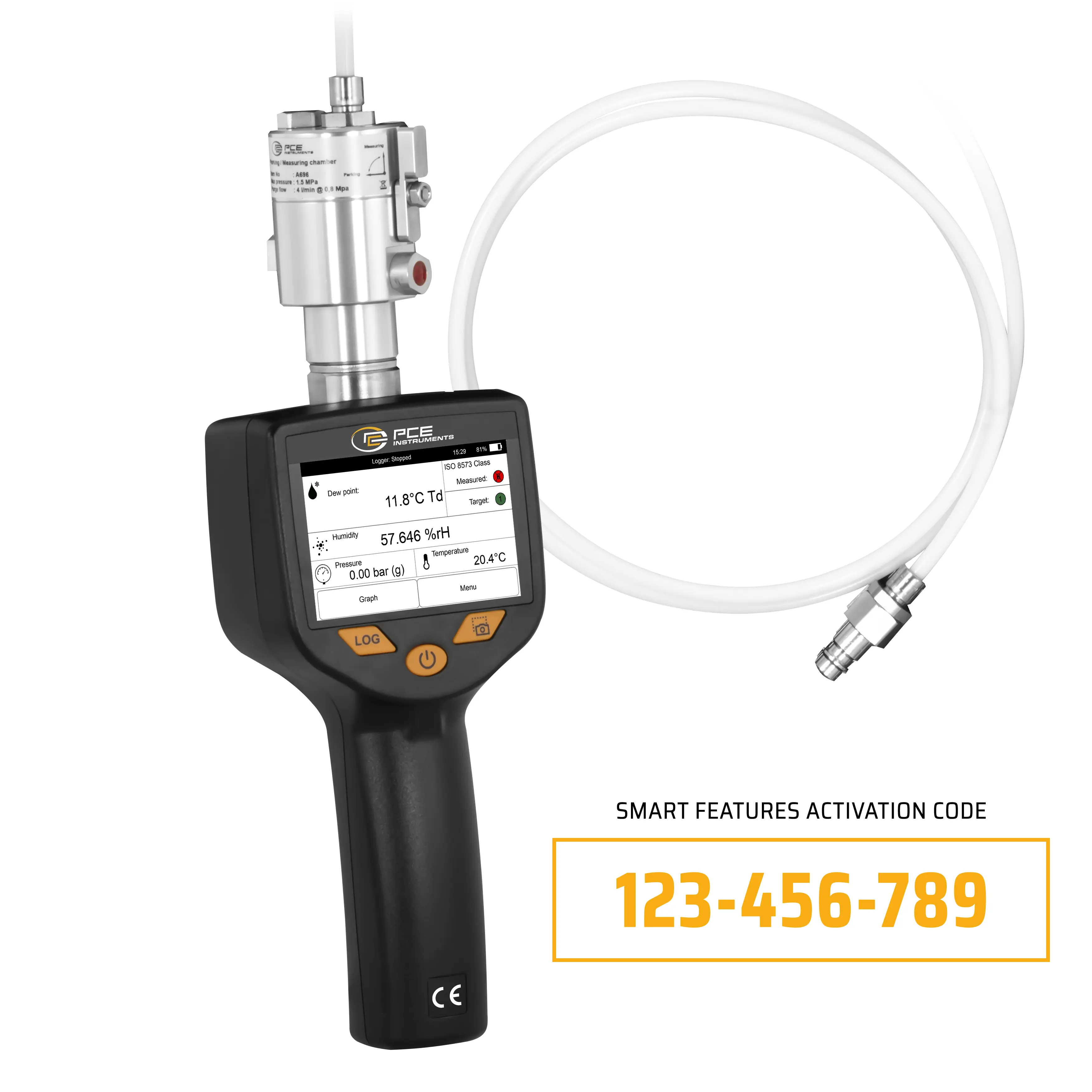

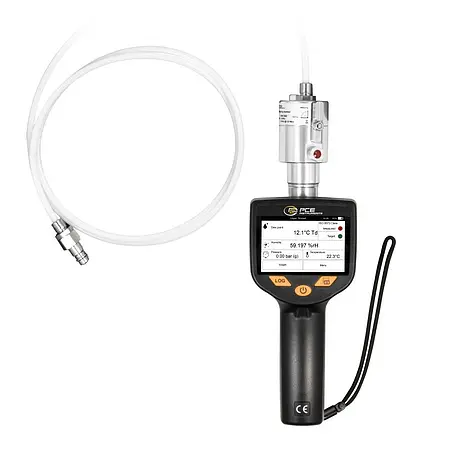

Moisture Meter PCE-DPM 10-SFKIT incl. Smart Features

Order no.: PCE-DPM 10-SFKIT
GTIN (EAN): 4250348734204
₹613,041.00
₹723,388.38
price ex. (VAT / delivery)
:
4250348734204
PCE-DPM 10-SFKIT
Delivery time: 1-2 working days

Description

Moisture Meter for pressure systems / precise measurement / alarm limits / battery-operated handheld device / touch display

The precise moisture meter from PCE Instruments enables the reliable measurement of humidity and temperature in a measuring range of up to 15 bar. The moisture meter is versatile and provides accurate results for air and various gases.

The moisture meter offers a robust and handy design, the housing of the moisture meter was specially developed for industrial applications.

The operation of the moisture meter is particularly easy thanks to the touch display, which further emphasises the user-friendliness of the moisture meter. The moisture meter offers the option of storing your own calibration data, e.g. to quickly adjust the pressure to the current atmosphere.

In addition, the moisture meter is able to display the humidity in many different units of measurement, saving the user the hassle of converting the values. The quick coupling included in the scope of delivery enables the moisture meter to be used quickly and also saves time during measurement.

In addition, the moisture meter has a moisture meter function for up to 100 million measured values. These can be conveniently read out and processed via the USB C interface and the USB-C stick supplied.

When the optional Smart Features are purchased, the moisture meter can not only measure the current dew point, but also create a forecast for the final value of the dew point. In addition, it enables the moisture meter to document the measurement location using the integrated camera.


Highlights

- Taupunkt Messbereich von -100 ... +50 °C
- Druckbereich bis 15 bar Differenzdruck
- Datenlogger für bis zu 100 Millionen Messwerte
- Alarmgrenzen einstellbar.
- Touch LC Display

Specification

Differential pressure
Measurement range0 bar . ... +15 bar
Resolution0,01 bar
Accuracy0,5 % v. Mb.

Dew point
Measurement range-100 °C ... +50 °C
Resolution0.1 °C

Dew point
measurement range0 °C . .. +20°C
Resolution0.1°C
Accuracy± 1°C

Dew point
measurement range-60 °C . .. +50 °C
Resolution0.1 °C
Accuracy± 2°C

Dew point
measuring range-100 °C . .. -60 °C
Resolution0.1 °C
Accuracy± 3°C

Temperature
measuring range-30 °C . .. +50 °C
Resolution0.1 °C
Accuracy± 0.3 °C

General technical data
Measurement functionsAverage value, dew point forecast
Units°C, °F, bar, psi, MPa, °C Td, %rH, g/m³ atm, mg/m³ atm, ppmv, g/kg, °C Td atm.
ConnectionsG1/2" with 6mm quick coupling
Display size3, 5 inch
Display refresh rate1 x per second
Storage mediumInternal memory
Storage interval of1 s
Storage interval up to60 s
Storage capacity100 million values
Other functionsPDF Export
InterfaceUSB- C
Standard(s)ISO8573- 1
Current consumption measuring device400 mA DC
Response time1 s
Measuring mediumAir, Nitrogen, Argon, Carbon Dioxide, Oxygen
Camera resolution5 Megapixel
Operating time8 h
Operating time Additional informationCharging takes approx. 3h.
Automatic shutdown adjustable 10 ... 60 min.

Menu languageEnglish, German, French, Spanish, Chinese, Korean, Japanese
Protection class (device)IP30
Power supply5V DC 3 A (via USB C)
Weight775 g
Device weight with delivery2, 83 kg
device weight with scope of delivery and outer packaging. outer packaging  2,93 kg
Dimensions (L x W x H)310 x 100 x 60 mm
Other dimensionsPTFE hose 1, 5 m with 6mm quick coupling
Operating conditions0 . .. 80 % RH
Storage conditions0 ... 40 °C , 0 ... 80 % RH
Instruction languagesGerman, English
Battery3500 mAh, 3,7 V





Delivery Scope

1x Moisture Meter PCE-DPM 10-SFKIT
1x activation of the Smart features for PCE-DPM 10-SFKIT
1x PTFE hose with quick coupling
1x USB power supply with adapters
1x USB-C cable
1x USB-C stick
1x transport case
1x software (download)
1x operating instructions
