₹2,366.00
Multifunction Moisture Meter
Measures moisture content of wood, paper, textiles, concrete and other building materials - also measures ambient temperature and relative humidity

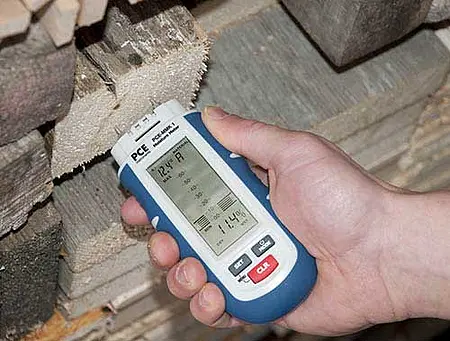

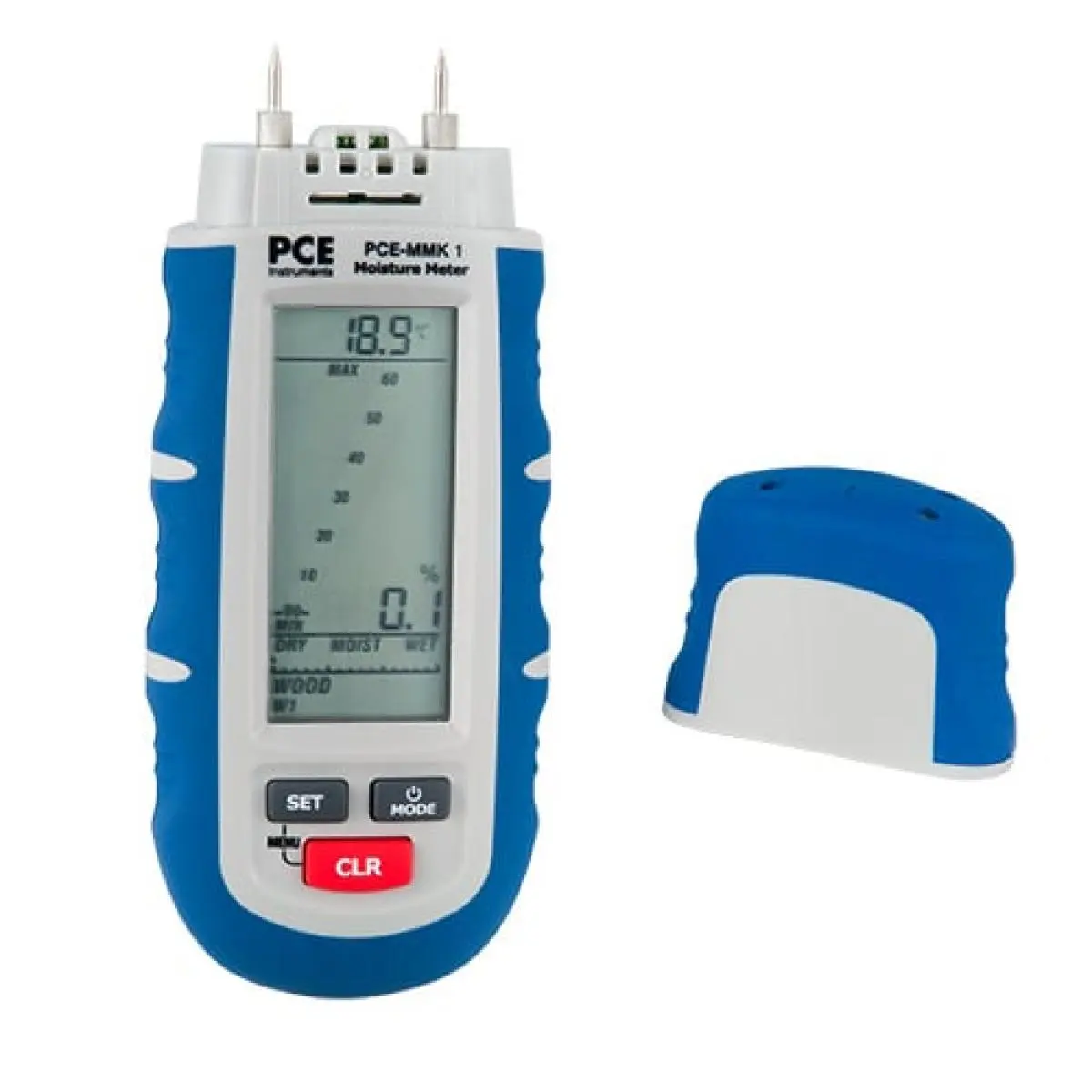

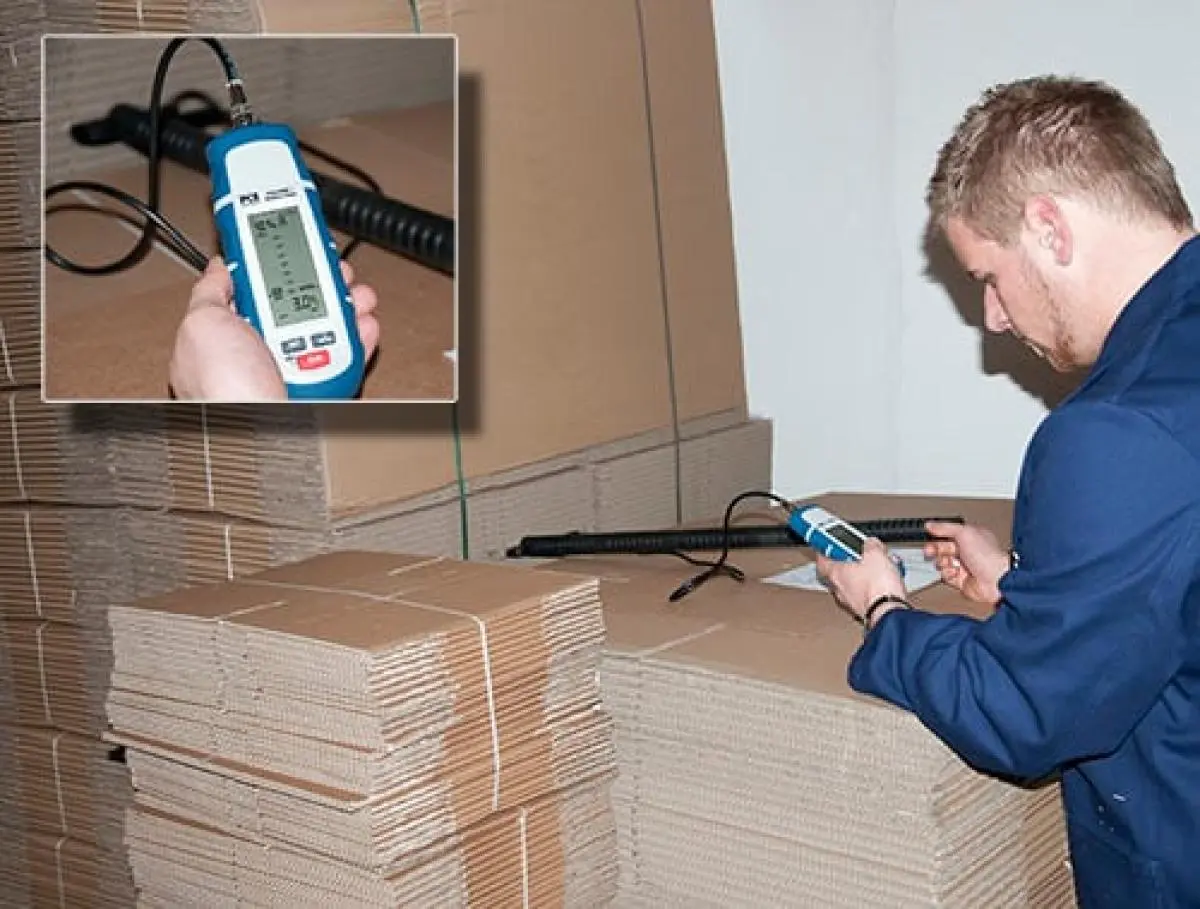

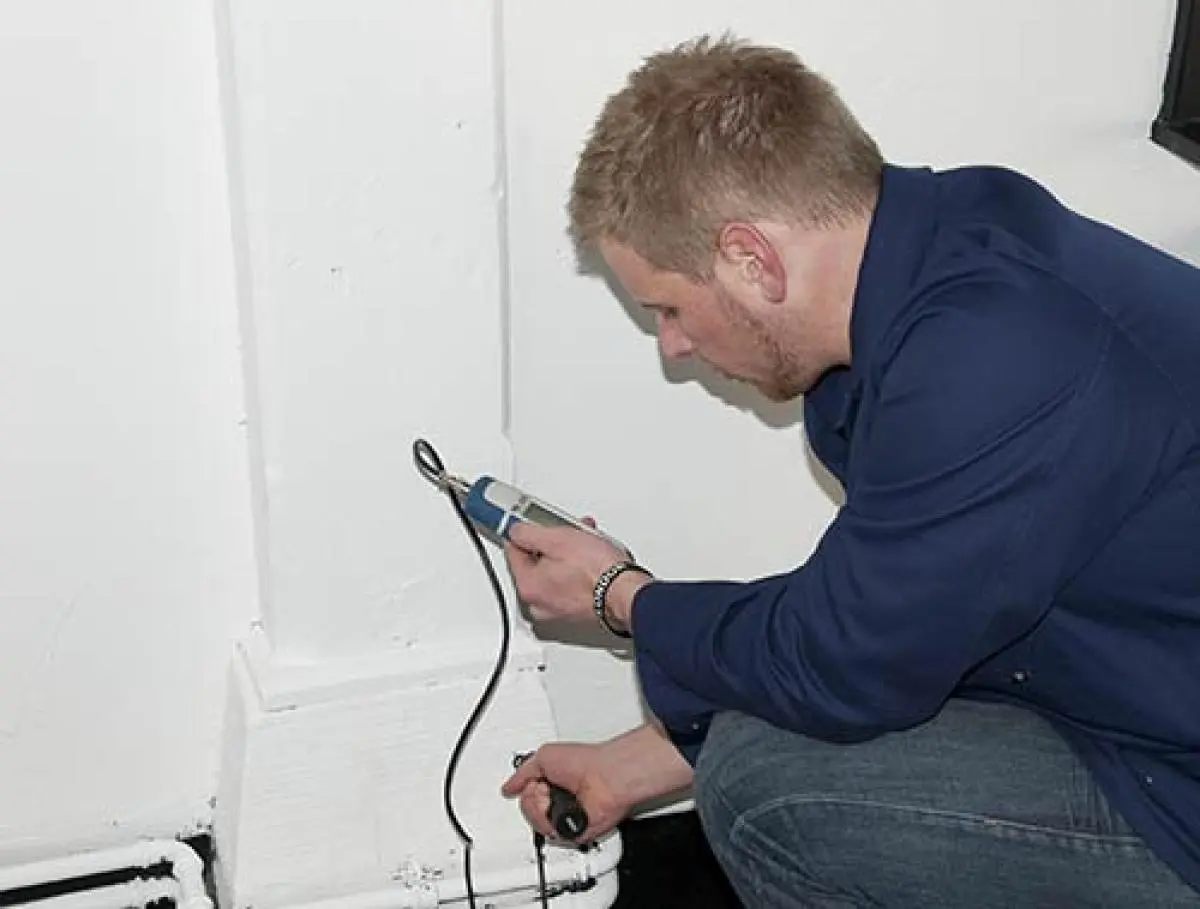

PCE-MMK 1 is a portable handheld digital moisture meter used to measure the moisture content of wood, paper, textiles, concrete and other building materials. This multifunction moisture meter also measures ambient temperature and ambient relative humidity.

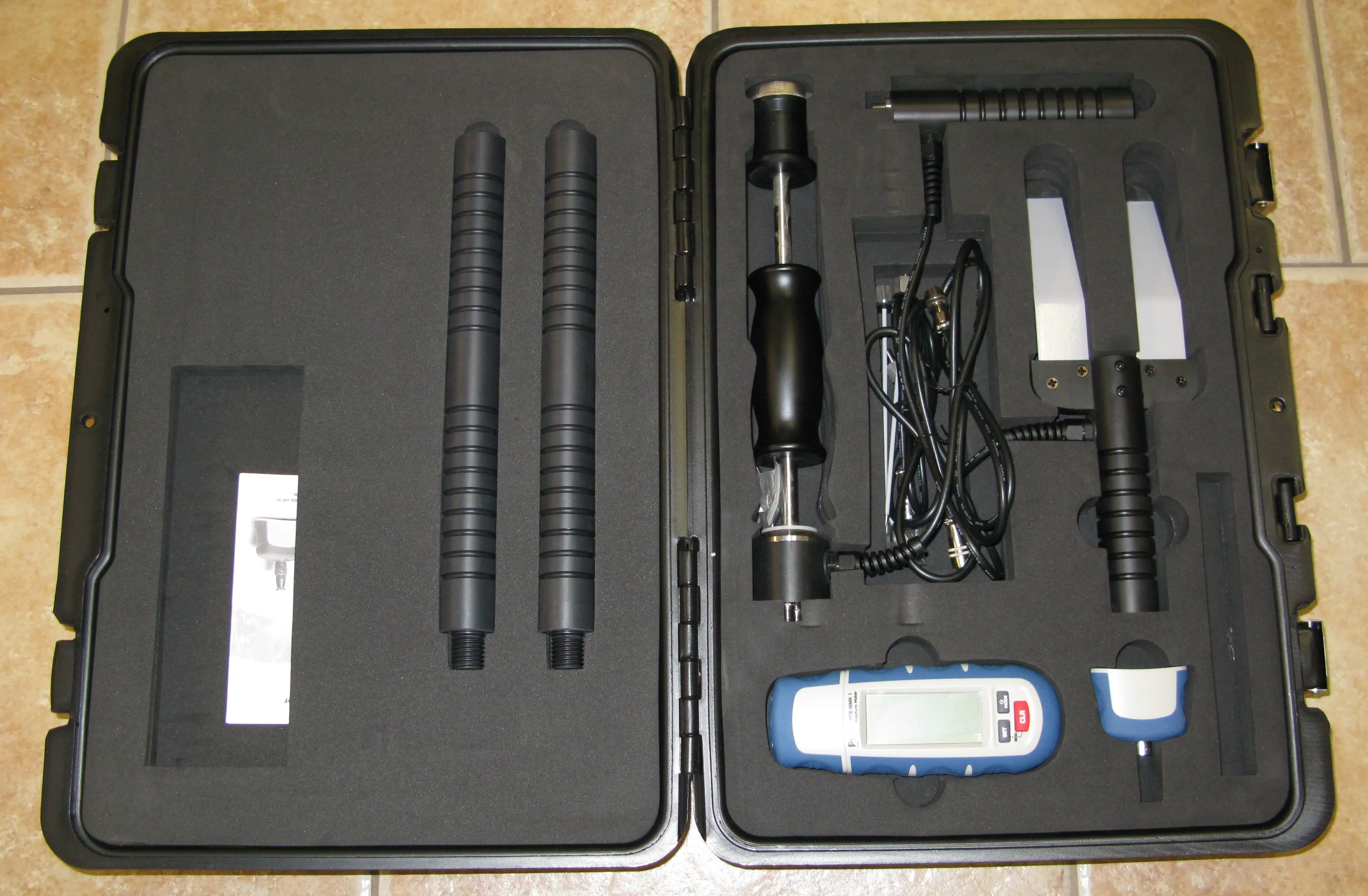

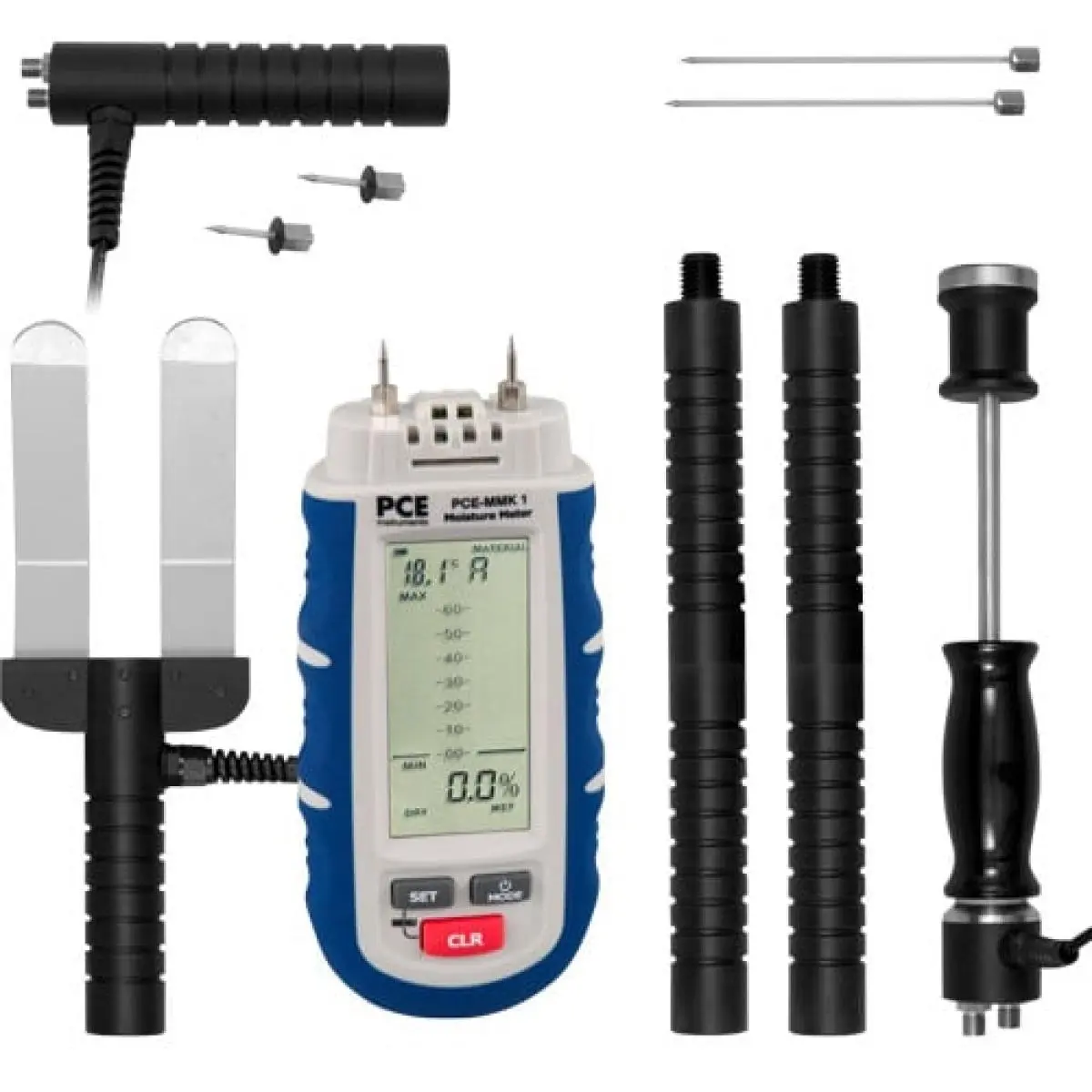

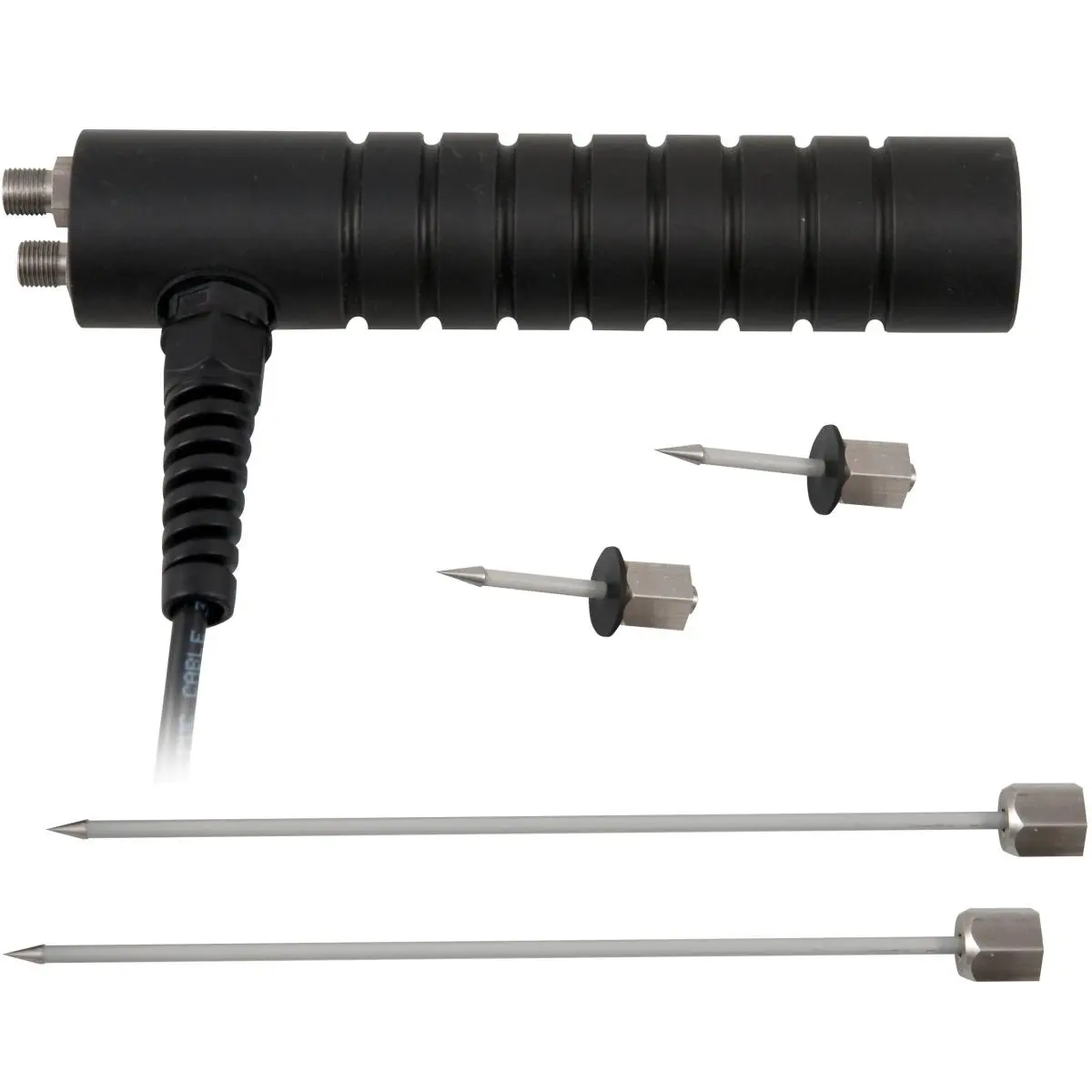

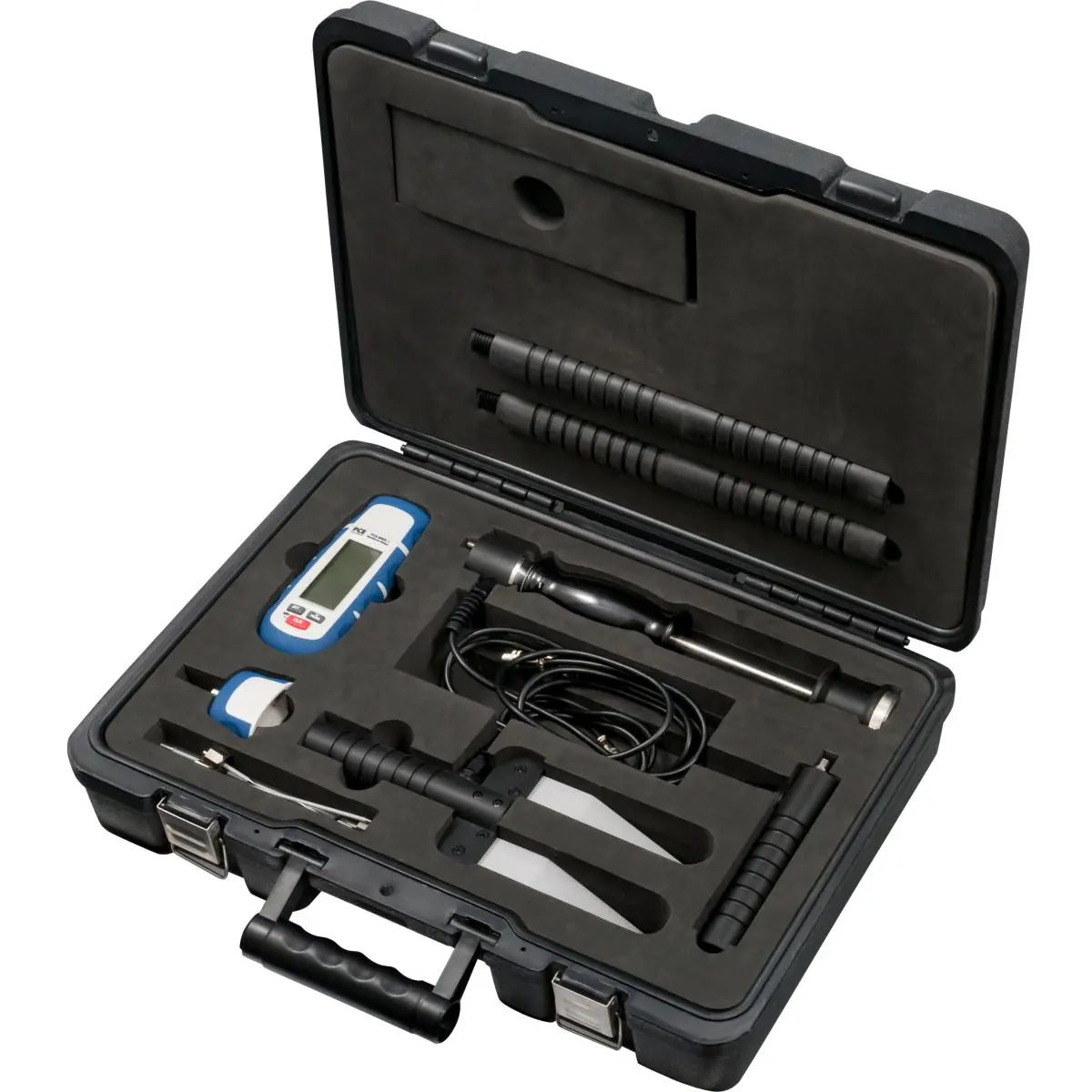

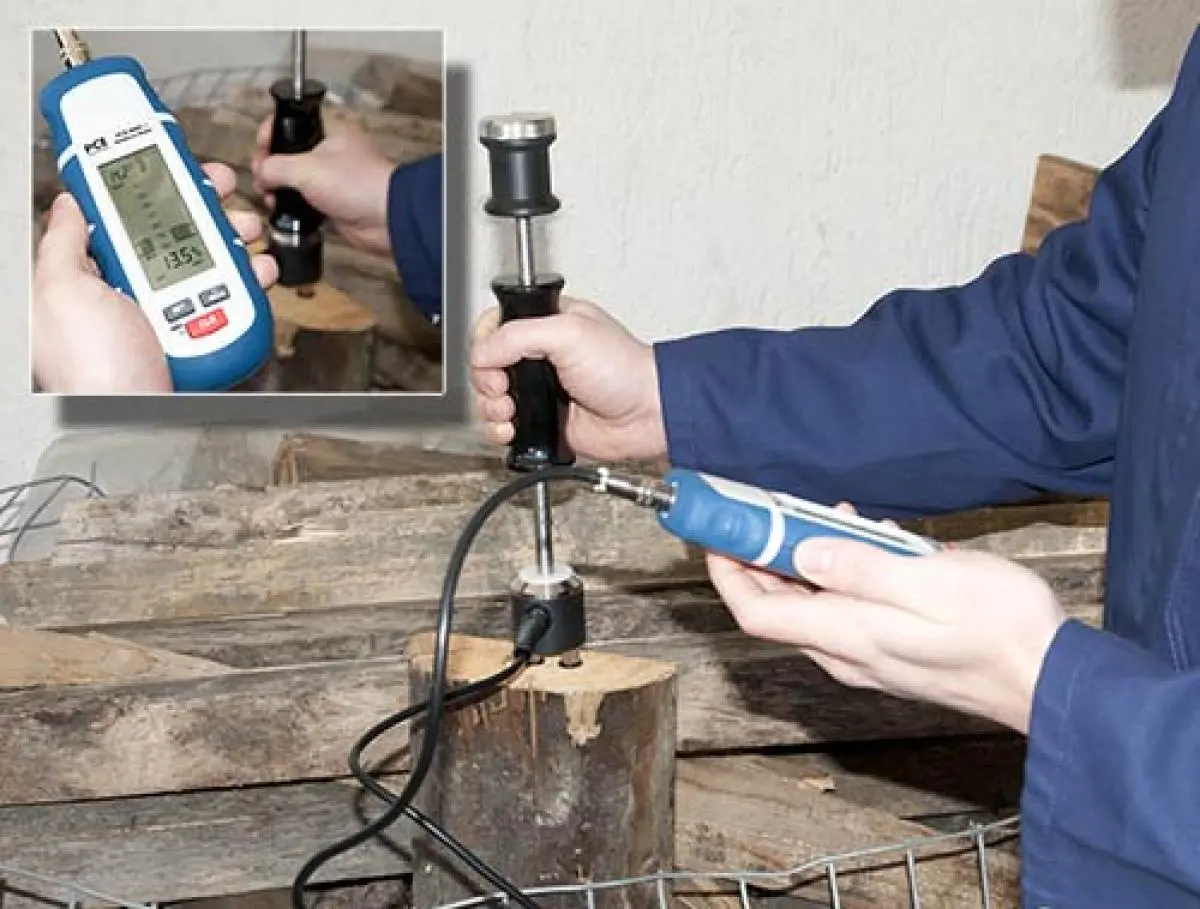

Ideal for quality control and incoming goods inspections, this multipurpose moisture analyzer comes with short and long insertion needles as well as 3 different external electrodes (ramming, penetrating, paper). Self-test or pre-set measuring modes based on material type are available from the user friendly navigation menu, as are temperature compensation, maximum / minimum value, LCD backlight and dry-moist-wet indicator settings. An easy-to-read display shows digital and bar graph values on screen. Moisture % displayed is material moisture with respect to dry mass (e.g., 100 % material moisture for 1 kg of wet wood = 500 g water).
| Measuring ranges | Wood, paper, textiles: 1 ... 75% moisture Concrete, building materials: 0.1 ... 2.4% moisture Ambient temperature: -40 ... 70°C / -40 ... 158°F Ambient relative humidity (RH): 0 ... 100% RH |
| Resolution | 0.1 |
| Accuracy | Wood, paper, textiles: 1 ... 30% / ±1%, 31 ... 60% / ±2%, 61 ... 75% / ±4% Concrete, building materials: ±0.5% Ambient temperature: -40 ... -10°C and 40 ... 70 °C / ±2°C, -10 ... 40°C / ±1°C Ambient relative humidity (RH): 0 ... 20 % and 80 ... 100% / ±5%, 20 ... 80% / ±3.5 % |
| Automatic power off | After 3 minutes of inactivity, meter powers off to save battery After 10 seconds of inactivity, LCD backlight powers off to save battery |
| Enclosure | Impact-resistant plastic housing |
| Battery | 3 x Cr 2032, replaceable |
| Operating conditions | 0 ... 40°C / 32 ... 104°F, 0 ... 85% RH |
| Dimensions | 139 x 47 x 25 mm / 5.5 x 1.9 x 1.0 in |
| Weight | 100 g / < 1 lb (without electrodes) |
