Multimeter / TRMS Multimeter PCE-OC 15

Order no.: PCE-OC 15
GTIN (EAN): 4250348736116
1 pc.

Description

Multimeter / TRMS Multimeter / integrated multimeter / voltage / current / frequency / resistance / temperature / capacitance / diode test / continuity test

The Multimeter / TRMS Multimeter was developed for practical and mobile use and can be used universally thanks to its diverse measurement functions. Our Multimeter / TRMS Multimeter reliably measures voltage, current, frequency, resistance, temperature, capacitance and offers a diode and continuity test. The MODE key makes it easy to switch between digital multimeter and Multimeter / TRMS Multimeter mode. With a bandwidth of 10 MHz and a fast sampling rate of 48 MSa/s, it ensures precise and quick data acquisition.

The device supports the storage of waveform data which can be exported as images and transferred to a PC. An LED backlight with adjustable brightness and power-off time as well as multifunctional keys make operation easier for the user. With a rechargeable battery via the C-type interface and a long standby time, the Multimeter / TRMS Multimeter multimeter is ideal for long working hours, while the measured values are updated three times per second to always provide up-to-date data. The hand-held Multimeter / TRMS Multimeter multimeter is an ideal companion for service technicians on site or in any electrical workshop.


Highlights

- multimeter with oscilloscope functions
- bandwidth 10 MHz
- sampling rate up to 48 MSa/s
- LC display with 4 brightness levels
- auto measurement range selection
- USB-C interface

Specification

Direct voltage DC
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct voltage DC
Measurement range up to  100 ... 999,9 V
Resolution  0,1 V
Accuracy  ±(0.5 % of Rd +3 digits)

Direct current DC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(0.8 % of Rd +3 digits)

Direct current DC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1 % of Rd +3 digits)

Direct current DC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1 % of Rd +3 digits)

Capacity
Measurement range up to  0 ... 9,999 nF
Resolution  0,001 nF
Accuracy  ±(5 % of Rd +20 digits)

Capacity
Measurement range up to  10 ... 99,99 nF
Resolution  0,01 nF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 nF
Resolution  0,1 nF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 µF
Resolution  0,001 µF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  10 ... 99,99 µF
Resolution  0,01 µF
Accuracy  ±(2 % of Rd +5 digits)

Capacity
Measurement range up to  100 ... 999,9 µF
Resolution  0,1 µF
Accuracy  ±(5 % of Rd +5 digits)

Capacity
Measurement range up to  1 ... 9,999 mF
Resolution  0,001 mF
Accuracy  ±(5 % of Rd +5 digits)

Capacity
Measurement range up to  10 ... 99,99 mF
Resolution  0,01 mF
Accuracy  ±(5 % of Rd +5 digits)

AC voltage
Measurement range up to  0 ... 9,999 mV
Resolution  0,001 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 mV
Resolution  0,01 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 999,9 mV
Resolution  0,1 mV
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  1 ... 9,999 V
Resolution  0,001 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  10 ... 99,99 V
Resolution  0,01 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

AC voltage
Measurement range up to  100 ... 750 V
Resolution  0,1 V
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  0 ... 9999 µA
Resolution  1 µA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  10 ... 99,99 mA
Resolution  0,01 mA
Accuracy  ±(1 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  100 ... 999,9 mA
Resolution  0,1 mA
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Alternating current AC
Measurement range up to  1 ... 9,999 A
Resolution  0,001 A
Accuracy  ±(1.2 % of Rd +3 digits)
Frequency range  40 ... 1000 Hz

Resistance
Measurement range up to  0 ... 99,99 Ω
Resolution  0,01 Ω
Accuracy  ±(1 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 Ω
Resolution  0,1 Ω
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1000 Ω ... 9,999 kΩ
Resolution  0,001 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 kΩ
Resolution  0,01 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  100 ... 999,9 kΩ
Resolution  0,1 kΩ
Accuracy  ±(0.5 % of Rd +3 digits)

Resistance
Measurement range up to  1000 kΩ ... 9,999 M Ω
Resolution  0,001 mΩ
Accuracy  ±(1.5 % of Rd +3 digits)

Resistance
Measurement range up to  10 ... 99,99 M Ω
Resolution  0,01 mΩ
Accuracy  ±(3 % of Rd +5 digits)

Frequency
Measurement range up to  0 ... 99,99 Hz
Resolution  0,01 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 Hz
Resolution  0,1 Hz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  1000 Hz ... 9,999 kHz
Resolution  0,001 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  10 ... 99,99 kHz
Resolution  0,01 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Frequency
Measurement range up to  100 ... 999,9 kHz
Resolution  0,1 kHz
Accuracy  ±(0.1 % of Rd +2 digits)

Temperature
Measurement range up to  -20 ... +1000 °C
Resolution  1 °C
Accuracy  ±(2.5 % of Rd +5 digits)

Temperature
Measurement range up to  -4 ... +1832 °F
Resolution  1 °F
Accuracy  ±(2.5 % of Rd +5 digits)

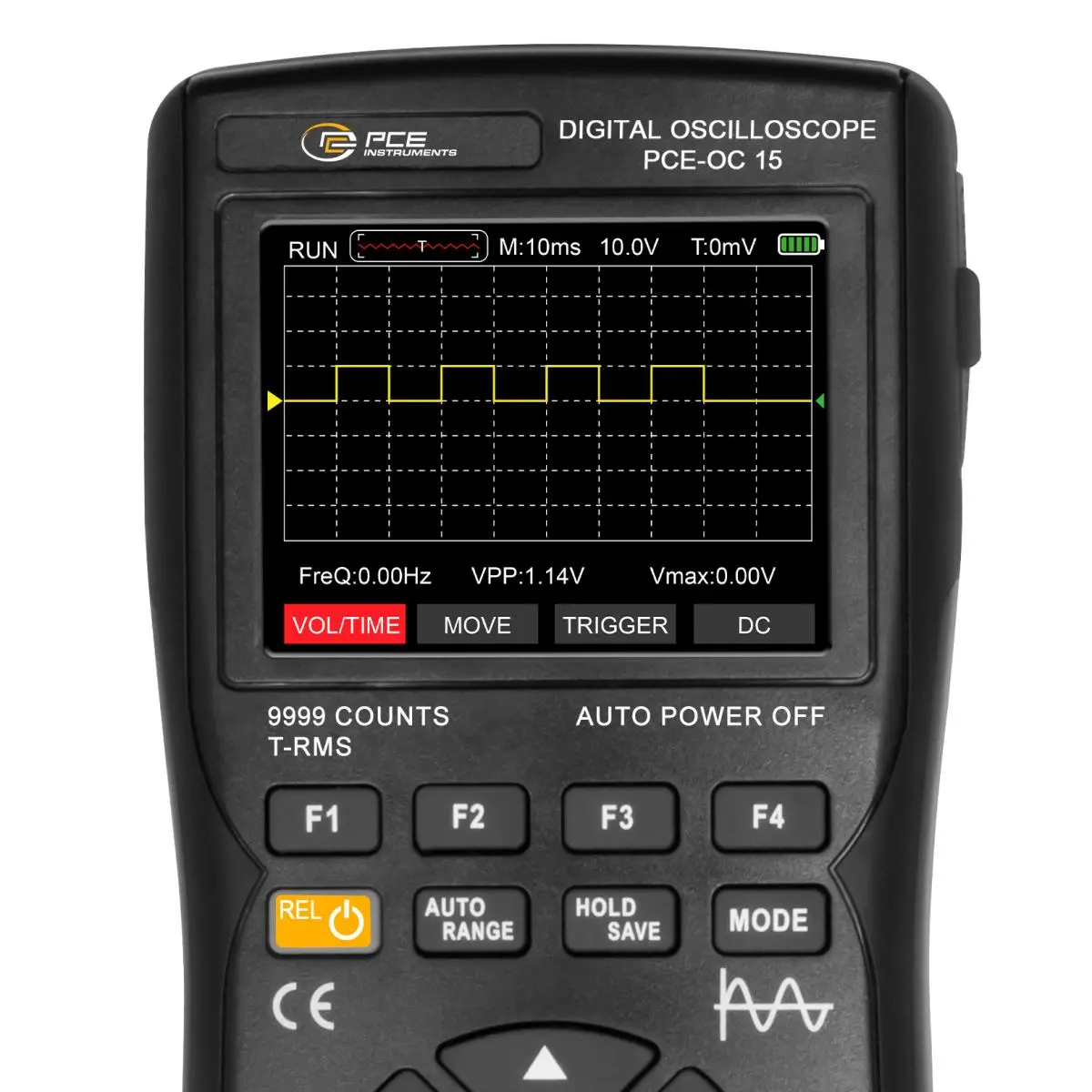

Oscilloscope specifications
Number of channels  1
Measuring functions  Period, Frequency, Peak-peak, MAX, MIN, RMS value
Sampling rate  48 MSa/s
Input impedance  1 M Ω
Probe factors  X1, X10
Max. input voltage  150 V
Adjustable sampling rate  1.5 Sa/s ... 48 MSa/s
Time base  100 ns/div ... 20 s/div
Accuracy  20 ppm
Vertical sensitivity  20 mV/div ... 10 V/div
Rise time  10 ns
DC gain accuracy  ±3 %

General technical data

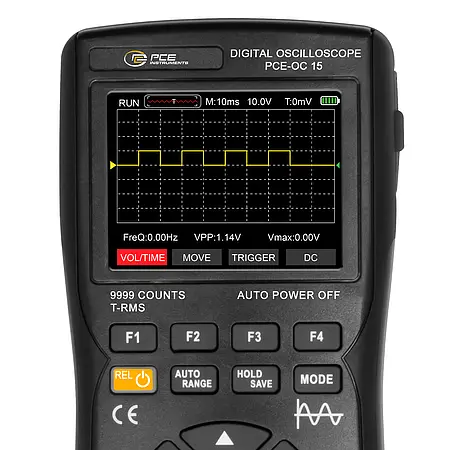

Display type  LCD
Display size  2,76 Inch
Measuring rate  3 Hz
Storage medium  Internal memory
Storage capacity  15 MB
Memory information  Screenshot on keystroke

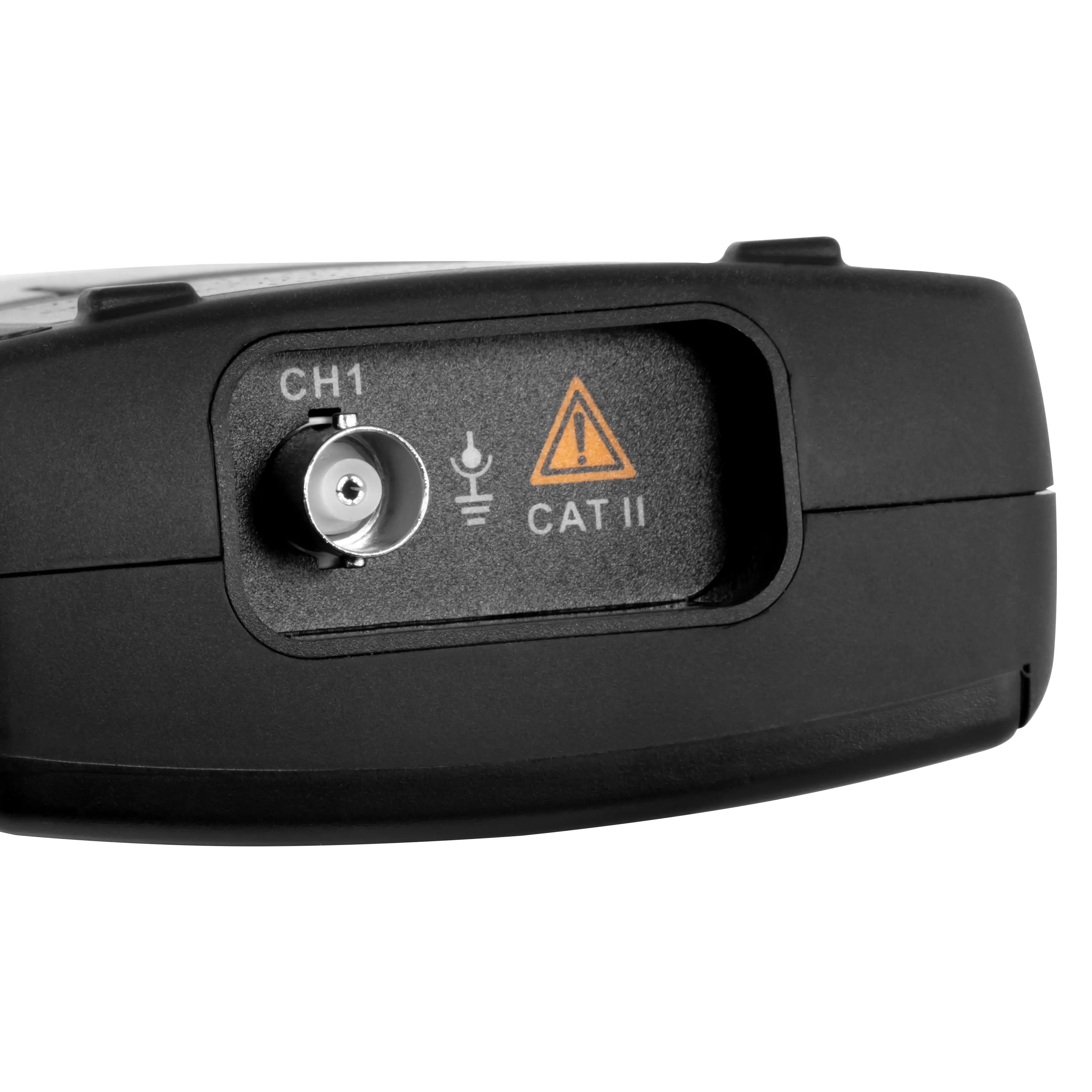

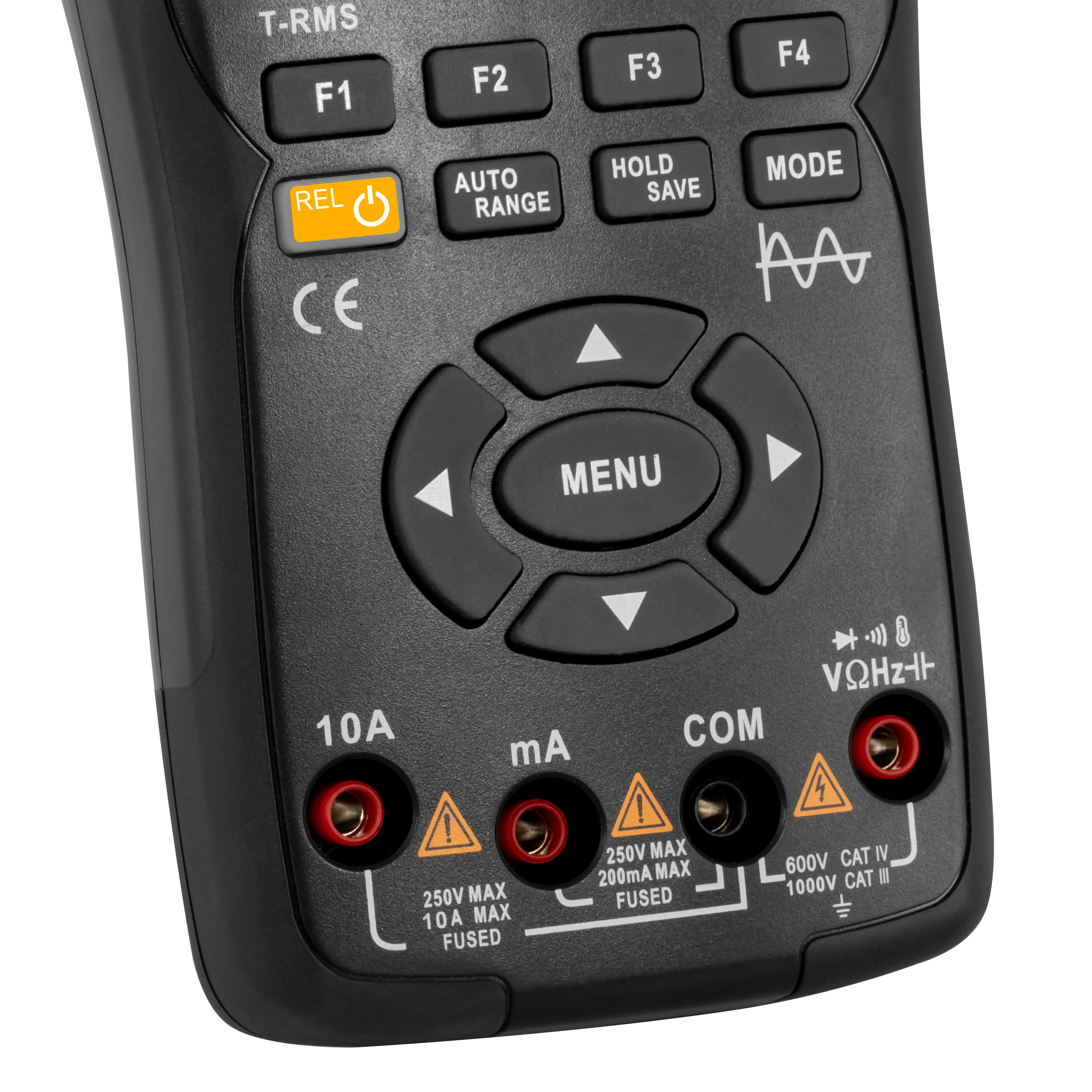

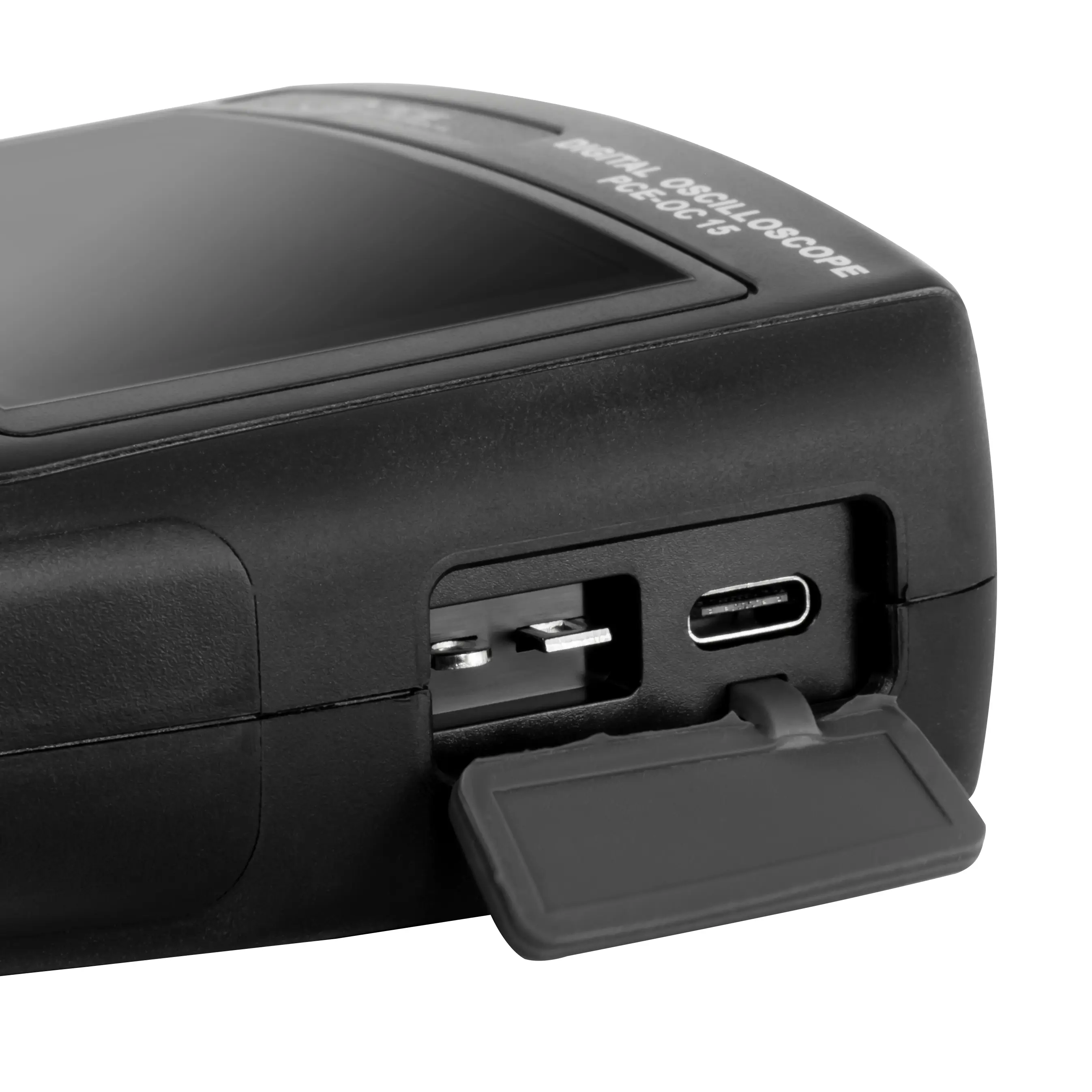

Interface  USB-C, BNC
Automatic power-off from...to  15 ... 120 min.
Automatic power-off can be deactivated  Yes
Safety standard  CAT III 600 V, CAT II 1000 V
Fuse(s)  Microfuse 10 A
Trigger input  Mode: auto, normal, single
Edge: rising, falling
Menu language  English, Chinese, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240 V AC | 50/60 Hz
Weight  352 g
Operating conditions  0 ... 40 °C , 0 ... 75 % RH
Storage conditions  -20 ... 60 °C , 0 ... 80 % RH

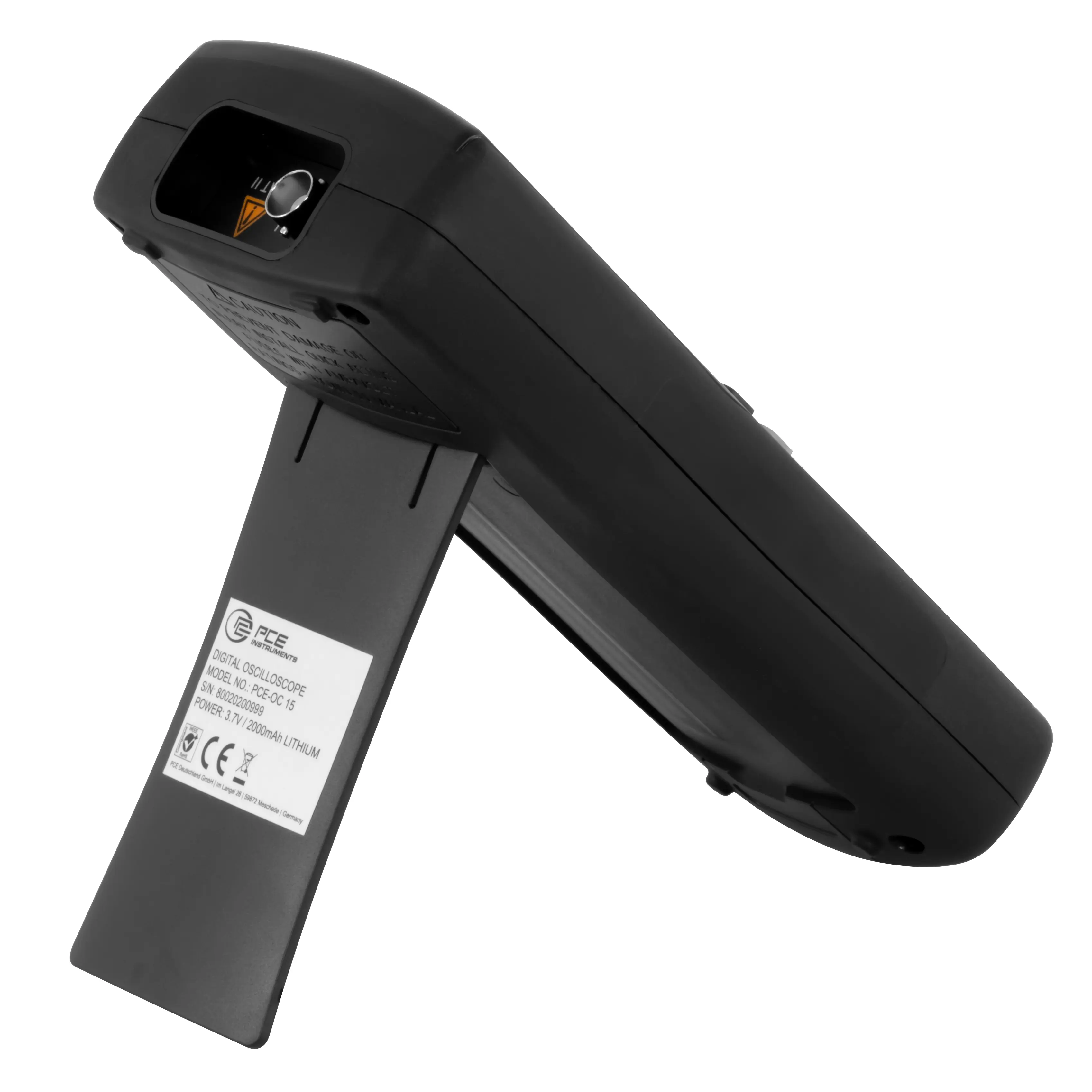

(Rechargeable) battery  1 x 3,7 V 18650 , lithium
Capacity  2000 mAh
Dimensions ( L x W x H )  175 x 90 x 40 mm

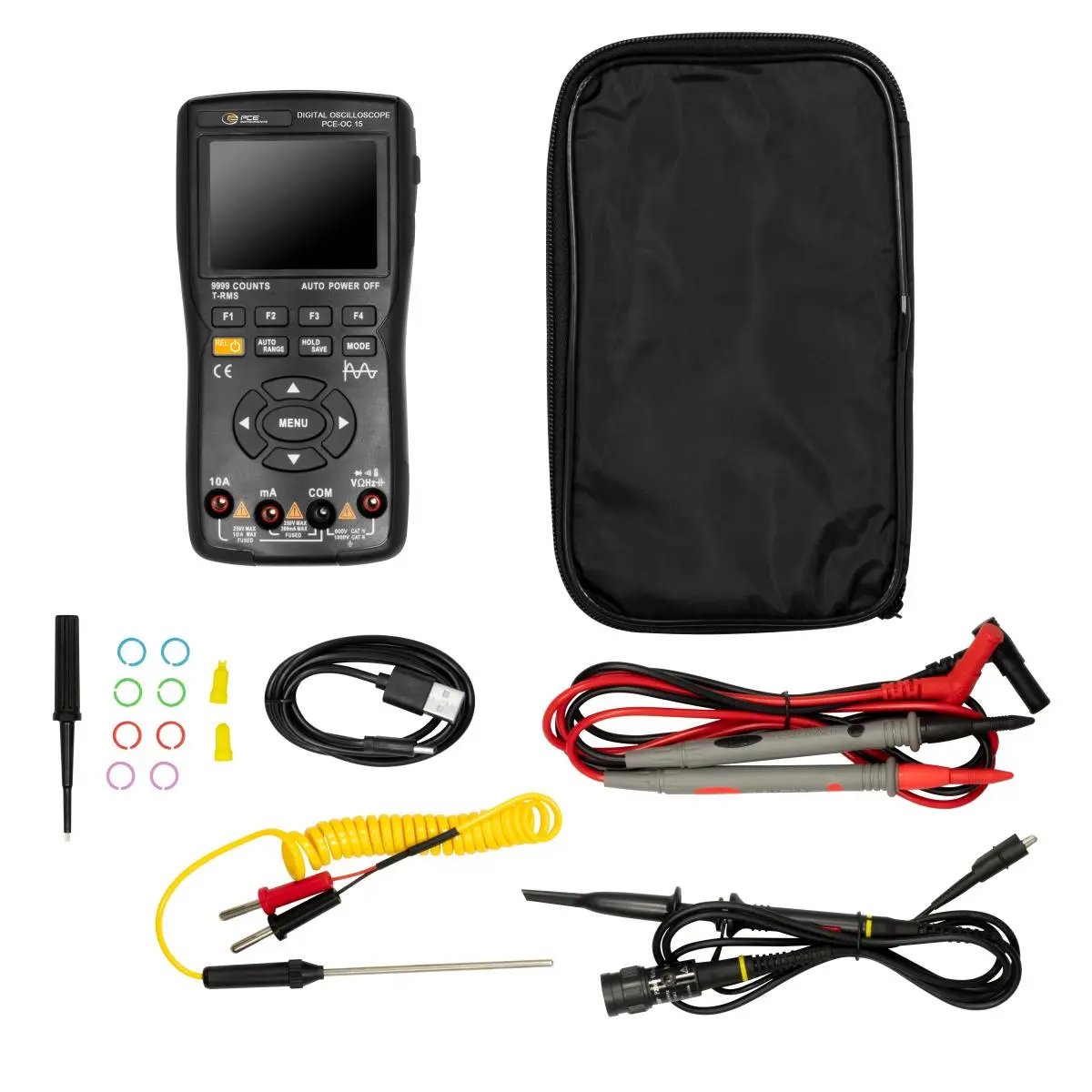

Delivery Scope

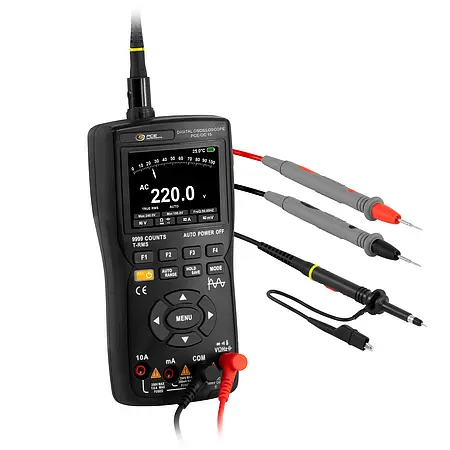

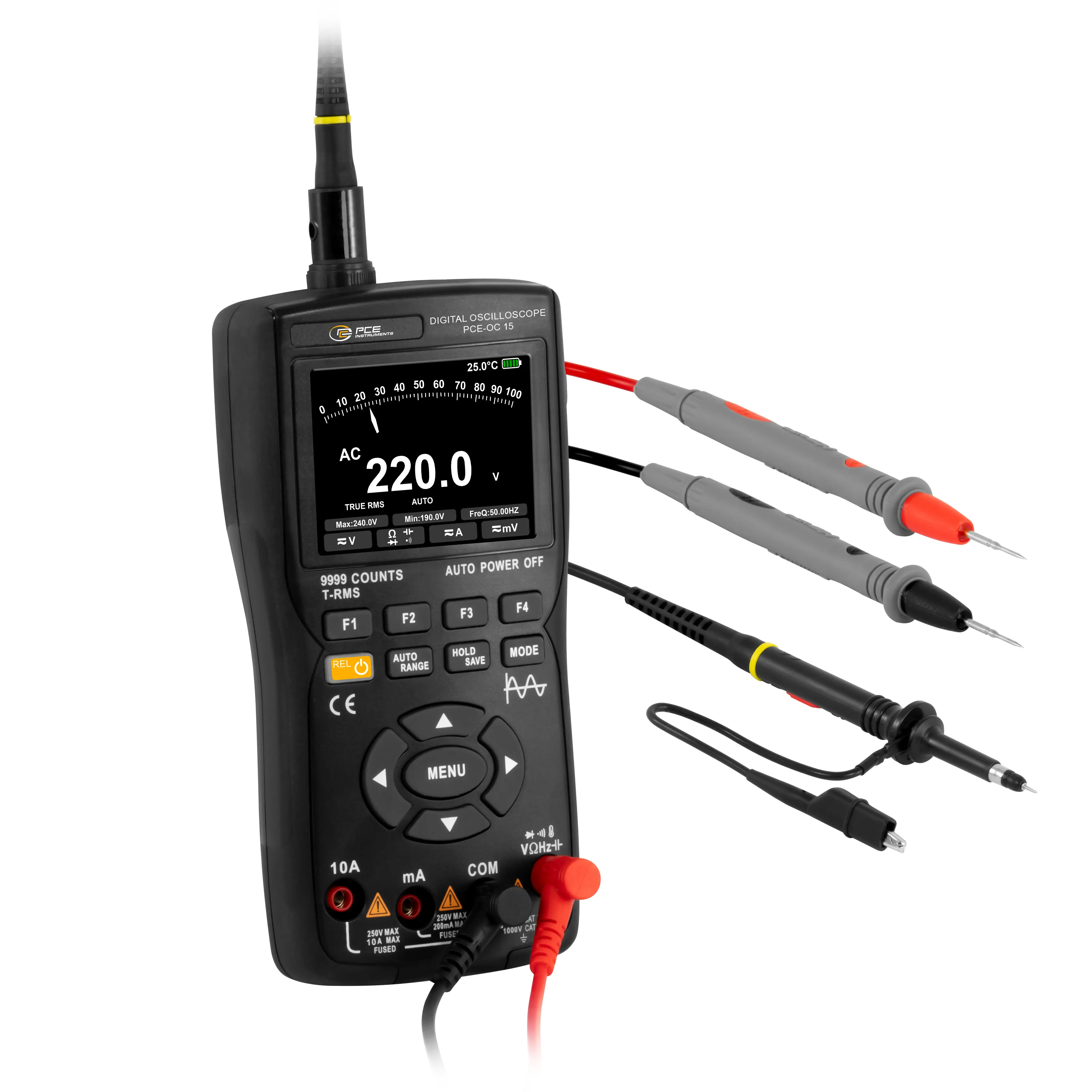

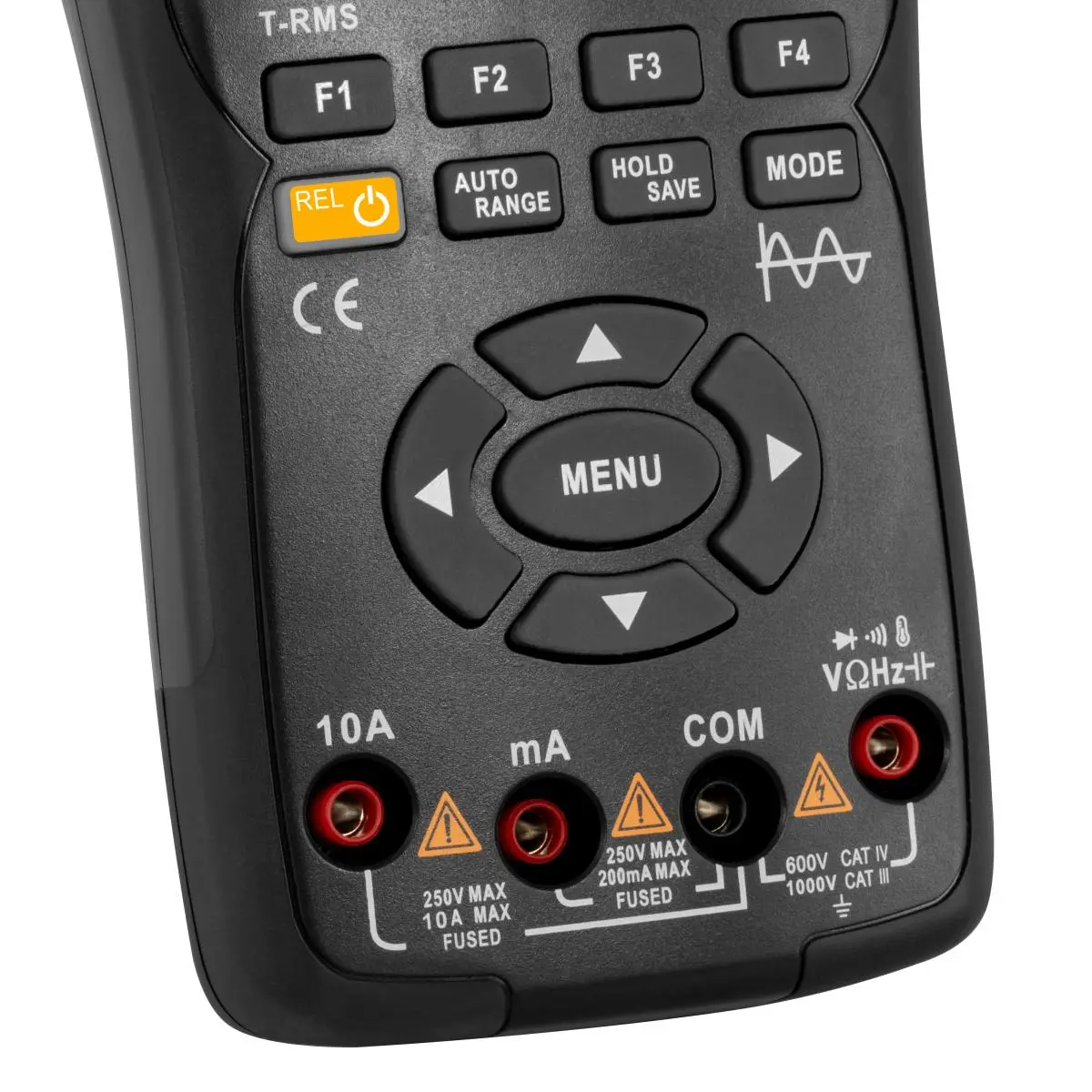

1 x Multimeter / TRMS Multimeter PCE-OC 15

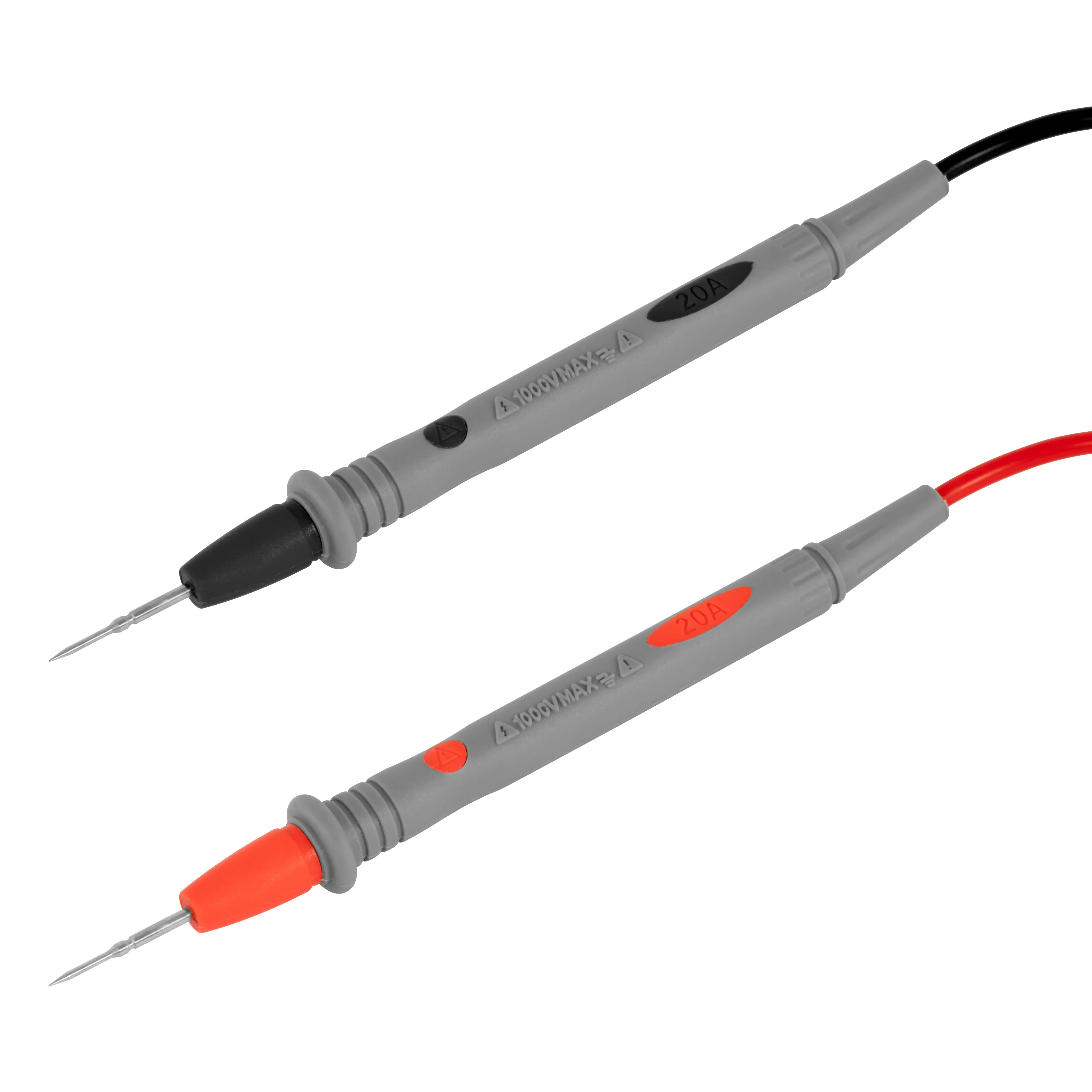

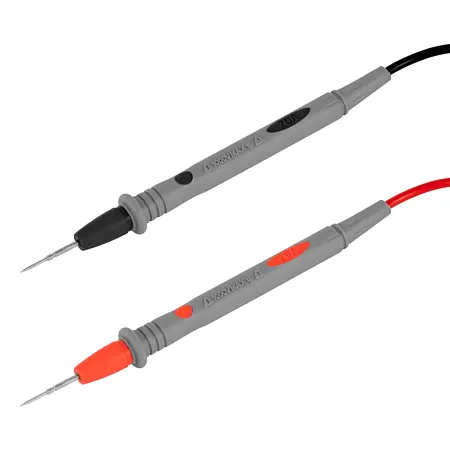

1 x set of test leads

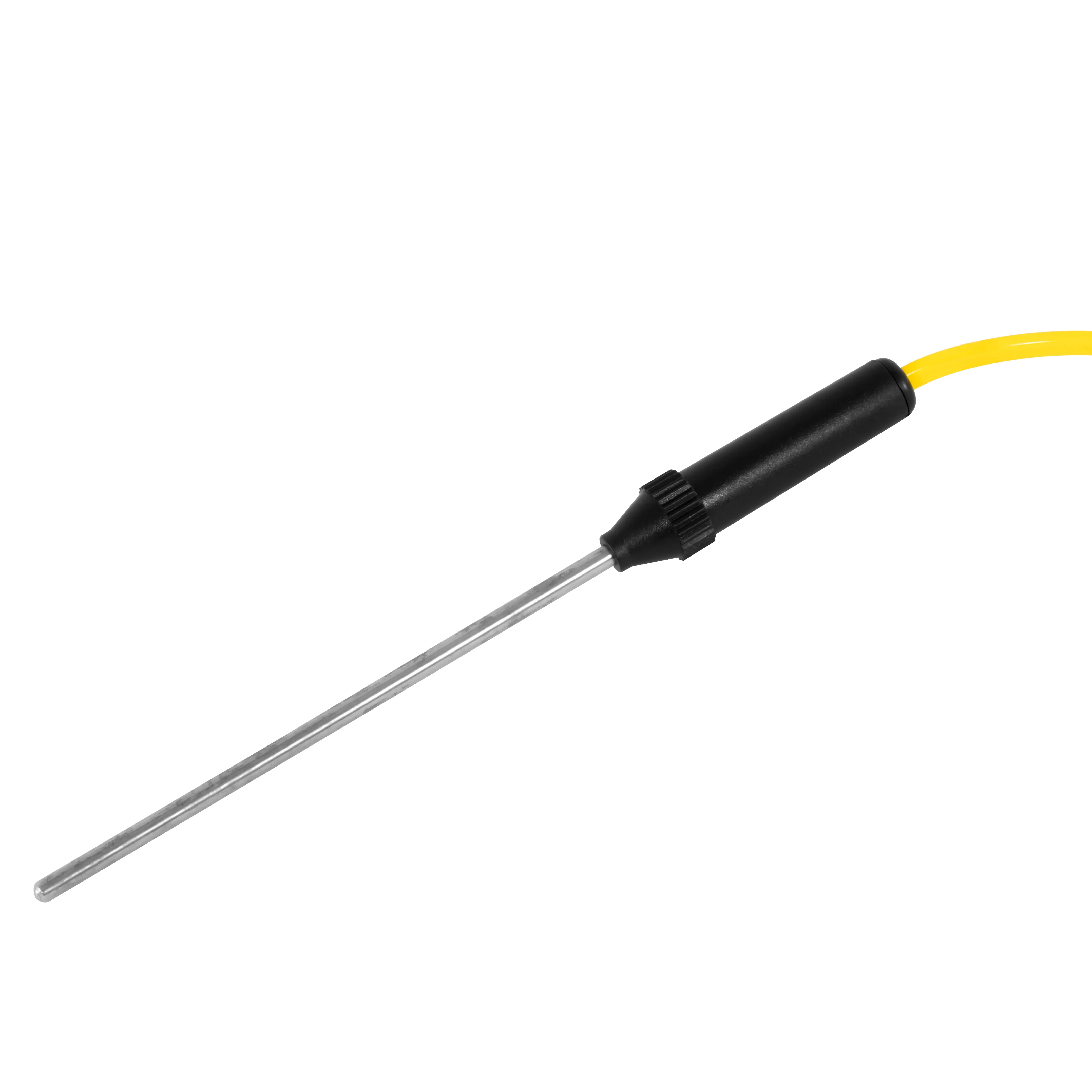

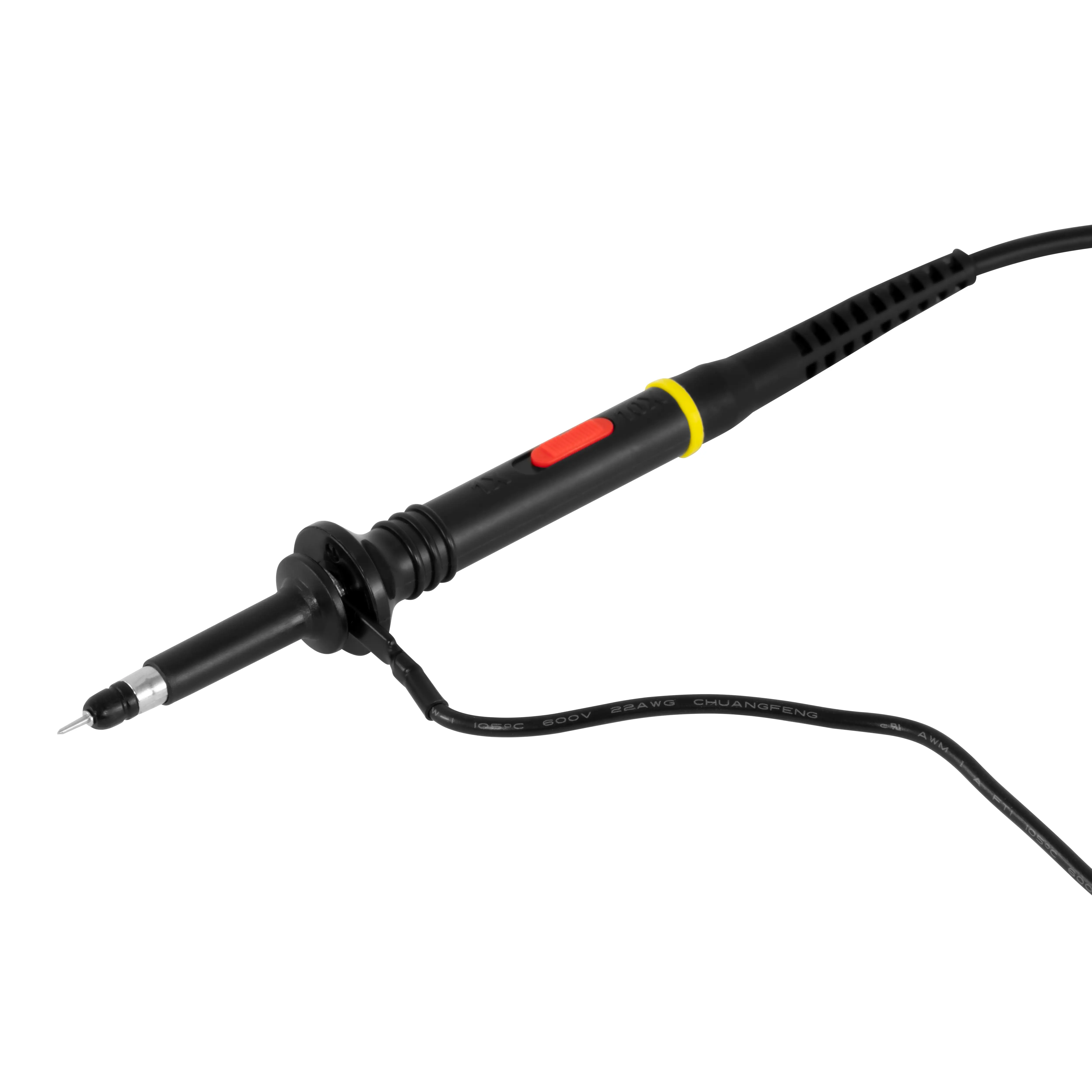

1 x Multimeter / TRMS Multimeter probe
1 x temperature sensor
1 x USB-C cable
1 x user manual
1 x probe accessories
