Noise Dose Meter PCE-NDL 10 with Data-Logging

Order no.: PCE-NDL 10
GTIN (EAN): 4250348715975
₹110,097.00
₹129,914.46
price ex. (VAT / delivery)
:
4250348715975
PCE-NDL 10
Delivery time: 1-2 working days

Accessory

USB Data Cable Incl. Software SOFT-LUT-USB
USB Data Cable Incl. Software SOFT-LUT-USB
₹12,782.00
Power supply North America
Power Supply 9 V / 0.8 A (US / North American)
₹2,366.00
Power Supply 9 V / 1 A (European)
Power Supply 9 V / 1 A (European)
₹3,705.00
ISO Calibration Certificate for Noise Meter CAL-SL
ISO Calibration Certificate for Noise Meter CAL-SL
₹18,436.00
Carrying Case with hard foam insert
Carrying Case with hard foam insert
₹3,854.00
Microphone PCE-NDL 10-MIC
Microphone PCE-NDL 10-MIC
₹11,443.00
Class I Acoustic Calibrator PCE-SC 09
Class I Acoustic Calibrator PCE-SC 09
₹74,385.00
Lockable Mount
Lockable Mount
₹10,401.00

Description

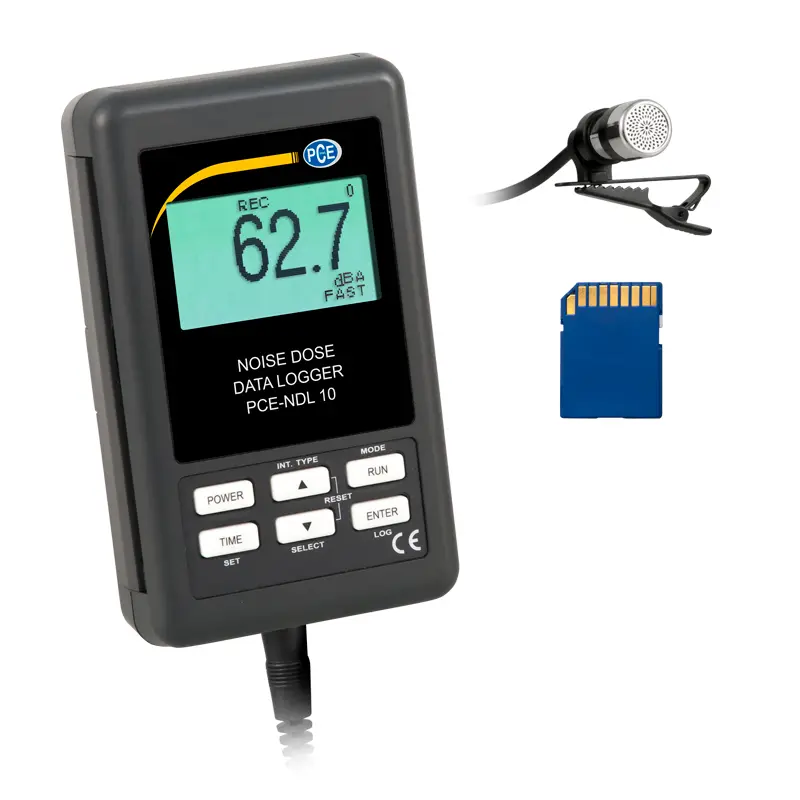

PCE-NDL 10 is a high-quality noise dose meter or sound level meter with data logging capabilities. This noise dosimeter records sound pressure level (SPL) measurements as well as dosimetry (dose) measurements in decibels (dB) and saves the measurement data to the internal memory, which can then be transferred to an SD card.


Note: To set up the SD card for the first time, the PCE-NDL 10 must be connected to AC power adapter (AC power supply NET-LUT or NET-LUT-US sold separately - see accessories tab).

Highlights

- Measures SPL and dose in dB
- Manual or adjustable automatic data logging
- Data hold, min / max, date / time, auto shutdown (on / off) and audible alarm (on / off) functionality
- Internal memory and SD card slot (SD card included)
- RS-232 and USB interface
- Backlit LCD screen
- Portable

Specification

Type SPL and dose
Measuring range 30 ... 130 dB (SPL) / 70 ... 130 dB (dose, in 1 dB increments)
Dose rating levels 80, 84, 85, 90 dB
Dose exchange rate 3, 4, 5 or 6 dB
Accuracy
(at 23 ± 5 ° C, < 94 dB)
± 3.5 dB (31.5 Hz)
± 2.5 dB (63 Hz)
± 2.0 dB (125 Hz)
± 1.9 dB (250 Hz)
± 1.9 dB (500 Hz)
± 1.4 dB (1000 Hz)
± 2.6 dB (2000 Hz)
± 3.6 dB (4000 Hz)
± 5.6 dB (8000 Hz)
Resolution 0.1 dB
Frequency range 31.5 ... 8000 Hz
Frequency weighting A and C
Time evaluation 125 ms (fast) / 1 s (slow)
Data logging Manual (interval must be set to "0") or adjustable automatic
Adjustable auto logging interval 1 ... 3600 s
Sampling rate Approx. 1 second
Storage Internal memory for up to 16,000 readings, SD card slot for 1 ... 4GB SD card (card included)
Interface RS-232 and USB
Measurement error ≤ 0.1% of the total stored data
Measurement outside range Display of "----"
Functions Data hold, min / max, date / time, auto shutdown (on / off), audible alarm (on / off)
Calibration Internal calibration possible at 94 dB with PCE-SC 42 acoustic calibrator (sold separately - see accessories)
Power supply 6 AAA Batteries or optional power supply
Operating conditions 0 ... +50 ° C (+32 ... +122 ° F), < 85% RH
Display Backlit LCD, 50 x 30 mm (1.97 x 1.18")
Microphone Electric condensation / Ø 12.7 mm (0.5")
Approx. device weight 250 g (0.56 lb)
Approx. device dimensions 132 x 80 x 32 mm (5.20 x 3.15 x 1.26")

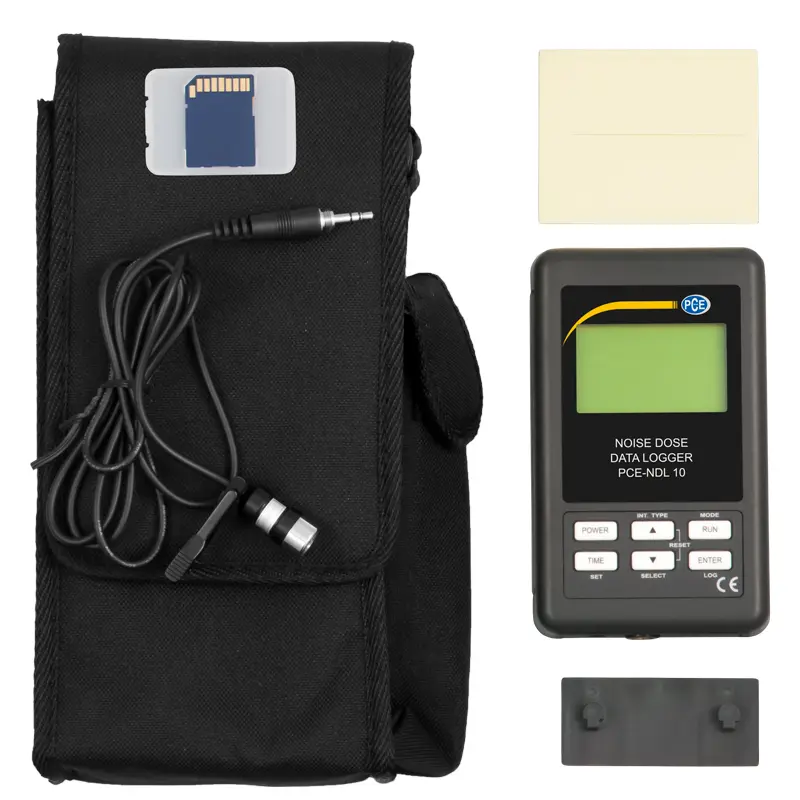

Delivery Scope

1 x PCE-NDL 10 data-logging noise dose meter

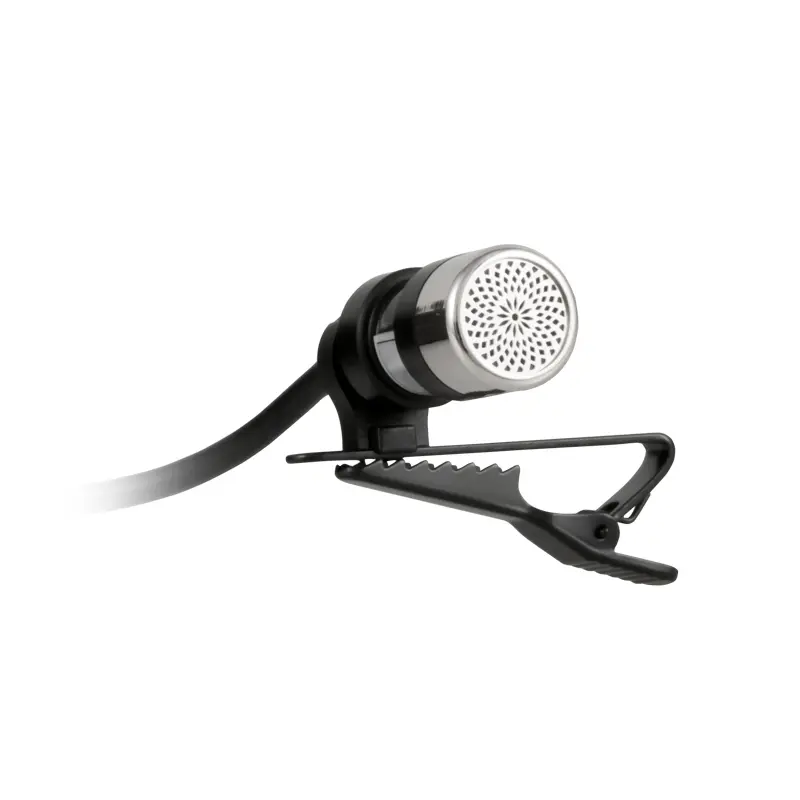

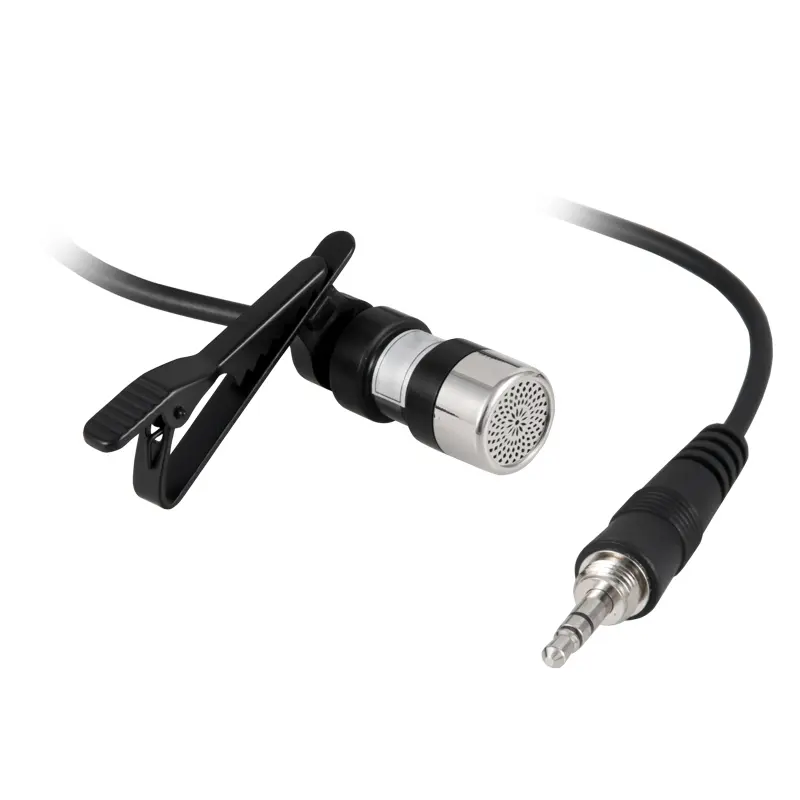

1 x microphone with clip
1 x SD card
1 x carrying case
1 x carrying strap
1 x user manual
