Ammonia (NH3) NH / GSS sensor / semiconductor sensor
- Measuring range: 0 … 1000 ppm
- Minimum: 2 ppm
- Accuracy: <± 15%
- Resolution: 1 ppm
- Temperature: 0 … +40 ° C
- Humidity: 10 … 90%

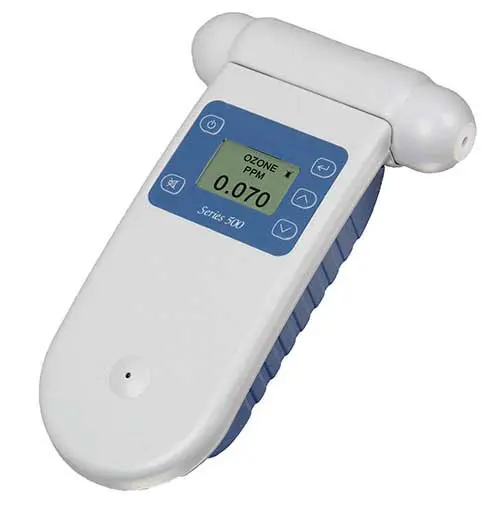

Technical Specification of the Gas Detector Ozone Meter | |||||
Model 500 Series | |||||
As Model 200 and 300 Series, in addition: | |||||
Digital output | RS232 with USB converter | ||||
Data Logger | 8188 values | ||||
PC transfer | Software and data cable included | ||||
Model 200, 300 and 500 Series | |||||
Power supply | 12 V DC | ||||
Rechargeable battery | Lithium-Polymer 12 V DC / 2700 mAh | ||||
Charger | 12.6V 2 A | ||||
Charging voltage | 12.6V | ||||
Charging time | 2... 3 hours | ||||
Lifecycle | > 500 charges | ||||
Housing | PC & ABS / IP20 & NEMA 1 | ||||
Dimensions (incl. opt. sensorsavailable) | 7.7 x 4.8 x 2.1 in / 195 x 122 x 54 mm | ||||
Weight | < 1 lb / 460 g (with battery) | ||||
Approvals | EN 50082-1: 1997, EN 50081-1: 1992, CE | ||||
You can find the technical data on a variety of sensor heads to the ozone measurement device AQ series below in the "Optional accessories for ozone meter AQ series". |
Delivery Contents of the Gas Detector
1 x Basic device AQ-500
1 x 12V DC 800-mA AC/DC Power
Supply Unit
1 x Battery pack 12V
1 x Software und data cable (USB)
1 x Operating
instructions
Attention! No sensor head is included in the delivery, it must be ordered separately as an accessory!
Optional
accessories for ozonemeter AQ series:
Sensors:
< ±0.008
0 ... 0.1
0.0010 ... +40Ozone (O3)
Leckfin. OZK
0.010.010 ... +40Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
The fixed gas detector base AQ-FM S900 for AQ-sensor heads can communicate with a variety of hardware systems. The transmitter can also be used as switching relays with user-set values, as 4-20 mA gas transmitter and it can communicate with a network via the RS485 interface. Changing sensor heads is quick and easy, no configuration changes required. Calibration certificate included. Wall mounting kit.
Attention! No AQ sensor head is included in the delivery, it must be ordered separately as an accessory!
