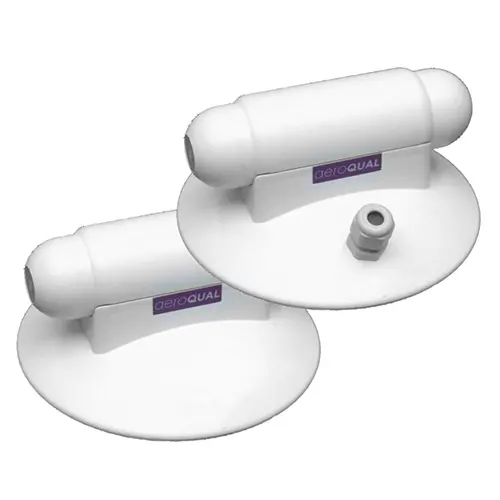

The gas detector / transmitter AQ-FM S900 is used to measure and control gas concentrations, and can communicate with a variety of hardware systems. The transmitter can also be used as switching relays with user-set values as a 4-20 mA gas transmitter and it can communicate with a network via the RS485 interface. Changing sensor heads is quick and easy, no configuration changes required. Calibration certificate included.
Attention! No AQ sensor head is included in the delivery, it must be ordered separately as an accessory!
|
Technical Data | |
| Power supply | Regulates 12V, 800 mA |
| Analog output | 4-20 mA (optional isolated), 10... 30V |
| Externalsignal | Transistor output |
| External control signal | Min.- Max. Alarm,control and diagnostics |
| Energy supply | Standby switch |
| Interface | RS485 |
| Jumper | J1, J2, J3 Terminal resistance |
| Connector | Screwed |
| ID | 1 Standard - Customer configurations from 1 to 255 |
| Alarm thresholds | Customer configurable |
| Control of the switching points | Customer configurable |
| Sensor head | Removable, interchangeable and reprocessed |
| Scanning | Active sampling by internal blower |
| Temperature and humidity sensor | Measuring range
temp.: -40°F... 255°F / -40°C... 124°C Measuring range air humidiy: 0... 100% RH |
| Software | Configuration via the included software |
| PC Data Logging & Networking CD | Optional - Article-No.: R60 |
| USB Connection | Optional - RS485 to USB Adapter: R53 |
| Power supply | Optional - 12V
DC DIN mounting rail 100... 250V AC R37 |
| Included housing | Polycarbonate equivalent IP20 and NEMA 1 |
| Size with base unit | 64 x 130 Ø (mm); 2½ x 5 1/8 Ø (in) |
| Attachment | Screw device |
| Weight | Approximately .5 lbs / 200 g |
| Approval pursuant to Part 15 of the FCC Regulation | EN 50082-1: 1997 EN 50081-1: 1992 |
