Paint Gauge PCE-CT 27FN

Order no.: PCE-CT 27FN
GTIN (EAN): 4250348714770
₹66,499.00
₹78,468.82
price ex. (VAT / delivery)
:
4250348714770
PCE-CT 27FN
Delivery time: 1-2 working days
Ferrous & Non-ferrous metals
1250 µm
No
No

Accessory

ISO Calibration Certificate for Coating Thickness Meter
ISO Calibration Certificate for Coating Thickness Meter
₹25,728.00
Coating Thickness Gauge Spare Probe SE-CT 27FN
Coating Thickness Gauge Spare Probe SE-CT 27FN
₹14,865.00

Description

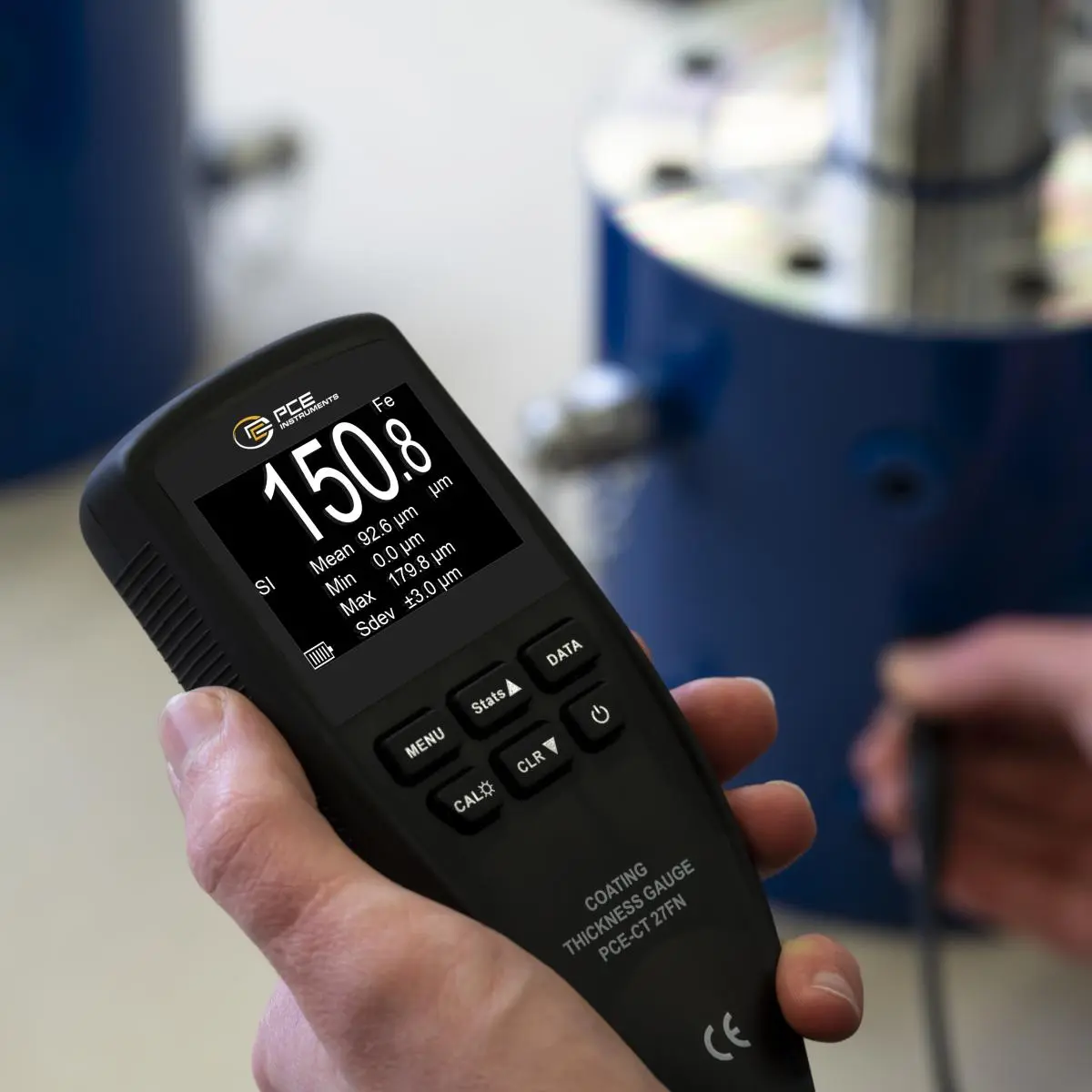

PCE-CT 27FN Paint Gauge

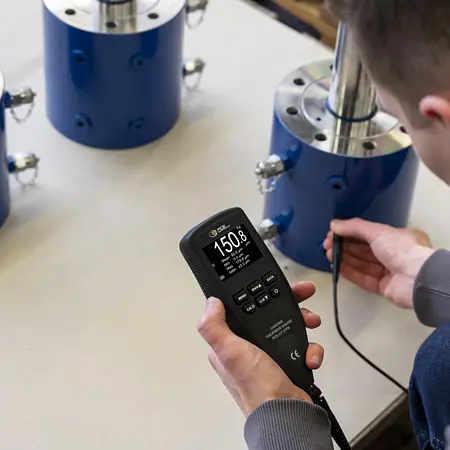

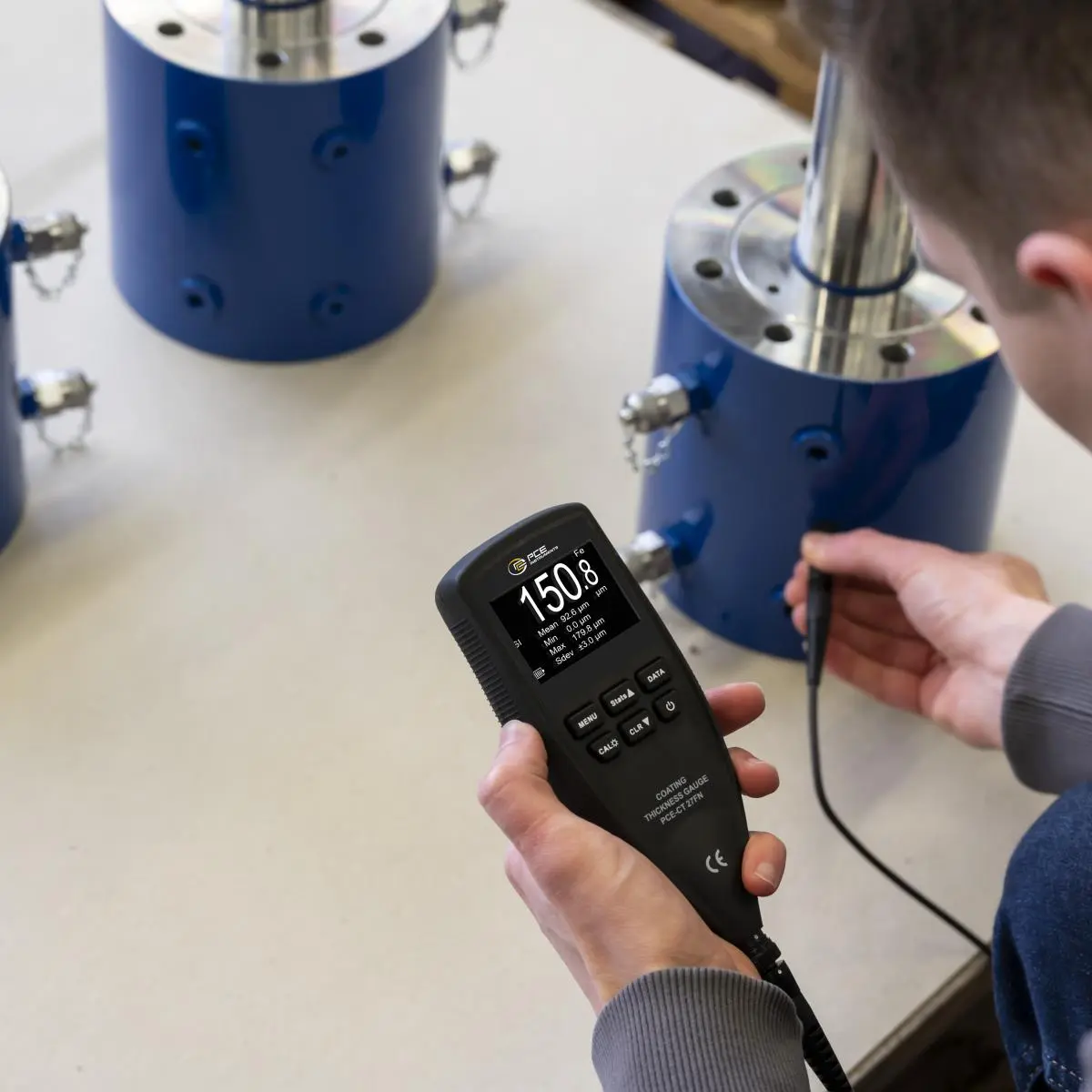

PCE-CT 27FN is a Paint Gauge that takes non-destructive measurements of nonmagnetic coating, insulating layer and dry film thickness (DFT) on metal substrates such as steel and aluminum. Ideal for surface testing, automotive paint inspection, material testing and manufacturing quality control applications, this Paint Gauge is designed to measure layers of paint, ink, plastic, chrome, copper, zinc, enamel, paper, glass, rubber and similar materials.


Highlights

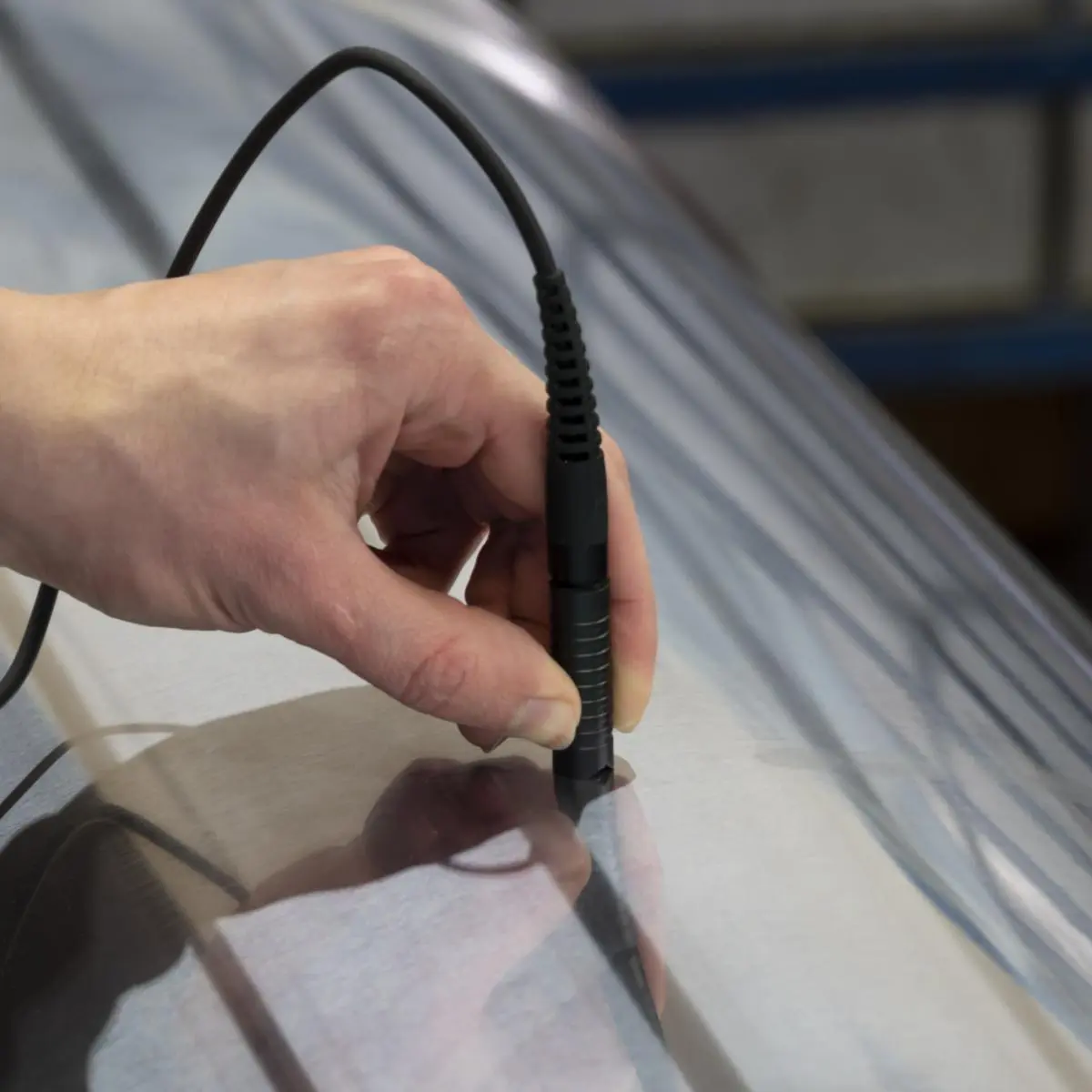

- Features an external sensor with v-groove for reliable measurement on small cylindrical parts
- Includes a set of calibration standards for ferrous and non-ferrous metals
- Comes with a set of plastic shims or foils

Specification

Measuring range 0 ... 1250 µm / 0 ... 50 mils
Accuracy ± (2% + 2 µm) / ± (2% + 0.1 mils)
Resolution 0.1 µm / 0.1 mil
Operating temperatures     -10 ... 50°C / 14 ... 122°F
Power 2 x 1.5V batteries
Dimensions 166 mm x 68 mm x 30 mm
6.54 in x 2.68 in x 1.18 in
Weight 0.180 kg / < 1 lb

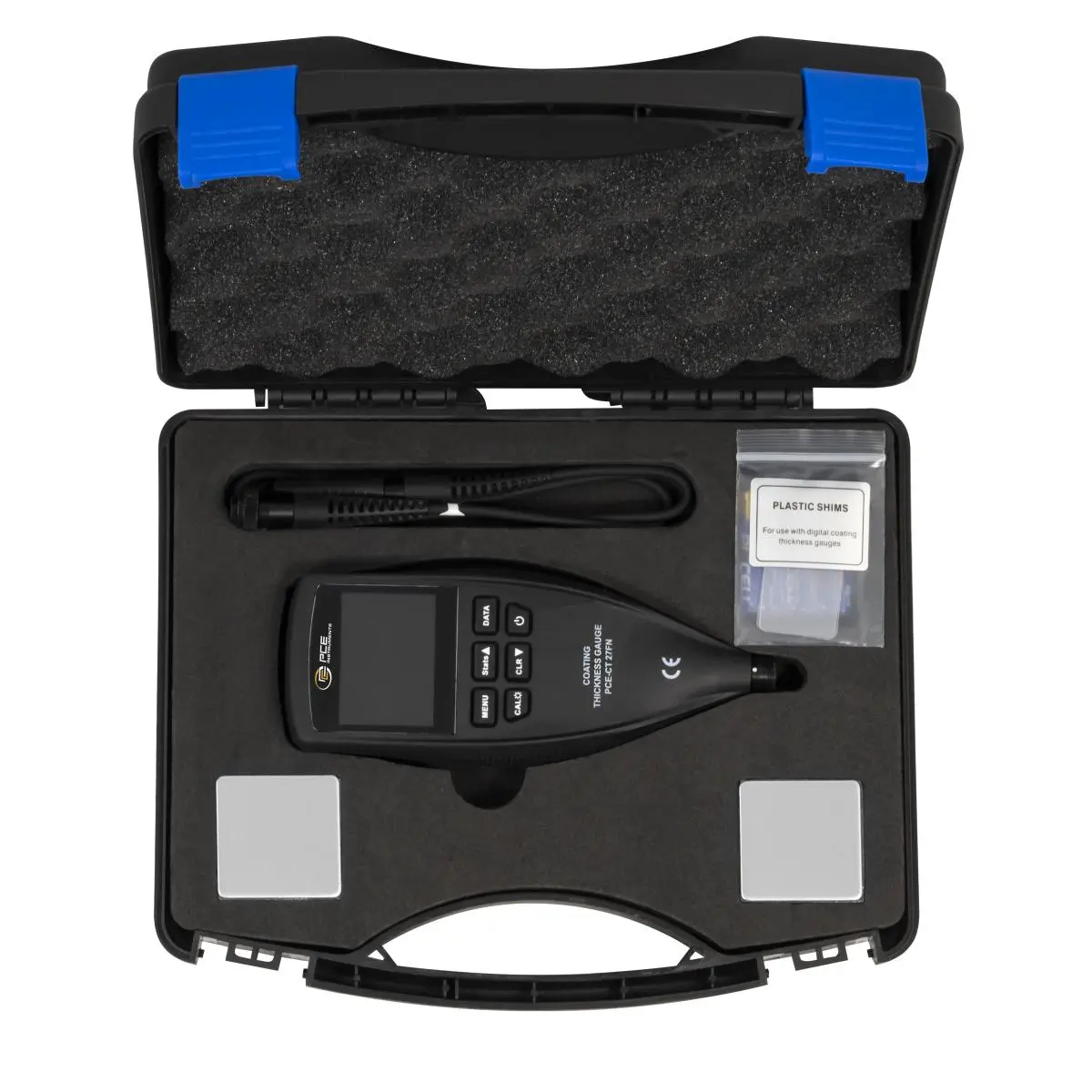

Delivery Scope

1 x PCE-CT 27FN Paint Gauge
1 x Set of calibration standards
1 x Probe with 1 m / 3.28 ft long cable
1 x Set of plastic shims
1 x Carrying case
2 x 1.5V batteries
1 x User manual
