Particle Counter PCE-AQD 20

Order no.: PCE-AQD 20
GTIN (EAN): 4250348719492
₹115,603.00
₹136,411.54
price ex. (VAT / delivery)
:
4250348719492
PCE-AQD 20
Delivery time: 1-2 working days

Description

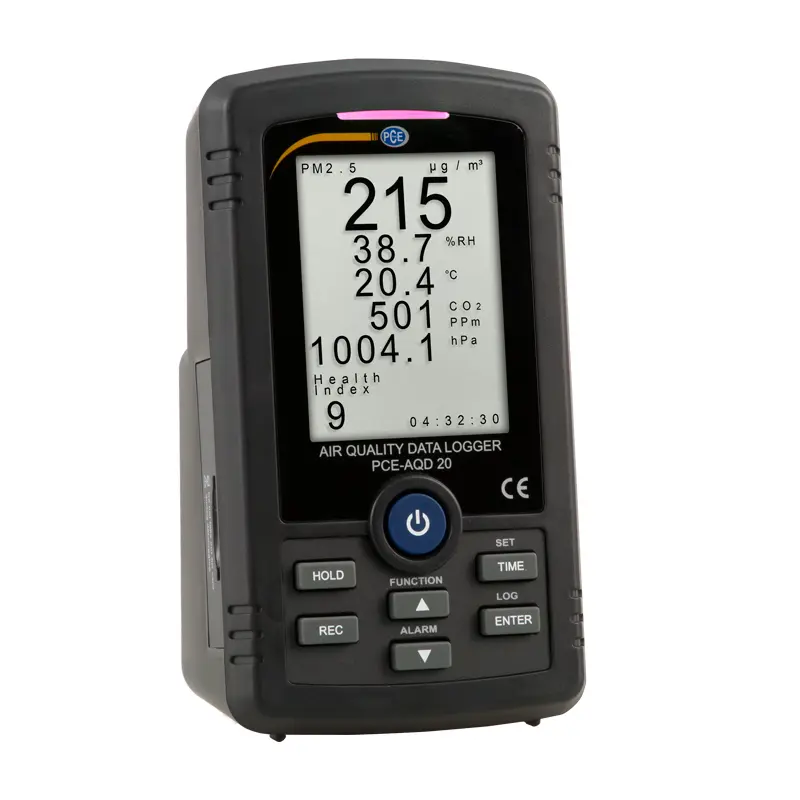

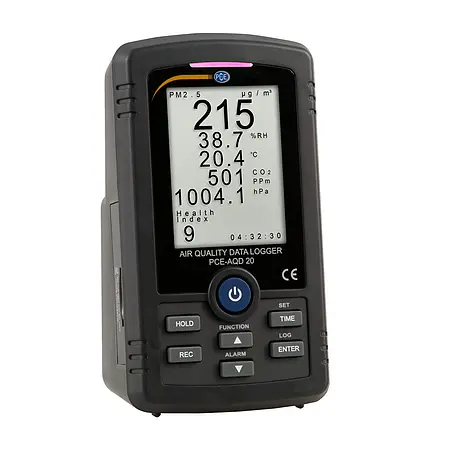

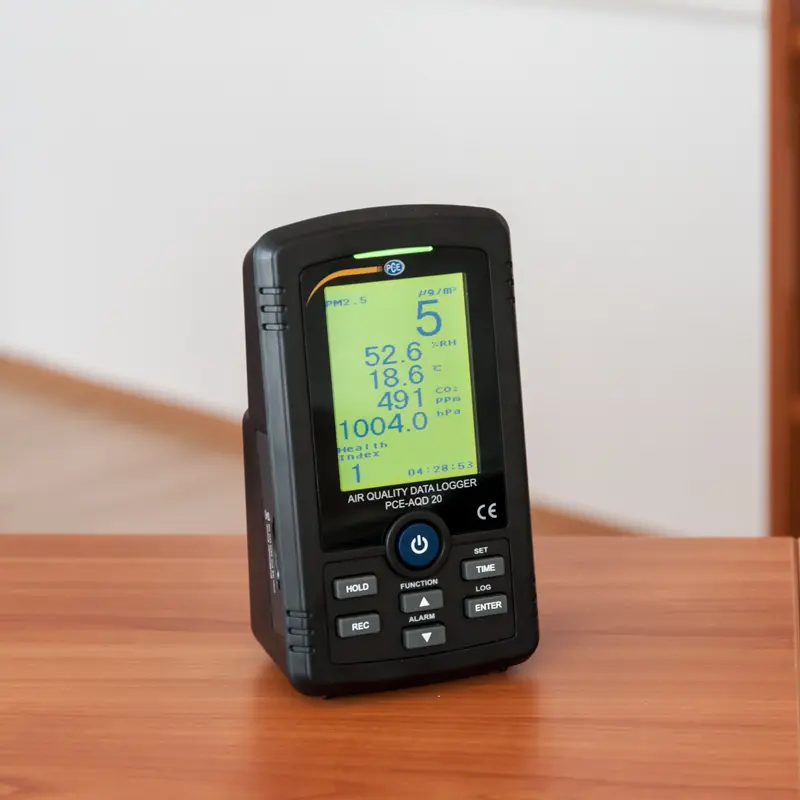

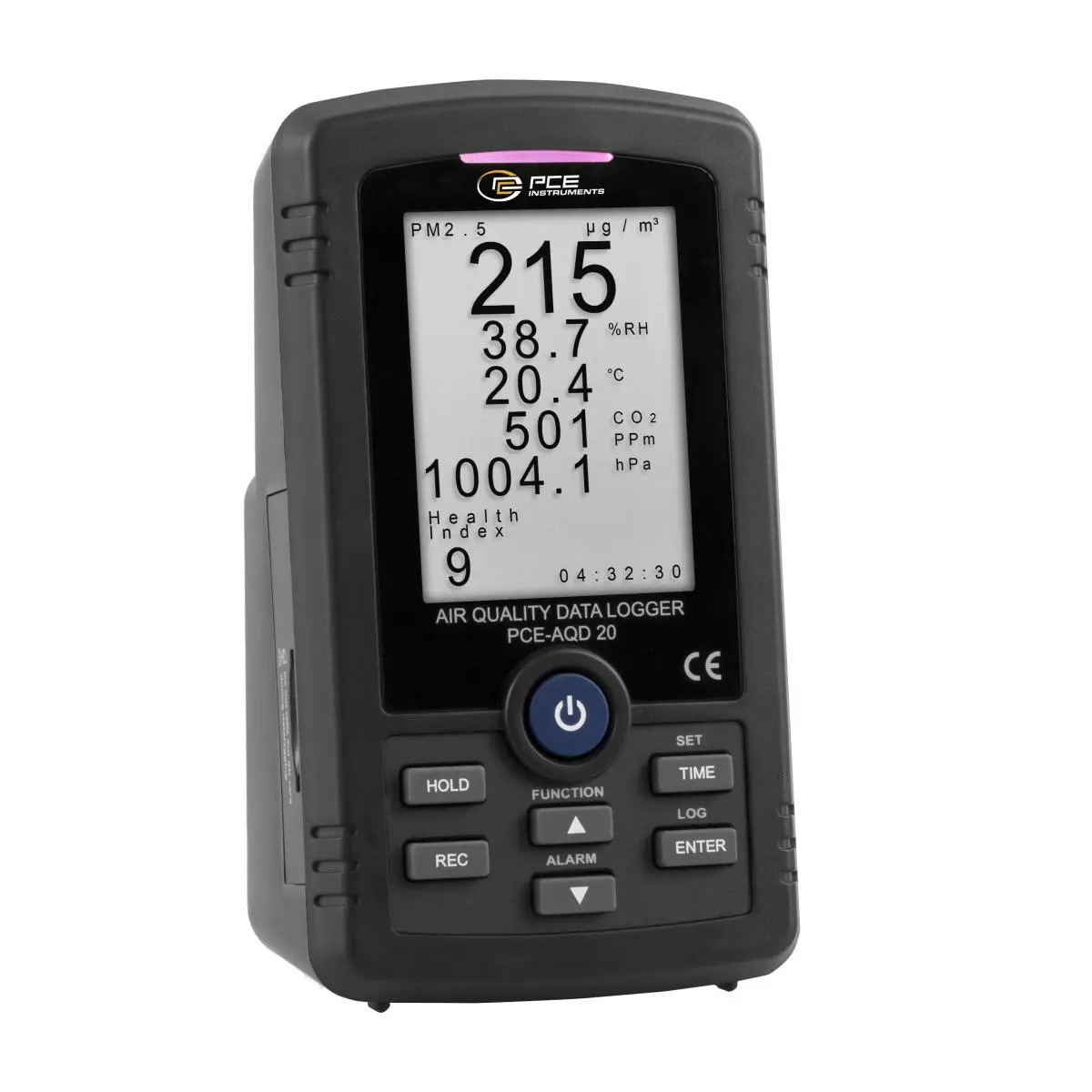

Particle Counter PCE-AQD 20
Air quality data logger for 5 parameters / Measures temperature, humidity, CO2, PM2.5 and air pressure / SD storage / XLS format / Large LCD / Power adapter and battery operation

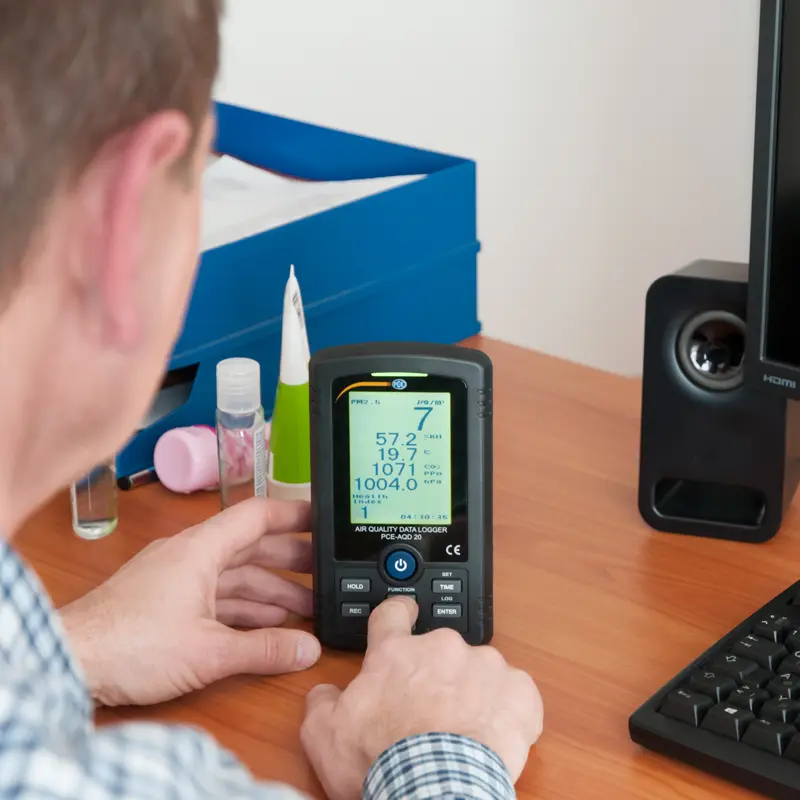

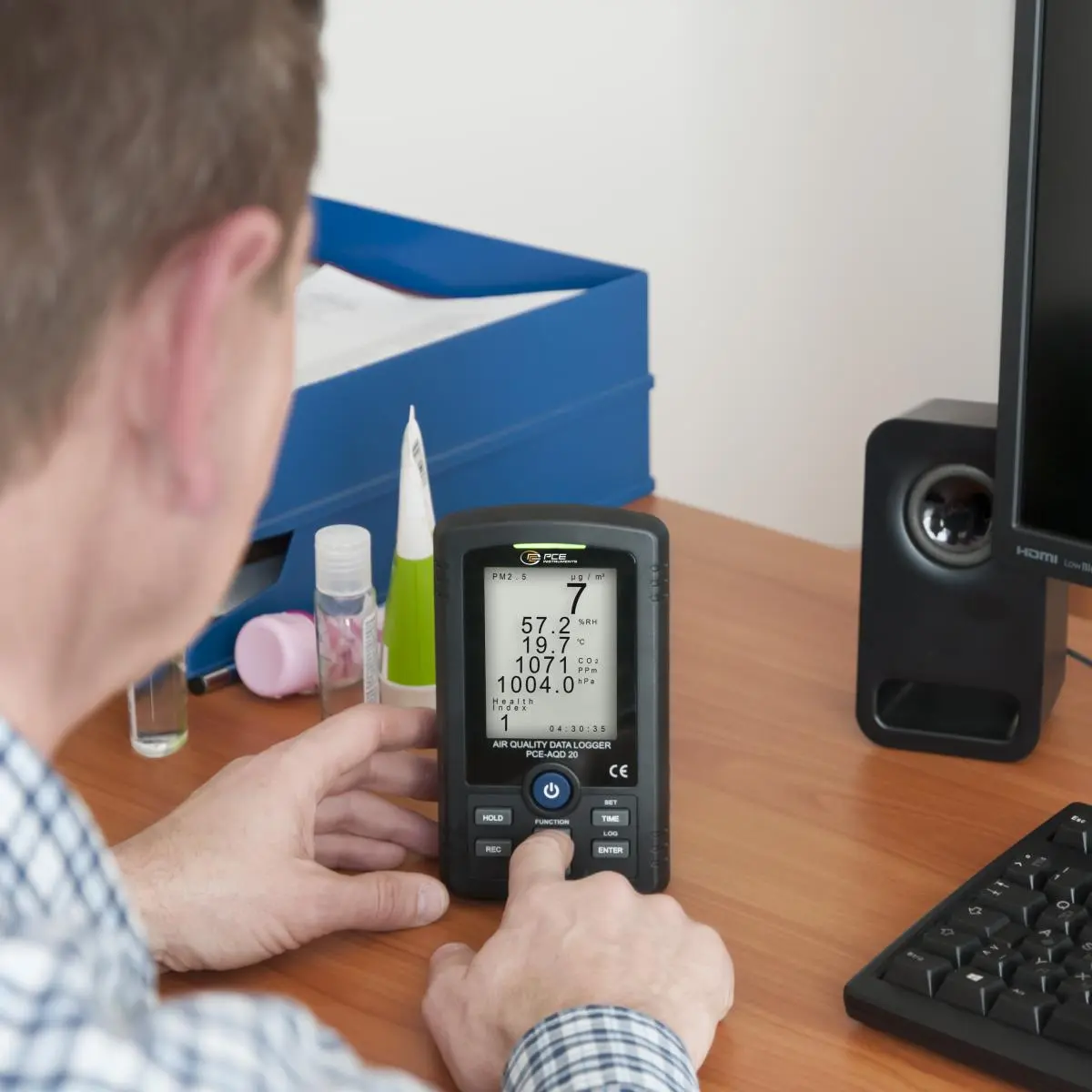

The air quality data logger PCE-AQD 20 is an ideal measuring device for monitoring the air quality at workplaces. The air quality data logger is ideal for continuous logging of air temperature, humidity, CO2, PM2.5 and air pressure. All these parameters give the occupational safety expert information about the air quality. The measured values ​​are stored by the CO2 air quality data logger on an SD memory card.

The format is XLS, so the measured values ​​can be read directly into Excel, without having to be incorporated into a new software. The measured values ​​are displayed on the large, illuminated display. The air quality data logger is operated by batteries or 9 V power supply unit. As a special feature, this air quality data logger is equipped with an alarm function. This offers the possibility to inform the user about an exceeding of temperature, air humidity or dust load. In addition to the measured values, the air quality data logger also informs about the current time.

Highlights

- 5 measuring functions
- Excel data logger on SD card
- Large display
- Battery and power adapter operation
- Ideal for workplace monitoring
- Alarm function

Specification

Measurement function PM2.5
Measuring range0 ... 250 μm / m³
Resolution1 μm / m³
Accuracy± (10% of rdg. + 15 μm)

Measuring function humidity
Measuring range 5 ... 95% rh
Resolution 0.1% RH
Accuracy > 70% RH: ± (3% of the prev
 + 1% RH)
 <70% RH: ± 3% RH

Measuring function temperature
Measuring range 0 ... 50°C / 32 ... 122°F
Resolution 0.1°C / 0.18°F
Accuracy ± 0.8°C / 1.44°F

Measurement function CO2
Measuring range 0 ... 10,000 ppm
Resolution 1 ppm
Accuracy < 1000 ppm: ± 40 ppm
  < 3000 ppm: ± (50 ppm + 3% of rdg.)
  > 3000 ppm: ± (50 ppm + 5% of rdg.)

Measuring function air pressure
Measuring range 10 ... 1100 hPa
Resolution 0.1 hPa
Accuracy ± 1.5 hPa

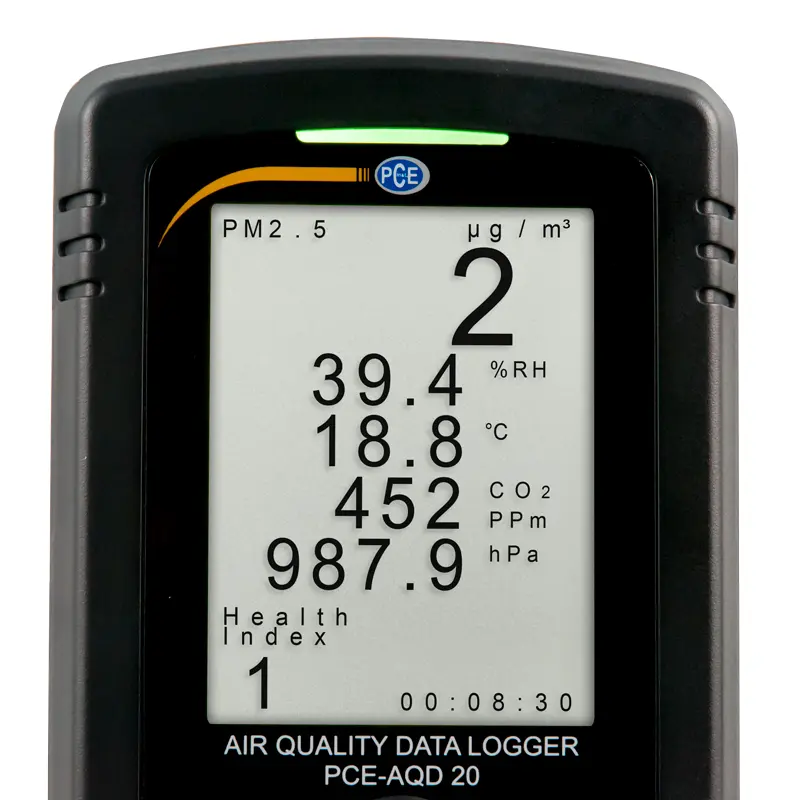

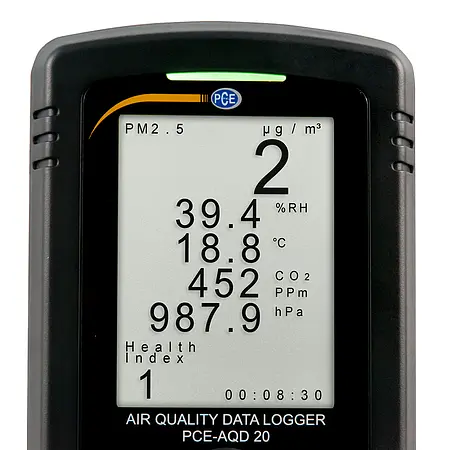

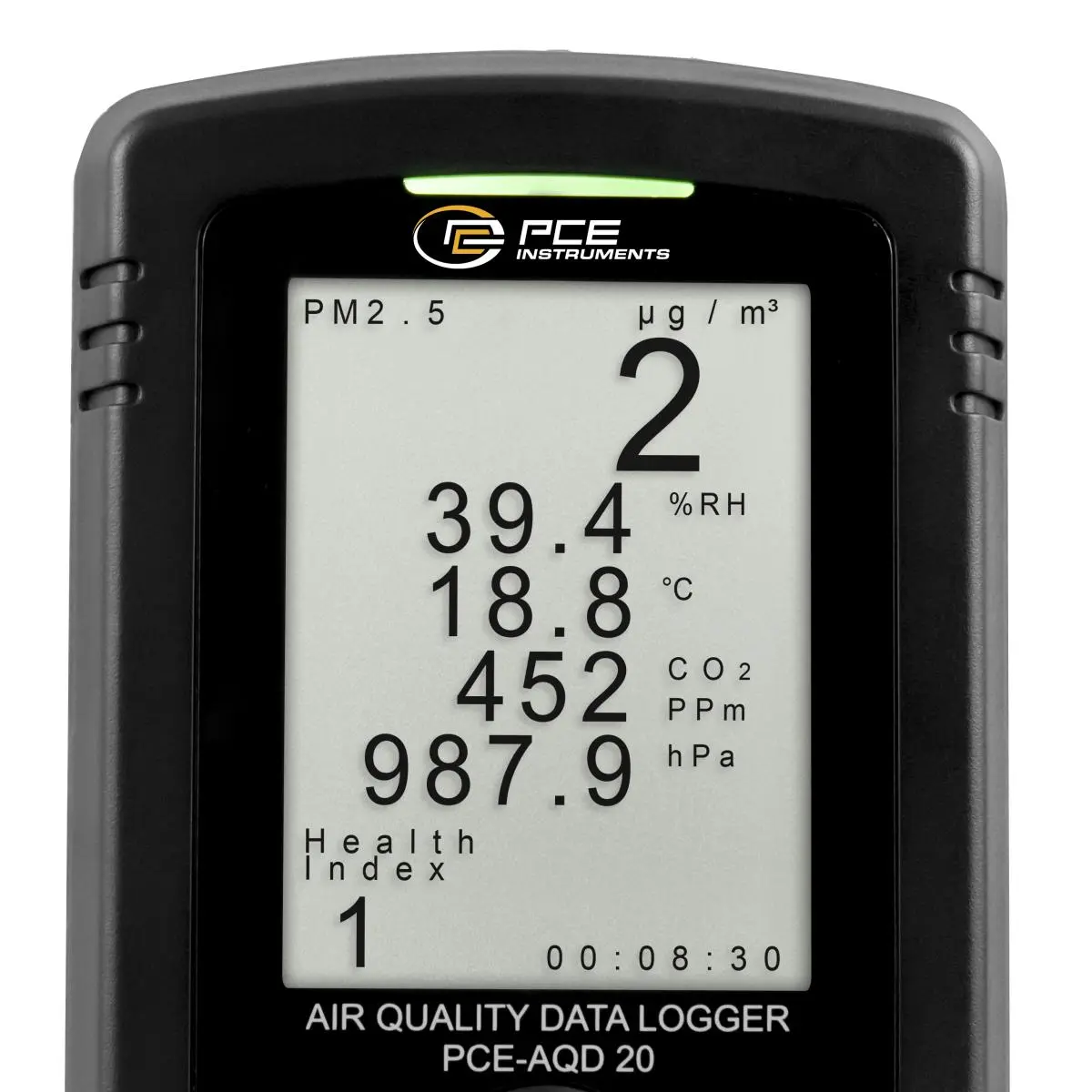

Display LCD display with backlight

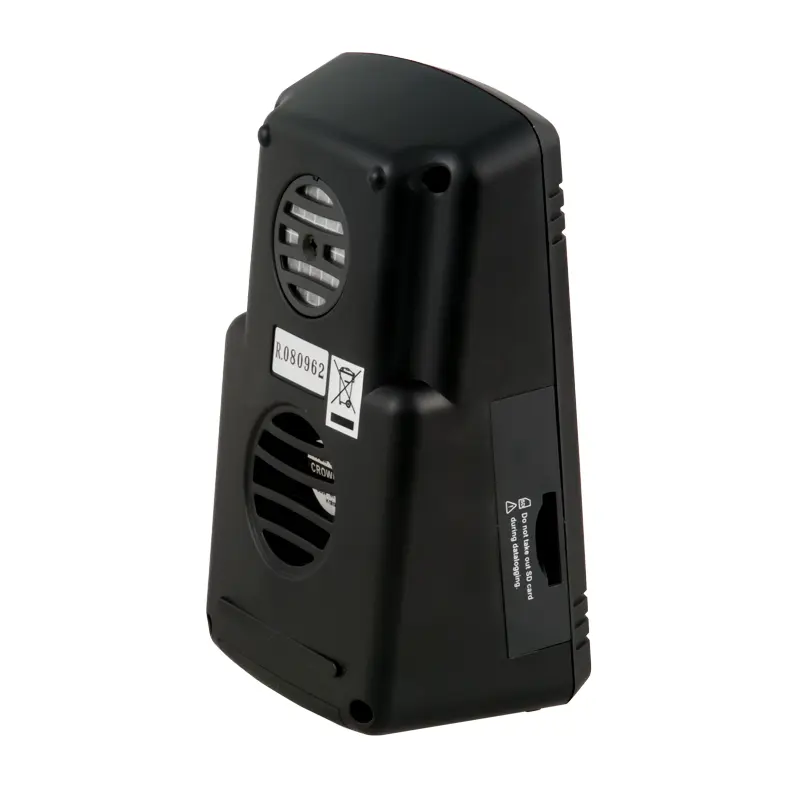

Storage SD card max. 32 GB
Storage rate 2 ... 3,600 s
Memory error < 0.1% of the completely stored data
Display Hold, Max, Min
Measuring rate About 1 s

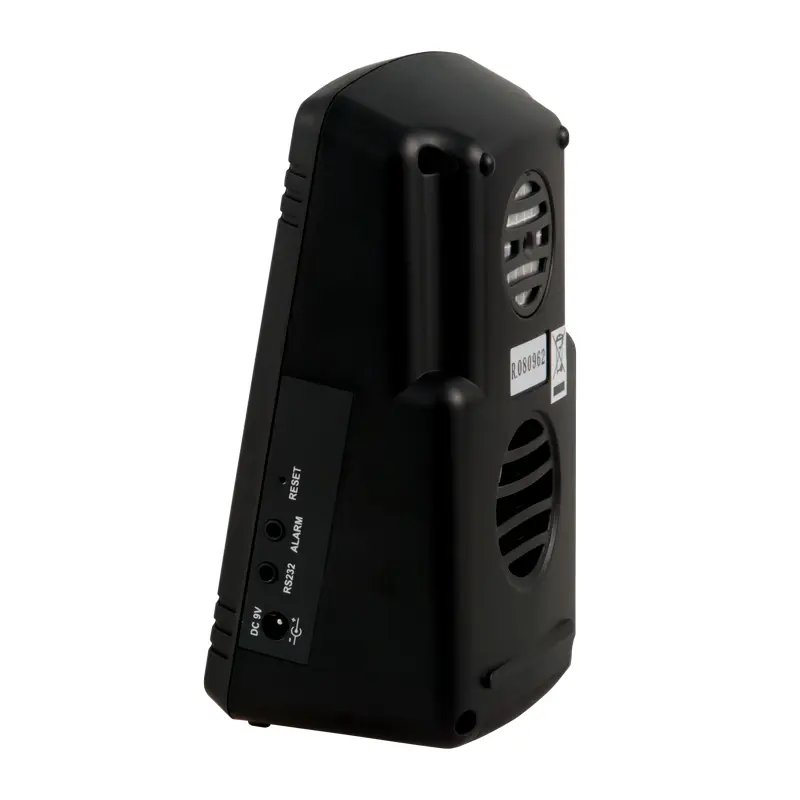

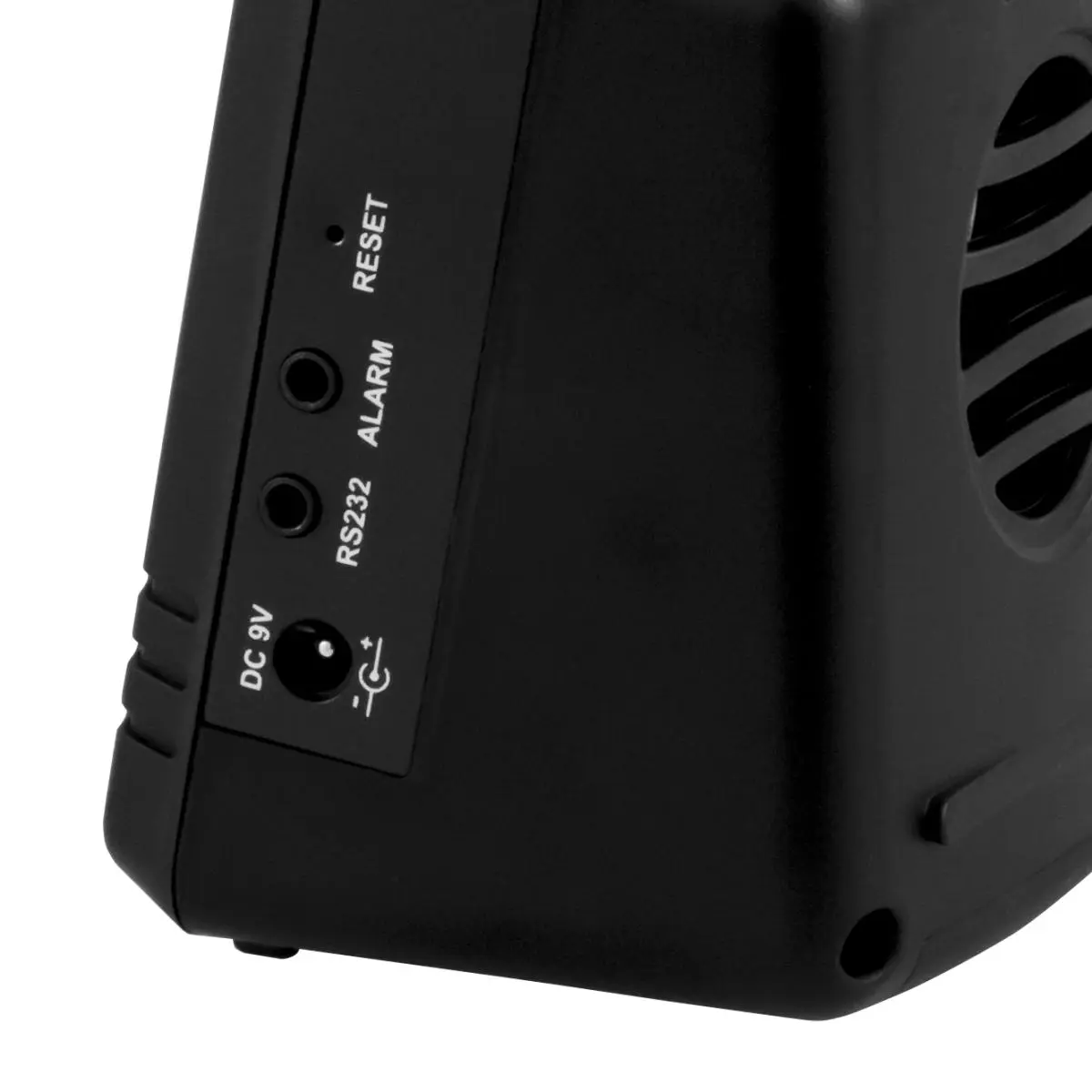

Interface Serial for live visualization on computers
  (Data cable SOFT-LUT-USB sold separately)
Alarm output OC output 24V / 70-mA DC
Power supply 6 x 1.5V AA battery
  9V / 1 A power adapter
Current consumption 230-mA without lighting
  approx. 250-mA with lighting
Operating conditions 0 ... 50°C / 32 ... 122°F, max. 80% rh
Weight About 387 g / < 1 lb
Dimensions 164 x 93 x 72 mm / 6.5 x 3.7 x 2.8 in

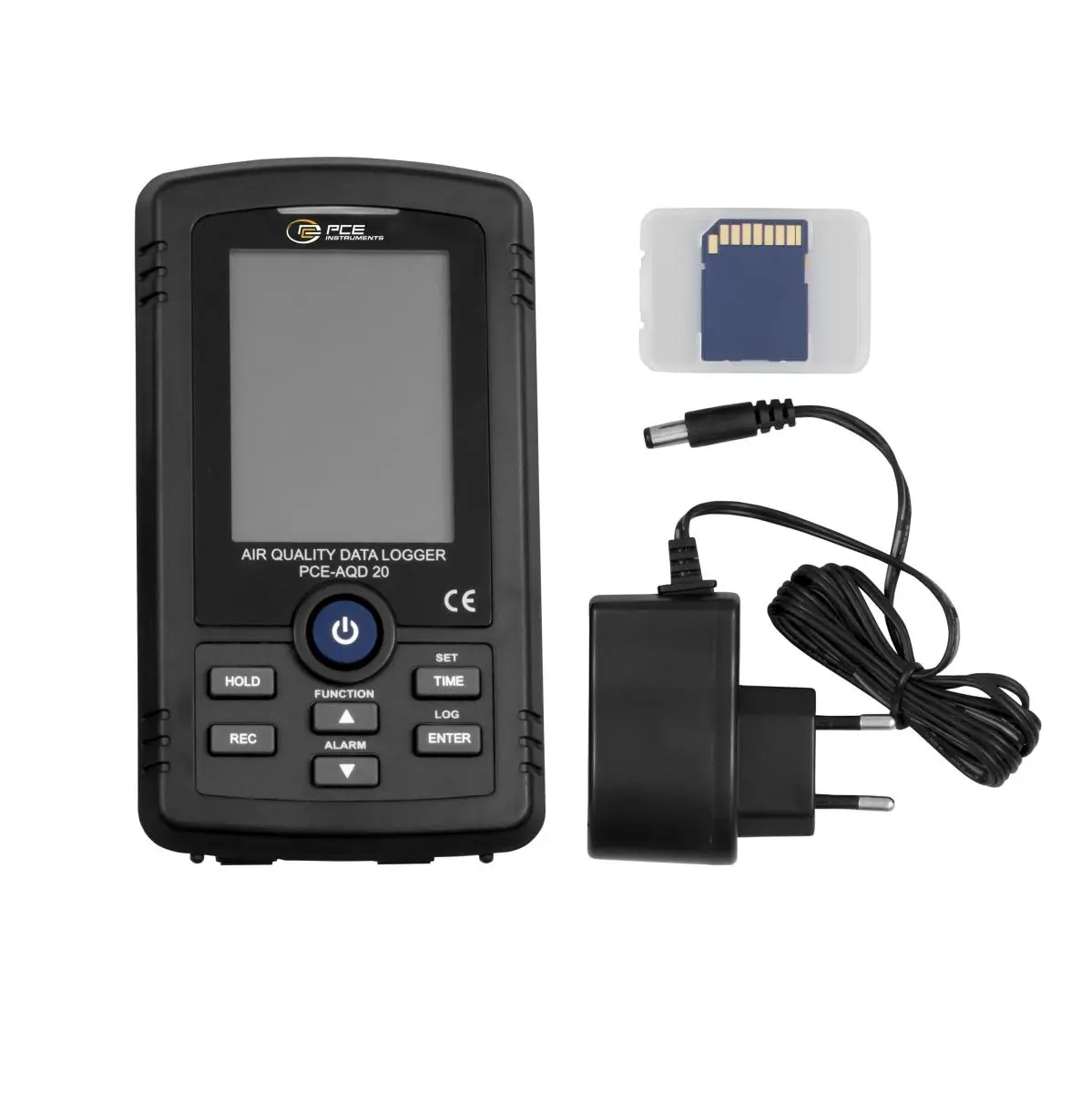

Delivery Scope

1 x Particle Counter PCE-AQD 20
1 x Mains power adapter 9 V / 1 A
1 x Instruction manual
