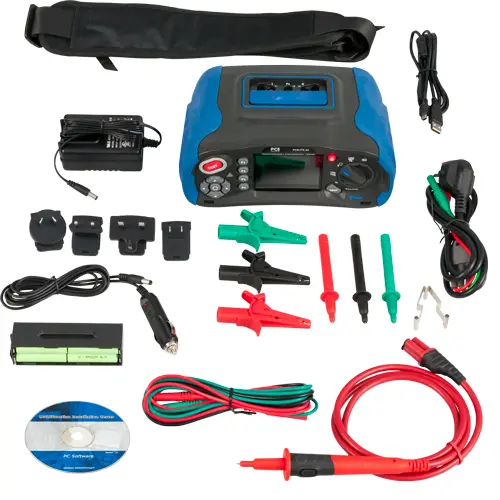

PAT Tester / Portable Appliance Testing Equipment PCE-ITE 50

Order no.: PCE-ITE 50

GTIN (EAN): 4250348714787

Accessory

CAL-ITE calibration certificate for installation tester

₹42,542.00

Description

PAT Tester/ Electrical resistance / Earthing resistance /

Loop impedance / Voltage measurement / Low resistance measurement / RCD test

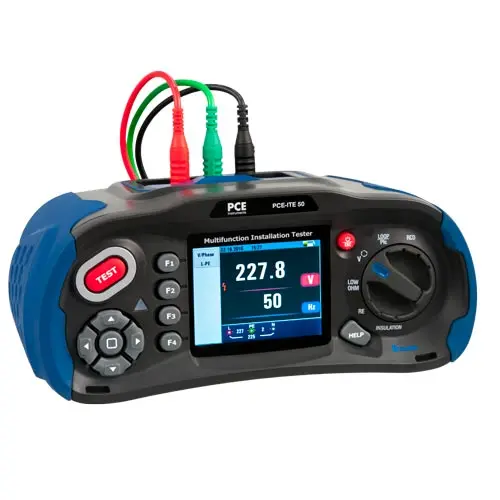

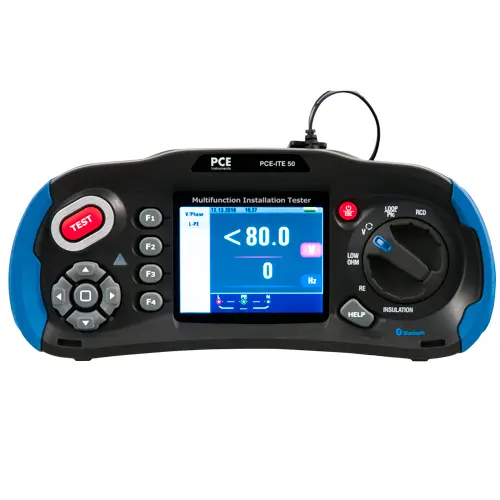

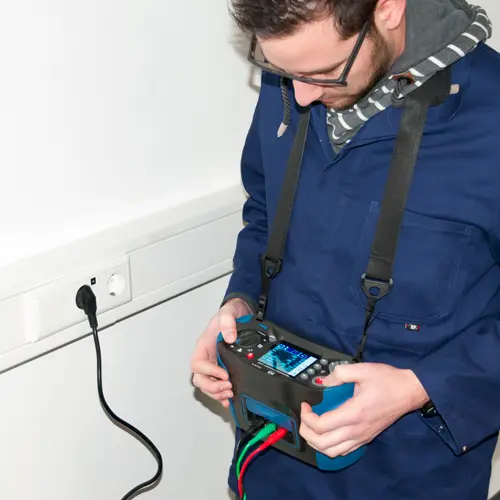

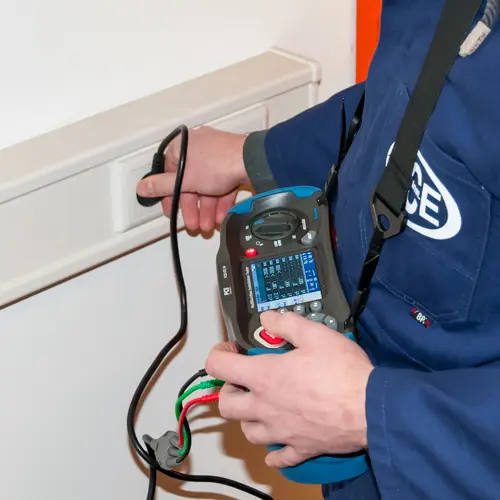

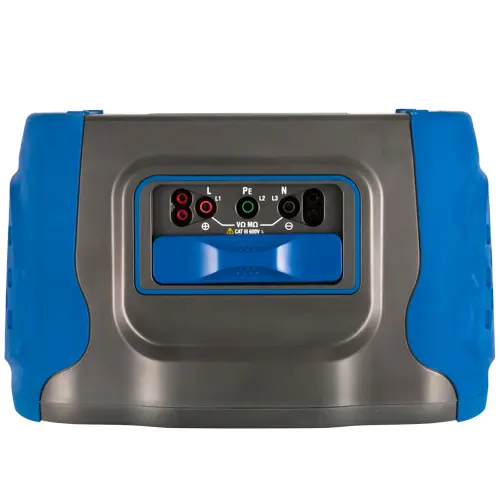

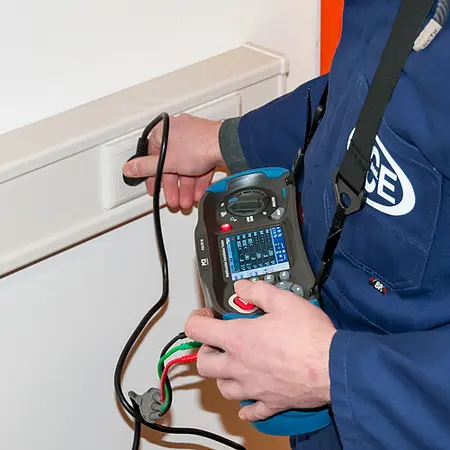

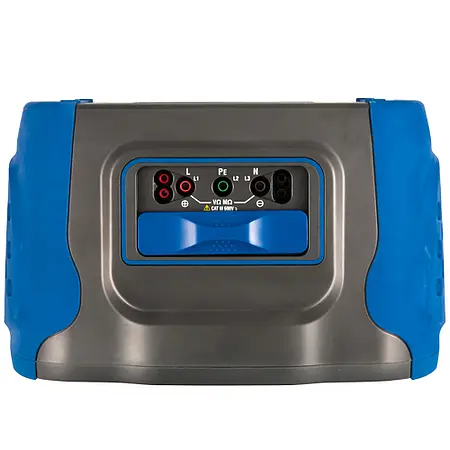

The PCE-ITE 50 is a robust PAT Tester with a large 3.5" TFT color LCD display. The PAT Tester also offers, in addition to the various measuring modes such as insulation resistance, grounding resistance, loop impedance, voltage, low-impedance measurement and RCD test with the camera function, the possibility of documenting suitable photos with the measurements. With the PAT Tester, you can ensure that fixed installations are safely and correctly installed. Thanks to the dual display, the intuitive symbols and the high viewing angle, you can comfortably and quickly perform your measurements with the PAT Tester. With the low-resistance measurement of the PAT Tester, you can check grounding conductors, potential equalization rails and protective conductors for low impedance.

The measuring range for low-resistance measurement with the PAT Tester is in the range of 0 - 2000 Ω with a resolution of 0.001 - 1 Ω. Probably the most important measurement of the PAT Tester is the measurement of insulation resistance. Electrical cables are placed under voltage during the insulation measurement in order to detect fault currents, Which generate material migration or heat. In most cases, these current faults are so minimal that they are not detected by protective devices and in the worst case they can lead to a fire. The PAT Tester can carry out installation measurement with a test voltage of 125V, 250V, 500V or 1000V. The load current is in each case 1 mA. The PAT Tester is independent of the mains supply. In order to bring all systems and circuits of a power supply system to a common potential (ground reference or potential reference) and to protect against short-circuit currents and overvoltages, the earthing resistor should be as low-impedance as possible. With a measuring range of 0 ... 2000 Ω with a resolution of 0.01 ... 1 Ω, the PAT Tester offers all the prerequisites for a meaningful measurement of the grounding resistance.

Highlights

- 3.5" color TFT LCD display
- Loop resistance L-N, L-PE and N-PE
- Adjustable FI test current
- SD card and Bluetooth
- Dual display
- Good / bad FI test
- Low Ohm measurement
- Up to 1000V terminal voltage

Specification

Isolation test
Terminal voltage	Measuring range	Resolution	Accuracy	Load current	Short circuit current
125V (0 ... 10 %)	0,125 ... 4 MΩ	0.001 MΩ	± (2% + 10 digits)	1-mA @ Last 125 kΩ	<= 1-mA
	4,001 ... 40 MΩ	0.01 MΩ	± (2% + 10 digits)
	40,01 ... 400 MΩ	0.1 MΩ	± (4% + 5 digits)
	400,1 ... 1000 MΩ	1 MΩ	± (5% + 5 digits)
250V (0 ... 10 %)	0,125 ... 4 MΩ	0.001 MΩ	± (2% + 10 digits)	1-mA @ Last 250 kΩ	<= 1-mA
	4,001 ... 40 MΩ	0.01 MΩ	± (2% + 10 digits)
	40,01 ... 400 MΩ	0.1 MΩ	± (3% + 2 digits)
	400,1 ... 1000 MΩ	1 MΩ	± (3% + 2 digits)
500V (0 ... 10 %)	0,125 ... 4 MΩ	0.001 MΩ	± (2% + 10 digits)	1-mA @ Last 500 kΩ	<= 1-mA
	4,001 ... 40 MΩ	0.01 MΩ	± (2% + 10 digits)
	40,01 ... 400 MΩ	0.1 MΩ	± (3% + 2 digits)
	400,1 ... 1000 MΩ	1 MΩ	± (4% + 5 digits)
1000 V (0 ... 10 %)	0,125 ... 4 MΩ	0.001 MΩ	± (3% + 10 digits)	1-mA @ Last 1 MΩ	<= 1-mA
	4,001 ... 40 MΩ	0.01 MΩ	± (2% + 10 digits)
	40,01 ... 400 MΩ	0.1 MΩ	± (3% + 2 digits)
	400,1 ... 1000 MΩ	1 MΩ	± (4% + 5 digits)
Low Ohm
Measuring range	Resolution	Accuracy		Max. open circuit voltage	Overload protection
2,000 Ω	0.001 Ω	± (1.5% + 30 digits)		5.8V	250 Vrms
20,00 Ω	0.01 Ω	± (1.5% + 3 digits)		5.8V	250 Vrms
200,0 Ω	0.1 Ω	± (1.5% + 3 digits)		5.8V	250 Vrms
2000 Ω	1 Ω	± (1.5% + 5 digits)		5.8V	250 Vrms
Continuity tester
Measuring range	Resolution		Max. open circuit voltage	Overload protection	Short circuit current
2000 Ω	0.01 Ω		5.8V	250 Vrms	>= 200-mA
Grinding resistance
L-PE (Hi-Amp): Load current 4.0 A
Measuring range		Resolution		Accuracy
0.23 ... 9.99 Ω		0.01 Ω		± (4% + 4 digits)
10.0 ... 99.9 Ω		0.1 Ω		± (4% + 4 digits)
100 ... 999 Ω		1 Ω		± (4% + 4 digits)
L-PE (without tripping): Load current 15-mA
Measuring range		Resolution		Accuracy
0.23 ... 9.99 Ω		0.01 Ω		± (5% + 6 digits)
10.0 ... 99.9 Ω		0.1 Ω		± (5% + 6 digits)
100 ... 999 Ω		1 Ω		± (5% + 6 digits)
L-N: Load current 4.0 A
Measuring range		Resolution		Accuracy
0.23 ... 9.99 Ω		0.01 Ω		± (4% + 4 digits)
10.0 ... 99.9 Ω		0.1 Ω		± (4% + 4 digits)
100 ... 999 Ω		1 Ω		± (4% + 4 digits)
RCD Test
RCD (In)			10-mA, 30-mA, 100-mA, 300-mA, 650-mA, 1 A
Factors			x 1/2, x1, x2, x5
Accuracy of the tripping time			± (1% + 1 ms)
Signal form of the test current			Sine (AC)
Tripping characteristics			G and S
Release time			0° or 180°
Voltage range			194 ... 260V AC (50/60 Hz)
Accuracy of current measurement			± (5% + 2 digits)
RCD Types			Type A, Type B
Voltage measurement
Measuring range		Resolution		Accuracy
80...500 V AC/DC		1 V		± (2 % + 2 digits)
Frequency measurement
Measuring range		Resolution		Accuracy
45...65 Hz		1 Hz		±2 Hz
Grounding measurement
Measuring range		Resolution		Accuracy
0.00...99.99 Ω		0.01 Ω		± (2% + 30 digits)
100.0...999.9 Ω		0.1 Ω		± (2% + 6 digits)
1000...2000 Ω		1 Ω		± (2% + 6 digits)
General specifications
Power supply			8 x 1.2 ... 1.5V AA batteries
Operating time			ca. 15 h
Measurement category			CAT III 600V
Protection class			IP 65
Display			3.5" TFT (320 x 240 Pixel)
Operating environment			0 ... 45°C 0 ... 95% rH, non condensing
Measurements			24.2 x 10.5 x 14.5 cm
Weight			1.56 kg / 3.4 lbs
