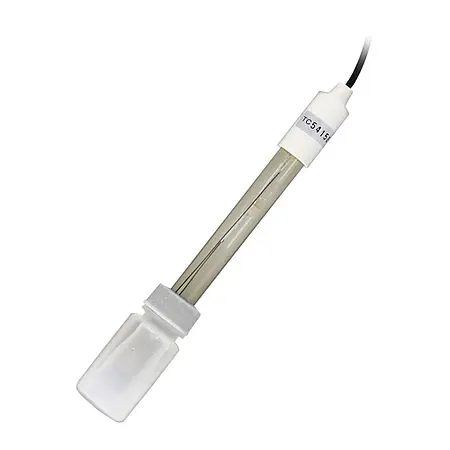

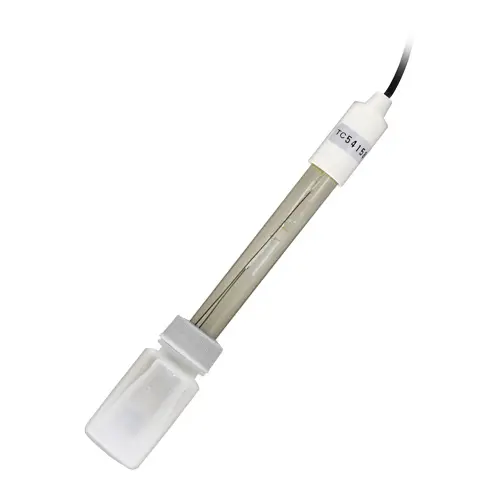

Heavy-duty pH electrode PE-21 for schools, universities etc.

Order no.: PE-21
GTIN (EAN):
1 pc. / pc.

Description

This pH electrode is for pH meters with a BNC connector. The pH electrode is especially suitable for industrial applications. Thanks to the 3/4” thread, the electrode can be safely installed in tanks, basins and pipelines. By purchasing this industrial pH electrode, you are taking a step towards precision measurement. Although this pH electrode is a complex and sensitive device, its robust structure will ensure many years of use if operated correctly.

Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 … 95 °C
Application Aqueous media
Reference Food processing, photography, laboratory, paper industry,
Electroplating industry, schools & universities
Electrolyte 3M KCL
Diaphragm Ceramic
Tip shape Rounded tip
Shaft / sensor material PPS
Shaft / sensor length177.5 mm
Shaft / sensor diameter  26.5 mm
Min. immersion depth35 mm
Cable length5 m
Connection BNC
Operating pressure6 bar max.
Housing thread size3/4” NPT
Weight250 g


Delivery Scope

1 x PE-21 pH electrode
