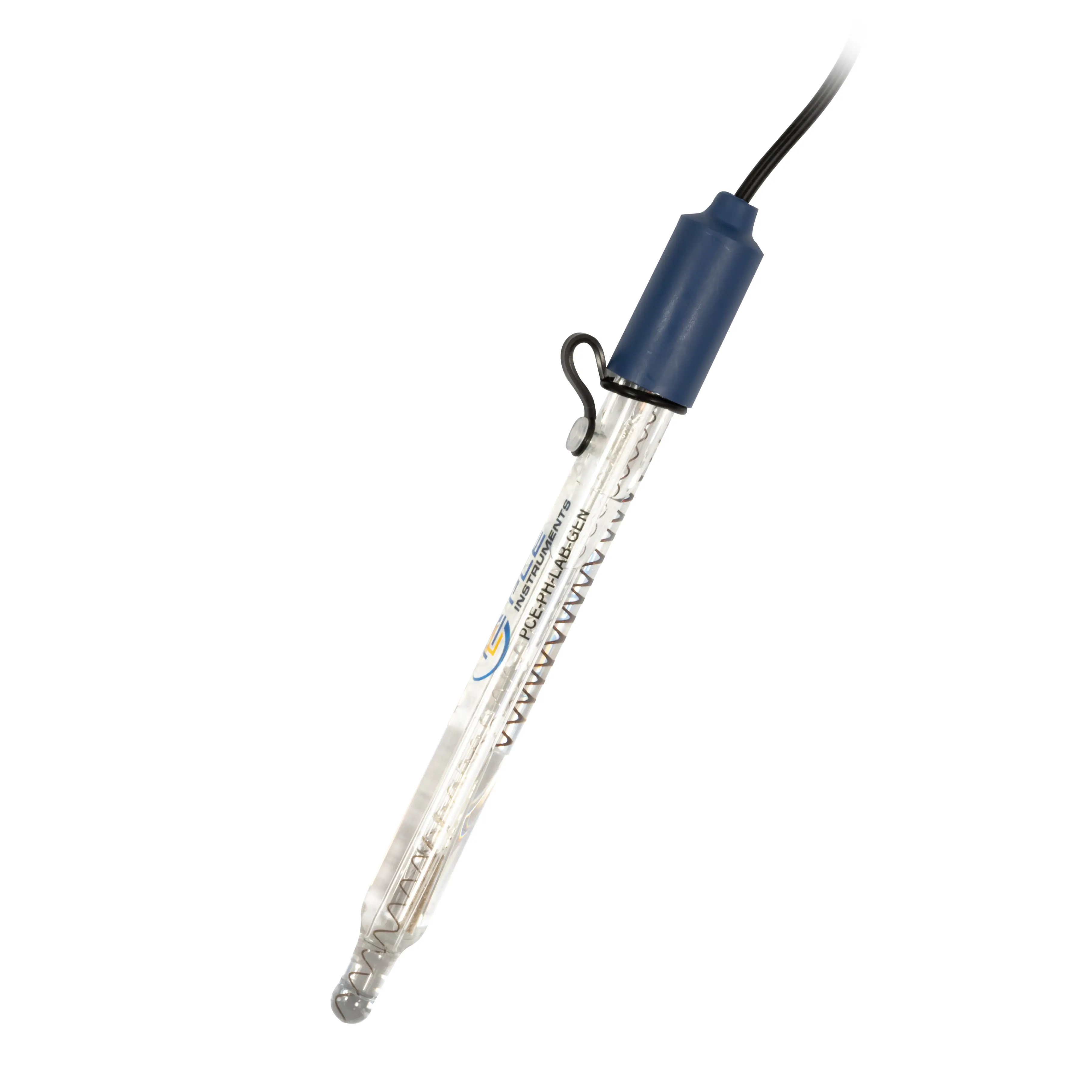

Laboratory pH electrode PCE-PH-LAB-GEN Laboratory application

Order no.: PCE-PH-LAB-GEN
GTIN (EAN):
1 pc.

Description

The pH electrode for general laboratory applications is a reliable choice for precise pH measurements in aqueous media. With its robust glass design and high-quality workmanship, this electrode offers a long service life and consistent measurement results. It is ideal for routine applications in chemical, biological and medical laboratories. Thanks to its universal compatibility with common pH measuring devices, it can be used for a wide range of applications.

Highlights


  • Wide range of applications:
    Precise pH measurements in aqueous media for routine applications
  • Robust construction:
    High-quality glass housing for chemical resistance and easy cleaning
  • Refillable reference:
    Extends service life and offers flexibility of use
  • High accuracy:
    Ag/AgCl reference with ion exchanger and 2 x ceramic diaphragm for consistent results
  • User-friendly design:

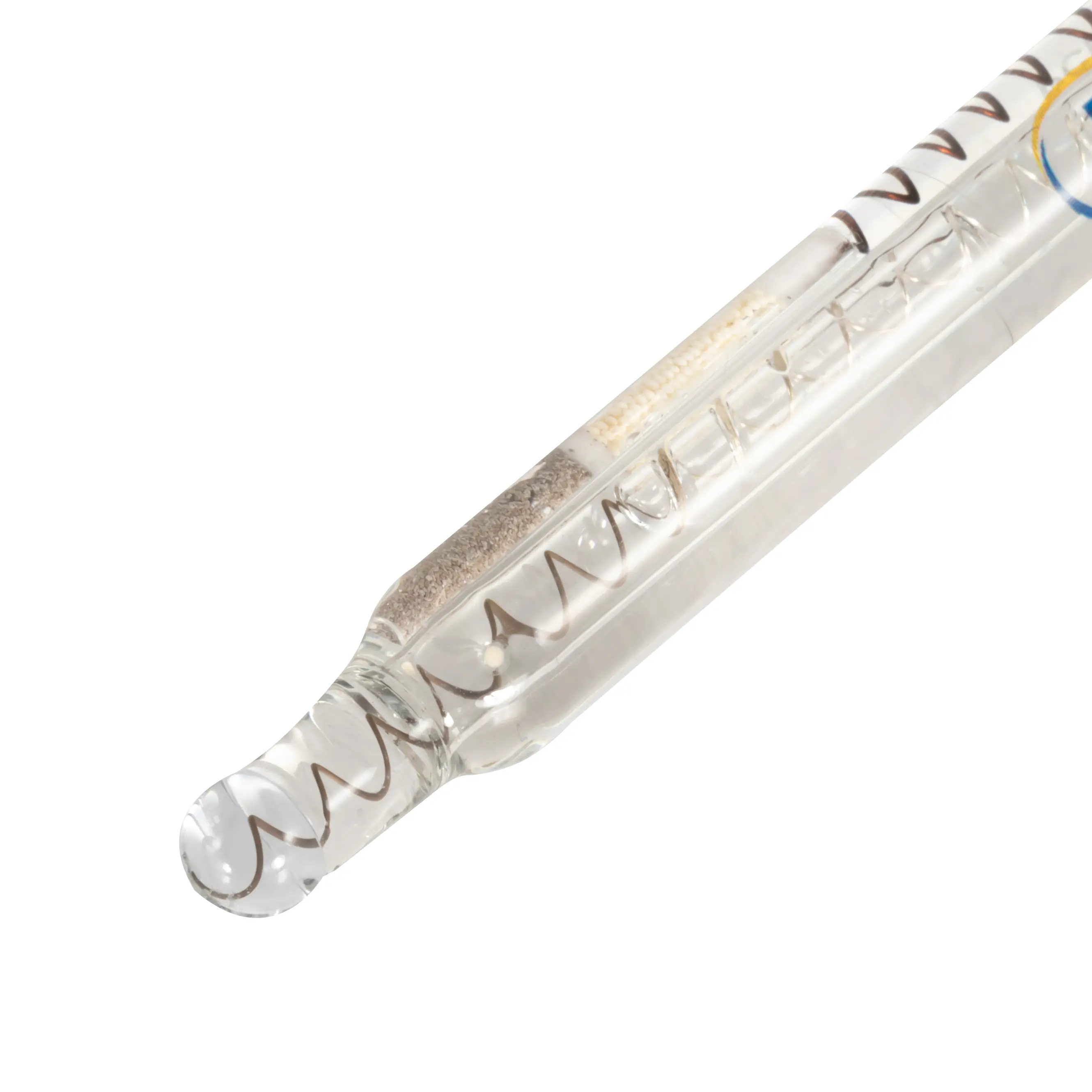

    Rounded tip for easy measurement and minimal sample damage
  • Universal compatibility:
    BNC connector for common pH meters

Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 ... 100 °C
Application General laboratory applications
Reference Ag/AgCl with ion exchanger
Electrolyte 3M KCL, refillable
Diaphragm 2 x ceramic
Tip shape Rounded tip
Media Aqueous media
Shaft / sensor material Glass
Shaft / sensor length120 mm
Shaft / sensor diameter  12 mm
Min. immersion depth22 mm
Cable length1 m
Connection BNC
Operating pressureatmospheric
Overall dimensions160 x 18 x 18 mm
Weight65 g

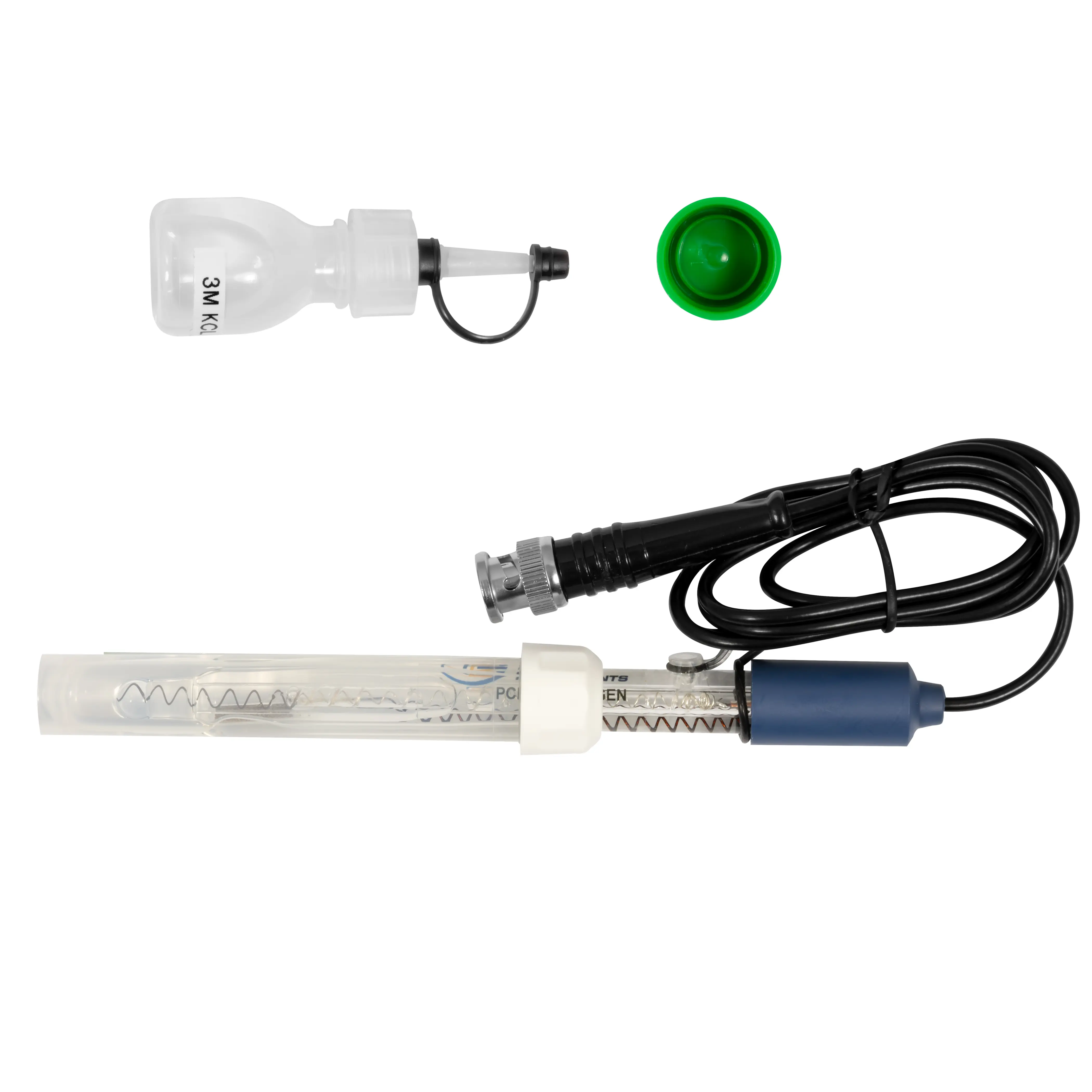

Delivery Scope

1 x Laboratory pH electrode PCE-PH-LAB-GEN
