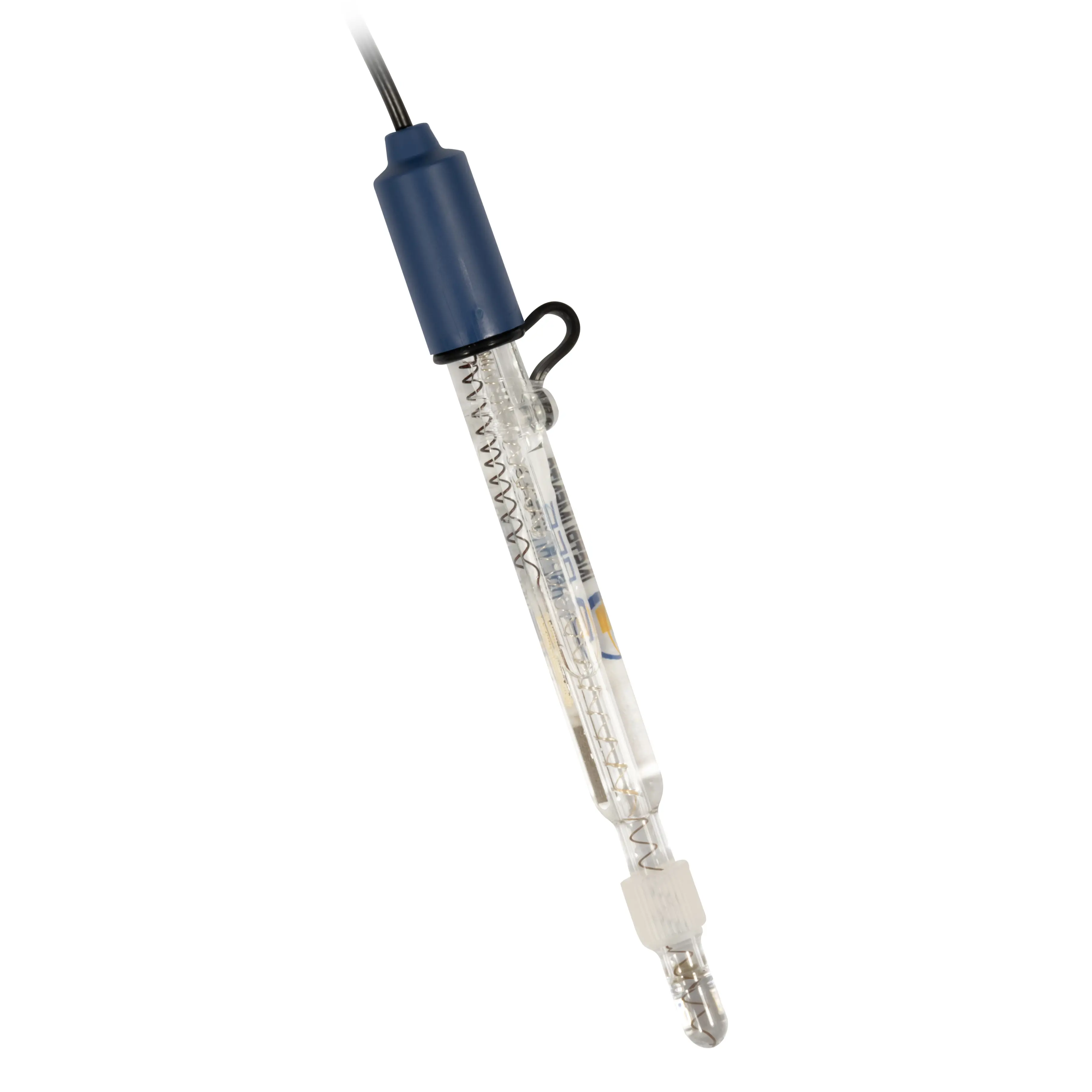

Special pH electrode PCE-PH-LAB-LC Measurement of low-ion media

Order no.: PCE-PH-LAB-LC
GTIN (EAN):
1 pc. / pc.

Description

The pH electrode for aqueous media with low conductivity has been specially developed to enable precise and reliable measurements in demanding samples with low conductivity. Its unique design includes a highly sensitive reference and a porous ceramic compound that ensures stability even with minimal ion availability. It is ideal for applications in water and environmental analysis as well as for the analysis of high purity solutions

Highlights


  • Excellent for low-ion media:
    Specially developed for precise measurements in aqueous samples with low conductivity
  • Stable reference:
    Ag/AgCl reference with ion exchanger for reliable and repeatable results
  • Highly sensitive diaphragm:
    Ideal for sensitive samples and low ion availability
  • Temperature range:
    Works reliably between 0 and 60 °C
  • Practical design:

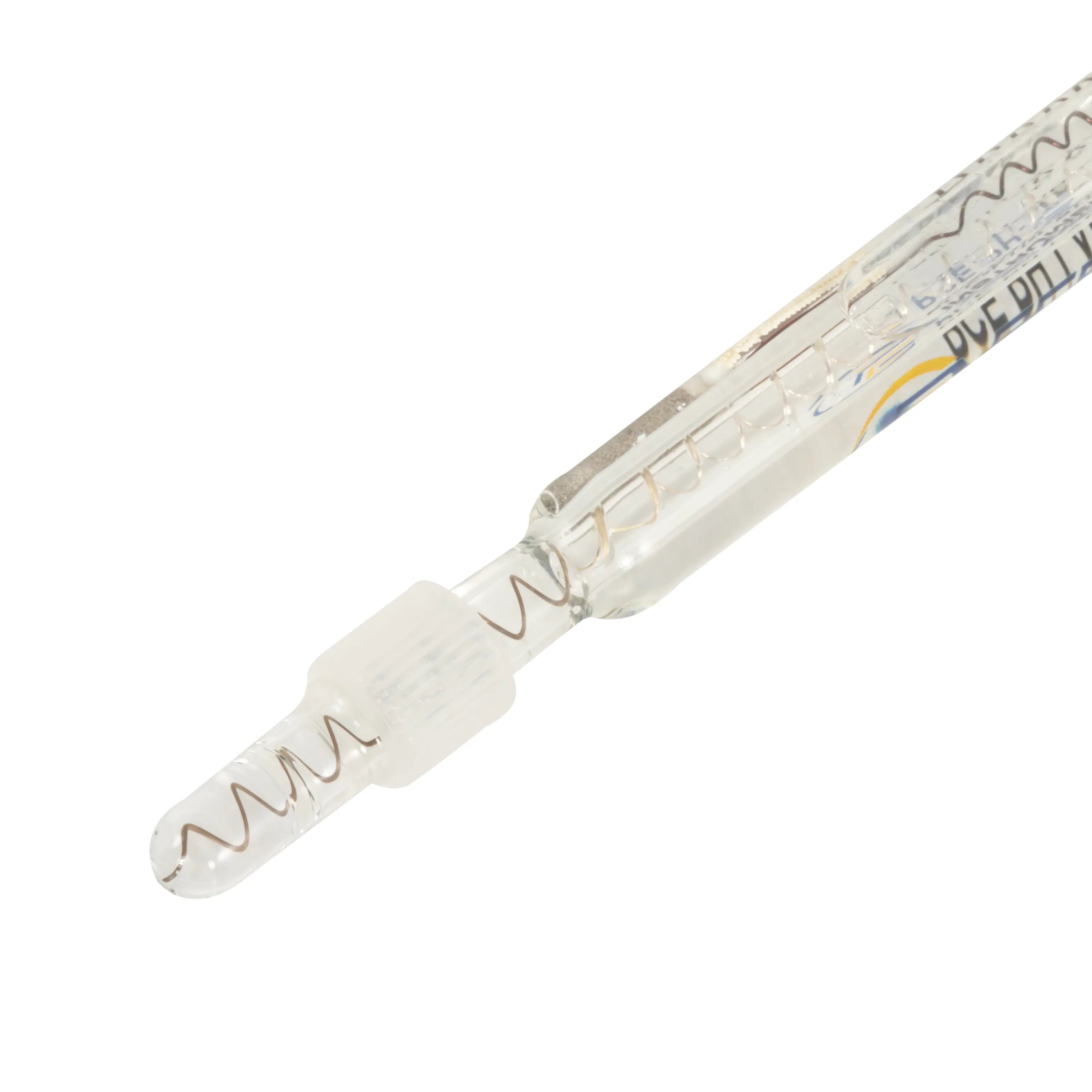

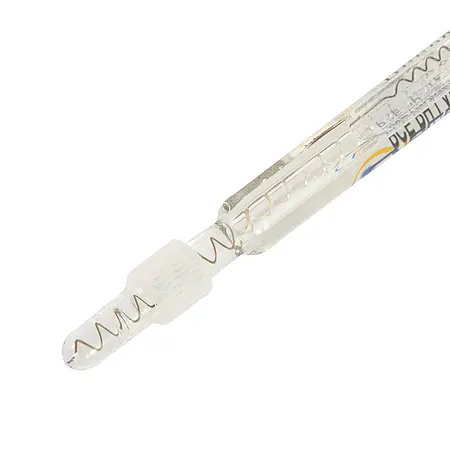

    Rounded tip for easy handling and minimal sample interference
  • Refillable reference:
    Extends service life and offers flexibility of use
  • Compatibility:
    BNC connector for use with standard pH meters

Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 ... 60 °C
Application pH measurement in ion-poor mediad
Reference Ag/AgCl with ion exchanger
Electrolyte 3M KCL
Diaphragm Closure
Tip shape Rounded tip
Shaft / sensor material Glass
Shaft / sensor length120 mm
Shaft / sensor diameter  12 mm
Min. immersion depth35 mm
Cable length1 m
Connection BNC
Operating pressureatmospheric
Overall dimensions240 x 16 x 16 mm
Weight60 g


Delivery Scope

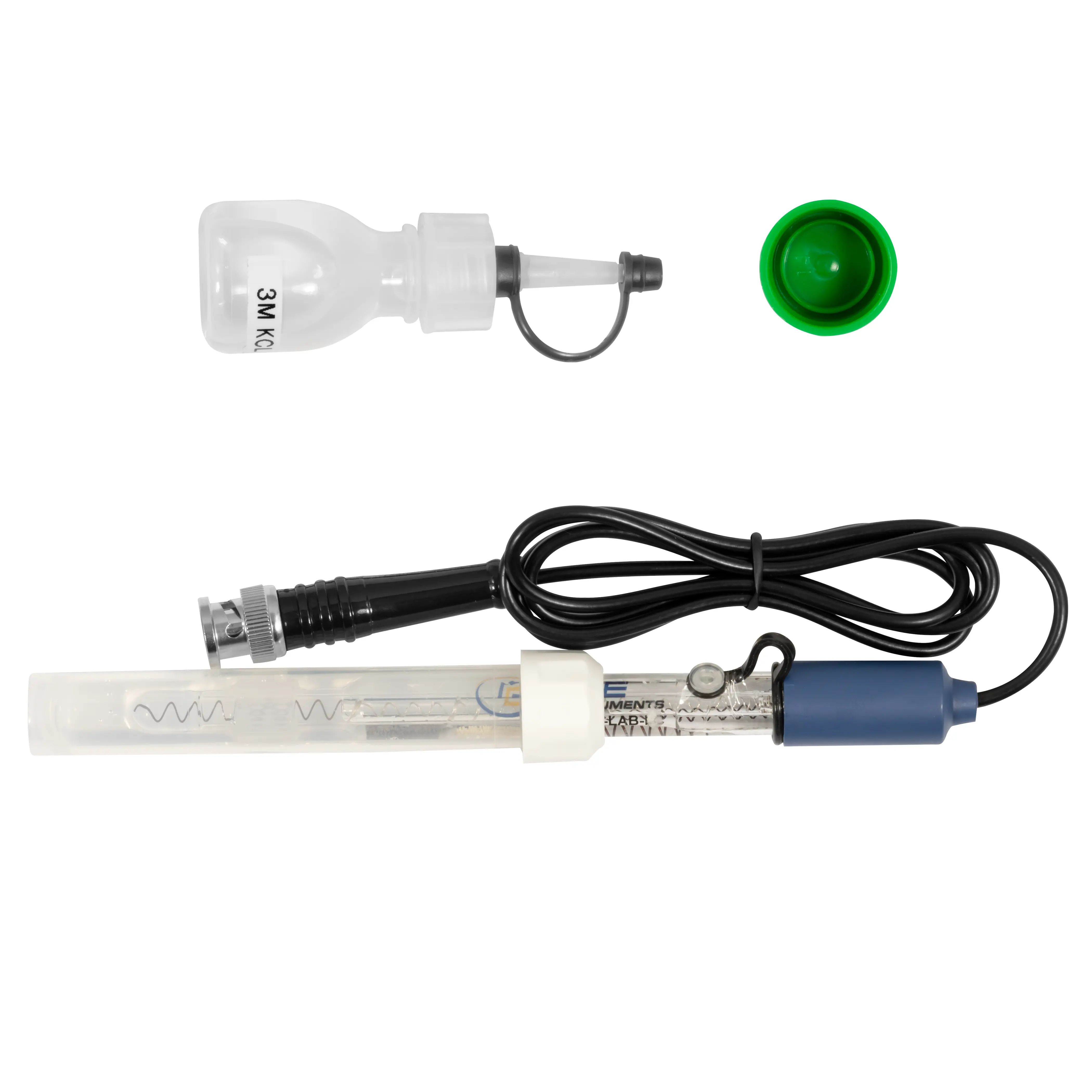

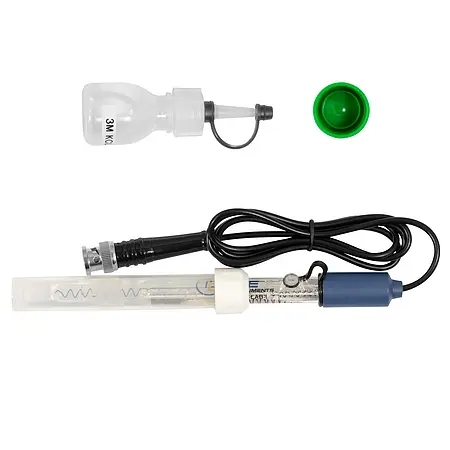

1 x Special pH electrode PCE-PH-LAB-LC
