Photometer PCE-PSR 200

Order no.: PCE-PSR 200
GTIN (EAN): 4250348736451
₹678,513.00
₹800,645.34
price ex. (VAT / delivery)
:
4250348736451
PCE-PSR 200
Delivery time: 1-2 working days

Description

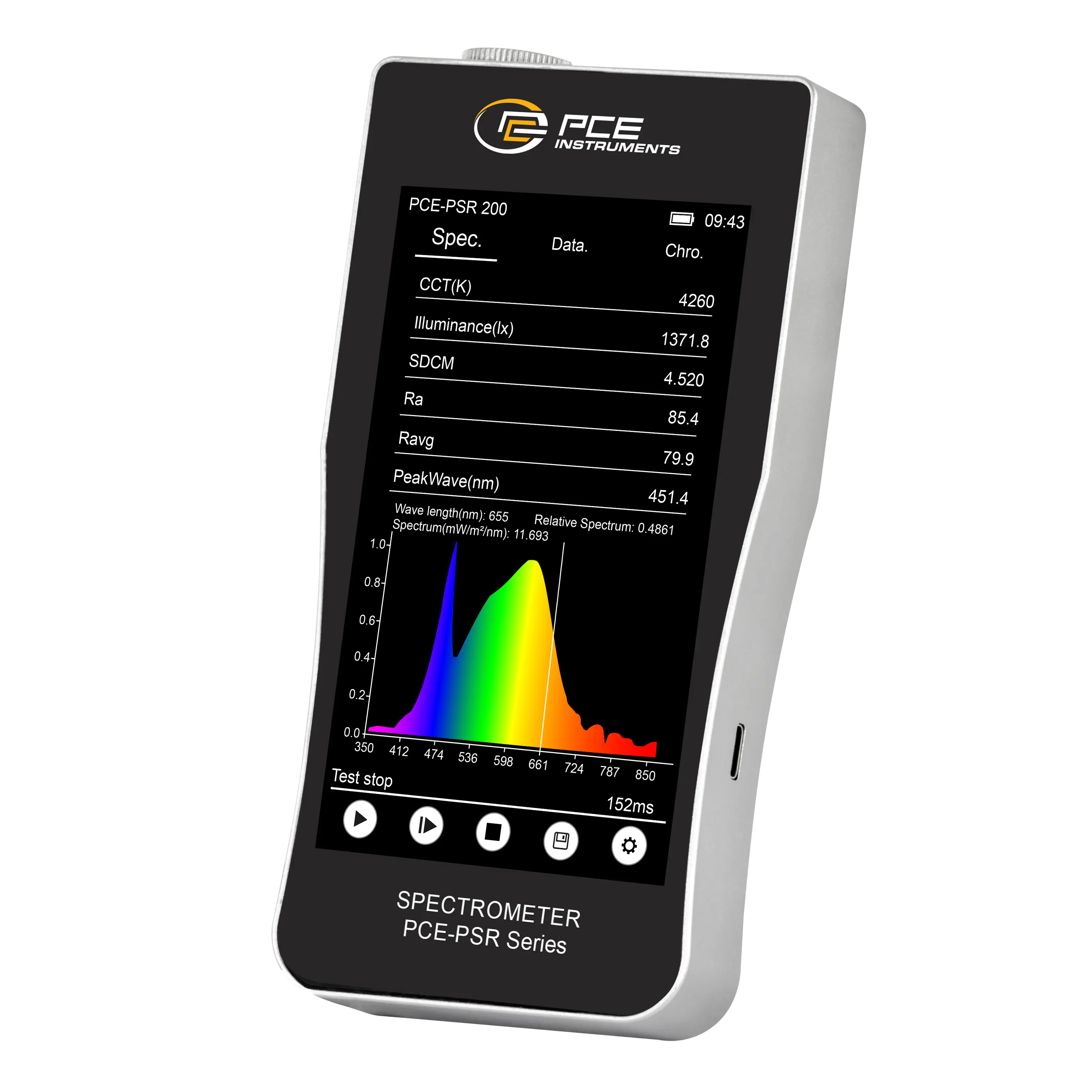

Photometer / colour temperature (CCT) / colour rendering index (CRI) / colour coordinates and spectral distributions / illuminance / data as csv. and pdf. file / USB-C interface / touch screen

The high-precision Photometer was developed to perform even the most demanding light measurements with the highest accuracy and reliability. Thanks to a spectral resolution of ± 0.2 nm and a reproducibility of ± 0.5 nm, it provides precise and consistent measurement results. The remarkable accuracy of the chromaticity coordinate (Δx, Δy) of ± 0.005 enables exact colour representation and is therefore ideal for applications in light and colour analysis.

With a wide illuminance range of 0.1 to 500000 lux and an accuracy of ± 0.1 lux, the Photometer is suitable for both weak light sources and extremely bright environments. The measurement of the correlated colour temperature (CCT) from 1500 K to 100000 K with a deviation of ±0.6 % enables a detailed assessment of the light quality and colour temperature.

The Photometer is not only technically powerful but also designed to be user-friendly. The capacitive 5-inch IPS touch screen offers intuitive operation and ensures that all measurement data is clearly displayed, even in difficult lighting conditions. With the integrated rechargeable 4000 mAh lithium-ion battery, the device guarantees long operating times so that even extensive measurements can be carried out without any problems. The internal memory of 8 GB offers sufficient space for a large amount of measurement data which can be saved directly to the device.

PC software is available for seamless data processing and advanced analysis functions. This allows measured values to be easily transferred, analysed and archived. This Photometer combines precision, versatility and ease of use in a compact device, making it the ideal solution for professional applications in industry, research and education.


Highlights

- spectral resolution: ± 0.2 nm
- reproducibility: ± 0.5 nm
- accuracy of the chromaticity coordinate (Δx, Δy): ± 0.005
- correlated colour temperature CCT: 1500 ... 100000 K
- illuminance range: 0.1 ... 500,000 lx

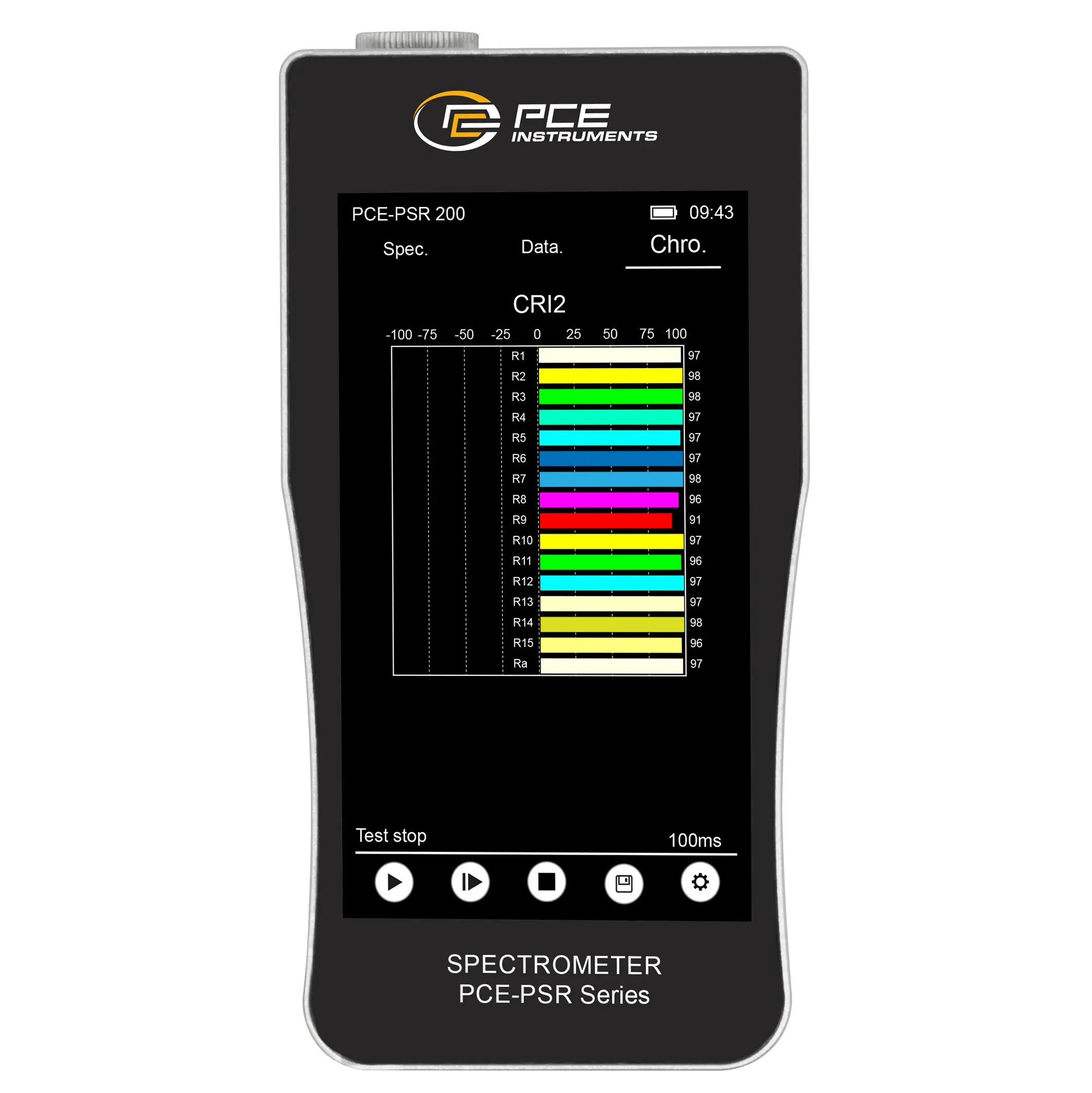

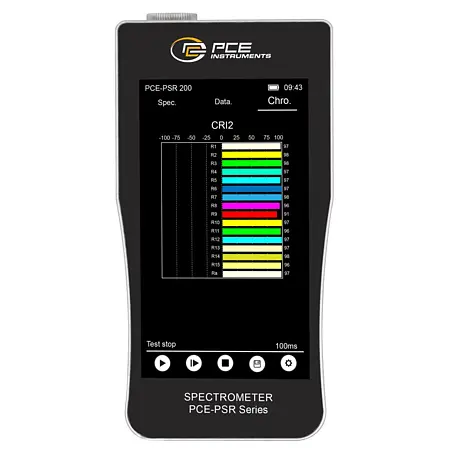

- capacitive 5-inch IPS touch screen
- rechargeble 4000 mAh lithium-ion battery
- 8 GB internal memory
- PC software

Specification

Light
Measurement range up to  5 ... 200000 lx
Resolution  0,1 lx
Accuracy  ±0.1 lx

General technical data
Display type  LCD touchscreen
Display size  5 Inch
Display resolution  480 x 854
Storage medium  Internal memory
Storage capacity  8 GB
Memory capacity (additional information)  approx. 5000 data records

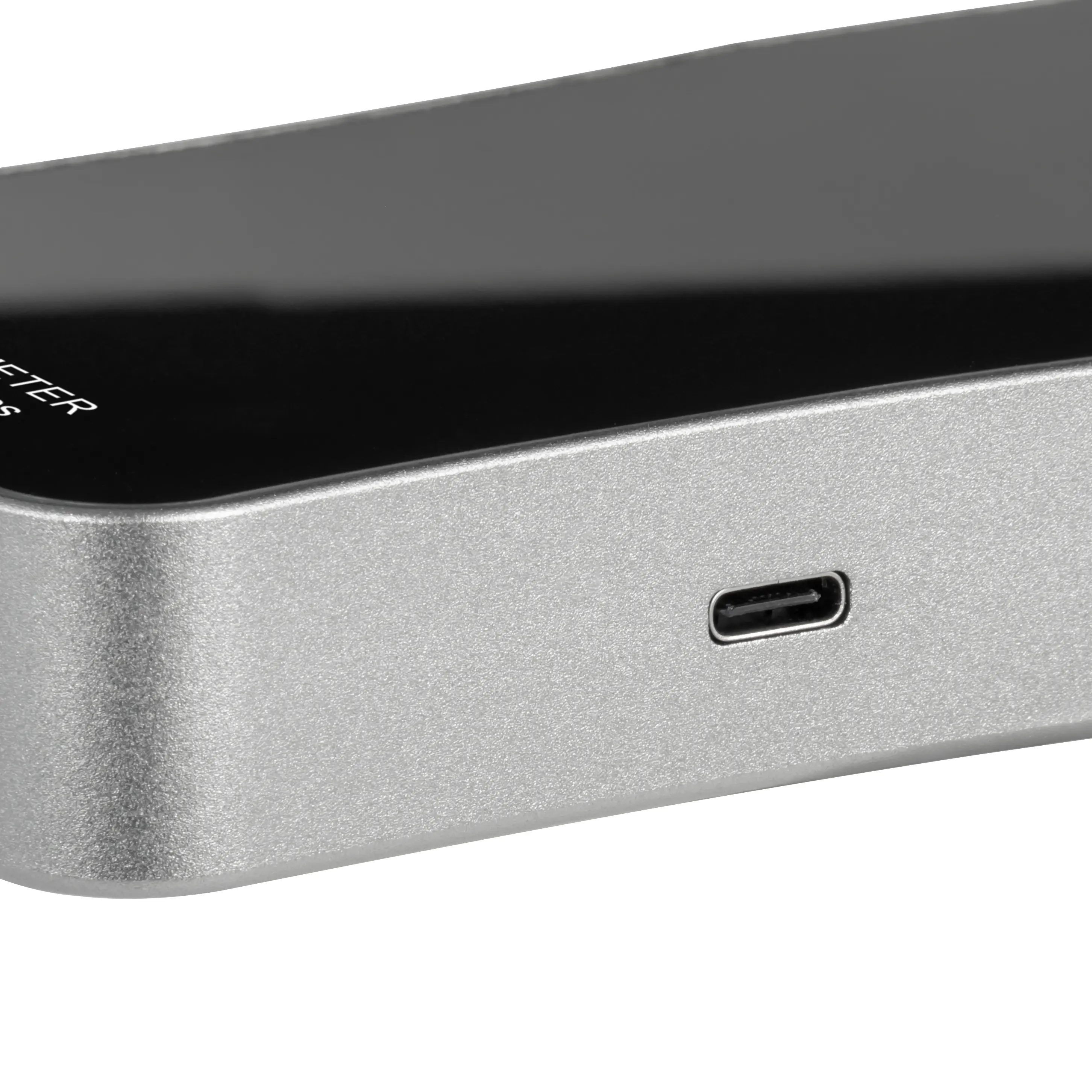

Interface  USB, BLE switch
Operating time  20 h
Automatic power-off from...to  2 ... 60 min.
Automatic power-off can be deactivated  Yes
Reproducibility  ±0.5 nm
Colour spaces  CIE1931, CIE1960, CIE1976, SDCM, CRI1, CRI2, TM30 (Distribution of Fidelity), TM30 (Change Distribution), TM30 (Rg/Rf)
Wavelength range  350 ... 800 Nm
Light parameters  CCT (K), Illuminance (lx), Coordinate-x, y, Coordinate-u, v, Coordinate-u', v', PeakWave (nm), CentralWave (nm), DominantWave (nm), CentroidWave (nm), HalfWidth (nm), Darksignal, Peak signal, Purity (%), IntegTime (ms), SDCM, Ra, Ravg, R1-R5, R6-R10, R11-R15, duv, R-ratio (%), G-ratio (%), B-ratio (%), Irradiance (W/m²), Candela (fc), S/P, CIE1931-X, CIE1931-Y, CIE1931-Z, CQS, Rg, Rf, YPFD (umol/m²/s), PFD (umol/m²/s), PPFD400-700 (umol/m²/s), PPFDuv (umol/m²/s), PPFDb (umol/m²/s), PPFDg (umol/m²/s), PPFDr (umol/m²/s), PPFDfr (umol/m²/s), PPFDir (umol/m²/s), Ep (W/m²), E400-700 (W/m²), Euv (W/m²), Eb (W/m²), Eg (W/m²), Er (W/m²), Efr (W/m²), Eir (W/m²), Ech-A (W/m²), Ech-B (W/m²), PAR (W/m²), Erb Ratio, Erfr Ratio, KPARV, PUR (W/m²), Transmittance (%)
Menu language  English, Chinese, English (GB)
Protection class (device)  IP56
Power supply  100 ... 240V AC | 50/60 Hz
Connector type  Euro plug
Capacity  4000 mAh
Operating conditions  -10 ... 40 °C , 70 % RH
Storage conditions  -20 ... 45 °C , 70 % RH
Dimensions ( L x W x H )  160 x 82 x 22 mm
Weight  390 g

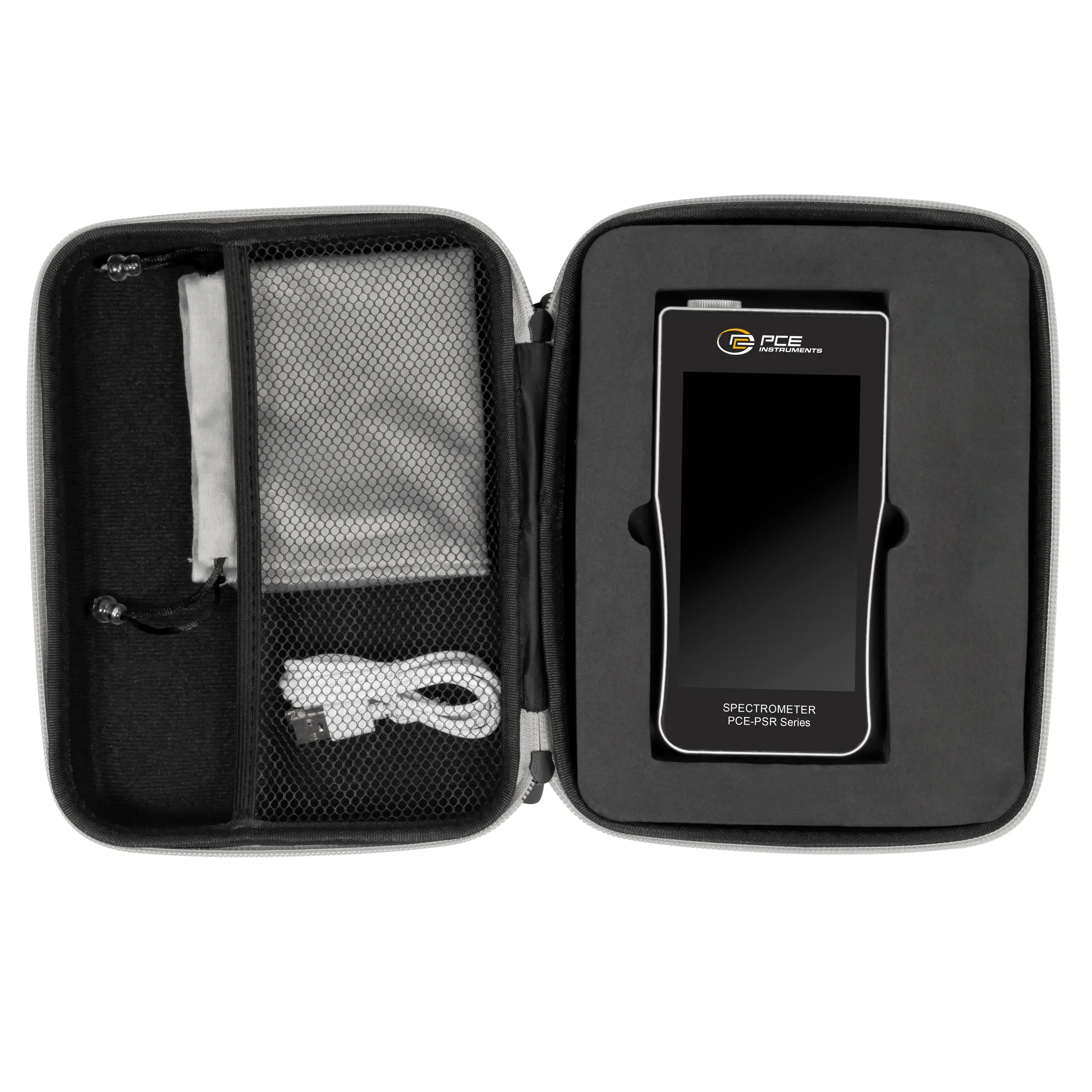

Delivery Scope

1 x Photometer PCE-PSR 200
1 x USB cable
1 x USB mains adaptor 5 V / 2 A

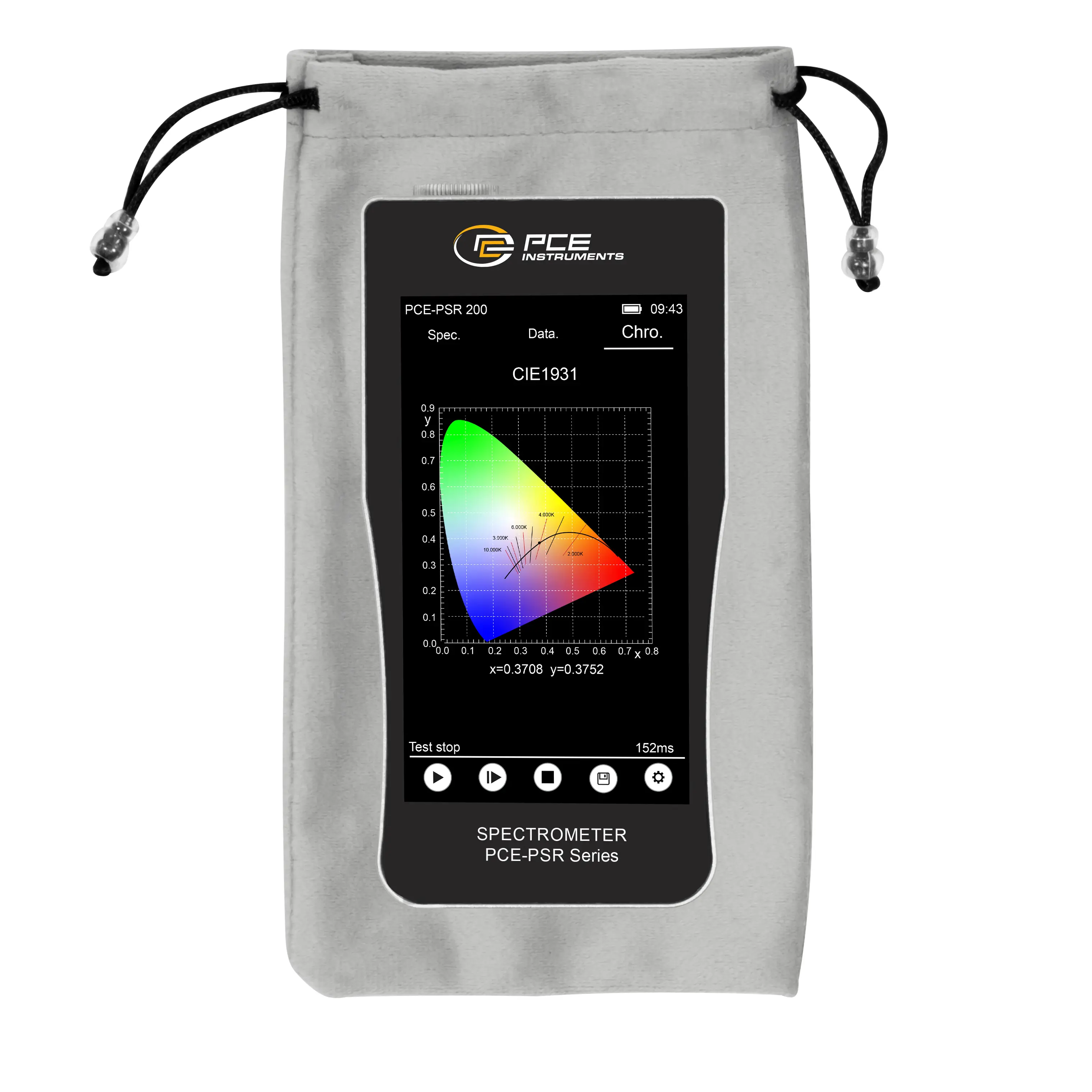

1 x pouch for storage
1 x carrying case
