Specification
| TR-PS2W-2BAR |
|
| Measuring range |
Resolution |
| 0 ... 2 bar |
0.002 bar |
| 0 ... 29 PSI |
0.02 PSI |
| 0 ... 2.040 kg / cm² |
0.002 kg / cm² |
| 0 ... 1500 mm Hg |
2 mm Hg |
| 0 ... 59.05 inch Hg |
0.05 inch Hg |
| 0 ... 20.40 meters H20 |
0.02 meter H20 |
| 0 ... 802 inch H20 |
1 inch H20 |
| 0 ... 1.974 ATP |
0.002 ATP |
| 0 ... 200 kPa |
0.2 kPa |
| |
|
| Exit |
4 to 20-mA DC |
| 4-mA |
= normal pressure |
| 20-mA |
= maximum pressure |
| Precision pressure sensor made of ceramic |
| Linearity output signal |
± 1% FS |
| Zero Offset |
± 2% FS |
| Operating temperature |
-20 ... 80°C / -4 ... 176°F |
| Ambient humidity |
80% RH |
| Size |
Ø 30 mm x 85 mm |
| Weight |
160 g / < 1 lb |
| |
|
Delivery Scope

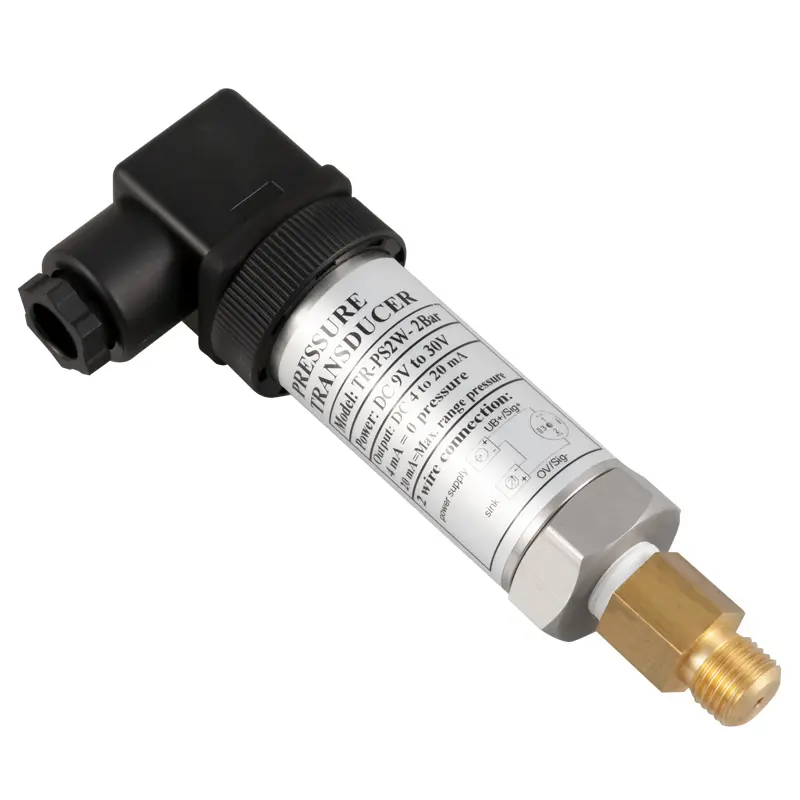

1 x Pressure sensor TR-PS2W-2BAR
