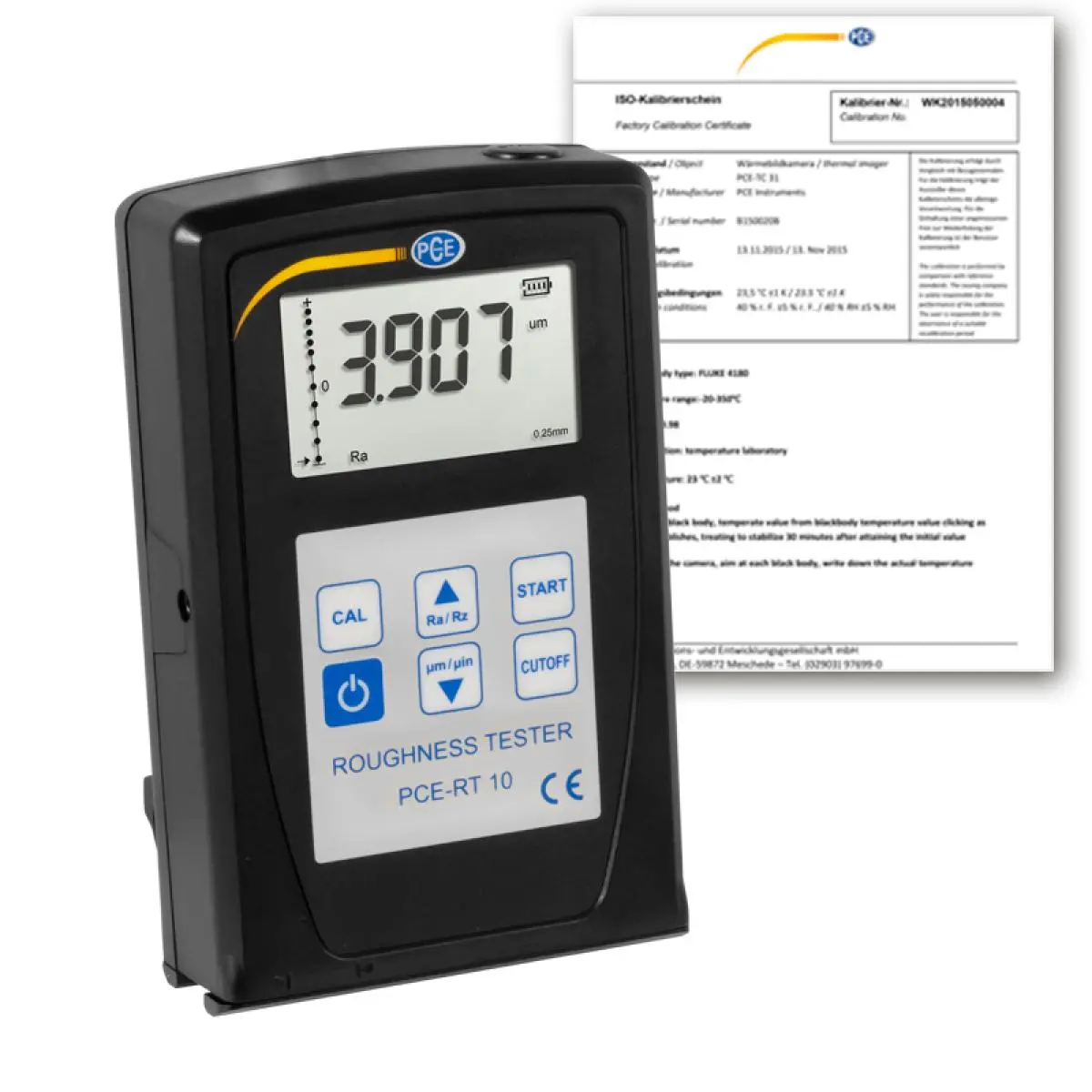

Profilometer Roughness Tester PCE-RT 10-ICA Incl. ISO Calibration Cert.

Order no.: PCE-RT 10-ICA

GTIN (EAN): 4250348726582

Accessory

Re-Calibration Certificate RE-CAL-PCE-RT for Roughness

₹23,014.00

Description

PCE-RT 10-ICA Profilometer Roughness Tester Incl. ISO calibration Certificate
Measurement range covers Ra and Rz /

LCD display with background light / Sensor made of a diamond / Induction principle

The Profilometer Roughness Tester PCE-RT 10-ICA is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The profilometer can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.

Calibration certificates are issued specifically for the customer and are excluded from the right of return.

Highlights

- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display
- Incl. ISO calibration certificate

Specification

Standards	GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Display	LCD
Parameters	Ra, Rz
Range	Ra: 0.05~10.00 µm Rz: 0.1~50.0 µm
Accuracy	±15 %
Fluctuation of Display Value	10 %
Resolution	0,001 / 0,01 / 0,1

Sensor
Radius of Probe Pin	10 µm
Material of Probe Pin	Diamond
Measurement Force of Probe	16 mN(1.6gf)
Probe Angle	90º
Vertical Radius of Guiding Head	48 mm
Maximum Driving Stroke	12,5 mm / 0,5 inch
Cutoff length(l)	0,25 mm, 0,8 mm, 2,5 mm

Driving Speed
Sampling	when Length = 0,25 mm,Vt = 0,135 mm/s
Sampling	when Length =0,8 mm, Vt = 0,5 mm/s
Sampling	when Length =2,5 mm,Vt = 1 mm/s
Returning	Vt = 1 mm/s

Evaluation Length	1~2L Optional
Operating Conditions	Temp: 0 ~ 50 ºC Humidity: <80 % RH
Power Supply	4 x 1.5 V AA (UM-3) Battery
Dimensions	128 x 80 x 30 mm
Weight	280 g

Delivery Scope

1 x PCE-RT 10-ICA Profilometer Roughness Tester
1 x Precision reference standard
4 x 1.5V AA batteries
1 x User manual
1 x Carrying case
1 x ISO calibration certificate
