Surface Profilometer PCE-RT 10

Order no.: PCE-RT 10

GTIN (EAN): 4250348713933

Accessory

ISO Calibration Certificate CAL-PCE-RT

₹37,632.00

Description

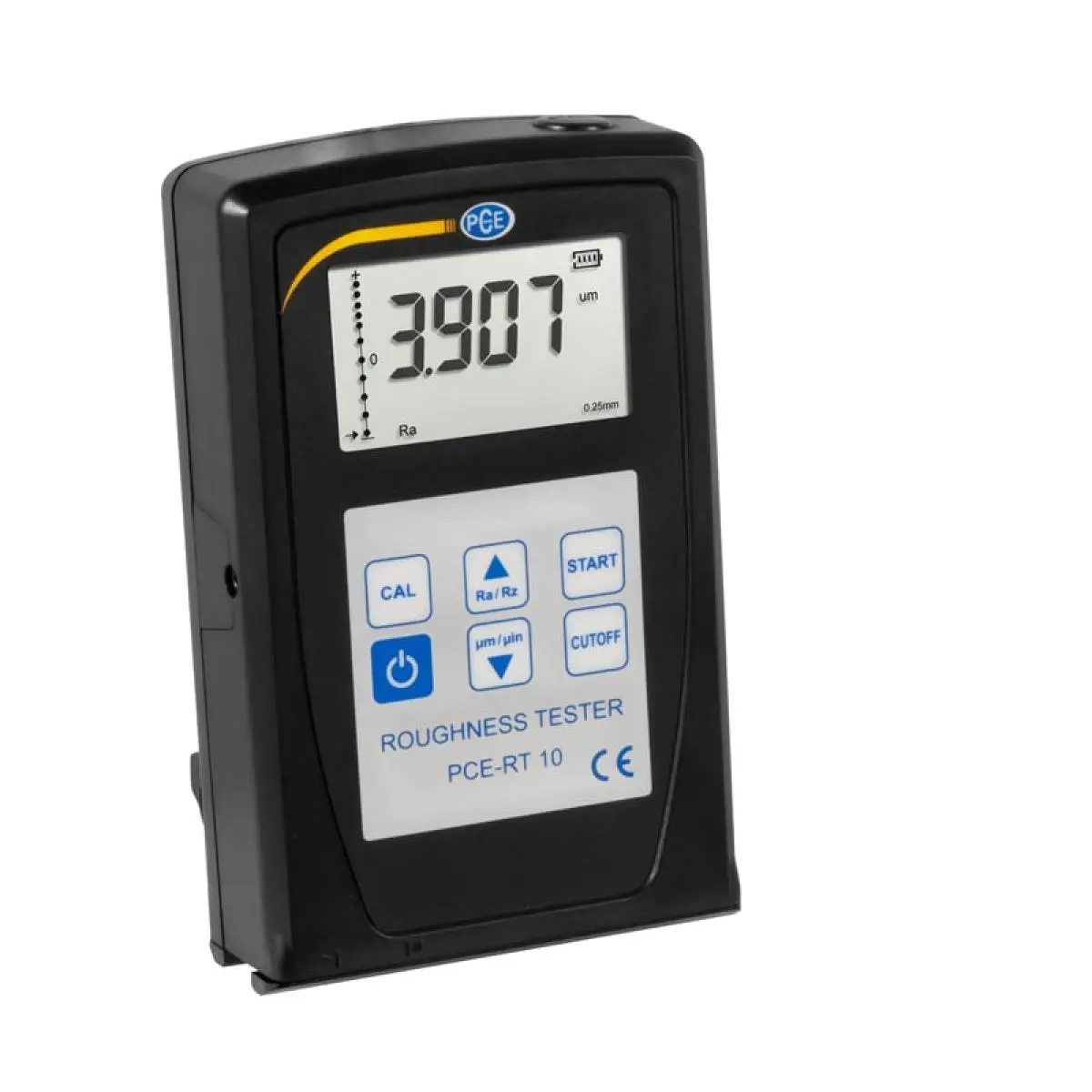

PCE-RT 10 Surface Profilometer
Measurement range covers Ra and Rz /

LCD display with background light / Sensor made of a diamond / Induction principle

The Surface Profilometer PCE-RT 10 is a small, lightweight device with simple navigation. Despite the fact that the device functions on a very complex and elaborate level, the measurement results can be gained quickly and easily. Due to its rugged design the device has a long lifetime. This device is calibrated on ISO, DIN, ABSI and JIS standards. The surface texture meter can be applied for various mechanical manufacturing processes as a controlling equipment. The device indicates all calculated measurement results on its LCD display any time. In order to measure the roughness of a surface, the sensor is to be placed onto that surface. Afterwards the sensor samples evenly the surface following its guide rail. Now the device will calculate the measuring values. Thus the indicated values are a result of the sensor's movement, while it is induced with electricity. The fast DSP processing supports quick measurements results, which are then shown on the surface texture meter's display.

Highlights

- Ra and Rz measurement range
- Induction principle
- LCD display with background lights
- With threshold function
- Easy to transport
- Easy handling
- Diamond sensor
- Low fluctuation on display

Specification

Standards	GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
Display	LCD
Parameters	Ra, Rz
Range	Ra: 0.05~10.00 µm Rz: 0.1~50.0 µm
Accuracy	±15 %
Fluctuation of Display Value	10 %
Resolution	0,001 / 0,01 / 0,1

Sensor
Radius of Probe Pin	10 µm
Material of Probe Pin	Diamond
Measurement Force of Probe	16 mN(1.6gf)
Probe Angle	90º
Vertical Radius of Guiding Head	48 mm
Maximum Driving Stroke	12,5 mm / 0,5 inch
Cutoff length(l)	0,25 mm, 0,8 mm, 2,5 mm

Driving Speed
Sampling	when Length = 0,25 mm,Vt = 0,135 mm/s
Sampling	when Length =0,8 mm, Vt = 0,5 mm/s
Sampling	when Length =2,5 mm,Vt = 1 mm/s
Returning	Vt = 1 mm/s

Evaluation Length	1~2L Optional
Operating Conditions	Temp: 0 ~ 50 ºC Humidity: <80 % RH
Power Supply	4 x 1.5 V AA (UM-3) Battery
Dimensions	128 x 80 x 30 mm
Weight	280 g
