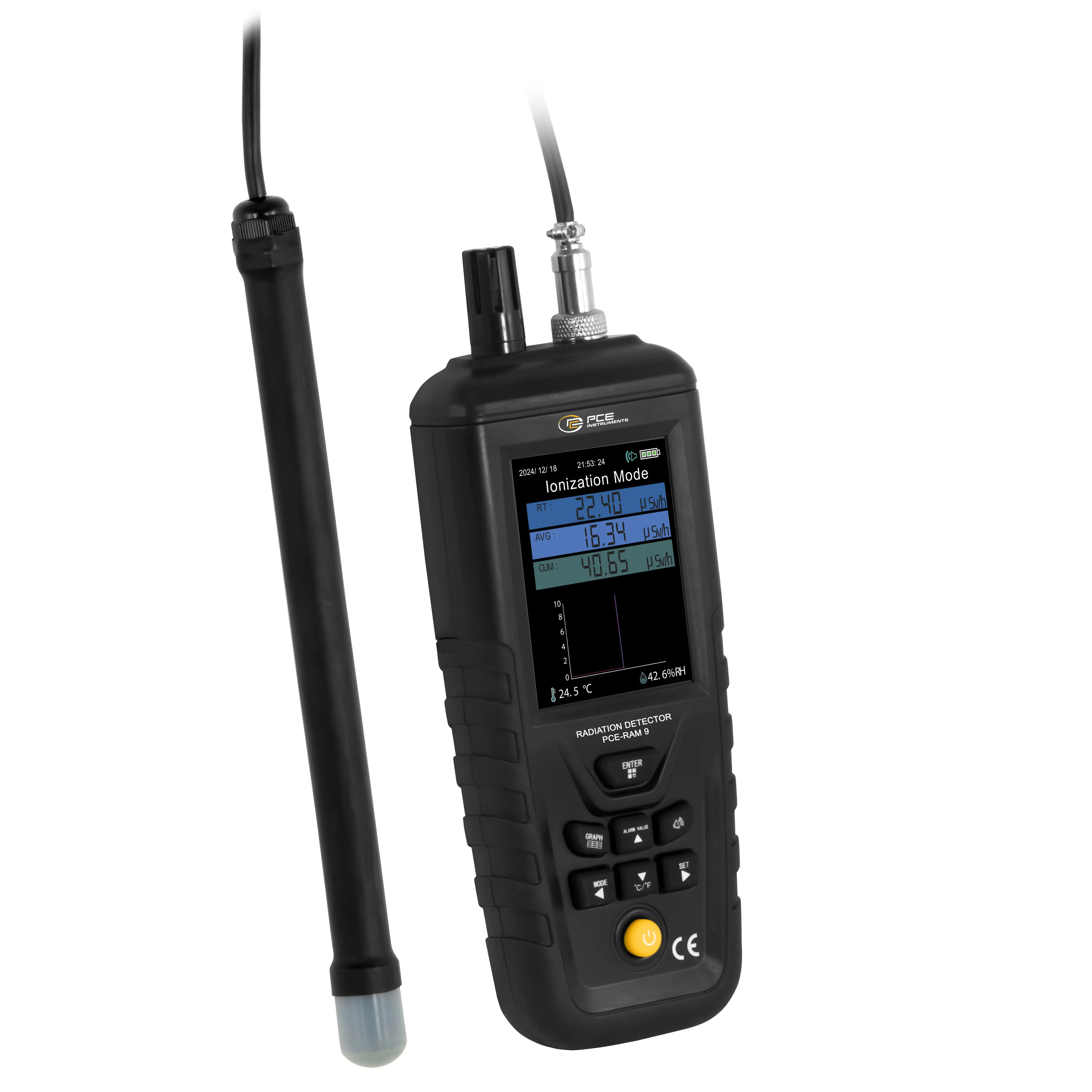

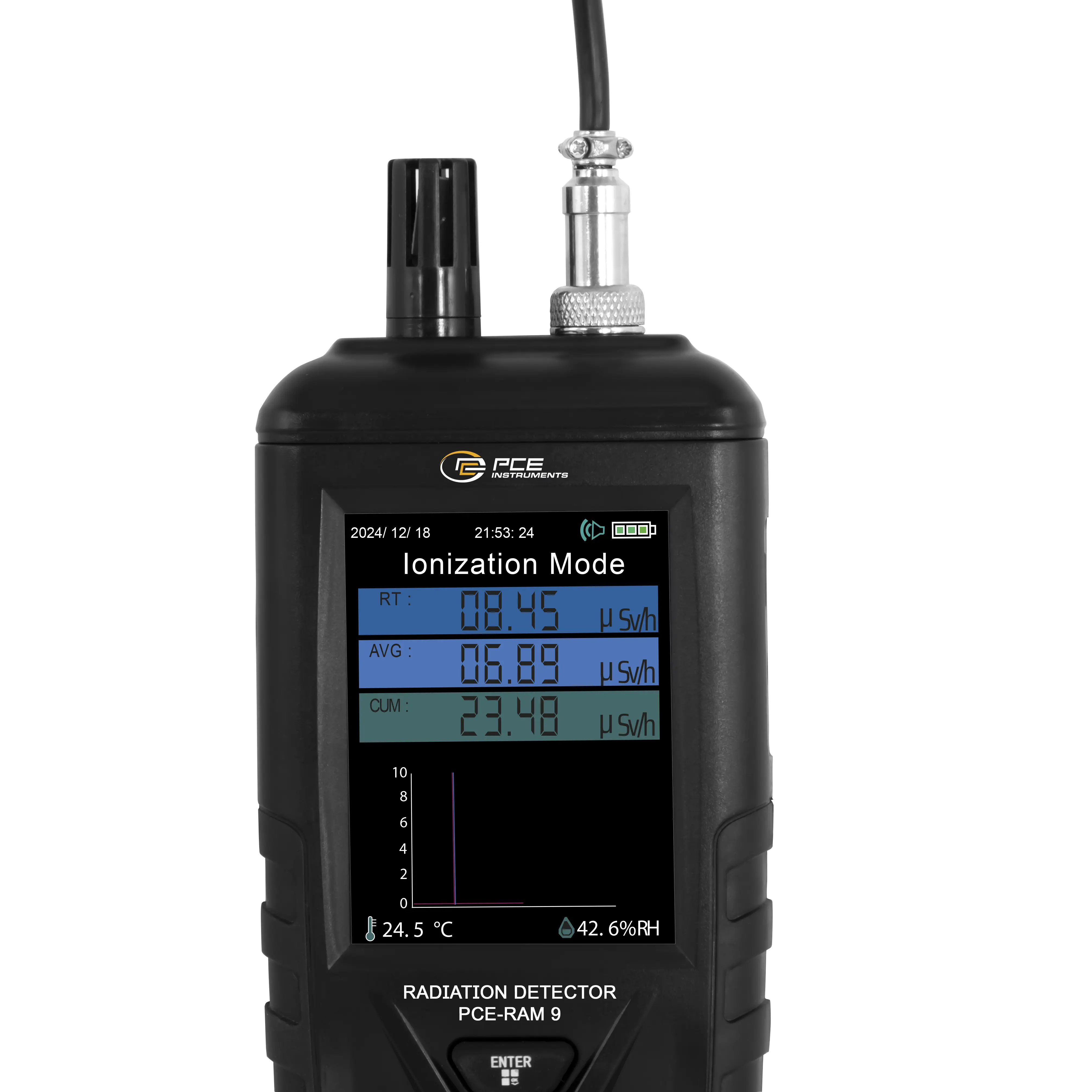

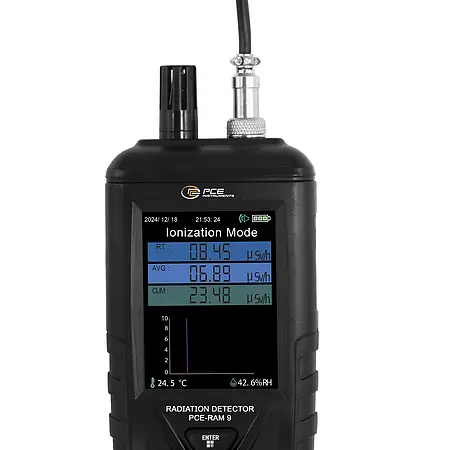

Our Radiation Detector is a versatile and precise device that is used in various areas such as security and emergency services, industrial facilities, research facilities, airports, harbours and by private individuals to monitor radiation and environmental risks. It measures gamma, beta and X-ray radiation and enables precise measurement over a measuring range of 0.00 ... 10 mSv/h with a resolution of 0.01 mSv/h. The Radiation Detector offers a high sensitivity of 80 cpm/μSv/(Co-60) and a wide energy range from 20 keV to 3000 keV, enabling accurate measurement of different types of radiation. It has an internal memory for up to 1000 measured values and allows this data to be transferred as a csv file to a computer for further analysis. In addition, the history of the last 1000 data records can also be called up on the measuring device.

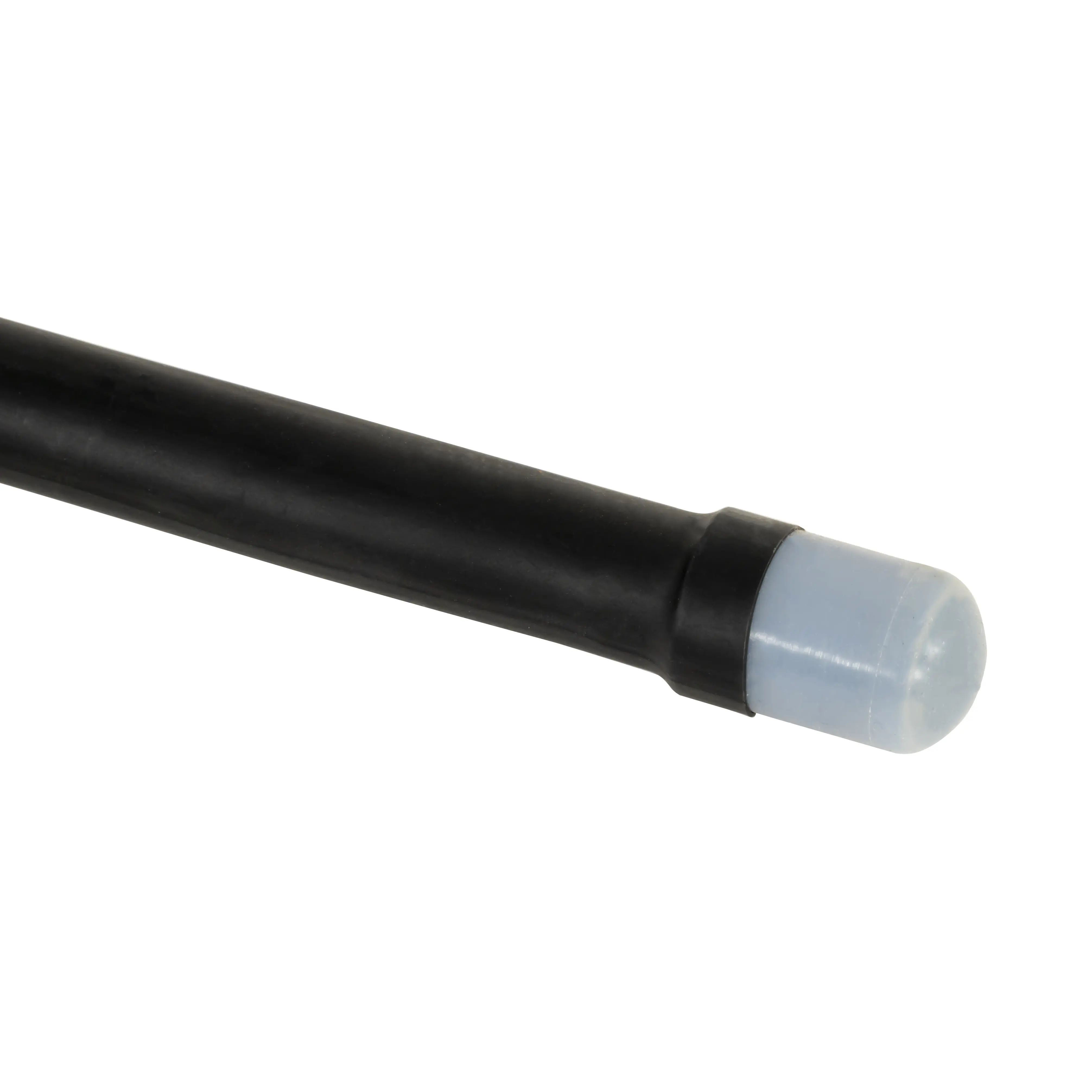

The Radiation Detector is supplied with a probe that is protected to IP67 and remains waterproof up to a water depth of 1.5 metres. In addition, it offers an adjustable alarm that is triggered when set radiation levels are exceeded and a 3.2 inch TFT colour display for a user-friendly display of the measured values. Our Radiation Detector has another function, automatic voice output in English, which allows the user to hear the options selected in the menu via voice feedback and simplifies operation.
Relative humidity | |
Measurement range up to | 0 ... 100 % |
Resolution | 0,1 % |
Accuracy | ±3 % of Rd |
Radiation | |
Measurement range up to | 0 ... 10 mSv/h |
Resolution | 0,01 mSv/h |
Accuracy | ≤10% of Rd |
Radiation | |
Measurement range up to | 0 µSv/h ... 999,9 Sv/h |
Resolution | 0,01 µSv/h |
Accuracy | ≤10% of Rd |
Temperature | |
Measurement range up to | 20 ... 60 °C |
Resolution | 0,1 % |
Accuracy | ±2 °C |
Temperature | |
Measurement range up to | 32 ... 212 °F |
Resolution | 0,18 °F |
Accuracy | ±3.6 °F |
General technical data | |
Measuring functions | Real-time value, Average value, Accumulated value |
Energy range | 20 ... 3000 keV |
Display type | TFT colour display |
Display size | 3,2 Inch |
Display resolution | 320 x 240 pixels |
Storage medium | Internal memory |
Storage capacity | 1000 Values |
Storage interval from | 10 s |
Storage interval to | 60 min. |

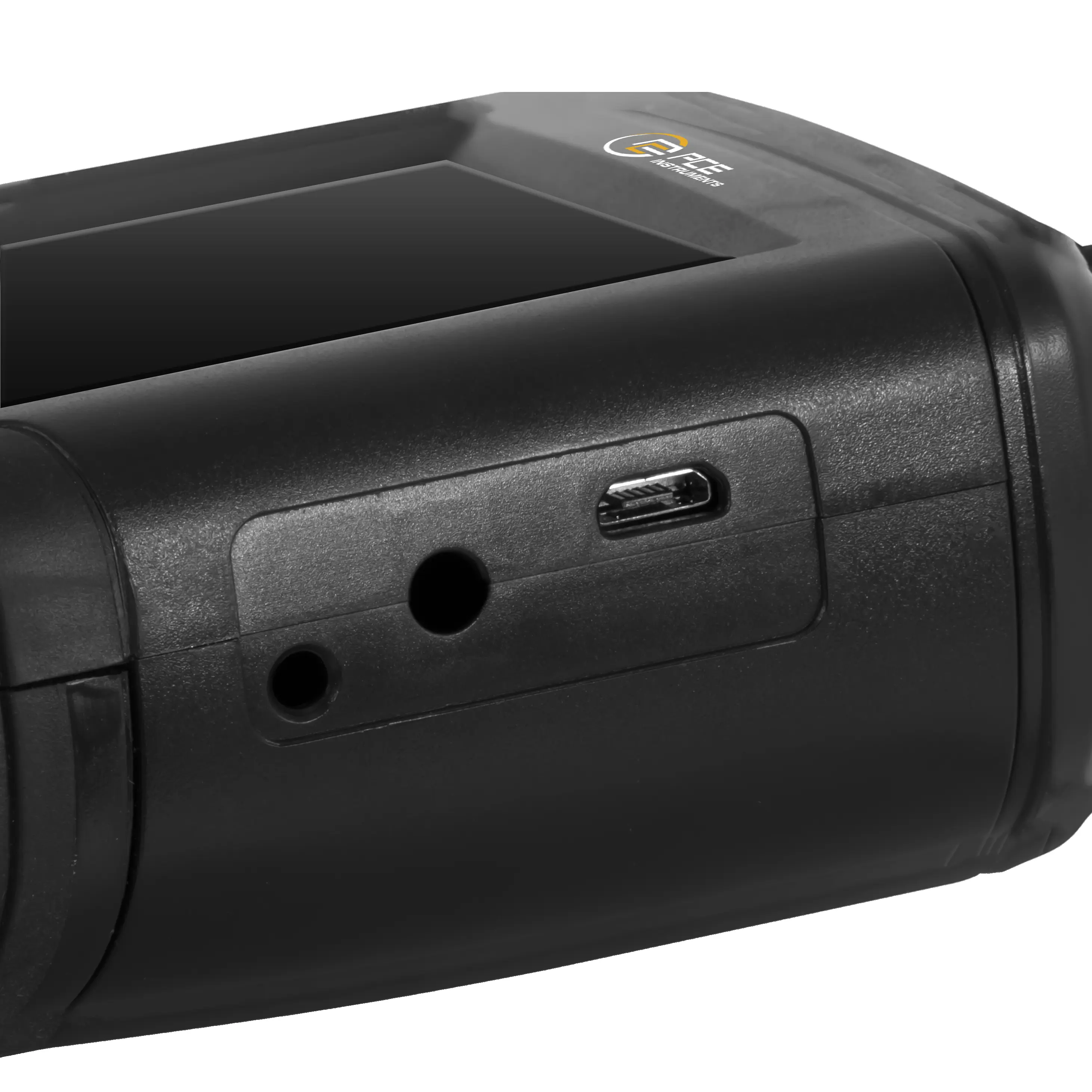

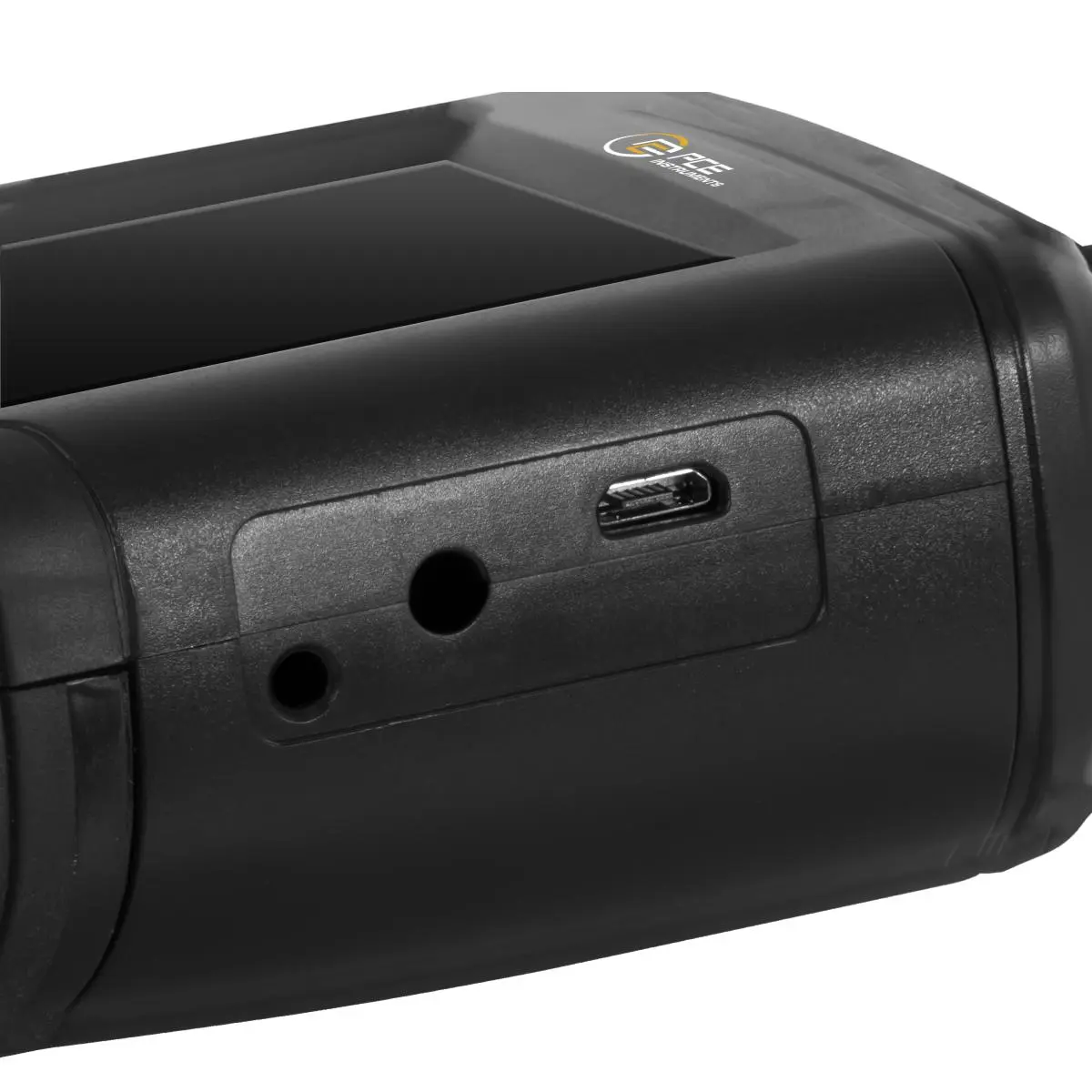

Interface | Micro-USB |
Sensor | Geiger-Mueller counter tube |
Operating time | 3 h |
Automatic power-off from...to | 10 ... 60 min. |
Automatic power-off can be deactivated | Yes |
Cable length | 170 cm |
Alarm | Acoustic |
Dimensions | Probe: L: 225 mm x ⌀ 17 mm |
Alarm settings | 0 ... 99.99 µSv/h |
Menu language | German, English, French, Spanish, Chinese, Japanese |
Protection class (device) | IP20 |
Protection class (additional information) | Probe: IP67 |
Power supply | 5 V DC |

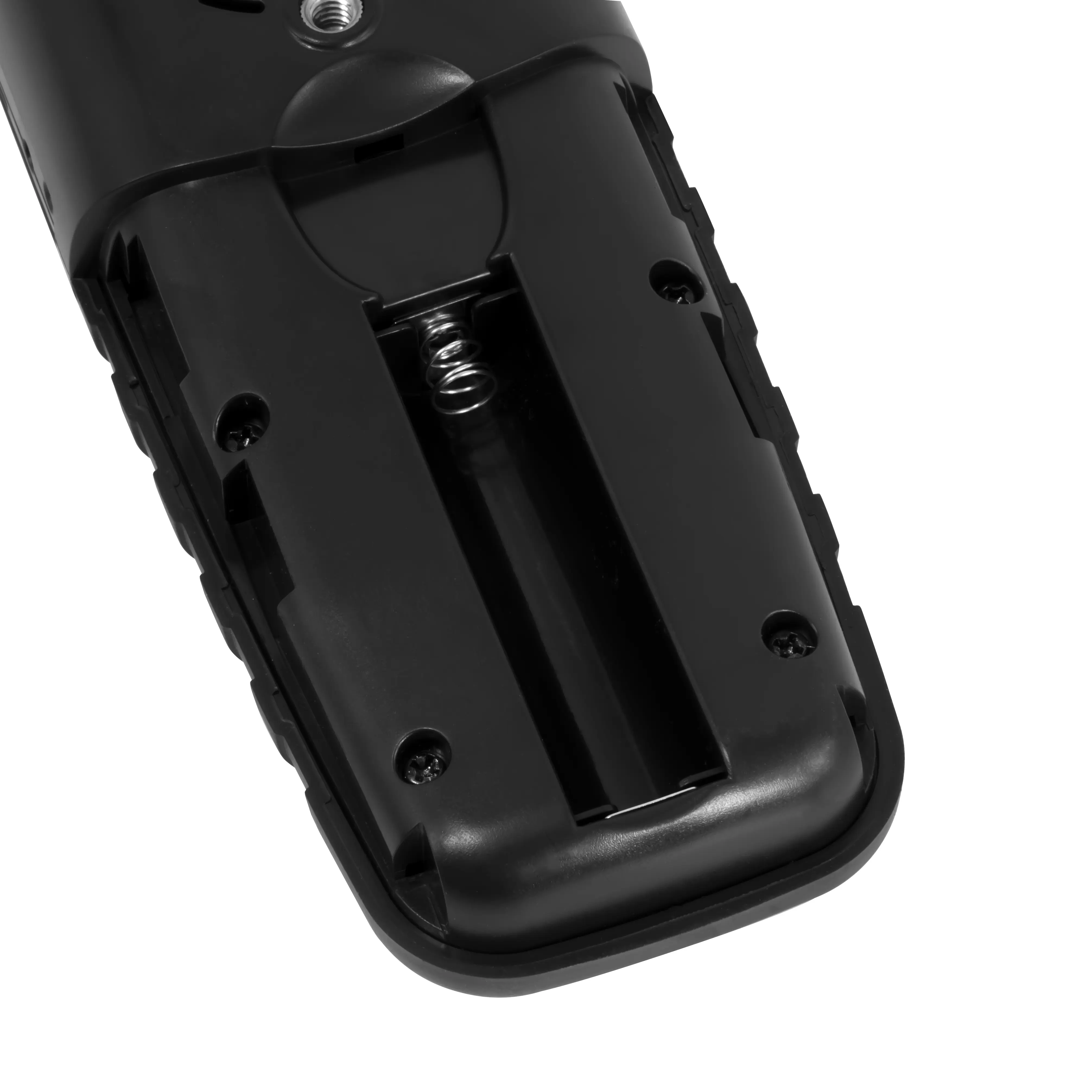

(Rechargeable) battery | 1 x 3,7 V 18650 , Lithium-ion battery |
Capacity | 2200 mAh |
Operating conditions | 0 ... 50 °C , 0 ... 90 % RH |
Storage conditions | 0 ... 50 °C , 0 ... 90 % RH |
Dimensions ( L x W x H ) | 220 x 80 x 46 mm |
Weight | 237 g |
