Radiation Detector PCE-RD 100

Order no.: PCE-RD 100
GTIN (EAN): 4250348737175
₹43,435.00
₹51,253.30
price ex. (VAT / delivery)
:
4250348737175
PCE-RD 100
Delivery time: 1-2 working days

Description

Radiation Detector for indoor areas / real-time data display / WiFi interface / 128 MB micro SD card memory / adjustable limit values

The Radiation Detector offers precise monitoring of the radon concentration within the range of 0.1 ... 99.9 pCi/L with an accuracy of < 10% @ 10 pCi/L and a sensitivity of 30 CPH at 1 pCi/L. Our Radiation Detector discovers radon at an early stage, minimises health risks and enables continuous real-time monitoring. Current measurement data is collected every 10 minutes and averages are calculated for 1 hour, 1 day and 7 days. The first reliable data output of the measured values takes less than 1 hour.

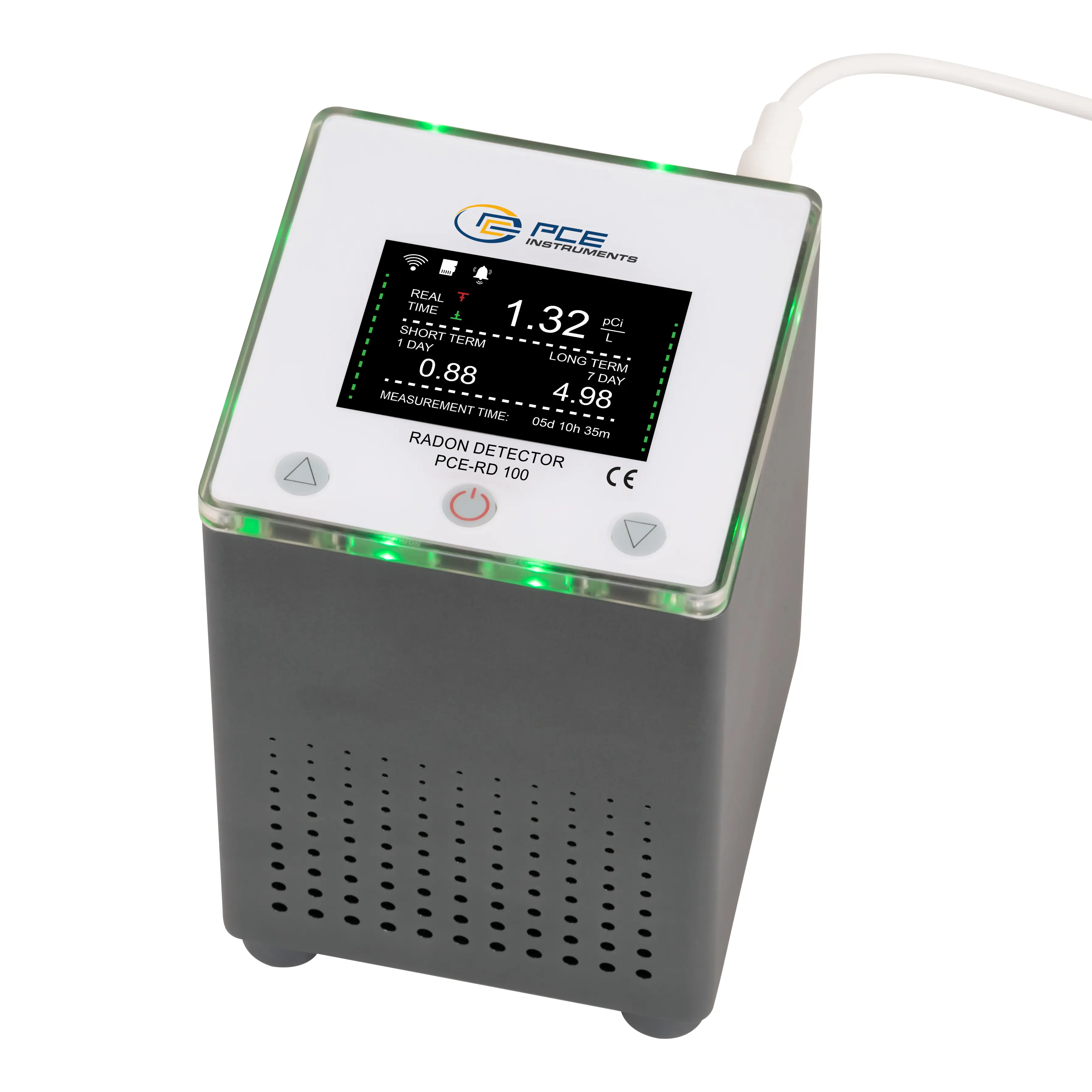

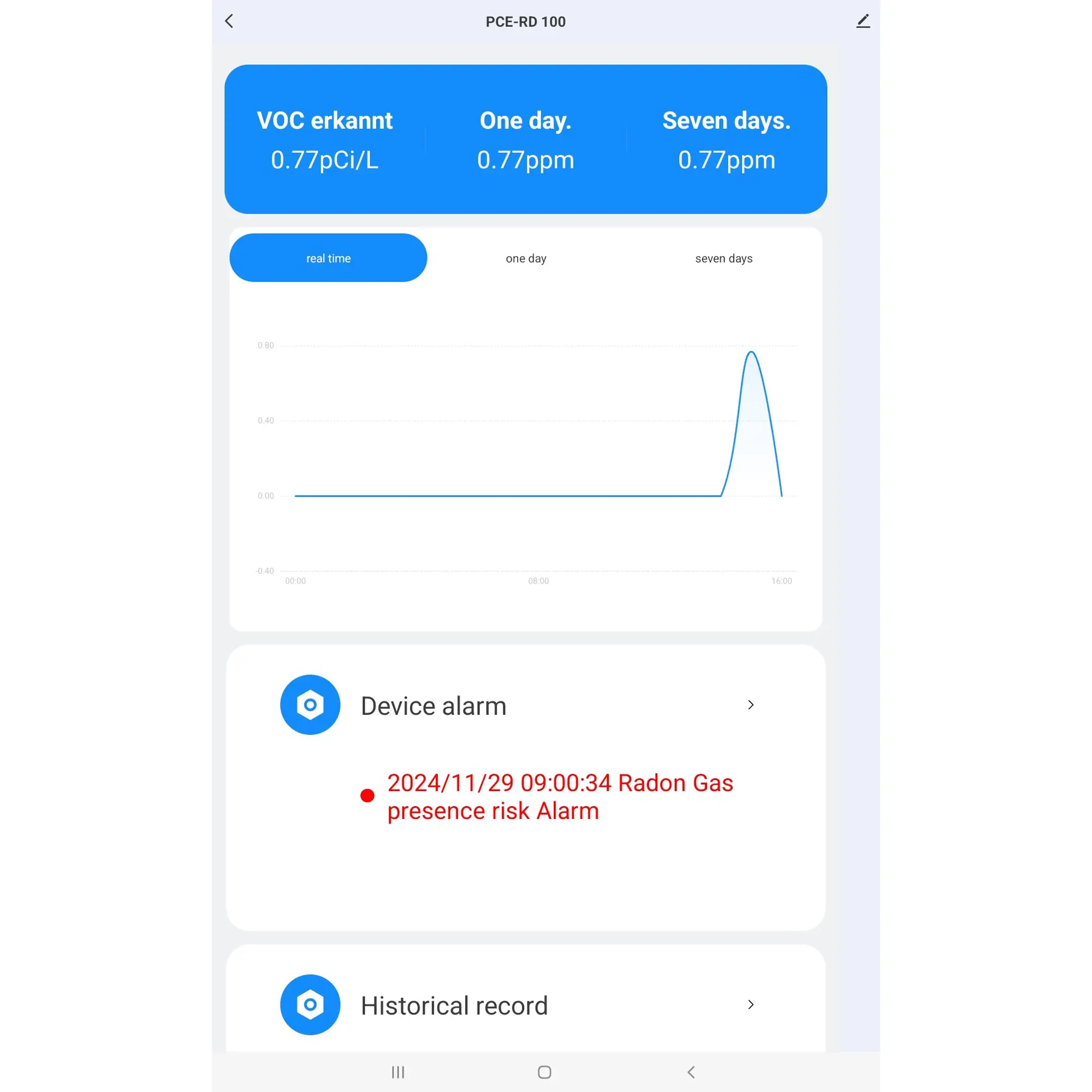

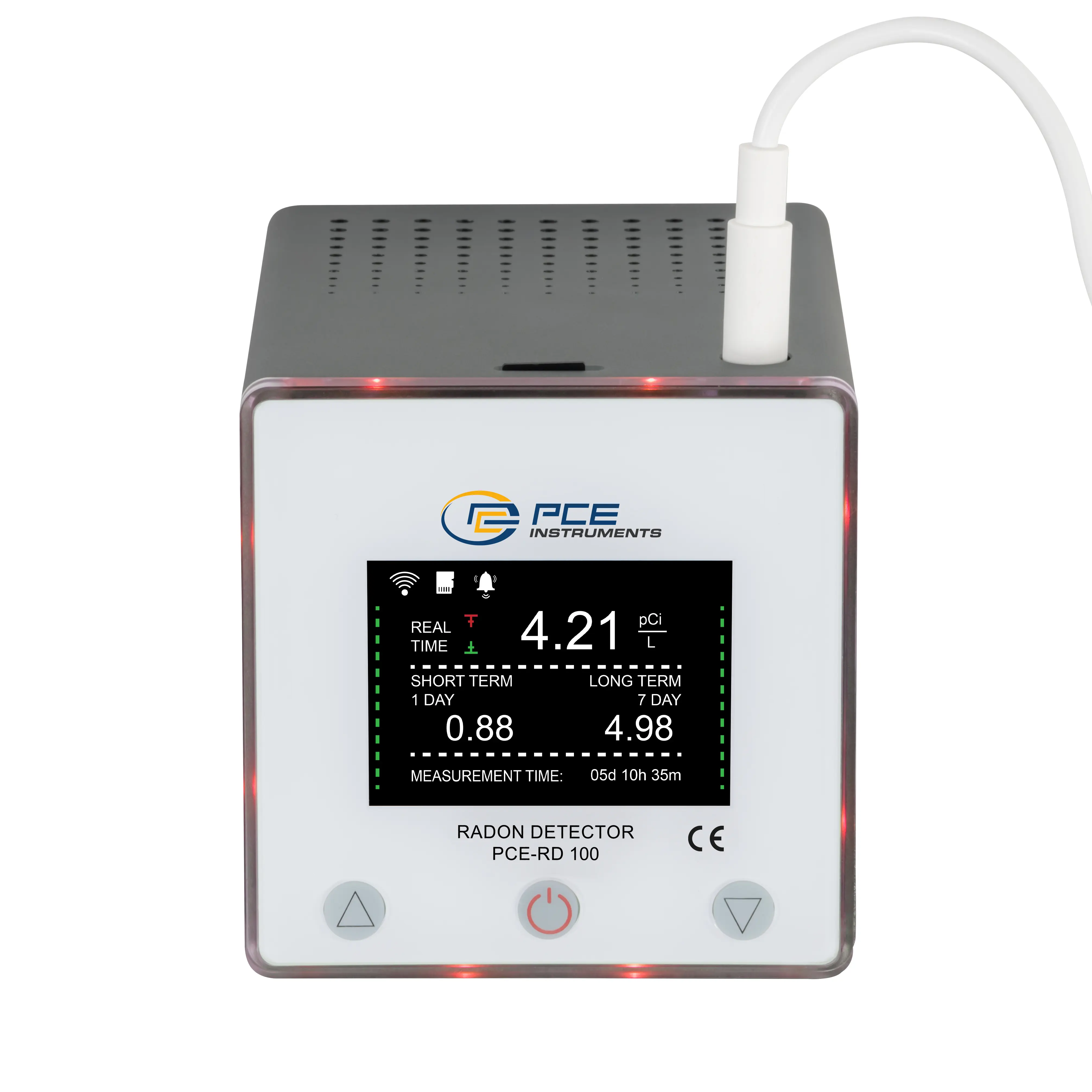

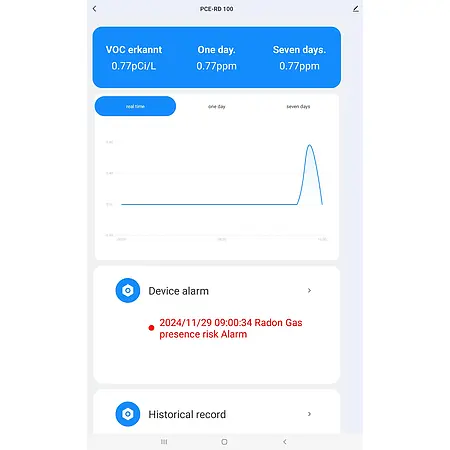

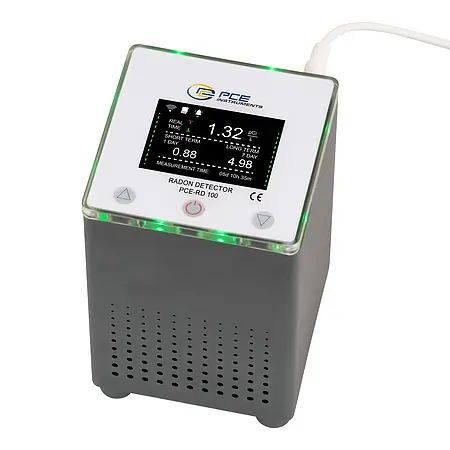

An integrated audible alarm and a coloured LED screen warn of increased radon levels. For radon values below 2.7 pCi/L, the display lights up in green. At values between 2.7 and 4 pCi/L, the display lights up in yellow with an audible alarm. If the value exceeds 4 pCi/L, the display lights up in red and a notification is sent to the smartphone. The threshold values for the alarm can also be set individually so that the user can adjust the threshold values to suit their own needs. Thanks to the WiFi connection, the measured values can be conveniently monitored and the Radiation Detector can be controlled remotely via the app. A 128 MB memory card continuously saves up to 12 months of data, which can be easily transferred to a computer as a csv file. The 2.3 inch TFT colour display clearly shows all relevant data. The Radiation Detector is powered by a stable power supply and therefore offers reliable, continuous monitoring. Our Radiation Detector is user-friendly, cost-effective and enables reliable monitoring of indoor radon concentrations.


Highlights

- sensor: pulsed ionisation chamber
- sensitivity: 30 CPH @ 1 pCi/L
- rteal-time data display
- data transfer to smartphone via WiFi
- data export to PC via memory card
- alarm: audible, visual
- green:* values below 2.7 pCi/L
- yellow:* values between 2.7 and 4 pCi/L (with audible alarm)
- red:* values above 4 pCi/L (incl. smartphone notification)
- TFT colour screen 2.4 inch

Specification

Radiation
Measurement range up to  0,1 ... 99,9 pCi/L
Resolution  0,01 pCi/L
Accuracy  <10 % @ 10 pCi/L

General technical data
Measuring functions (additional information)  Measured values: every 10 minutes, 1 day, 7 days
Display type  TFT colour display
Display size  2,3 Inch
Storage medium  Micro SD card
Storage capacity  128 MB
Memory information  Saves data continuously every 10 minutes for up to 12 months, transferable to PC
Interface  WiFi
Alarm  optical, Acoustic
Sensors  Pulsed ionisation chamber
Sensitivity  30 CPH @ 1 pCi/L
0.5 CPM @ 1 pCi/L
Menu language  English, English (GB)
Protection class (device)  IP20
Power supply  100 ... 240V AC | 50/60 Hz
Connector type  Euro plug
Operating conditions  1 ... 50 °C , 0 ... 80 % RH
Storage conditions  1 ... 50 °C , 0 ... 80 % RH
Dimensions ( L x W x H )  82 x 82 x 125 mm
Weight  394 g

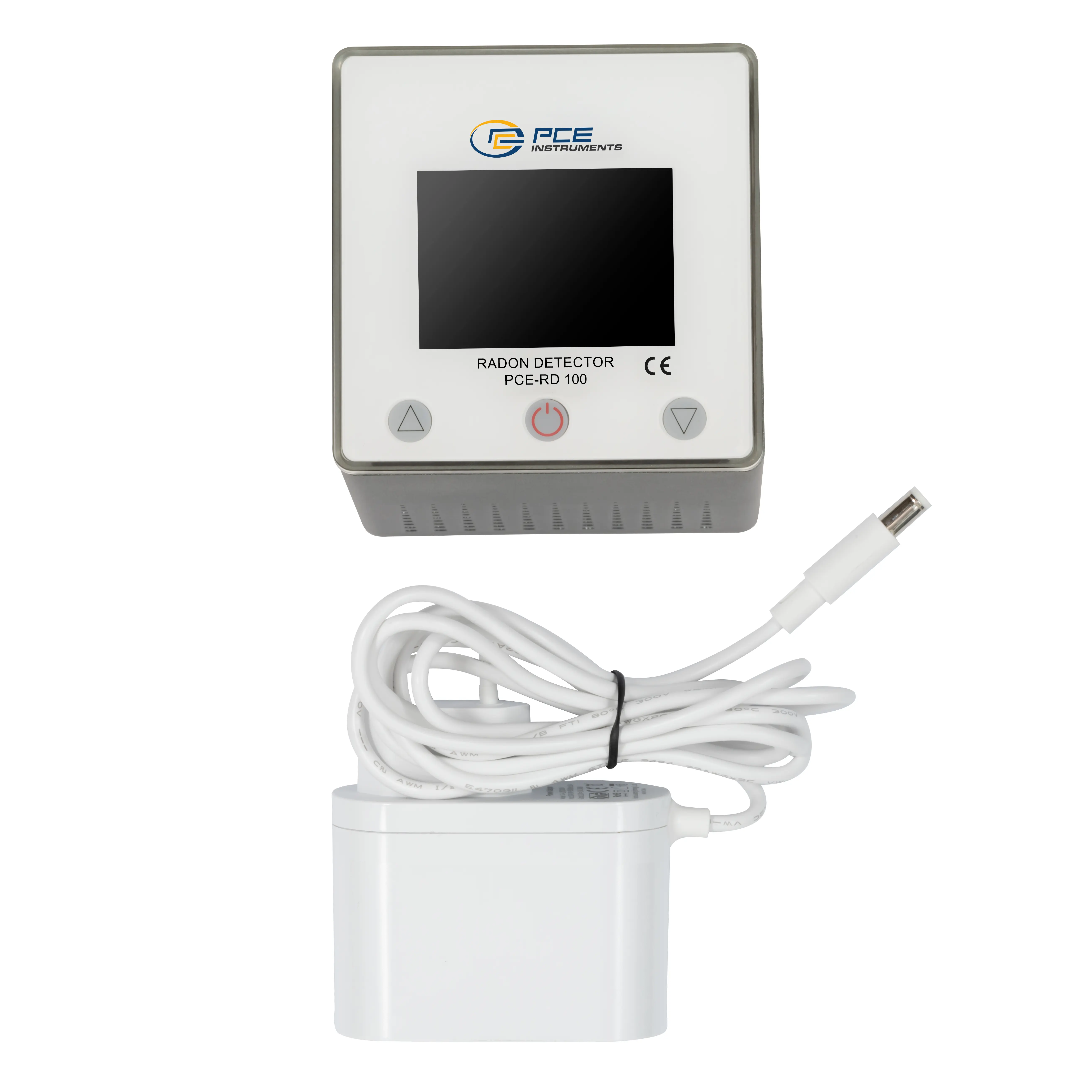

Delivery Scope

1 x Radiation Detector PCE-RD 100
1 x mains adaptor 12 V / 2 A
1 x user manual
You can find the app in the download area
