Handheld Refractometer PCE-Oe Winegrower

Order no.: PCE-Oe
GTIN (EAN): 4250348701091
₹10,252.00
₹12,097.36
price ex. (VAT / delivery)
:
4250348701091
PCE-Oe
Delivery time: 1-2 working days
Winemaking
Optical
Handheld
°Oe, Brix, KMN

Description

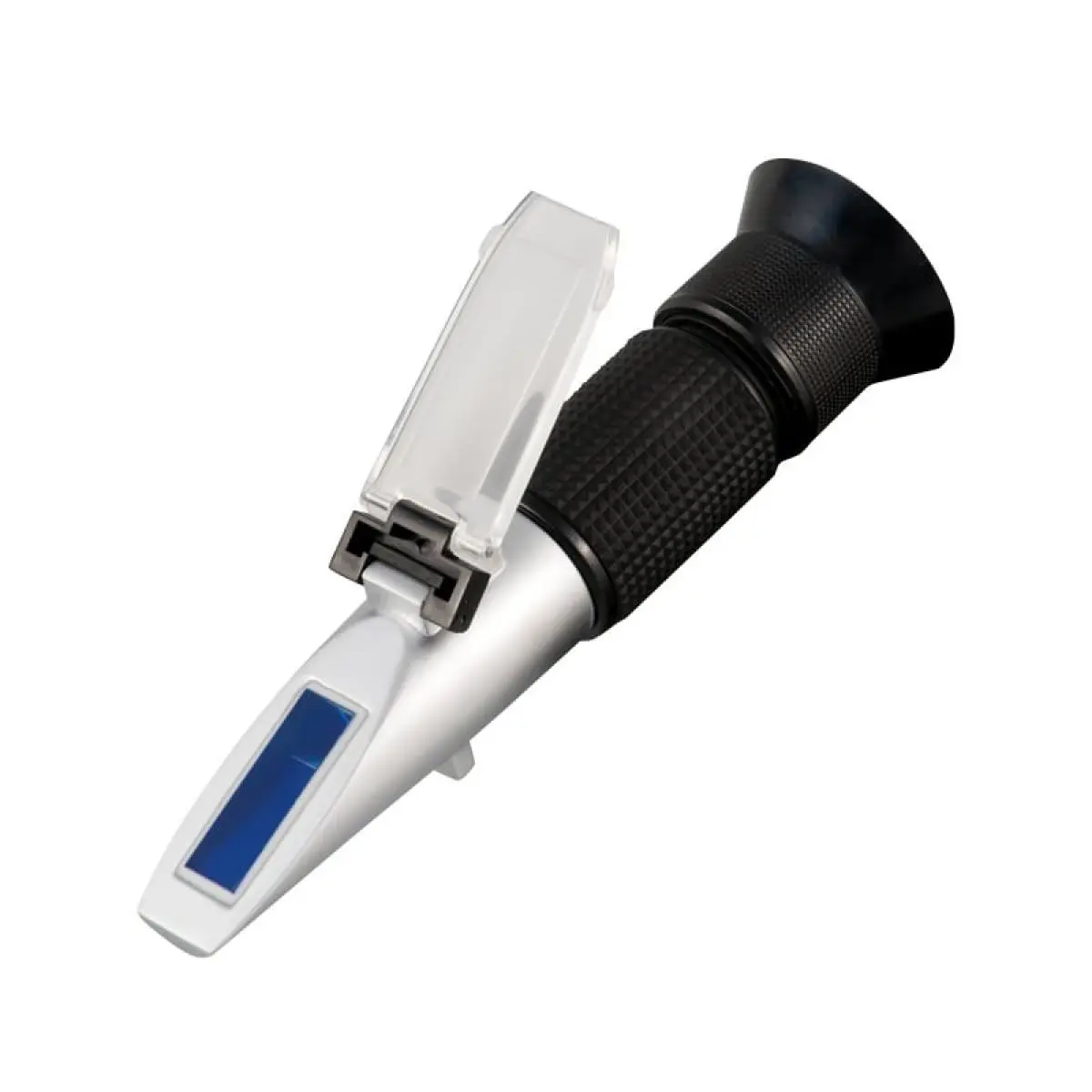

PCE-Oe Handheld Refractometer
Portable pocket refractometer for winemakers measures sugar content in °Oechsle (°Oe), % Brix / sac and KMN / babo

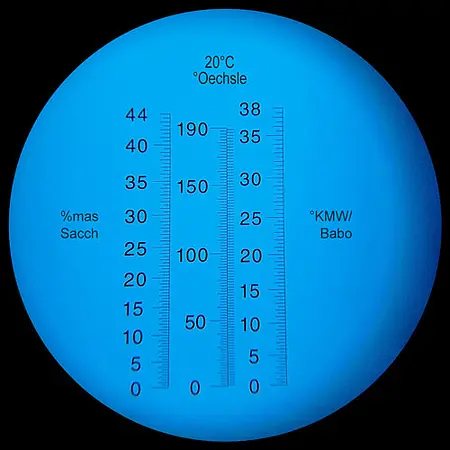

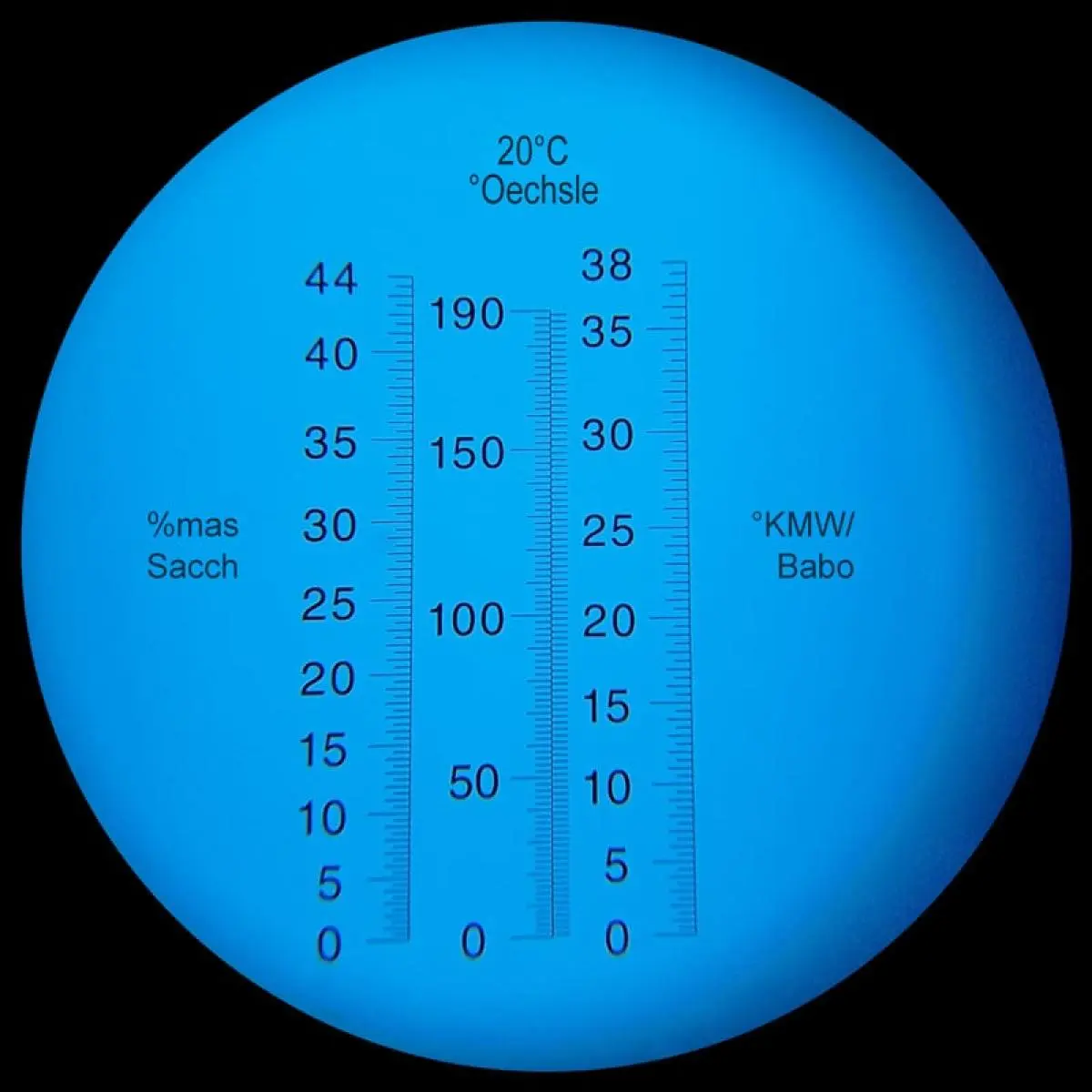

PCE-Oe is a handheld refractometer used by winemakers to determine the sugar content of unfermented grape juice to predict the alcohol content of wine. This portable pocket winemaker's refractometer has a triple scale to allow the user to view all three measurement parameters at once.

The ultra-smooth focusing eyepiece provides high-quality optics, presenting an easy-to-read scale on a semi-transparent blue and fully transparent clear background. Ambient room lighting offers ample illumination to clearly read the results.


Highlights

- Ideal for grape juice and wine making
- Ultra-smooth focusing eyepiece
- High-quality optics
- Easy-to-read scales
- Requires only ambient room lighting to clearly read results
- Handheld, portable and user friendly
- Equipped with automatic temperature compensation (ATC) for accurate measurement without recalibration
  after shifts in operating temperature

Specification

Sugar content measuring range
0 ... 90 °Oechsle (°Oe)
0 ... 44% Brix / sac
0 ... 25 KMN / babo

Resolution
1 °Oe
0.2% Brix / sac
0.2 KMN / babo

Accuracy
±2 °Oe
±0.2% Brix / sac
±0.5 KMN / babo

General specifications
Calibration: Zero calibration with distilled water at 20 °C / 68°F
Automatic temperature compensation (ATC) range: 10 ... 30 °C / 50 ... 86 °F
Dimensions: Approx. 172 x 20 mm diameter / 6.77 x 0.79" diameter
Weight: Approx. 260 g / 0.58 lb

Delivery Scope

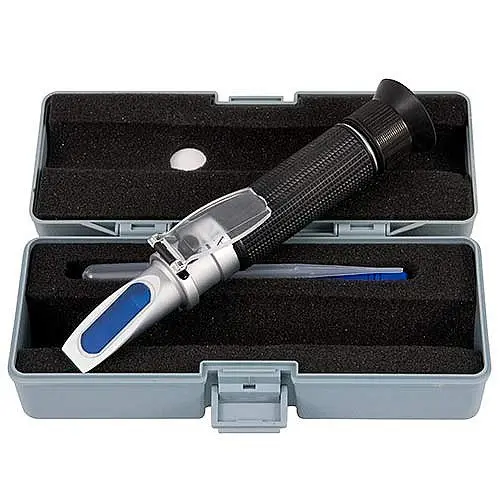

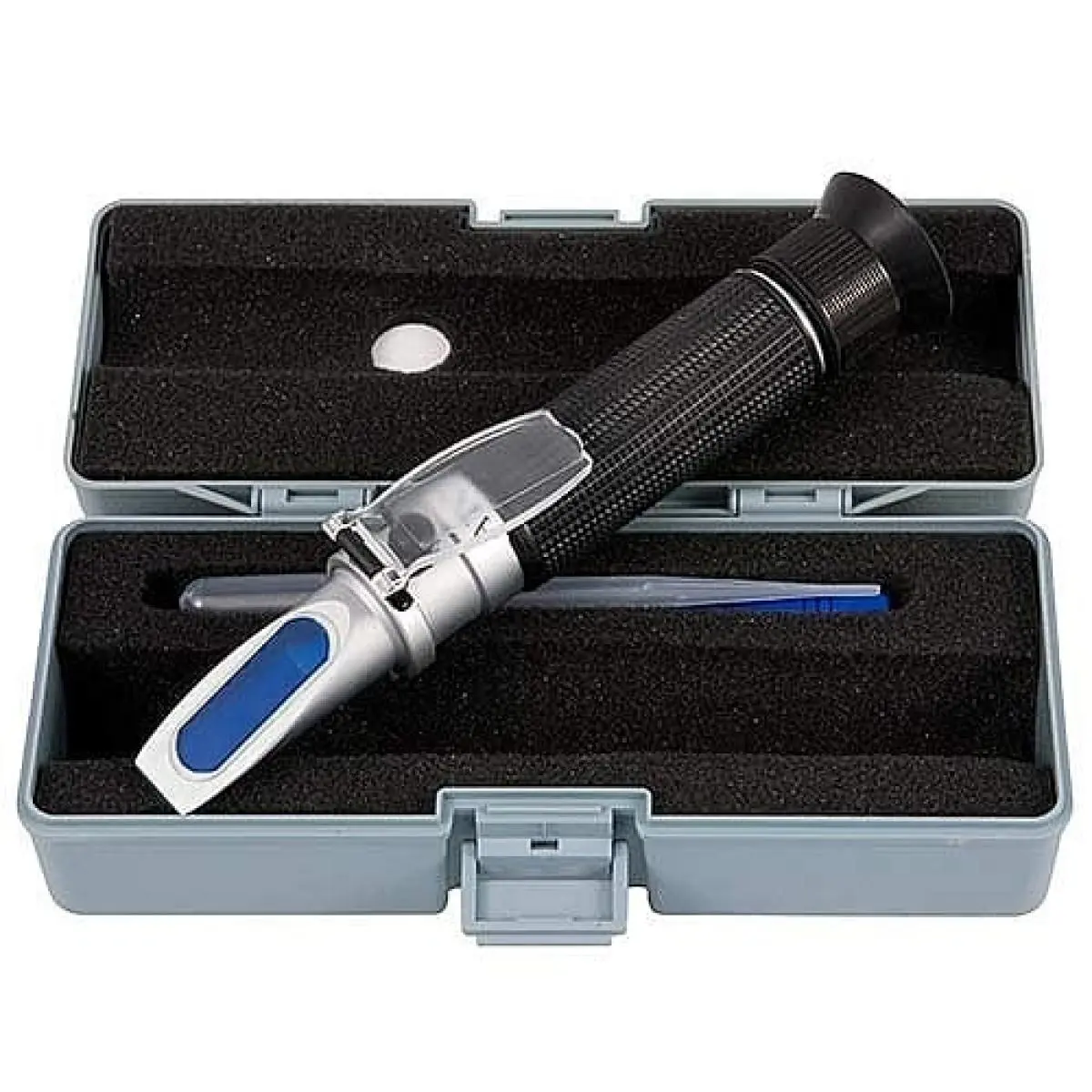

1 x PCE-Oe handheld refractometer
1 x pipette
1 x user manual
1 x carrying case
