Refrigerant Gauges PCE-LDC 8

Order no.: PCE-LDC 8
GTIN (EAN): 4250348722546
1 pc.

Description

Refrigerant Gauges for compressed air lines / easy handling / operating frequency 40 kHz /
Leak detection with the help of a headphone / robust device / battery operation

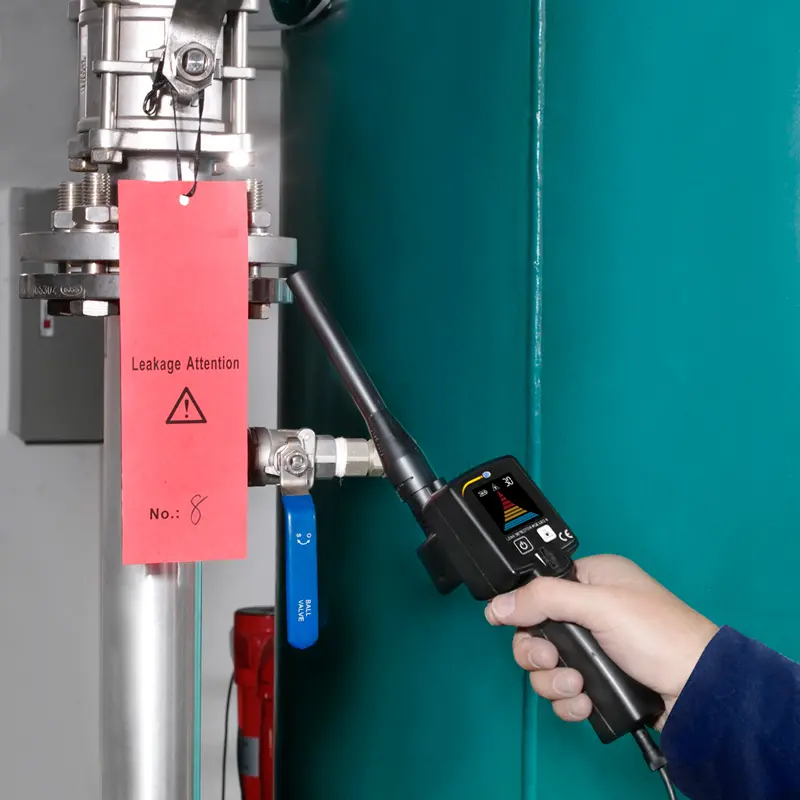

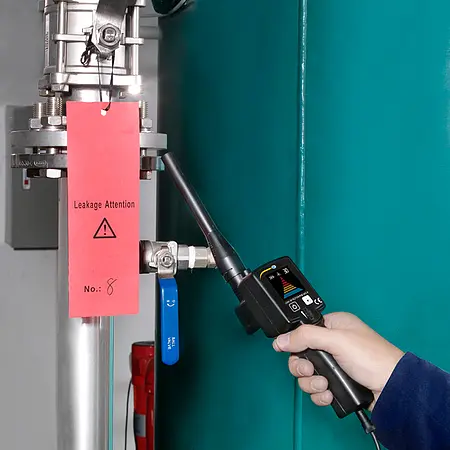

The Gas Refrigerant Gauges is used to locate leaks on compressed air lines. Furthermore, the Gas Refrigerant Gauges can also be used on coolant lines or gas lines for leak detection. The Gas Refrigerant Gauges is equipped with an ultrasonic sensor that can precisely detect leaks in air lines. The ultrasound sensor from the Gas Refrigerant Gauges works at a frequency of 40 kHz. This means that the Gas Refrigerant Gauges is calibrated to the medium frequency that leaks on pressure lines emit. This is in the range between 20 ... 80 kHz. A high-pass filter in the Refrigerant Gauges ensures that all noises are filtered at a frequency <40 kHz in order to perform a better leak detection. An integrated amplifier element in the Refrigerant Gauges ensures that the high-frequency tones,

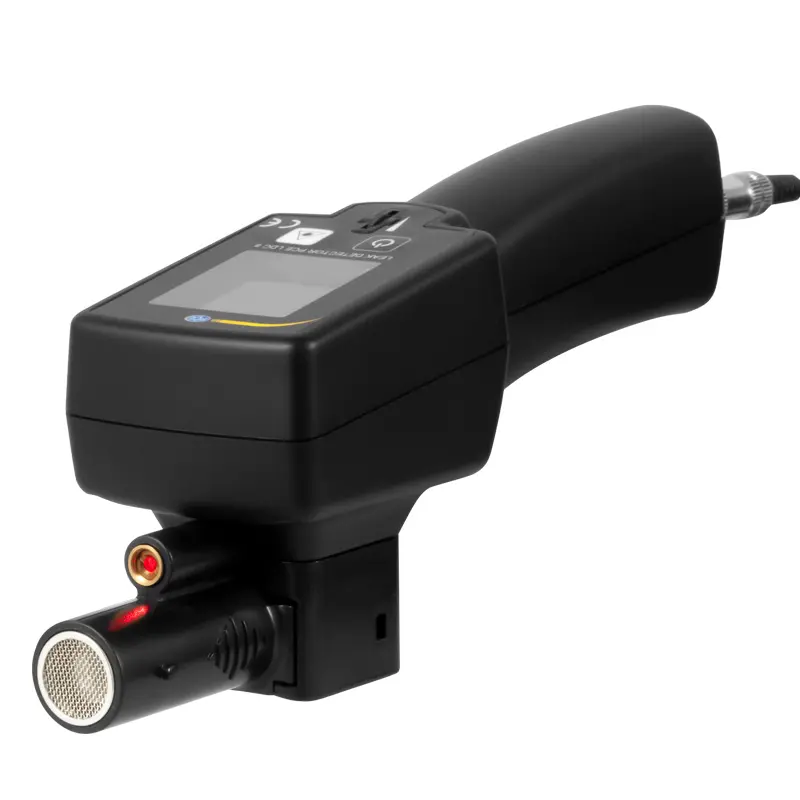

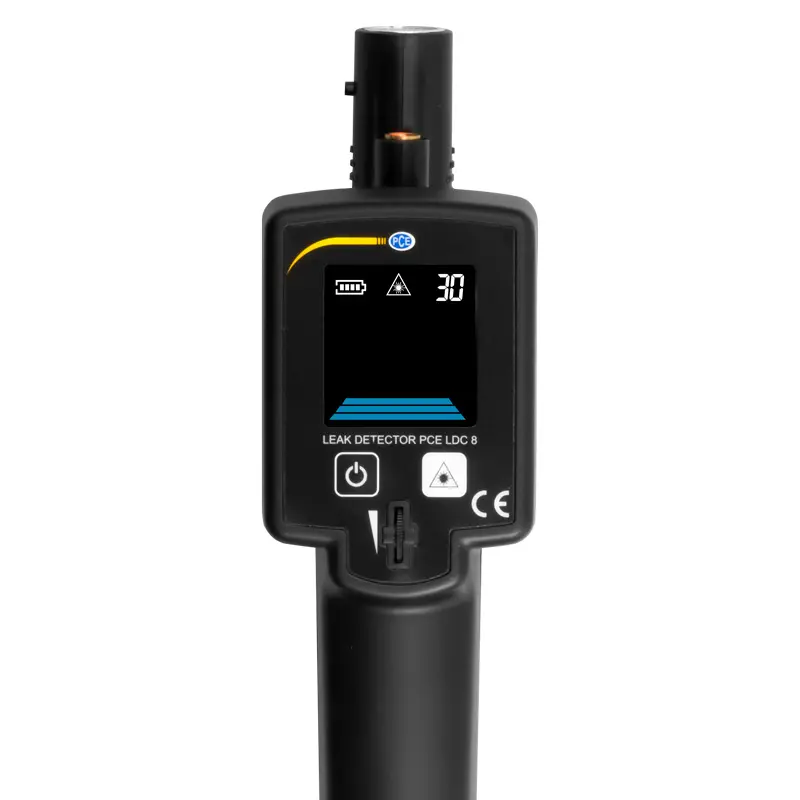

In addition to the acoustic detection of a leak in compressed air lines, the Gas Refrigerant Gauges shows the intensity of the ultrasound signal on a display. The sensor from the Gas Refrigerant Gauges has a laser pointer for better targeting of the pipes or pressure vessels. A lance can also be adapted to the sensor, which contributes to pinpoint leak detection. With the help of the Gas Refrigerant Gauges, depending on the operating pressure in the pipeline, the user can safely locate a leak from a distance of up to 18m, 59 ft. The Gas Refrigerant Gauges is operated with a rechargeable battery, which ensures that the Gas Refrigerant Gauges can be used for up to 6 hours. The Gas Refrigerant Gauges is delivered in a robust carrying case including all accessories.

Highlights

- Working frequency of 40 kHz
- easy to use
- up to 6 h battery operation

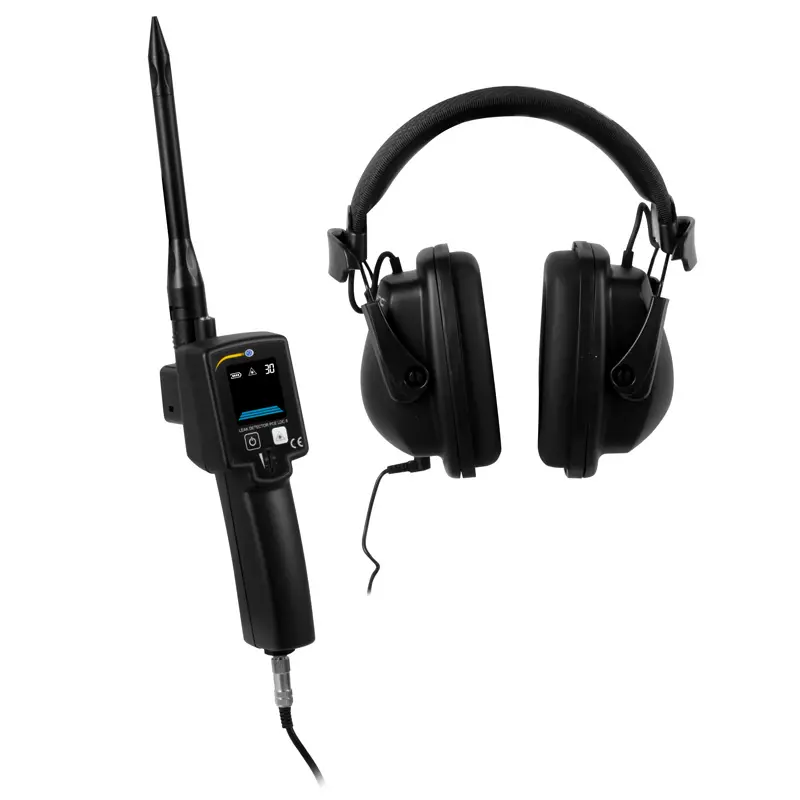

- Leak detection via headphones and LCD display
- robust and ergonomic
- Can be used over long distances

Specification

measuring principleUltrasonic
measuring mediumAir, coolant, non-explosive gases
operating frequency40 kHz ± 2 kHz
connections3.5 mm jack plug for sensor
 3.5 mm jack plug for headphones and charger
displayLC display
power supplyNiMH battery
operating timeapprox. 6 h without laser pointer
 approx. 4 h with laser pointer
charging timeabout 1.5 h
operating temperaturNormal operation: 0 ... 40 ° C
 Charging mode: 10 ... 40 ° C
laser2nd grade; <1mW; 650 nm
Dimensions7.54 x 3.44 x 2.09 in; 191.5 x 87.5 x 53 mm
Weightapprox. 250 g

Measurement options pressure vs. Diameter / range
printdiameterRange
0.5 bar0.1 mm6.6 ft, 2 m
 0.2 mm6.6 ft, 2 m
 0.5 mm32.8 ft, 10 m

printdiameterRange
5 bar0.1 mm26.2 ft, 8 m
 0.2 mm45.9 ft, 14 m
 0.5 mm59.1 ft, 18 m

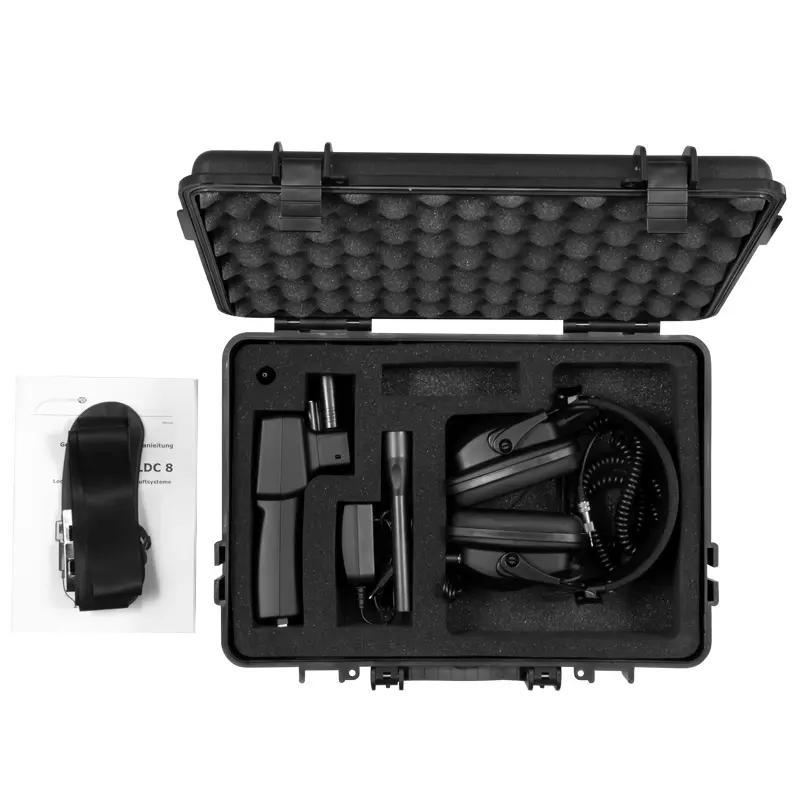

Delivery Scope

1 x Refrigerant Gauges PCE-LDC 8
1 x sensor unit
1 x headphones
1 x focus tube incl. focus tip
1 x sensor extension cable
1 x charger
1 x carrying case
1 x instruction manual
